Function Area - RGBlink CP 3096H Quick Start Manual

Button Instruction
USB1 external, corresponds to AUDIO1, AUDIO2 or AUDIO3, system default
USB1
corresponds to AUDIO1.
System default HDMI2 as internal, if set HDMI as external, it corresponds to AUDIO1,
HDMI2
AUDIO2 or AUDIO3.
DVI3 external, corresponds to AUDIO1, AUDIO2 or AUDIO3, system default
DVI3
corresponds to AUDIO1.
VGA4 external, corresponds to AUDIO1, AUDIO2 or AUDIO3, system default
VGA4
corresponds to AUDIO1.
CVBS5 external, corresponds to AUDIO1, AUDIO2 or AUDIO3, system default
CVBS5
corresponds to AUDIO1.
SDI, HDMI and DVI optional module.
System default SDI as internal, if set SDI as external, it corresponds to AUDIO1,
MODULE6/ AUDIO2 or AUDIO3.
MODULE7/ System default HDMI as internal, if set HDMI as external, it corresponds to AUDIO1,
MODULE8 AUDIO2 or AUDIO3.
DVI external, corresponds to AUDIO1, AUDIO2 or AUDIO3, system default
corresponds to AUDIO1.

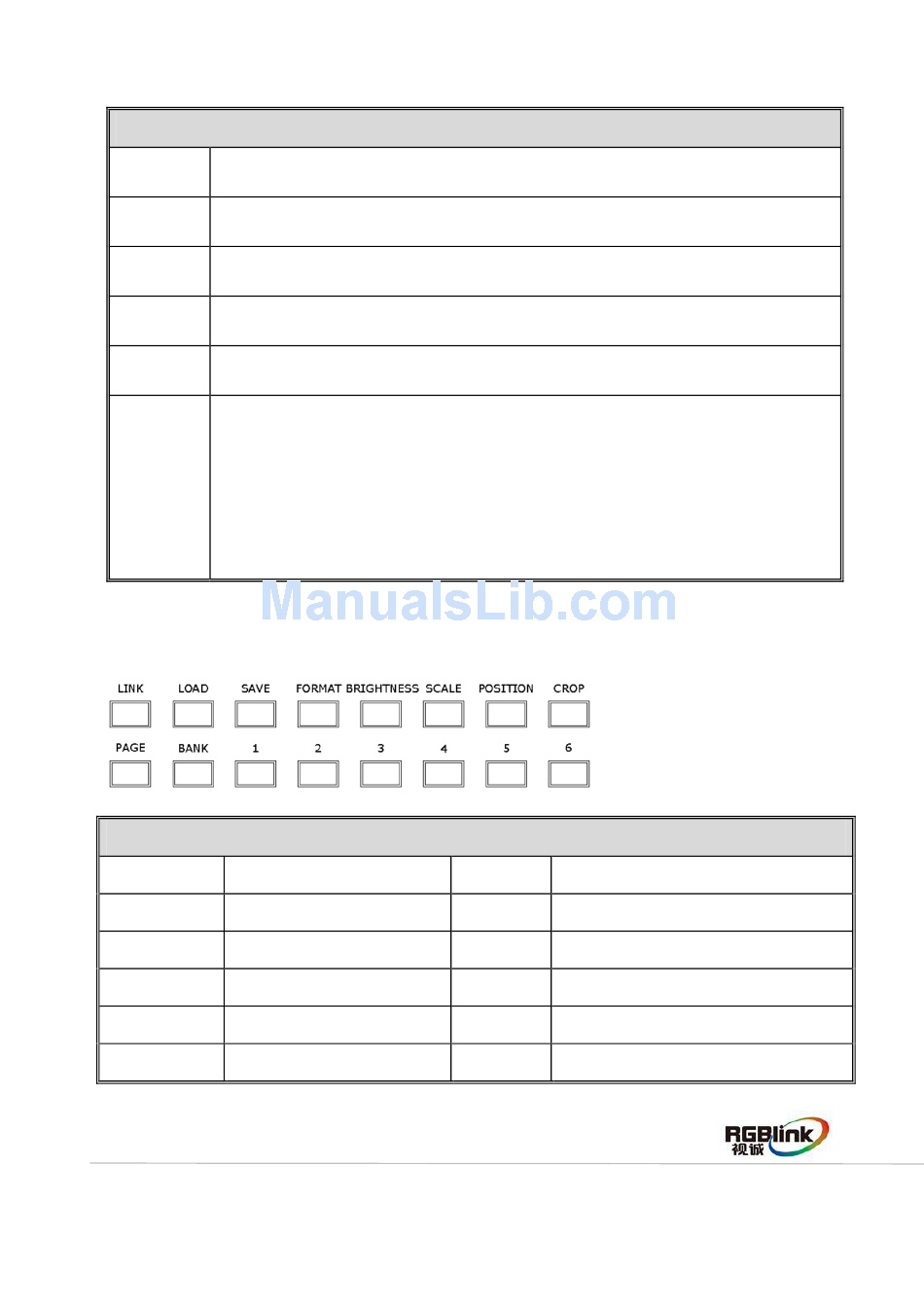

4. Function Area

Button Instruction
LINK Multiple cascade button
LOAD Load button
SAVE Save button
FORMAT Output formats button
BRIGHTNESS Brightness adjustment button
SCALE Scale button
Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
POSITION Position adjustment button
CROP Crop button
PAGE Total 2 pages, use for save and load
BANK Total 6 banks, use for save and load
1~6 Number button, use for save and load
6
