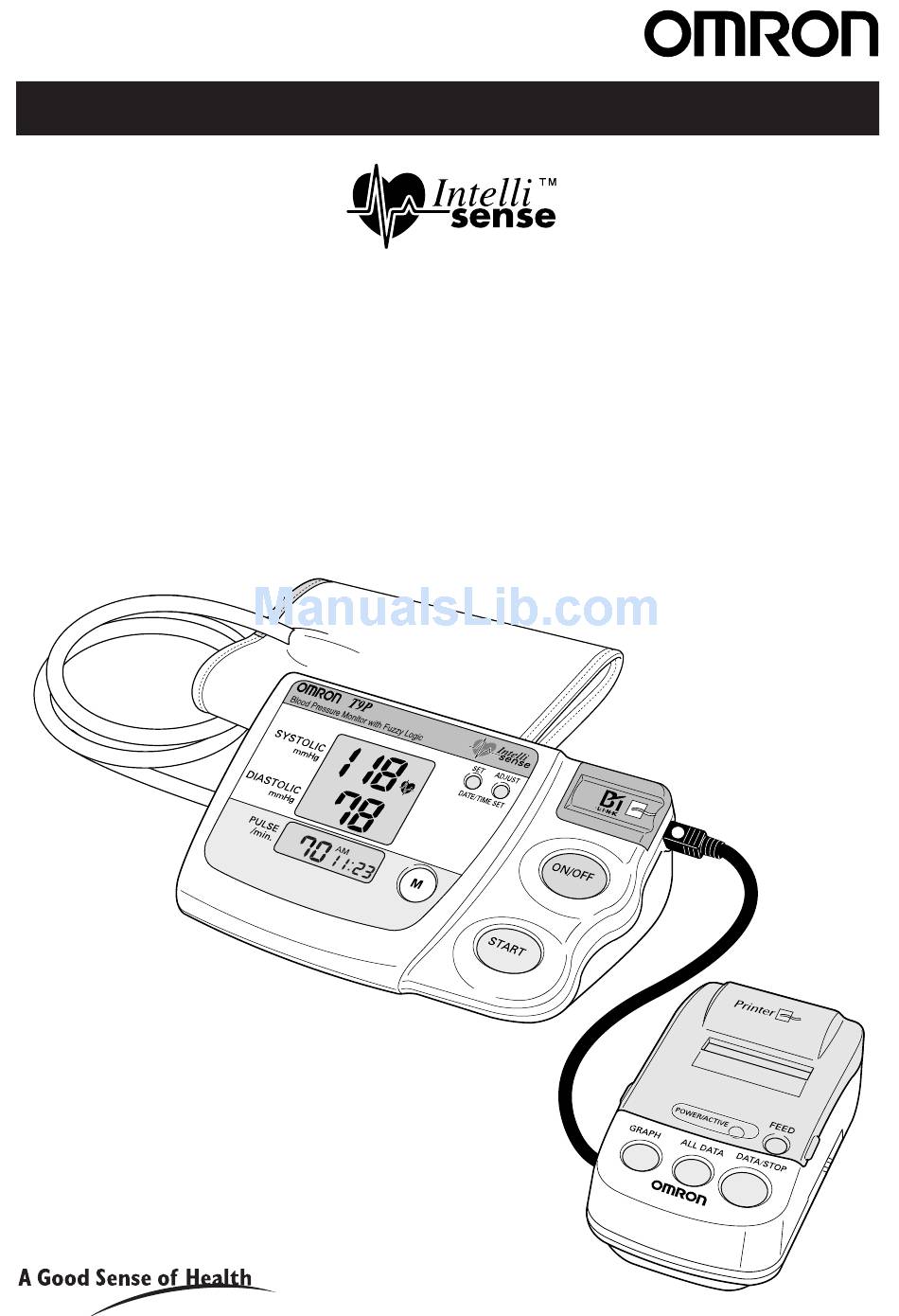

- Page 1 INSTRUCTION MANUAL Automatic Blood Pressure Monitor and Print-Out IntelliSense™ with Model...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TITLE TITLE Introduction....................3 Notes on Safety.....................4 Know Your Unit....................5 Quick Reference Guide ................6 Initial Set-Up ....................7 Battery Installation/Replacement............7 How to Set Time and Date ..............8 How to Use the Optional AC adapter.............9 Correct Usage .....................10 How to Apply Arm Cuff ..............10, 11 How to Take a Reading ..............12, 13 How to Use the Memory Function ............14 Printing......................15... -
Page 3: Introduction
INTRODUCTION TITLE TITLE Thank you for purchasing the Omron Automatic Blood Pressure Monitor and Print-Out with IntelliSense , T9P. Although your blood pressure fluctuates throughout the day, no self-adjustment is necessary as the monitor intelligently adjusts to your changing conditions. The... -
Page 4: Notes On Safety
NOTES ON SAFETY TITLE TITLE The warning signs and the sample icons shown here are listed for you to use the product safely and correctly as well as to prevent the risk and the damage to you and others from happening. The icons and meanings are as follow. -
Page 5: Know Your Unit
KNOW YOUR UNIT TITLE TITLE Main Unit: AC Adapter Jack Heart Symbol Adjust Date/Time Set Date/Time Systolic Blood Pressure Printer Jack Cuff Jack ON/OFF Button Diastolic Blood Pressure START Button Pulse Rate Memory Call Button Date/Time Display Printer-Unit: Printer Cover Printer Cable Plug Power/Operation Light... -
Page 6: Quick Reference Guide
QUICK REFERENCE GUIDE TITLE TITLE 1. Avoid eating, smoking, and exercising for at least 30 minutes before taking a measurement. 2. Remove tight-fitting clothing from your upper arm. 3. Sit in a chair with your feet flat on the floor and place your arm on a table so that the cuff is at the same level as your heart. -
Page 7: Initial Set-Up
BATTERY INSTALLATION/REPLACEMENT TITLE Main Unit: Printer Unit: 1. Slide the battery cover off in the direction of the arrow. 2. Install or replace 4 "AA" size batteries so the + (positive) and – (negative) polarities match the polarities of the battery compartment as indicated. -
Page 8: How To Set Time And Date
HOW TO SET TIME AND DATE TITLE 1. When the batteries are installed, the display will show 12:00a.m. 2. Press and hold the “SET” button. The year digits (2001) will flash. 3. Press the “ADJUST” button to advance the digit(s) one at a time. If you hold down the ADJUST button, the digits will advance rapidly. -
Page 9: How To Use The Optional Ac Adapter
OPTIONAL AC ADAPTER To avoid potential damage to the monitor, use only the optional AC adapter specified by Omron distributor. To connect the AC adapter 1. Insert the AC adapter plug into the AC Adapter jack on the back of the main unit. -
Page 10: Correct Usage
HOW TO APPLY THE ARM CUFF TITLE TITLE 1. If the cuff is assembled correctly, the hook material will be on the outside of the cuff loop and the metal D-ring will not touch your skin. 2. If the cuff is not assembled, pass the end of the cuff furthest from the tubing through the metal D-ring to form a loop. - Page 11 HOW TO APPLY THE ARM CUFF HOW TO APPLY THE ARM CUFF TITLE TITLE TITLE 5. Pull the cuff so that the top and bottom edges are tightened evenly around your arm. 6. When the cuff is positioned correctly, press the sewn hook material FIRMLY against the pile side of the cuff.
-
Page 12: How To Take A Reading
HOW TO TAKE A READING TITLE TITLE 1. Press the ON/OFF button. a) All display symbols appear for approximately one second. b) When the monitor becomes ready to measure, the Heart Symbol appears on the display. 2. Press the START button and remain still. As the cuff begins to inflate, the monitor automatically determines your ideal inflation level. - Page 13 HOW TO TAKE A READING TITLE TITLE Instructions for special conditions: If your systolic pressure is known to be more than 220 mmHg, push and hold the START button until the monitor inflates 30 to 40 mmHg higher than your suspected systolic pressure.
-
Page 14: How To Use The Memory Function
HOW TO USE THE MEMORY FUNCTION TITLE TITLE This monitor has a memory capable of storing twenty-eight (28) sets of readings. Every time you complete the measurement, the monitor automatically stores blood pressure and pulse rate. Push the button to recall stored readings while the Heart Symbol ( ) is displayed. -
Page 15: Printing
HOW TO CONNECT PRINTER UNIT TITLE 1. Remove printer cable plug from around printer unit. 2. Connect printer cable plug cord to the main unit. Arrow (8) on printer cable plug should face down to main unit. -
Page 16: How To Load Printer Paper
5. Thermal sensitive paper is supplied with the unit. Use only thermal paper of similar size (width approx. 38mm) and roll diameter (not to exceed approx. 26mm). These rolls of paper (model number HEM - PAPER - 759P) can be ordered from OMRON distributors. -
Page 17: How To Use The Printer-Unit
HOW TO USE THE PRINTER-UNIT TITLE The T9P has the ability to print all the readings stored in memory. NOTE: Make sure printer-unit is connected to main unit (see How to Connect Printer-Unit) Do not use printer-unit without loading printer paper (see How to Load Printer Paper). - Page 18 HOW TO USE THE PRINTER-UNIT TITLE The numerical print-out will list all stored readings (maximum of 28 readings) starting with the most recent reading to last stored reading: Diastolic Reading Systolic Reading Column Column Pulse Reading Month(s) Column mmHg /min D.
- Page 19 HOW TO USE THE PRINTER-UNIT TITLE 3. Press “GRAPH” button to print a graph of all stored readings (stores a maximum of 28 readings). Month(s) mmHg Last reading stored If reading is lower than 50 mmHg or higher than 200 mmHg, (;...
-
Page 20: Troubleshooting
Replace all four "AA" batteries is excessively low. with new batteries. Contact your nearest OMRON Problem caused by abnormal memory function. representative or dealer. If you continue to have difficulty obtaining a reading, contact your nearest OMRON representative or dealer. -
Page 21: Troubleshooting
Take paper jammed from the printer and install again No printer paper comes out Printer paper jammed Ran out of printer paper Purchase new printer paper If you continue to have difficulty printing, contact your nearest OMRON representative or dealer. -
Page 22: Care And Maintenance
CARE AND MAINTENANCE TITLE To protect your monitor from damage, please AVOID the following: Subjecting your monitor and cuff to extreme temperatures, humidity, moisture, and direct sunlight. Folding the cuff and tubing tightly. Inflating the monitor over 280 mmHg. Disassembling the monitor. Subjecting the monitor to strong shocks (for example, dropping the monitor on the floor.) Do not clean the monitor with volatile liquids. -
Page 23: Specifications
SPECIFICATIONS TITLE MAIN UNIT: Model: Display: LCD Digital Display Measurement Range: Pressure: 0 to 299 mmHg Pulse: 40 to 180/minute Accuracy/Calibration: Pressure: ±4 mmHg Pulse: ±5% of reading Inflation: Automatic by electric pump Deflation: Active electronic control valve Rapid Pressure Release: Active electronic control valve Pressure Detection: Capacitive pressure sensor... -
Page 24: About Blood Pressure
