- Page 1 HEM-7211-C1_B_M01_100427.pdf HEM-7211-C1_B_M.book Page 1 Tuesday, April 27, 2010 4:00 PM Automatic Blood Pressure Monitor Model HEM-7211 Instruction Manual...
-
Page 2: Table Of Contents
HEM-7211-C1_B_M.book Page 2 Tuesday, April 27, 2010 4:00 PM Contents Before using the unit Introduction ................3 Important Safety Information ............ 4 1. Overview ................7 2. Preparation ................. 10 Installing/Replacing the Batteries ..........10 Setting the Date and Time ............11 Operating instructions 3. -
Page 3: Before Using The Unit
Thank you for purchasing the OMRON HEM-7211 Automatic Blood Pressure Monitor. The OMRON HEM-7211 is a compact, fully automatic blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly. Equipped with Dual Check System and Cuff Wrapping Guide, HEM-7211 provides accurate and anxiety-free blood pressure measurement everyday. -
Page 4: Important Safety Information
HEM-7211-C1_B_M.book Page 4 Tuesday, April 27, 2010 4:00 PM Important Safety Information Important Safety Information Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis. Please read this section carefully before using the unit. Warning: •... - Page 5 HEM-7211-C1_B_M.book Page 5 Tuesday, April 27, 2010 4:00 PM Important Safety Information (General Usage) • Do not leave the unit unattended with infants or persons who cannot express their consent. • Do not use the unit for any purpose other than measuring blood pressure.
- Page 6 HEM-7211-C1_B_M.book Page 6 Tuesday, April 27, 2010 4:00 PM Important Safety Information (Battery Usage) • If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water. • Use only four “AA” alkaline or manganese batteries with this unit. Do not use other types of batteries.
-
Page 7: Overview

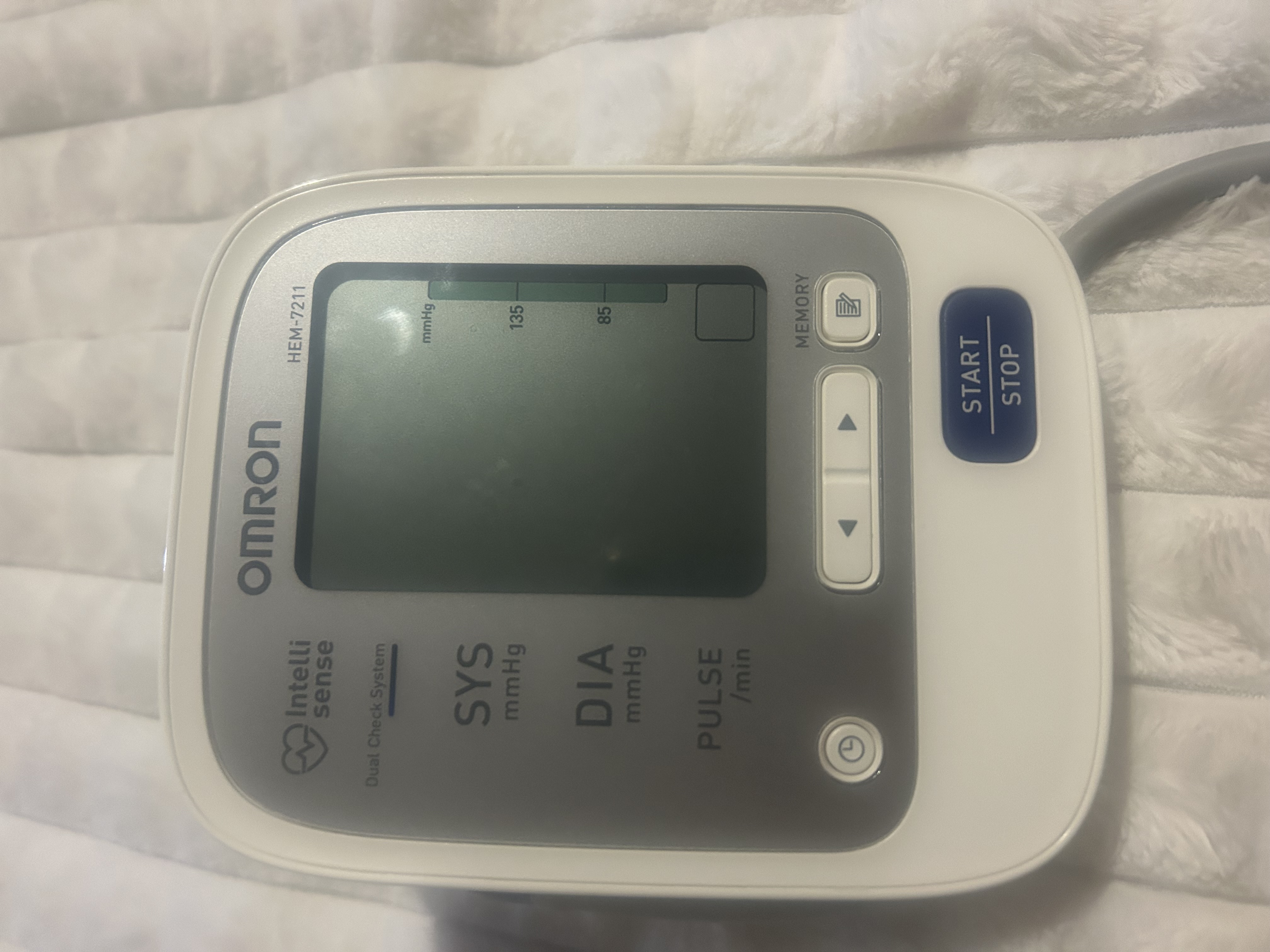

HEM-7211-C1_B_M.book Page 7 Tuesday, April 27, 2010 4:00 PM 1. Overview 1. Overview Main Unit: A. Display G. Battery compartment B. Memory button H. AC adapter jack (for optional AC adapter) C. START/STOP button D. Up/Down ( ) buttons E. Date/Time setting ( ) button F. - Page 8 HEM-7211-C1_B_M.book Page 8 Tuesday, April 27, 2010 4:00 PM 1. Overview Arm Cuff: I. Arm cuff (Medium cuff: arm circumference 22-32 cm) J. Coloured Marker K. Air tube L. Air plug Storage case:...
- Page 9 HEM-7211-C1_B_M.book Page 9 Tuesday, April 27, 2010 4:00 PM 1. Overview Display: M. Date/Time display S. Average value symbol N. Dual Check System T. Memory symbol O. Systolic blood pressure U. Irregular heartbeat symbol P. Diastolic blood pressure V. Movement error symbol Q.
-
Page 10: Preparation
HEM-7211-C1_B_M.book Page 10 Tuesday, April 27, 2010 4:00 PM 2. Preparation 2. Preparation Installing/Replacing the Batteries Remove the battery cover. Insert four “AA” batteries as indicated in the battery compartment and then replace the battery cover. Notes: • If the battery low symbol ) appears on the display, turn the unit off then replace all batteries at the same time. -
Page 11: Setting The Date And Time
HEM-7211-C1_B_M.book Page 11 Tuesday, April 27, 2010 4:00 PM Operating instructions 2. Preparation Setting the Date and Time Press the button. Set the monitor to the correct date and time before taking a measurement for the first time. Push buttons to change. -
Page 12: Using The Unit
HEM-7211-C1_B_M.book Page 12 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit 3. Using the Unit Applying the Arm Cuff Remove tight-fitting clothing or tight rolled up sleeve from your upper arm. Do not place the cuff over thick clothes. - Page 13 HEM-7211-C1_B_M.book Page 13 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit The bottom edge of the cuff should be 1 to 2 cm above the elbow. Marker (arrow under tube) is centred on the middle of your inner arm.
-
Page 14: How To Sit Correctly
HEM-7211-C1_B_M.book Page 14 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit How to Sit Correctly To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. No bathing, drinking alcohol or caffeine, smoking, exercising or eating 30 minutes before taking a measurement. -
Page 15: Taking A Reading
HEM-7211-C1_B_M.book Page 15 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit Taking a Reading Notes: • To cancel a measurement, press the START/STOP button to turn the unit off and to release the air in the arm cuff. - Page 16 HEM-7211-C1_B_M.book Page 16 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit Cuff Wrapping Guide This monitor checks whether the cuff is applied correctly during the inflation. When the cuff is applied correctly, is displayed while taking a measurement or using the memory function. If the cuff is not applied correctly, is displayed.
- Page 17 HEM-7211-C1_B_M.book Page 17 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit • Your blood pressure monitor includes an irregular heartbeat feature. Irregular heartbeats can influence the results of the measurement. The irregular heartbeat algorithm automatically determines if the measurement is usable or needs to be repeated.
-
Page 18: Using The Memory Function
HEM-7211-C1_B_M.book Page 18 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit Using the Memory Function The monitor automatically stores the result up to 90 sets. It can also calculate an average reading based on the measurements from the last three readings taken within 10 minutes. If there are only two readings in memory for that period, the average will be based on two readings. -
Page 19: To Delete All The Values Stored In Memory
HEM-7211-C1_B_M.book Page 19 Tuesday, April 27, 2010 4:00 PM 3. Using the Unit To View the Readings Stored in Memory Press the button, while the average value is displayed. The Memory number appears Alternating date/ for a second before the pulse time display rate is displayed. -
Page 20: Troubleshooting And Maintenance
HEM-7211-C1_B_M.book Page 20 Tuesday, April 27, 2010 4:00 PM 4. Troubleshooting and Maintenance 4. Troubleshooting and Maintenance The Icons and Error Messages Error Display Cause Remedy Remove the arm cuff. Wait 2-3 minutes and then take another measurement. Irregular heartbeats are detected. -
Page 21: Error Messages
HEM-7211-C1_B_M.book Page 21 Tuesday, April 27, 2010 4:00 PM 4. Troubleshooting and Maintenance Error Display Cause Remedy Repeat measurement. Remain still and do not talk during measurement. Refer to section 3.3. Cuff over inflated. If “E2” appears repeatedly, inflate the cuff manually until it is 30 to 40 mmHg above your previous measurement result. -
Page 22: Troubleshooting
HEM-7211-C1_B_M.book Page 22 Tuesday, April 27, 2010 4:00 PM 4. Troubleshooting and Maintenance Troubleshooting Problem Cause Remedy Apply the arm cuff Arm cuff not applied correctly. correctly. Refer to section 3.1. Remain still and do not Movement or talking talk during measurement. - Page 23 HEM-7211-C1_B_M.book Page 23 Tuesday, April 27, 2010 4:00 PM 4. Troubleshooting and Maintenance Problem Cause Remedy • Press the START/STOP button and repeat measurement. • If the problem continues, try replacing the batteries Other problems. with new ones. If this still does not solve the problem, contact your...
-
Page 24: Maintenance
HEM-7211-C1_B_M.book Page 24 Tuesday, April 27, 2010 4:00 PM 4. Troubleshooting and Maintenance Maintenance To protect your unit from damage, please observe the following: • Do not subject the main unit and the cuff to extreme temperatures, humidity, moisture or direct sunlight. -
Page 25: Storage
HEM-7211-C1_B_M.book Page 25 Tuesday, April 27, 2010 4:00 PM 4. Troubleshooting and Maintenance Calibration and Service • The accuracy of this blood pressure monitor has been carefully tested and is designed for a long service life. • It is generally recommended to have the unit inspected every two years to ensure correct functioning and accuracy. -
Page 26: Optional Parts
HEM-7211-C1_B_M.book Page 26 Tuesday, April 27, 2010 4:00 PM 5. Optional Parts 5. Optional Parts Medium Arm Cuff Large Arm Cuff Small Arm Cuff Arm circumference Arm circumference Arm circumference 22 - 32 cm 32 - 42 cm 17 - 22 cm AC Adapter “R”... -
Page 27: Technical Data
HEM-7211-C1_B_M.book Page 27 Tuesday, April 27, 2010 4:00 PM 6. Technical Data 6. Technical Data Product Description Automatic Blood Pressure Monitor Model HEM-7211 Display LCD Digital Display Measurement Method Oscillometric method Measurement Range Pressure: 0 to 299 mmHg Pulse: 40 to 180/min. - Page 28 This medical device manufactured by OMRON Healthcare conforms to this EN60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: •...
- Page 29 HEM-7211-C1_B_M.book Page 29 Tuesday, April 27, 2010 4:00 PM OMRON HEALTHCARE Co., Ltd. 24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto 615-0084, JAPAN OMRON HEALTHCARE EUROPE B.V. Kruisweg 577, 2132 NA Hoofddorp THE NETHERLANDS www.omron-healthcare.com OMRON HEALTHCARE SINGAPORE PTE LTD. Asia Pacific HQ...
