Page 1: Quick Start Guide
UltraView IP XP4 Box Day/Night Range Camera Quick Start Guide P/N 1234567A-EN • REV 1.0 • ISS 19DEC12... - Page 2 © 2012 UTC Fire & Security Americas Corporation, Inc. Copyright Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. The UltraView name and logo are trademarks of United Trademarks and Technologies.
-
Page 3: Package Contents

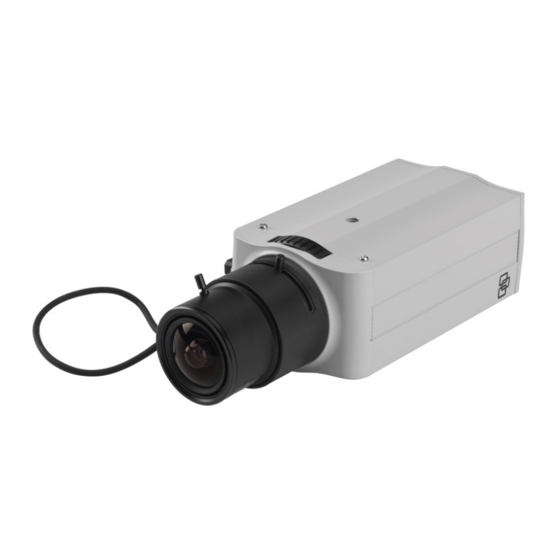

Introduction The UltraView IP XP4 box day/night range camera uses a digital signal processor (DSP) to process video signals. The video camera includes a microcontroller to provide high-quality images with high-color reproduction and sharp pictures. Product codes: • UVC-IP-XP4DN-HR • UVC-IP-XP4DN-HR-P Package contents The camera is shipped with the following items:... -
Page 4: Camera Description
Camera description Figure 1: Side view of box camera 1. Auto iris lens connector 2. Camera Video-type auto iris lens 3. Back focus adjustment connection: 4. Lens (auto iris lens shown. A. Video (white); B. Power; Manual lens has no cable.) C. -
Page 5: Connecting The Devices
Connecting the devices 1. Power LED. 5. Alarm input and output. Connect to be able to trigger 2. Reset button. an alarm at the network Press to reset camera to device. factory default settings. 6. Power supply. 3. Ethernet RJ45 port. Connect 12 VDC or 24 VDC Connect to network devices. -
Page 6: Accessing The Camera Over The Internet
Figure 2: DIP switch layout (rear of camera) Switch Description White balance ON: ATW mode; OFF: PTL mode Backlight compensation ON: BLC on; OFF: BLC off AI/AE exposure ON: Auto exposure (AE) mode; OFF: Auto iris (AI) mode Day/Night setting ON: Black and white mode;... -
Page 7: Overview Of The Web Browser Window
The settings return to factory default. For detailed descriptions on the functions, please refer to the user manual. Contact information For contact information see our Web site: www.interlogix.com or www.utcfssecurityproducts.eu. UltraView IP XP4 box day/night range camera 5 EN... - Page 8 EN 6 UltraView IP XP4 box day/night range camera...
