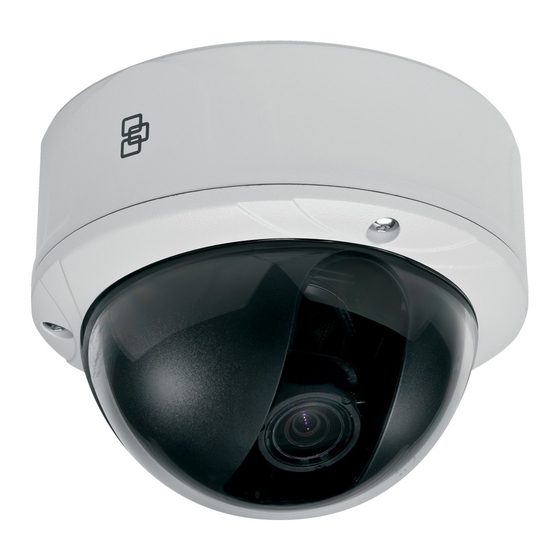

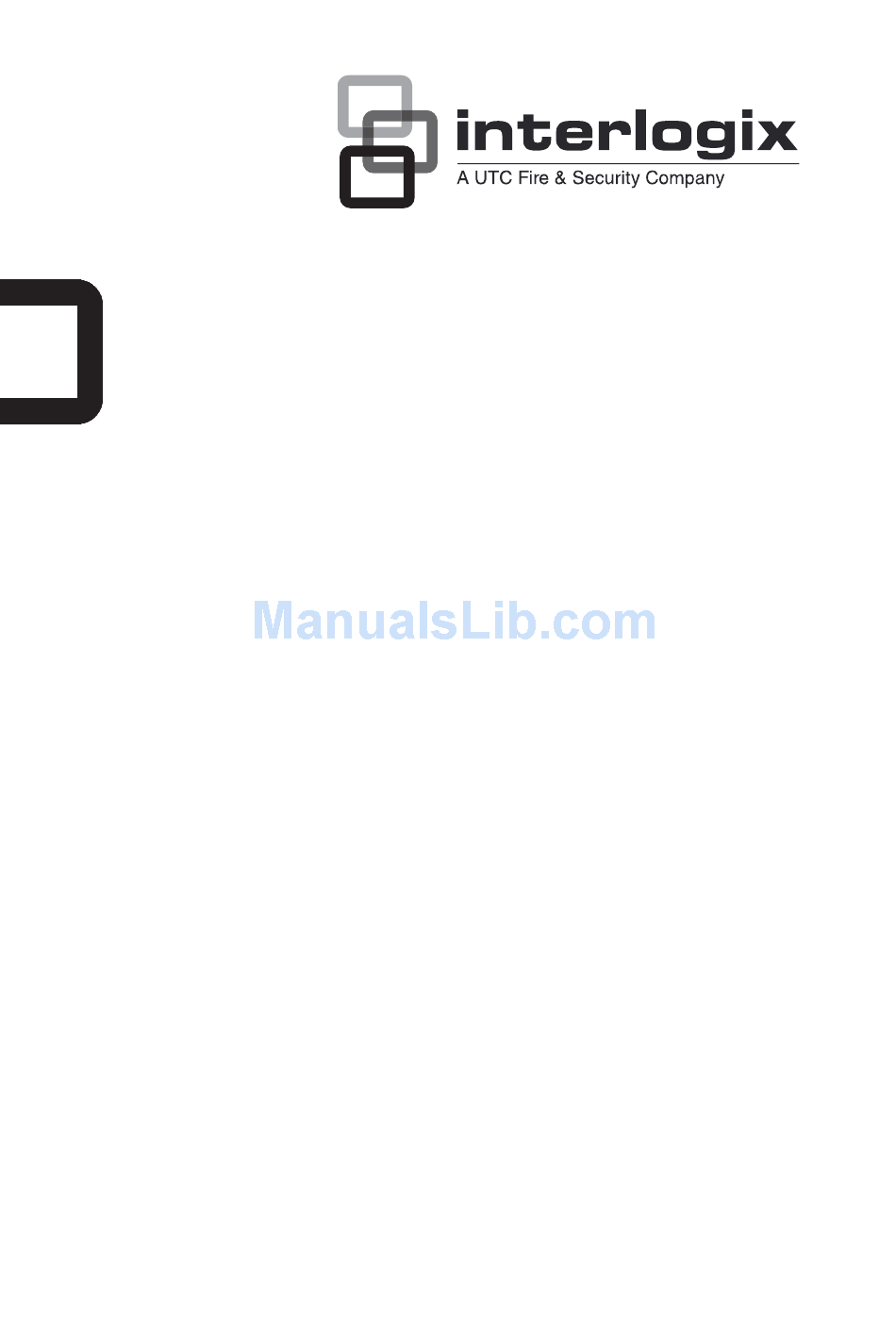

- Page 1 UltraView IP XP4 Dome Day/Night Range Camera Guide Quick Start P/N 1072567B-EN • REV 1.0 • ISS 23JUL12...
-
Page 2: Package Contents
(DSP) to process video signals. The video camera includes a microcontroller to provide high-quality images in changing lighting environments with high-color reproduction and sharp pictures. Product codes: • UVD-IP-XP4DNR-VA2(-P) • UVD-IP-XP4DNR-VA9(-P) Package contents The UVD-IP-XP4DNR(-P) camera is shipped with the following items: •... -
Page 3: Camera Description
Camera description Figure 1: Camera assembly Camera body RJ45 Ethernet/PoE input 24 VAC / 12 VDC input Video output (BNC) Plenum-compliant cabling The cable connections must be enclosed in a suitable metallic, or other fire-resistant, low-smoke producing enclosure. The cabling used within the air space must be specifically marked for that purpose or enclosed in a conduit. -
Page 4: Installation
Figure 2: Plenum-compliant cabling 1. Plenum-rated conduit 4. Ceiling 2. Box for connections 5. Camera body 3. Threaded knockouts 6. Trim ring Installation Viewing the camera via an IP connection You can connect the IP camera to a network and view the images through a browser. - Page 5 Figure 3: ActiveX plug-in option To configure the camera: 1. Configure the UVD-IP camera with a default IP address: 10.1.2.11 2. Configure your host PC/laptop within the same subnet, ex: 10.1.2.10 3. Connect the URL http://10.1.2.11 with Internet Explorer. 4. Select the “Live” menu to view live video. 5.
-
Page 6: Connecting Analog Cables
Connecting analog cables To connect the cables: Connect a coaxial cable from the camera’s BNC connector to a CCTV monitor or video recording device. Connect Ethernet cable from the camera RJ45 port to switch 3. Connect a PoE switch, a 12 VDC or 24 VAC power supply to the power input. -
Page 7: Zoom And Focus Adjustment
Figure 4: Camera adjustment Platform horizontal adjustment Platform vertical adjustment Rotor horizontal adjustment Zoom and focus adjustment See Figure 5 below for the location of the zoom and focus ring thumbscrews. Figure 5: Zoom and focus adjustment Zoom ring thumbscrew for Focus ring thumbscrew for VA2 and focus ring for VA2 and zooming ring for... -
Page 8: Reset To Factory Default Settings
With the camera powered up, press the red reset button for 10 to 15 seconds. The red LED indicator light flashes when the reset signal is accepted. Contact information For contact information see our Web site: www.interlogix.com EN 8 UltraView IP XP4 Dome Day/Night Range Camera...
