Direct-vent gas fireplaces

Advertisement

P/N 900079-00 Rev. NC 02/2014
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 900079-01.
P900079-00
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
WARNING AVERTISSEMENT AVISO
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING: If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not
use any phone in your building.
Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
Installation and Operation Instructions

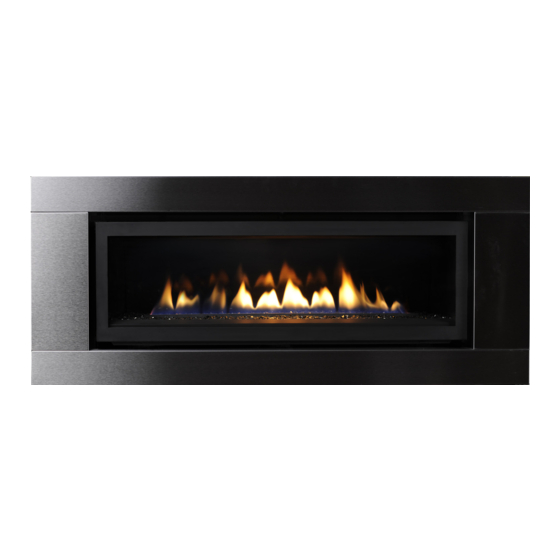

Astria™ Sirius Linear Direct-Vent Gas Fireplaces
Models
Sirius42TEN
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
UNE SURFACE VITRÉE CHAUDE PEUT
CAUSER DES BRÛLURES.
LAISSER REFROIDIR LA SURFACE VITRÉE
AVANT D'Y TOUCHER.
NE PERMETTEZ JAMAIS À UN ENFANT DE
TOUCHER LA SURFACE VITRÉE.
AVERTISSEMENT : Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d'incindie ou d'explosion ou pour éviter
tout dommage matériel, toute blessure ou la mort.
— Ne pas entreposer ni utilizer d'essence ni d'autres
vapeurs ou liquides inflammables dans le voisinage
de cet appareil ou de tout autre appareil.
— QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucan interrupteur. Ne pas vous
servir des téléphones se trouvant dans le bâtiment
où vous trouvez.
Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions du
fournisseur.
Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
— L'installation et l'entretien doivent être assurés par un
installateur ou un service d'entretien qualifié ou par le
fournisseur de gaz.
Sirius42TEP
Sirius54TEN
EL VIDRIO CALIENTE
CAUSARÁ QUEMADURAS.
USTED DEBE NUNCA TOCAR
EL VIDRIO CALIENTE.
LOS NIÑOS DEBEN NUNCA
TOCAR EL VIDRIO.
Sirius54TEP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sirius42TEN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Astria Sirius42TEN

  • Page 1 Installation and Operation Instructions Astria™ Sirius Linear Direct-Vent Gas Fireplaces P/N 900079-00 Rev. NC 02/2014 Models Ce manuel est disponible en francais, simplement Sirius42TEN Sirius42TEP Sirius54TEN Sirius54TEP en faire la demande. Numéro de la pièce 900079-01. P900079-00 INSTALLER: Leave this manual with the appliance.
  • Page 2 Innovative Hearth Products General Information Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Safety and Your La sécurité et Seguridad y su Fireplace votre foyer chimenea All parts of your Toutes les parties de votre ¡Todas las partes de la IHP fireplace get...
  • Page 3: Table Of Contents

    Innovative Hearth Products General Information Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 THANK YOU FOR YOUR PURCHASE. WE APPRECIATE YOUR BUSINESS! Please carefully read and follow all instructions in this manual. Pay special attention to all warnings and safety information.
  • Page 4: General Information

    Innovative Hearth Products General Information Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 GENERAL INFORMATION IMPORTANT SAFETY INFORMATION L’information de sûreté importante Información importante de seguridad WARNING AVERTISSEMENT ADVERTENCIA Do not operate appliance with the Ne pas utiliser l’appareil si le...
  • Page 5: Fireplace Installation, Operation, And Maintenance Notices

    Innovative Hearth Products General Information Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 FIREPLACE INSTALLATION, OPERATION, AND MAINTENANCE NOTICES DO NOT ATTEMPT TO ALTER OR MODIFY THE CONSTRUCTION OF THE APPLIANCE OR ITS COMPONENTS. ANY MODIFICATION OR ALTERATION MAY VOID THE WARRANTY, CERTIFICATION, AND LISTINGS OF THIS UNIT.
  • Page 6 Innovative Hearth Products General Information Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 WARNING Clothing or other flammable material should not be placed on or near the appliance. AVERTISSEMENT On ne devrait pas placer de vêtements ni d’autres matières inflammables sur l’appareil ni à proximité.
  • Page 7: Packaging

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 INSTALLATION PACKAGING All models include The assembled vented gas fireplace heater is packaged with: Literature Kit (Installation and Operation Instructions (this manual), and Safety-In-Operation Warning Labels) Vent restrictor assembly (1) Non-combustible fiber board...
  • Page 8 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Approved Vent Components These fireplaces are designed, tested and listed for operation and installation with the following vent components only: Secure Vent Direct-Vent System Components, ® Secure Flex Flexible Vent Components, and ®...
  • Page 9 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Figure 1: Electronic Gas Valve Green Wire (from DFC Wire Harness) Line (IN) Test Port Manifold (OUT) Test Port Orange Wire (from DFC Wire Pressure Harness) Regulator Tower Main Gas Inlet 3/8"...
  • Page 10: Requirements For The Commonwealth Of Massachusetts

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Orifice Sizes—Sea Level to High Altitude These fireplaces are tested and approved for installation at elevations of 0–4500 ft (0–1372 m) above sea level using the standard burner orifice sizes (Table 5). For elevations above 4500 ft, contact your gas supplier or qualified service technician.
  • Page 11: Manufactured Home Requirements

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 MANUFACTURED HOME REQUIREMENTS This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. Cet appareil peut être installé dans une maison préfabriquée (mobile) déjà installée à demeure si les règlements locaux le permettent.
  • Page 12: Vent Termination Clearances

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 VENT TERMINATION CLEARANCES These instructions should be used as a guideline and do not supersede local codes in any way. Install venting according to local codes, these instructions, the current National Fuel Gas Code (ANSI Z223.1/NFPA 54) in the USA or the current standards of CAN/CGA-B149.1 in Canada.
  • Page 13 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Table 7: Horizontal vent termination clearances for buildings with combustible and noncumbustible exteriors Inside Corner Outside Corner Recessed Location See Table 6 Fixed Balcony with No Side Wall...
  • Page 14: Minimum Clearances To Combustibles

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 MINIMUM CLEARANCES TO COMBUSTIBLES Fireplace And Vent Clearances The fireplace is approved with zero clearance to combustible materials on all sides (Table 8), with the following exceptions: When unit is recessed, the side walls surrounding the unit must not extend beyond unit front edge (Figure 6).
  • Page 15: Wall Finishes / Surrounds / Mantels

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Wall Finishes / Surrounds / Mantels Clearances to combustible mantels vary according to mantel depth (Figure 6). Mantels constructed of non-combustible material may be installed at any height above the appliance opening; however, do NOT allow anything to hang below the top edge of the fireplace door.
  • Page 16: Installation Sequence

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 INSTALLATION SEQUENCE The typical sequence of installation is outlined below; however, each installation is unique and may result in variations to the steps described. See the pages referenced in the following steps for detailed instructions.
  • Page 17 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Table 10: Fireplace Framing Dimensions Model 54 3/4 18 1/2 44 3/8 42” 10-1/2 1366 1127 (267) 65 3/4 18 1/2 41 3/4 48 1/4 54” 1670 1061 1226 NOTE: Illustration provided for dimensions.
  • Page 18: Route The Gas Supply Line Into The Fireplace

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Prepare the Fireplace Top Spacers 1. The two (2) 4 3/8” standoff spacers on top of the fireplace cabinet are shipped flat (Figure 8). 2. Bend the standoffs as shown (Figure 8): 3.
  • Page 19 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 CAUTION If propane is used, be aware that with a tank that is too small (i.e., under 100 lbs, if this is the only gas appliance in the dwelling—see NPFA 58), there may be a loss of pressure. This can result in insufficient fuel delivery that can cause sooting, delayed ignition, or other malfunctions.
  • Page 20 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 VENT SYSTEM PREPARATION Select a Horizontal or Vertical Vent System 1. With the fireplace secured in the framing, determine the vent route and identify the exterior termination location.
  • Page 21 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Vent Restrictor with Vertical Terminations When vertically terminating the vent system through the roof and using the vent restrictor, install the vent restrictor in the top vent of the fireplace outlet.
  • Page 22 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Vent section length table Table 17 will assist calculating how many vent sections are needed for the planned vent configuration. When a vent section is engaged with another section, its effective length will be 1 1/2” shorter.
  • Page 23: Install The Vent System

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Clearance to combustibles Maintain the minimum clearance to combustibles (e.g., framing, attic, ceiling insulation, etc.). For all vertical runs: 1” (25 mm) from all sides NOTE: Attic insulation shield (96K94) must be installed when blown or loose-fill insulation is used, and is recommended for all attic installations.
  • Page 24 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Vertical (Offset) Installation 1. Analyze the vent route and determine the number of vent sections and elbows required—See Effective Vent Length on Page 21 for more information. Plan the venting so that a joint does not occur in the ceiling or roof joists.
  • Page 25 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 8. Continue installation of horizontal/inclined sections—Continue with the installation of the straight vent sections in horizontal/inclined run. Install support straps every 5 ft (1.52 m) along horizontal/inclined vent runs using conventional plumber’s tape.
  • Page 26 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Vertical Vent Figures/Tables NOTE: Rise per foot run ratios are acceptable all the way to level. For best results, maintain the horizontal/inclined run in a straight (no dips), slightly elevated plane of approximately 1/4” per 1 ft (20 mm per 1 m).
  • Page 27 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Table 19: Top Vent—Two 90° Elbows Table 20: Top Vent—Three Elbows Vertical Firestop/ Spacer Horizontal Firestop/ Vertical Firestop/ Spacer Spacer Horizontal Firestop/ Spacer Maximum total H Minimum total V...
  • Page 28 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Install the Horizontal Termination Vent System These instructions should be used as a guideline and do not supersede local codes in any way. Install venting according to local codes, these instructions, the current National Fuel Gas Code (ANSI-Z223.1) in the USA or the current standards of CAN/CGA-B149.1 in Canada.
  • Page 29 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 8. Change vent direction—At transition from or to a horizontal/inclined run, install SV4.5E45 or SV4.5E90 elbows in the same manner as the straight vent sections. The elbows feature a twist section to allow them to be routed about the center axis of their initial collar section to align with the required direction of the next vent run element.
  • Page 30 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Figure 27: Installing the Horizontal Termination Firestop/Spacer (SV4.5HF) shown Typical Termination on the exterior side of the wall. It Shown may also be installed on the interior side.
  • Page 31 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Table 21: Venting Components Required for Various Exterior Wall Thicknesses, when using Typical Termination Kits Vent Components Required Exterior Wall Thickness Termination Kit Only 6–9 1/4” (152–235 mm) Termination Kit and 6”...
  • Page 32 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Table 23: Top Vent—Two 90° Elbows Maximum total H Minimum total V Horizontal Horizontal Firestop/ Termination feet meters feet meters Spacer 0.610 0.305 1.372 0.914 1.829 1.220 2.286 1.524...
  • Page 33 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Vertical or Horizontal Venting Using Secure Flex Kits and Components Secure Flex venting kits and components may be used in any other vent installation where rigid Secure Vent (SV4.5)
  • Page 34: Complete The Field Wiring

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 f. Install three (3) screws 120° apart through the flexible vent and into the adaptor collar just below the gear clamp to provide additional security to the connection.
  • Page 35 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 NOTE: The junction box can be moved to the bottom of the box (Figure 33). To move the junction box remove the cover plate, compress junction box to release it from the fireplace. Select the new location. For the bottom location, install the 3-wire 120 Vac supply wire and strain relief in the hole provided.
  • Page 36: Connect The Gas Line

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 WARNING Electronic models of these appliances are equipped with a three-prong (grounding) plug utilized in connecting the electronic components to the junction box in the lower compartment. This grounding plug provides protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.
  • Page 37: Verify Proper Fireplace Operation

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 NOTE: Seal around the gas line to prevent cold air leakage. Gas line holes and other openings can be caulked or stuffed with unfaced fiberglass insulation. 1. Unscrew the shutoff valve from the gas flex-line. Apply thread sealant appropriate for the gas type, and then connect the shutoff valve to the gas stub.
  • Page 38: Install The Glass Media

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Install the Glass Media 1. See Page 55 for instructions on Installing the Glass Media. Install the Baffle NOTE: The baffle is factory-installed. Remove to install the vent restrictor (Page 20).
  • Page 39 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Air Shutter Adjustment Guidelines If there is smoke or soot present, first ensure that the flames are not impinging on any of the panels. If the panels are properly positioned and a sooting condition still exists, increase the air shutter opening.
  • Page 40: Install The Finishing Materials

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Install the Finishing Materials NOTE: To install the fireplace facing flush with the finished wall, position framework to accommodate the thickness of the finished wall. NOTE: See Cold Climate Insulation on Page 10 and Vent Termination Clearances on Page 12.
  • Page 41 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Figure 41: Noncombustible Material with Cleanface Finish— Figure 42: Noncombustible Material with Surround— Profile View Profile View * 6” straight vent section * 6” straight vent required before 90° elbow.
  • Page 42 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Figure 43: Noncombustible Material with Surround Figure 44: Installing the Surround Noncombustible board (cut to height of standoffs) Nailing flange Remove Left (and Right) Finishing SIDE Nailing flange Flanges.
  • Page 43: Install The Wall Switch Receiver

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Install the Wall Switch Receiver 1. When wall finish is complete, install the wall switch receiver in the previously installed junction box, and connect the 2-wire terminal to the connector on the back of the receiver.
  • Page 44: Attach The Safety-In-Operation Warnings

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 ATTACH THE SAFETY-IN-OPERATION WARNINGS NOTE: It is the installer’s responsibility to ensure these warnings are properly affixed during installation. These warning labels are a critical step in informing consumers of safe operation of this fireplace.
  • Page 45: Installation Accessories

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 INSTALLATION ACCESSORIES Table 27: Listed Secure Vent Components ® Catalog Number Model Description Catalog Number Model Description The following flashing comes packaged with a storm collar Horizontal Square 77L78 SV4.5F...
  • Page 46 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Table 27: Listed Secure Vent Components ® Catalog Number Model Description Catalog Number Model Description Through Wall Shield Kit (to Attic Insulation Shield shield direct- H5816 SV4.5-TWSK10 H3907 SV4.5ARSA...
  • Page 47: Gas Conversion Kits

    Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 GAS CONVERSION KITS WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion, or the production of carbon...
  • Page 48 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Installing Gas Conversion Kits WARNING The gas supply shall be shut OFF prior to disconnecting the electrical power, before proceeding with the conversion. AVERTISSEMENT Avant d’effecteur la conversion, coupez d’abord l’alimentation en gaz, ensuite, coupez l’alimentation electrique.
  • Page 49 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 11. Make valve electrical connections. 12. Remove the pilot hood assembly to access the hex pilot orifice (Figure 50). Remove and replace the pilot orifice with the one provided with the kit. Exercise extreme care to prevent damage to or breakage of the igniter assembly.
  • Page 50: Operation

    Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 OPERATION WARNING Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house.
  • Page 51 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 ATTACH THE SAFETY-IN-OPERATION WARNINGS NOTE: It is the installer’s responsibility to ensure these warnings are properly affixed during installation. These warning labels are a critical step in informing consumers of safe operation of this fireplace.
  • Page 52 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Burn-in Period The first few times this fireplace is operated, there will be an odor from the curing of paint and the burning off of the lubricants used in the manufacturing process. Depending on usage, the burn-in period may take a few hours or a few days.
  • Page 53 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Detailed lighting instructions are found on Page 62. Also, electronic fireplace lighting instructions are attached to the CPI/IPI switch bracket. The fireplace main burner can be turned ON/OFF with the wall switch or remote control. Check the batteries, at least every three (3) months to ensure they are properly charged (Figure 2).
  • Page 54 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Continuous Pilot Ignition / Intermittent Pilot Ignition Switch These fireplaces have a continuous pilot ignition (CPI) / intermittent pilot ignition (IPI) switch installed under the door. This switch allows the pilot to be switched from intermittent mode to continuous mode: Intermittent Mode—The pilot is extinguished when the fireplace is OFF.
  • Page 55 Innovative Hearth Products Installation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Installing the Firebox Liners NOTE: It is not necessary to remove the firebox liner panels for most maintenance situations. WARNING Do NOT attempt to install firebox liner panels until the fireplace is installed, the gas-line has been connected and tested for leaks, and initial burner operation has been confirmed.
  • Page 56 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Installing and removing the glass door WARNING HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED. Remove glass door only when fireplace is OFF and COLD.
  • Page 57 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Installing the glass door 1. Visually inspect the gasket on the backside of the glass door. NOTE: The gasket surface must be clean, free of irregularities, and seated firmly. Ensure it is properly located.
  • Page 58: Maintenance

    Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 MAINTENANCE Refer to the Maintenance Schedule on Page 60 for maintenance tasks, procedures, frequency, and a listing of by whom the tasks should be performed. Always verify proper fireplace operation after servicing.
  • Page 59 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Inspecting the glass gasket Visually inspect the gasket on the backside of the glass door. The gasket surface must be clean, free of irregularities, and seated firmly. Cleaning the control compartment Keep the control compartment clean by vacuuming or brushing it out at least twice a year.
  • Page 60 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 MAINTENANCE SCHEDULE See the tables below for detailed information about required maintenance, both regular and annual. Table 31: Maintenance Performed Annually—Before the Burning Season Maintenance Task Performed By...
  • Page 61: Optional Accessory Components

    Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 OPTIONAL ACCESSORY COMPONENTS Surround Kits Surround kits should be used for a finished appearance. Table 33: Surround Kits Catalog No. Model No. Description H8654 LDV42-SB Black Satin, 42” models...
  • Page 62: Lighting Instructions

    Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal injury, or loss of life.
  • Page 63 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 POUR PLUS DE SÉCURITÉ, LIRE AVANT DE METTRE EN MARCHE AVERTISSEMENT : Quiconque ne respecte pas à la lettre les instructions dans la présente notice risque de déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort.
  • Page 64: Troubleshooting

    Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 TROUBLESHOOTING Before troubleshooting, ensure that the fireplace main line gas shutoff valve and the wall switch are in the ON position. The following troubleshoots the fireplace only to an elementary level. For detailed remote and ignition system troubleshooting, refer to the instructions provided with the remote.
  • Page 65: Replacement Parts

    Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 REPLACEMENT PARTS Contact an IHP dealer to obtain any of these parts. Contact IHP for the phone number of your nearest IHP dealer. Table 39: Installer Replacement Parts 42”...
  • Page 66 Innovative Hearth Products Operation Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 Figure 58: Replacement Parts Power 120V Power 120V Power Power 120V 120V Table 40: Homeowner Replacement Parts 42” 54” Description Catalog Number Catalog Number Remote Control Transmitter Kit...
  • Page 67: Warranty

    THE WARRANTY Innovative Hearth Products (“IHP”) Limited Lifetime Warranty warrants your Astria™ brand gas fireplace (“Product”) to be free from defects in materials and workmanship at the time of manufacture. The Product body and firebox carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal breakage only.
  • Page 68 Innovative Hearth Products Installation and Operation Instructions Astria™ Sirius Linear Direct-Vent Gas Fireplaces 900079-00, 02/2014 www.astria.US.com Record the following important information about your fireplace: Fireplace model number Fireplace serial number Date fireplace was Installed Type of gas fireplace uses Dealer name...

This manual is also suitable for:

Sirius54tepSirius42tepSirius54ten
