P125160 01
P/N 125160-01 Rev. B 02/14/14
IF FIREPLACE IS TO BE INSTALLED DIRECTLY ON ANY COMBUSTIBLE MATERIAL, A METAL BASE
IS REQUIRED.
This book is valuable. In addition to instructing you on how to install and maintain your appliance,
it also contains information that will enable you to obtain replacement parts or accessory items
when needed. Keep it with your other important papers.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log ap-
proved to ANS Z21.60 or Z21.84 standards. It has not been tested or approved for unvented gas logs.
This wood burning fireplace complies with UL127 standard as a FACTORY BUILT APPLIANCE.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Refer to this manual for correct installation and operational procedures. For
assistance or additional information consult a qualified installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Do not store gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
SAVE THIS BOOK
For more information, visit www.Astria.US.com

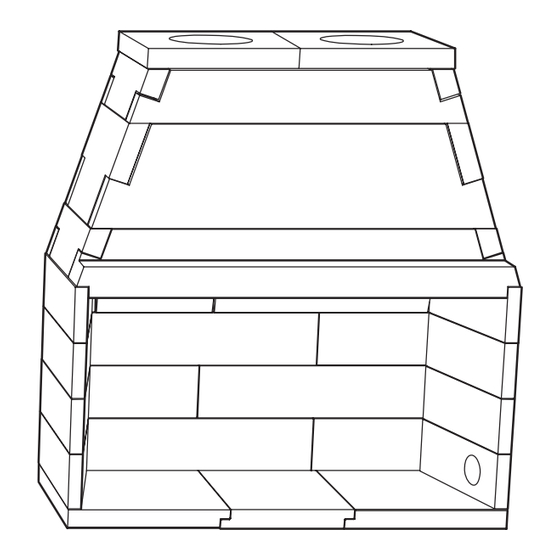

INSTALLATION AND OPERATION
INSTRUCTIONS
GRAND MERIDIAN
MASONRY FIREBOX
MODELS
MM33, MM39, MM44, MM49, MM63
Report No.
ICC Evaluation Services
Report No. 2401
08-154
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Astria MM39
Summary of Contents for Astria MM39
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS GRAND MERIDIAN MASONRY FIREBOX MODELS MM33, MM39, MM44, MM49, MM63 Report No. 08-154 P125160 01 ICC Evaluation Services Report No. 2401 P/N 125160-01 Rev. B 02/14/14 IF FIREPLACE IS TO BE INSTALLED DIRECTLY ON ANY COMBUSTIBLE MATERIAL, A METAL BASE IS REQUIRED.
-
Page 2: Table Of Contents
WARNING: Always leave glass doors fully products not specified for use with this fireplace. opened or fully closed when operating fire- place. WARNING: If fireplace is to be installed on combustible material, a Metal Base must be used. See Accessories on page 33. www.Astria.US.com 125160-01B... - Page 3 - Plumbed ANSI Z21.60 or Z21.84 Decorative Gas of the manufacturer’s instructions and is hereby Log. prohibited. Such violation may cause immediate hazard, property damage or loss of life and will void all liabilities to the manufacturer and will void all warranties explicit or implied. www.Astria.US.com 125160-01B...
-
Page 4: Specifications
62 ⅞" 2X Ø 12" 66 ⅞" SECTION A-A 45 ⅝" 23 ½" 4 ½" 4 ⅛" OUTSIDE COMBUSTION AIR ACCESS HOLE 72 ⅞ " 40 ¾" 32 ⅞" 7 ⅜" 21" Figure 2: MM63 Fireplace Overall Dimensions www.Astria.US.com 125160-01B... -
Page 5: Specifications
63 ½" 40 ⅝" 32 ⅞" 7 ⅜" Fireplace Overall Dimensions Model MM39 43″ 39″ 29¼″ 27¾″ 38¾″ Ø12″ MM44 48″ 44″ 34¼″ 32¾″ 43¾″ Ø12″ MM49 53″ 49″ 39¼” 37¾″ 48¾″ Ø12″ Figure 3: MM39/44/49 Fireplace Overall Dimensions www.Astria.US.com 125160-01B... -
Page 6: Product Overview
Register your product online today! To help us keep you up-to-date on product informa- tion and offers, please take a few moments to register Flush your product online at www.Astria.US.com (Owner Full Installation Resources/Product Registration). Projection... -
Page 7: Pre-Installation Preparation
". Ember protector should be made of galvanized sheet metal (26 gauge minimum to pre- vent corrosion. 6. Using screws or nails, secure fireplace to framing through flanges located on sides of fireplace. Figure 5: Mantel Clearances to Combustible Material www.Astria.US.com 125160-01B... - Page 8 MAINTAIN THE 2" CLEARANCE TO COMBUSTIBLES ABOVE THE DOME. DO NOT ATTACH COMBUSTIBLE MATERIALS ON TOP OF THE DOME. 18" MIN* Model ½" MM33 41” MIN** MM39 47” MM44 52” MM49 57” 2" MIN. CLEARANCE TO COMBUSTIBLES AROUND MM63 71”...
- Page 9 PRE-INSTALLATION PREPARATION Continued Model MM33 70 ½" MM39 82 ½" MM44 84 ¼" MM49 86" MM63 91" 2” MIN 2” MIN NON-COMBUSTIBLE FACING MATERIAL NON-COMBUSTIBLE HEARTH EXTENSION * 8” 8” * Not provided as part of fireplace 1’-0” 1’-0” or sold by IHP.
- Page 10 If using a raised hearth or metal base plate, note that Extension Fireplace Front a combustible wood header must be no closer than Elevated 2" to the top of the dome (see Figure 6, page 8). Ember Protector Figure 10 - Hearth Extension www.Astria.US.com 125160-01B...
- Page 11 PRE-INSTALLATION PREPARATION Continued 2” AIRSPACE CLEARANCE TO COMBUSTIBLES ON REAR AND SIDES OF UNIT. Figure 11: Non Combustible Floor Figure 12: Combustible Floor www.Astria.US.com 125160-01B...
-
Page 12: Venting Installation
The manufacturer cannot ensure Figure 12 - Outside Air Kit Installation “smoke free” operation, nor can the manufacturer take on the responsibility for problems with surrounding construction; chimneys that have not www.Astria.US.com 125160-01B... - Page 13 MM33 Fireplace 54 ⅝" situations over which the manufacturer has no control. MM39 Fireplace 63 ½” 5) Inspect all fireplace & chimney components for MM44/49 evidence of damage prior to starting installation. Consult your local distributor for replacement...
- Page 14 101" " " " " " " " " Straps " 127" Straps 70" 130" " " Detail A " " Return Elbow " " OFFSET CHART (22-50 FT. SYSTEM HEIGHT) Figure 16 - Ceiling Support Pipe 12S-12DM www.Astria.US.com 125160-01B...
- Page 15 Model No. Firestop Screws or Staples Spacer Flat 0° 19.5" V6F-10DM (Min. of 8) 0-6/12 26.6° V6F-10DM 6/12-12/12 45.0° 27" V12F-10DM Figure 20 - Roof Opening Measurements Existing Ceiling Frame Figure 19 - Firestop Spacer with Attic Above Ceiling www.Astria.US.com 125160-01B...
- Page 16 We suggest Caulk that terminations be separated at least 24", center to Storm Collar center and stacked at a vertical height difference of Flashing 18" (see Figure 24, page 17). Figure 22 - Storm Collar www.Astria.US.com 125160-01B...
-
Page 17: Optional Gas Line Installation
Follow the Gas Log manufacturer’s instructions. OPTIONAL ELECTRICAL CONNECTION INSTALLATION Like the gas line, electrical feed lines can be run through the floor, back wall, or side walls. Follow local building and electrical code requirements. www.Astria.US.com 125160-01B... -
Page 18: Supporting Floor System
Figure 26 using blocking between the floor joist. Floor Sheathing not shown for clarity Figure 26 - Floor Joist Installation www.Astria.US.com 125160-01B... - Page 19 Figure 27 - Floor Joist Installation Figure 28 - Floor Joist Installation WEIGHT DETERMINATION The following are dead load weight estimates for the Grand Meridian Fireplace. Table I Fireplace Model MM33 MM39 MM44 MM49 MM63 Fireplace Weight 835 lbs. 1,194 lbs.
-
Page 20: Combustible Floor Installation
SUPPORTING FLOOR SYSTEMS INSTALLATION Continued 4" Model MM33 32 ¾" 10" MM39 38 ¾" MM44 43 ¾" MM49 48 ¾" MM63 62 ¾" Figure 29 - Anchorage Dimensions Figure 30 - Hardware EXAMPLE ONLY 2” min Fireplace clearance outline 10”... - Page 21 • 28 - Washer Board Dimensions • 28 - Nuts Model • 4 - Floor Joist Brackets MM33 37" 28" • 2 - Ember Protector Strips MM39 43" 28" • 1 - Insulation Blanket MM44 48" 28" MM49 53" 28"...
-
Page 22: Fireplace Installation
You will find that the Grand Meridian Fireplace is de- signed to be completely assembled on-site, consist- MM33, MM39, MM44, MM49: ing of interlocking precast parts. Included is a thin- set type mortar for bonding. The parts of the fireplace •... - Page 23 Side Wall shown prepared for Right Side Air Access. 28" For Left Side, bead opposite side. Model 1/2" AWAY MM33 37" FROM EDGES MM39 43" MM44 48" MM49 53" 12" Long Rebar Figure 34 - Positioning Hearth Base For MM33,39,44,49 Figure 37 - Preparing Side and Rear Wall Pieces www.Astria.US.com...
- Page 24 Grand Meridian Number of Model Layers MM33 Combustion Air Access Right or Left (Right shown). MM39 Figure 39 - Layering walls and sides for MM63 MM44 MM49 MM63: Rear Walls are staggered on every row as MM63 shown in Figures 40.
- Page 25 Figure 42 - Attaching Lower Seismic Straps 9) Install Downdraft Diverter and final row of Side Walls (Figure 43). All components must be level. Mix approximately 2 cu. ft. of Ready-Mix Concrete and fill all cells with Ready Mix Concrete mix. www.Astria.US.com 125160-01B...
- Page 26 Figure 46. Check your assembly here. If things are proceeding as they should be, the finished top surface should be flat and level. Upper Dome Sides Upper Dome Front/Rear Figure 45 - Attaching Upper Dome & Sides www.Astria.US.com 125160-01B...
- Page 27 10" 13 ½" MM33 Center of chimney hole is offset towards the rear. 10" 12 ½" MM39,44,49 Center of chimney holes are offset towards the rear. 10" 12 ½" MM63 Figure 46 - Attaching Middle Dome www.Astria.US.com...
- Page 28 IHP otherwise a potential hazardous Secure with condition may be created. four 1/4" x 1-1/4"masonry fastener. 1" ceramic fiber blanket under Anchor Plate. 1/4" bead of gasket cement Figure 47 - Installing Anchor Plate www.Astria.US.com 125160-01B...
-
Page 29: Firebrick Installation
IHP cannot be responsible for this and other wear and tear to the firebrick and mortar. Figure 48 - Postion of Rear Panel www.Astria.US.com 125160-01B... -
Page 30: Operation And Maintenance
Do not let the fire burn for more than one hour. After this first lighting – when the fireplace has started to “cure” Do not set another fire for at least 24 hours. www.Astria.US.com 125160-01B... - Page 31 When you are satisfied with the arrangement of your wood load, light the paper which in turn will ignite the www.Astria.US.com 125160-01B...
-
Page 32: Technical Service
IHP at 1-800-655-2008. seal them to avoid any roof or chimney chase leaks. You can also visit our web site at www.Astria.US.com. When calling your dealer, have ready: SURFACE CRACKS •... -
Page 33: Accessories
Running Bond BRICK PANELS MM33SHBL - HERRINGBONE MM33FRBL - RUNNING BOND GRATES MM39SHBL - HERRINGBONE MMG3 - Fits MM33 & MM39 MM39FRBL - RUNNING BOND MMG4 - Fits MM44 MM44SHBL - HERRINGBONE MMG5 - Fits MM49 MM44FRBL - RUNNING BOND... - Page 34 12-12DM, 18-12DM, 24-12DM, 36-12DM AND 48-12DM SC2-1 30° OFFSET AND RETURN 30E-12DM FIRESTOP SPACER FS-10 ROOF FLASHING V6F-10DM - 0 TO 6/12 PITCH V12F-10DM - 6/12 TO 12/12 PITCH ROUND TOP TERMINATIONS RLT-12D CHIMNEY SUPPORT 12S-12DM SQUARE CHASE-TOP TERMINATION STL-12D STL-12DMP - Black www.Astria.US.com 125160-01B...
- Page 35 MCLS814P - 6 Sections, 8” each (4 ft total) MCL814 - Inner Liner MCS814 - Outer Liner MCL414 - Inner Liner, 4" High (Starter) MCSBL814 - Brick Ledge MCSOS814 - Offset Elbow Section MC14AP - Anchor Plate / Damper www.Astria.US.com 125160-01B...
-
Page 36: Parts
PARTS MODELS MM39, MM44 AND MM49 Non-Combustible Floor Systems Combustible Floor Systems See Page 16 thru 18 for combustible floor and framing anchoring illustrations. www.Astria.US.com 125160-01B... - Page 37 UPPER MFP39-7 DOME SIDE - 125173-01 SEISMIC STRAP, MFP44-7 LOWER LOWER MFP49-7 INSULATION MFP39-8 DOME SIDE - 125178-02 MM39 § MFP44-8 UPPER 125178-03 MM44 § MFP49-8 125178-04 MM49 § ITEMS INCLUDED IN THE MM12AP* † ITEMS INCLUDED IN THE MM115* ITEMS INCLUDED IN METAL BASE KIT (ITEM 16)* §...
- Page 38 PARTS MODELS MM33 Combustible Floor Systems Non-Combustible Floor Systems See Page 16 thru 18 for combustible floor and framing anchoring illustrations. www.Astria.US.com 125160-01B...
- Page 39 INSULATION BLANKET § SHOWN ITEMS INCLUDED IN THE MM12AP † * ITEMS NOTED ARE SOLD SEPARATELY ITEMS INCLUDED IN METAL BASE KIT (ITEM 16)* § ITEMS INDICATED AS “NOT SUPPLIED” CAN BE OBTAINED FROM YOUR LOCAL HARDWARE STORE. www.Astria.US.com 125160-01B...
- Page 40 PARTS MODELS MM63 Combustible Floor Systems Non-Combustible Floor Systems See Page 16 thru 18 for combustible floor and framing anchoring illustrations. www.Astria.US.com 125160-01B...
- Page 41 125178-05 INSULATION BLANKET SHOWN ITEMS INCLUDED IN THE MM12AP* † * ITEMS NOTED ARE SOLD SEPARATELY ITEMS INCLUDED IN METAL BASE KIT (ITEM 16)* § ITEMS INDICATED AS “NOT SUPPLIED” CAN BE OBTAINED FROM YOUR LOCAL HARDWARE STORE. www.Astria.US.com 125160-01B...
- Page 42 125160-01B...
- Page 43 125160-01B...
-
Page 44: Warranty
WARRANTY KEEP THIS WARRANTY Please complete the following information for future reference and warranty verification: Model (located on product or identification tag) _________________ Serial No. (located on product or identification tag) ______________ Date Purchased __________________ Keep receipt for warranty verification. IHP LIMITED WARRANTIES New Products IHP warrants all Grand Meridian Fireplaces to be free from defects in materials that adversely affect fireplace performance for...
