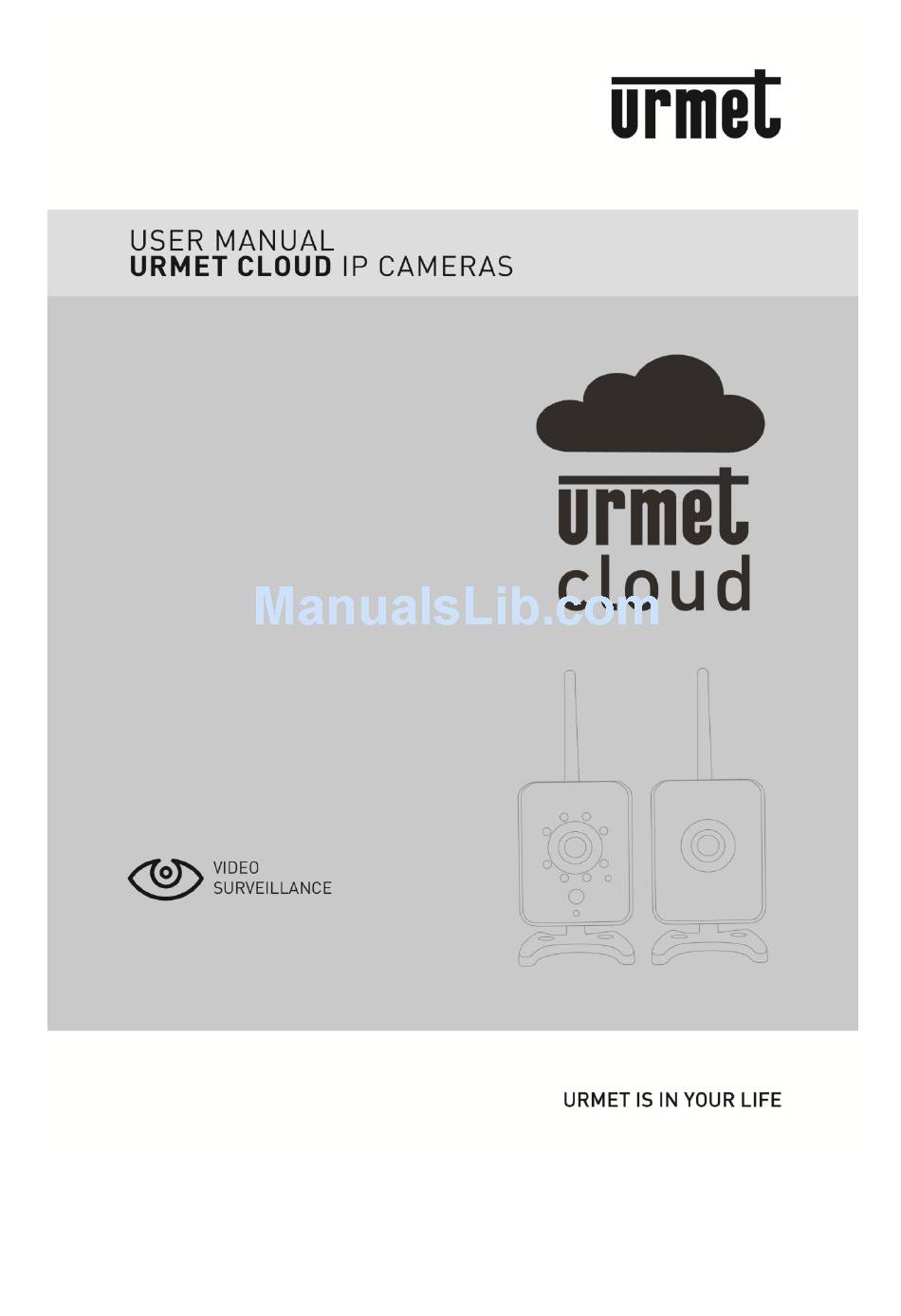

  • Page 1 DS1093-104A...

  • Page 2: Table Of Contents

    ENGLISH CONTENTS GENERAL INFORMATION ........................4 SAFETY ..........................4 Certifications ........................... 5 Opening the salesbox ......................6 1.3.1 Salesbox content ..........................6 Installation ............................... 7 Ref. 1093/184M11 – Ref. 1093/184M12 installation .............. 7 Ref. 1093/184M11- Ref. 1093/184M12 PARTS DESCRIPTION ........... 8 Ref.
  • Page 3 5.9.6 System Log ............................43 5.9.7 Connections ............................43 Technical specifications ........................44 Ref. 1093/184M11 specifications ..................44 Ref. 1093/184M12 specifications ..................46 Ref. 1093/184M14 specifications ..................48 Ref. 1093/184M15 specifications ..................50 Ref. 1093/184M16 specifications ..................52 Maximum duration of micro-SD memory card under full-time recording mode ......54 DS1093-104A...

  • Page 4: General Information

    GENERAL INFORMATION Dear Customer, Thank you for choosing this product. This manual will help you to properly use the following URMET S.p.A IP video recording devices: Ref. 1093/184M11 - Ref. 1093/184M12 – Ref. 1093/184M14 - Ref. 1093/184M15 - Ref. 1093/184M16. Please read all the information in this manual for a proper and safe usage.

  • Page 5: Certifications

    Device cleaning  Use a dry cloth to remove dust and dirt from the device.  If dirt cannot be removed with a dry cloth, use a humid cloth and a neutral cleanser.  Do not use spray cleanser for device cleaning. Do not use volatile liquids such as gasoline, alcohol, solvents etc.

  • Page 6: Opening The Salesbox

    OPENING THE SALESBOX Verify the packaging and the device are not damaged. If any part is missing or damaged, contact the retailer immediately. In this case do not try to use the device. If the device has to be sent back to the retailer or the supplier, use the original packaging.

  • Page 7: Installation

    INSTALLATION REF. 1093/184M11 – REF. 1093/184M12 INSTALLATION Refer to the following steps for easy and quick installation:  Take the bracket out of the salesbox  Separate the rotating top part from the bracket (just unscrew it until the two parts will detach) ...

  • Page 8: Ref. 1093/184M11- Ref. 1093/184M12 Parts Description

    REF. 1093/184M11- REF. 1093/184M12 PARTS DESCRIPTION 1 Lens 5 Microphone 9 Ethernet port 13 Reset 2 Status LED 6 Infrared LED 10 Power supply port 14 In/Out 3 Focus ring 7 Antenna 11 Bracket hole 15 WPS button 4 Speaker 8 PIR motion sensor 12 Micro-SD slot 16 Light sensor...

  • Page 9: Ref. 1093/184M14 Parts Description

    REF. 1093/184M14 PARTS DESCRIPTION 1 Lens 5 Cap lock 9 Power supply port 2 Light sensor 6 Microphone in (pink) 10 Ethernet port 3 Infrared LED 7 Audio out (green) 11 Terminals lock 4 Transparent cap 8 Video out 12 Micro-SD slot DS1093-104A...

  • Page 10: Ref.1093/184M15 - Ref.1093/184M16 Parts Description

    REF.1093/184M15 – REF.1093/184M16 PARTS DESCRIPTION 1 Lens 5 Bracket hole 9 Power supply port 2 Antenna 6 Microphone in (pink) 10 Ethernet port 3 Infrared LED 7 Audio out (green) 11 Terminals lock 4 Light sensor 8 Video out 12 Micro-SD slot Ref.

  • Page 11: Lens Focus Regulation

     Short circuit Default and Ground (GND) terminals to reset default parameters and reset factory hardware Ref. 1093/184M11 RJ45 connector green LED chart 2.4.1 LENS FOCUS REGULATION For Ref. 1093/184M11 and Ref. 1093/184M12 model, rotate focus regulation external ring clockwise to adjust. For Ref.1093/184M15 and Ref.1093/184M16 model, remove the top cap and use the two small levers on the lens to adjust focus and zoom.

  • Page 12: Ref. 1093/184M12 Front Led Chart

    2.5.2 REF. 1093/184M12 FRONT LED CHART Camera Status Description LED Status Steady Orange 8s – 10s Power on Wired connection Red blinking Device Starting WiFi connection (Access Point or Managed Red blinking for 5s then alternate Green, mode) Red and Orange Wired connection Steady Red WiFi Access Point mode or WiFi connection...

  • Page 13: Ip Discovery

    IP DISCOVERY This software detects the Urmet Cloud series Camera IP address within a local network. First, install setup.msi file from the included CD. Press Next to start installation. Use Browse to choose the folder in which you prefer to install the program or keep the default folder. Press Next...
  • Page 14 If the following window pops up press Unlock then Refresh DS1093-104A...
  • Page 15 A window with all the cameras available in the same PC local network will be displayed. Select one and press Connect to open the camera WEB interface. If the camera has an IP address different from the local LAN network or if you prefer to input a new address, press Setup after selecting the camera.
  • Page 16 Choose a User Name and Password (default: admin/admin). Update the parameters then press Update. DS1093-104A...

  • Page 17: Activex Installation

    ACTIVEX INSTALLATION If the installation of an ActiveX component is required, follow these steps. Before connecting the PC you need to configure IE protection as follows:  From Internet Explorer Menu select Tools -> Internet Options->Security or Protection (depending on different Internet Explorer versions) “Properties –...
  • Page 18  The following window will be displayed. Input camera IP address in “Add website to area”  Press “Add”.   The following confirm window will be displayed Please note Do not thick “Request server check (https:) for all area websites”. DS1093-104A...
  • Page 19 Press “OK” or “Close”.  Select “Customized Level” and check:  “Enabled” or “Ask confirmation” is selected for “Initialize and run ActiveX control script not marked as safe” “Enabled” or “Ask confirmation” is selected for “Download ActiveX control without electronic signature”...

  • Page 20: Ip Camera Configuration Page

    IP CAMERA CONFIGURATION PAGE Use the following URL directly on the browser to enter the IP camera configuration page: http:// <IPcameraaddress>/setup.html On this page the user can modify the IP camera basic and advanced settings.  Video Main features and advanced settings of video stream ...

  • Page 21: General Video Settings

    GENERAL VIDEO SETTINGS The IP camera supports up to 6 different video streams at the same time. Use Live stream window to see the video streams and modify settings. Video streams can be H.264 or Motion JPEG, depending on user configuration. Indicates stream name;...

  • Page 22: Advanced Video Settings

    ADVANCED VIDEO SETTINGS  Digital PT: Use Digital PT function to enable pan and tilt (ration) effect within a selected area. This function is enabled on streams 5 and 6 (these streams will be displayed after selecting Stream page on Video menu). ...

  • Page 23: Ip Camera Configuration

    IP CAMERA CONFIGURATION DS1093-104A...
  • Page 24 Enables and disables white balance regulation. WB (White Balance) “Enabled” balances the light in bright and dark conditions to enhance image uniformity. Exposure settings according to brightness, frame rate and bandwidth. Exposure Available parameters are Auto, 50 and 60 kHz. Auto is suggested. Exposure time, gain and diaphragm can also be regulated.

  • Page 25: Privacy

    PRIVACY Selecting a “privacy” area, it will be obscured from video recording. The device supports up to 3 different privacy areas. To enable privacy area, thick the box after selecting the area with the mouse, then “Save settings” to save changes. DS1093-104A...

  • Page 26: Memory Configuration

    MEMORY CONFIGURATION 5.6.1 SELECT MEMORY Displays the supported Micro SD card parameters. The card contains live recordings and pictures with the following recording settings. Please note: When a Micro SD card is inserted, restart the camera to detect it. Detection time from 20 to 120 seconds depending on Micro SD class. Before inserting the Micro SD card, format it via web user interface “Format”...

  • Page 27: File List

    5.6.4 FILE LIST Displays the recorded files present in the Micro SD. To search a file, use the duration time (input starting and finishing time) and click “Search”. A thick box will be displayed to delete the file. DS1093-104A...

  • Page 28: Event Settings

    EVENT SETTINGS This function allows the user to customize the IP camera so that it carries out a specific action in a limited time, when a give situation occurs. For example: take a picture every time a motion is detected and send it via email. The condition is selected on “Kind”.

  • Page 29: Events Settings

    5.7.2.1 Events settings 5.7.2.2 General settings Event name: input a name to identify the event which will start an action under a specific condition. Detect from: (Condition)  Continuous Detection: the trigger condition is always enabled.  Motion Detection: the action is carried out after a motion detection in some areas selected by the user. ...

  • Page 30: Time Settings

    5.7.2.3 Time settings  Always: IP camera is always ready to detect the selected condition.  Event duration time: carries out the action for a selected duration time. Use the mouse to select date and time.  Stop: disables any action. Even under the selected condition, the IP camera will not carry out any action.

  • Page 31: Motion Detection List

    5.7.4 MOTION DETECTION LIST  Add: up to 3 different areas can be selected. Each one will be identified with a different color: red, green and blue. Pressing Add the minimum Motion detection area will be highlighted. You can enlarge it or move it to cover the area of interest.

  • Page 32: Event Server

    5.7.6 EVENT SERVER Event Server are designed to receive pictures and/or notification messages. Use Settings > Event > Event Server to configure camera Event Server and input the required information for the selected server.  Add FTP: adds an FTP website to send the pictures to. ...

  • Page 33: Ftp Server

    5.7.7 FTP SERVER 5.7.8 SMTP SERVER Email sending configuration parameters. DS1093-104A...

  • Page 34: Http Server

    5.7.9 HTTP SERVER Notification messages receiving configuration parameters. 5.7.10 TCP SERVER Notification messages receiving configuration parameters. DS1093-104A...

  • Page 35: I/O Server

    5.7.11 I/O SERVER  GPIO: configures Open/Close idle status of the input and output circuit. GPIN: Idle Status: select “Open” or “Closed” for GPIN circuit idle status; GPOUT1: Idle Status: select “Open” or “Closed” for GPOUT circuit idle status. NETWORK SETTINGS Use “Network”...

  • Page 36: Advanced

     Static IP Address IP address: input a specific IP address for the IP camera. Netmask: input IP camera subnet mask. Gateway: input the IP address for the Gateway. DNS1: input the IP address for the first group of DNS. DNS2: input the IP address for the second group of DNS.

  • Page 37: Ddns

    Anonymous: access the RTSP stream without authentication. Authentication: requires user name and password authentication to access the RSTP stream. 5.8.3 DDNS Use DDNS (Dynamic Domain Name Service) function to access the IP camera with a name (f.i. http://www.mycamera.com ) instead of an IP address. To use DDNS function you need first to register a domain name with an external provider such as DynDNS (www.dyndns.org).

  • Page 38: Wireless Settings

    5.8.4 WIRELESS SETTINGS Click “Search” to find the available Access Point on the network.  Enable/Disable: Wireless function is disabled by default, enable it to use it instead of a wired connection.  Network kind:  Master/Slave: thick this option to enable connection to an Access Point. ...

  • Page 39: System Configuration

    SYSTEM CONFIGURATION 5.9.1 INFORMATION System configuration page shows information about the current status of the IP camera. This is very useful for quick consultation of information without accessing the configuration pages of each function of the camera. DS1093-104A...

  • Page 40: User

    5.9.2 USER Use this page to configure one or more users/profiles to access to IP camera.  Enable Anonymous Login: Thick “Enable Anonymous Login” box to enable unrestricted access to IP camera. Add new user then click “Save” to save changes. This option allows access to IP camera without requiring user name and password.

  • Page 41: Date &Time

    5.9.3 DATE &TIME Shows date and time of IP camera (24hs format). 5.9.4 SYSTEM TIME SETTING Select automatic DST change, if needed. Select day, week, month of change from standard time to daylight saving time (DST start, DST end). Use Sync Mode to select time sync: Sync with local time –...

  • Page 42: Management

    5.9.5 MANAGEMENT Use “Device Management” page to modify the following options:  Restart: restarts IP camera.  Default: returns to default parameters all configurations but network settings. Use the hardware reset to return to default parameters network settings as well. ...

  • Page 43: System Log

    5.9.6 SYSTEM LOG Use “System Log” to view all information about activities and modification of the device. Actions are displayed in chronological order starting from the old ones. Scroll the list to find the required action. 5.9.7 CONNECTIONS Use “Connections” page to view all active connections. DS1093-104A...

  • Page 44: Technical Specifications

    25 FPS MJPEG Bit Rate 128K ~ 6Mbits/sec (CBR/VBR configurable) Flash 16MB Up to 10 connections at the same time (max 5 in Cloud) Network Performance Total band: 45 Mbps 6 different video streams H.264 & Motion JPEG Video VBR/CBR/GOP for quality/bitrate control...
  • Page 45 Network Network interface 10BASE-T/100BASE-TX HTTP, HTTPS, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, DNS, Protocols ARP, RSTP, RTP, UPnP 3-level protection with password Security (Administrator, Operator, Viewer) Wireless 802.11 bgn System requirement CPU: Pentium 4 @ 2.6Ghz RAM: 1G Graphics card: 256MB Microsoft Windows XP/Vista /Windows 7 DirectX 9 Browser...

  • Page 46: Ref. 1093/184M12 Specifications

    S6: 160 x 96 25 FPS MJPEG Bit Rate 128K ~ 6Mbits/sec (CBR/VBR configurable) Flash 16MB Up to 10 connections at the same time (max 5 in Cloud) Network Performance Total band: 45 Mbps 6 different video streams H.264 & Motion JPEG Video...
  • Page 47 Network Network interface 10BASE-T/100BASE-TX HTTP, HTTPS, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, DNS, ARP, Protocols RSTP, RTP, UPnP 3-level protection with password Security (Administrator, Operator, Viewer) Wireless 802.11 bgn System requirement CPU: Pentium 4 @ 2.6Ghz RAM: 1G Graphics card: 256MB Microsoft Windows XP/Vista /Windows 7 DirectX 9 Browser...

  • Page 48: Ref. 1093/184M14 Specifications

    S6: 160 x 96 25 FPS MJPEG Bit Rate 128K ~ 6Mbits/sec (CBR/VBR configurable) Up to 10 connections at the same time (max 5 in Cloud) Flash Total band: 45 Mbps 6 different video streams H.264 & Motion JPEG VBR/CBR/GOP for quality/bitrate control...
  • Page 49 Network Network interface 10BASE-T/100BASE-TX HTTP, HTTPS, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, DNS, ARP, RSTP, Protocols RTP, UPnP 3-level protection with password Security (Administrator, Operator, Viewer) Wireless 802.11 bgn System requirement CPU: Pentium 4 @ 2.6Ghz RAM: 1G Graphics card: 256MB Microsoft Windows XP/Vista /Windows 7 DirectX 9 Browser...

  • Page 50: Ref. 1093/184M15 Specifications

    S6: 160 x 96 25 FPS MJPEG Bit Rate 128K ~ 6Mbits/sec (CBR/VBR configurable) Up to 10 connections at the same time (max 5 in Cloud) Network Performance Total band: 45 Mbps 6 different video streams H.264 & Motion JPEG...
  • Page 51 Network Network interface 10BASE-T/100BASE-TX HTTP, HTTPS, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, DNS, ARP, RSTP, RTP, Protocols UPnP 3-level protection with password Security (Administrator, Operator, Viewer) Wireless 802.11 bgn System requirement CPU: Pentium 4 @ 2.6Ghz RAM: 1G Graphics card: 256MB Microsoft Windows XP/Vista /Windows 7 DirectX 9 Browser...

  • Page 52: Ref. 1093/184M16 Specifications

    S6: 180 x 90 25 FPS JPEG Bit Rate 128K ~ 6Mbits/sec (CBR/VBR configurable) Up to 10 connections at the same time (max 5 in Cloud) Network Performance Total band: 45 Mbps 6 different video streams H.264 & Motion JPEG...
  • Page 53 Network Network interface 10BASE-T/100BASE-TX HTTP, HTTPS, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, DNS, ARP, RSTP, RTP, Protocols UPnP 3-level protection with password Security (Administrator, Operator, Viewer) Wireless 802.11 bgn System requirement CPU: Pentium 4 @ 2.6Ghz RAM: 1G Graphics card: 256MB Microsoft Windows XP/Vista /Windows 7 DirectX 9 Browser...

  • Page 54: Maximum Duration Of Micro-Sd Memory Card Under Full-Time Recording Mode

    MAXIMUM DURATION OF MICRO-SD MEMORY CARD UNDER FULL-TIME RECORDING MODE Resolution MAX (1280x720) Micro-SD memory duration (days) and (hours) Video Quality SD Card [GB] Minimum (128Kbps) Low (192Kbps) Medium (256Kbps) High (384Kbps) Maximum (512Kbps) 2,54 d 1,69 d 1,27 d 0,85 d 0,63 d 60,88 h...
  • Page 55 DS1093-104A...
