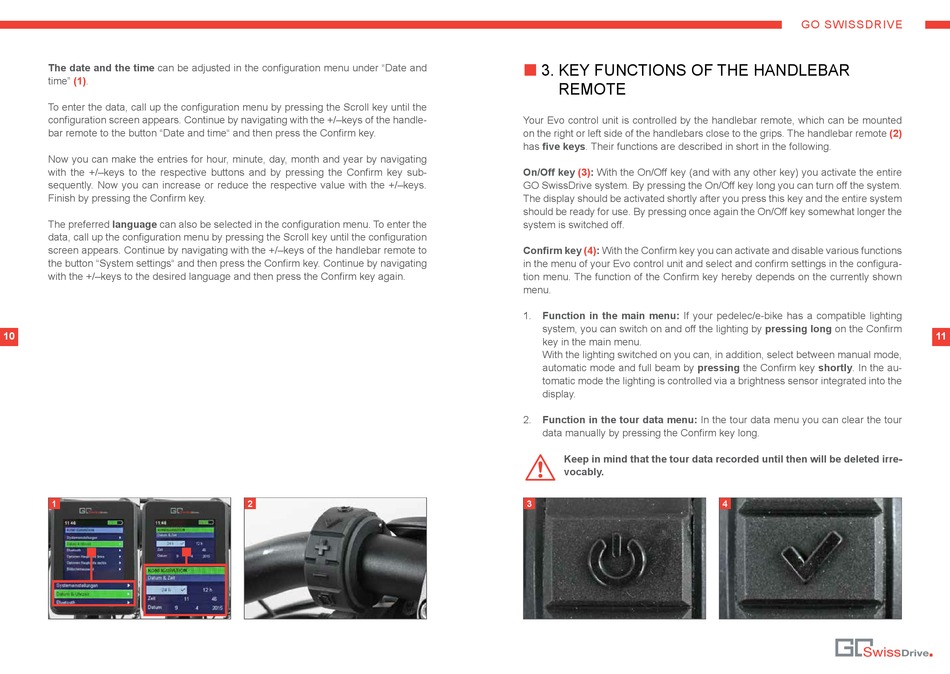

GO SwissDrive EVO Original Instruction Manual page 7

The date and the time can be adjusted in the configuration menu under "Date and
time" (1).
To enter the data, call up the configuration menu by pressing the Scroll key until the
configuration screen appears. Continue by navigating with the +/–keys of the handle-
bar remote to the button "Date and time" and then press the Confirm key.
Now you can make the entries for hour, minute, day, month and year by navigating
with the +/–keys to the respective buttons and by pressing the Confirm key sub-
sequently. Now you can increase or reduce the respective value with the +/–keys.
Finish by pressing the Confirm key.
The preferred language can also be selected in the configuration menu. To enter the
data, call up the configuration menu by pressing the Scroll key until the configuration
screen appears. Continue by navigating with the +/–keys of the handlebar remote to
the button "System settings" and then press the Confirm key. Continue by navigating
with the +/–keys to the desired language and then press the Confirm key again.
10
1 2
3. KEY FUNCTIONS OF THE HANDLEBAR
„
REMOTE
Your Evo control unit is controlled by the handlebar remote, which can be mounted
on the right or left side of the handlebars close to the grips. The handlebar remote
has five keys. Their functions are described in short in the following.
On/Off key (3): With the On/Off key (and with any other key) you activate the entire
GO SwissDrive system. By pressing the On/Off key long you can turn off the system.
The display should be activated shortly after you press this key and the entire system
should be ready for use. By pressing once again the On/Off key somewhat longer the
system is switched off.
Confirm key (4): With the Confirm key you can activate and disable various functions
in the menu of your Evo control unit and select and confirm settings in the configura-
tion menu. The function of the Confirm key hereby depends on the currently shown
menu.
1. Function in the main menu: If your pedelec/e-bike has a compatible lighting
system, you can switch on and off the lighting by pressing long on the Confirm
key in the main menu.
With the lighting switched on you can, in addition, select between manual mode,
automatic mode and full beam by pressing the Confirm key shortly. In the au-
tomatic mode the lighting is controlled via a brightness sensor integrated into the
display.
2. Function in the tour data menu: In the tour data menu you can clear the tour
data manually by pressing the Confirm key long.
Keep in mind that the tour data recorded until then will be deleted irre-
A
vocably.
3
GO SWISSDRIVE
(2)
4
11
