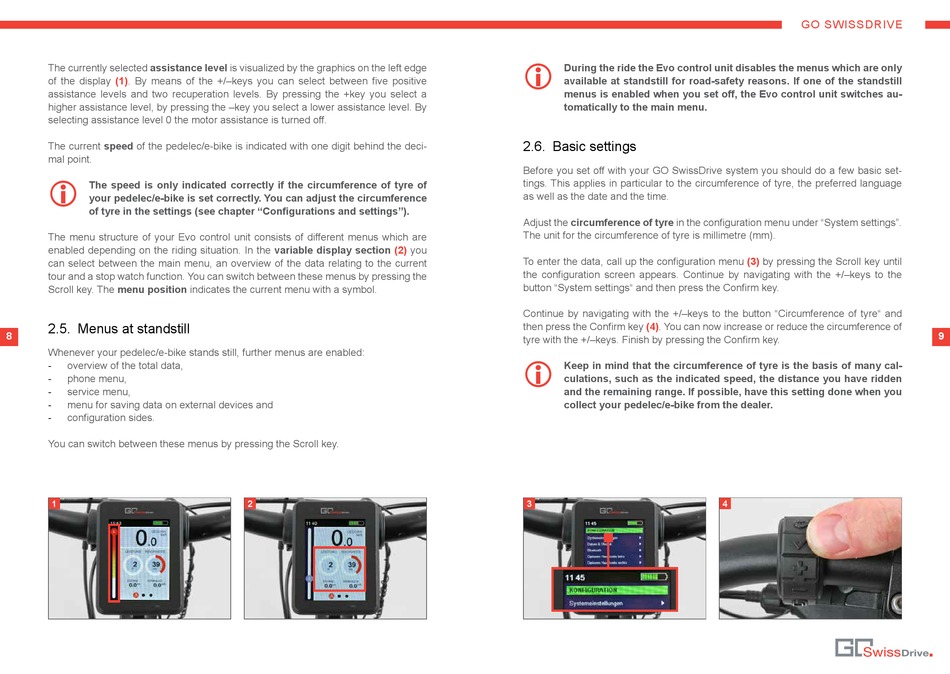

The currently selected assistance level is visualized by the graphics on the left edge
of the display (1). By means of the +/–keys you can select between five positive
assistance levels and two recuperation levels. By pressing the +key you select a
higher assistance level, by pressing the –key you select a lower assistance level. By
selecting assistance level 0 the motor assistance is turned off.
The current speed of the pedelec/e-bike is indicated with one digit behind the deci-
mal point.
The speed is only indicated correctly if the circumference of tyre of
I
your pedelec/e-bike is set correctly. You can adjust the circumference
of tyre in the settings (see chapter "Configurations and settings").
The menu structure of your Evo control unit consists of different menus which are
enabled depending on the riding situation. In the variable display section
can select between the main menu, an overview of the data relating to the current
tour and a stop watch function. You can switch between these menus by pressing the
Scroll key. The menu position indicates the current menu with a symbol.
2.5. Menus at standstill
8
Whenever your pedelec/e-bike stands still, further menus are enabled:
- overview of the total data,
- phone menu,
- service menu,
- menu for saving data on external devices and
- configuration sides.
You can switch between these menus by pressing the Scroll key.
1
(2) you
2
During the ride the Evo control unit disables the menus which are only
I
available at standstill for road-safety reasons. If one of the standstill
menus is enabled when you set off, the Evo control unit switches au-
tomatically to the main menu.

2.6. Basic settings

Before you set off with your GO SwissDrive system you should do a few basic set-
tings. This applies in particular to the circumference of tyre, the preferred language
as well as the date and the time.
Adjust the circumference of tyre in the configuration menu under "System settings".
The unit for the circumference of tyre is millimetre (mm).
To enter the data, call up the configuration menu
the configuration screen appears. Continue by navigating with the +/–keys to the
button "System settings" and then press the Confirm key.
Continue by navigating with the +/–keys to the button "Circumference of tyre" and
then press the Confirm key (4). You can now increase or reduce the circumference of
tyre with the +/–keys. Finish by pressing the Confirm key.
Keep in mind that the circumference of tyre is the basis of many cal-
I
culations, such as the indicated speed, the distance you have ridden
and the remaining range. If possible, have this setting done when you
collect your pedelec/e-bike from the dealer.
3
GO SWISSDRIVE
(3) by pressing the Scroll key until
4
9
