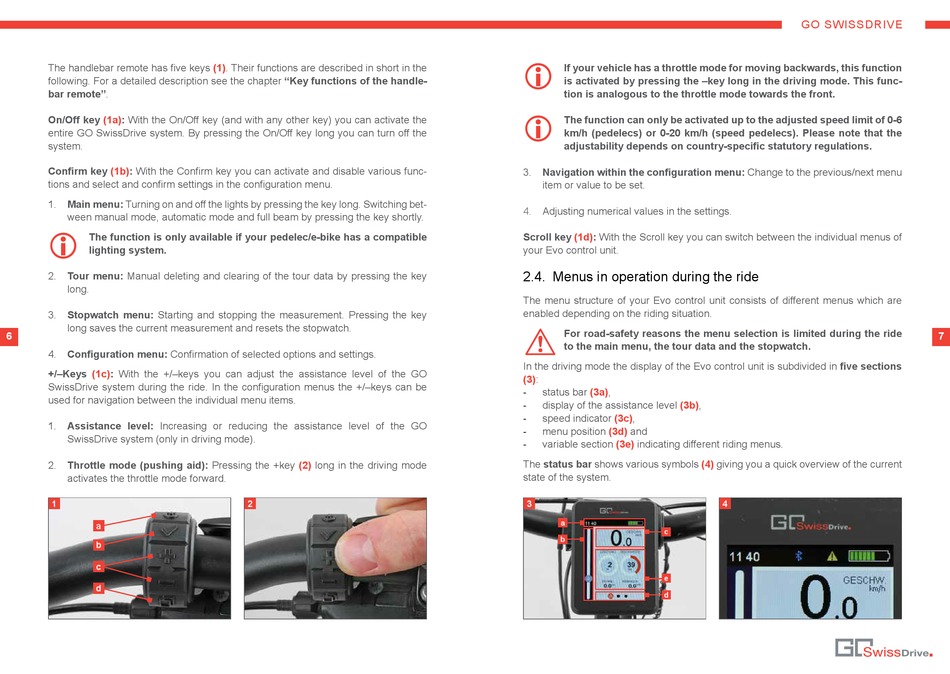

GO SwissDrive EVO Original Instruction Manual page 5

The handlebar remote has five keys (1). Their functions are described in short in the
following. For a detailed description see the chapter "Key functions of the handle-
bar remote".
On/Off key (1a): With the On/Off key (and with any other key) you can activate the
entire GO SwissDrive system. By pressing the On/Off key long you can turn off the
system.
Confirm key (1b): With the Confirm key you can activate and disable various func-
tions and select and confirm settings in the configuration menu.
1. Main menu: Turning on and off the lights by pressing the key long. Switching bet-
ween manual mode, automatic mode and full beam by pressing the key shortly.
The function is only available if your pedelec/e-bike has a compatible
I
lighting system.
2. Tour menu: Manual deleting and clearing of the tour data by pressing the key
long.
3. Stopwatch menu: Starting and stopping the measurement. Pressing the key
long saves the current measurement and resets the stopwatch.
6
4. Configuration menu: Confirmation of selected options and settings.
+/–Keys (1c): With the +/–keys you can adjust the assistance level of the GO
SwissDrive system during the ride. In the configuration menus the +/–keys can be
used for navigation between the individual menu items.
1. Assistance level: Increasing or reducing the assistance level of the GO
SwissDrive system (only in driving mode).
2. Throttle mode (pushing aid): Pressing the +key
activates the throttle mode forward.
1
a
b
c
d
(2) long in the driving mode
2
If your vehicle has a throttle mode for moving backwards, this function
i
is activated by pressing the –key long in the driving mode. This func-
tion is analogous to the throttle mode towards the front.
The function can only be activated up to the adjusted speed limit of 0-6
I
km/h (pedelecs) or 0-20 km/h (speed pedelecs). Please note that the
adjustability depends on country-specific statutory regulations.
3. Navigation within the configuration menu: Change to the previous/next menu
item or value to be set.
4. Adjusting numerical values in the settings.
Scroll key (1d): With the Scroll key you can switch between the individual menus of
your Evo control unit.
2.4. Menus in operation during the ride
The menu structure of your Evo control unit consists of different menus which are
enabled depending on the riding situation.
For road-safety reasons the menu selection is limited during the ride
A
to the main menu, the tour data and the stopwatch.
In the driving mode the display of the Evo control unit is subdivided in five sections
(3):
- status bar (3a),
- display of the assistance level (3b),
- speed indicator (3c),
- menu position (3d) and
- variable section (3e) indicating different riding menus.
The status bar shows various symbols (4)
state of the system.
3
a
c
b
e
d
GO SWISSDRIVE
giving you a quick overview of the current
4
7
