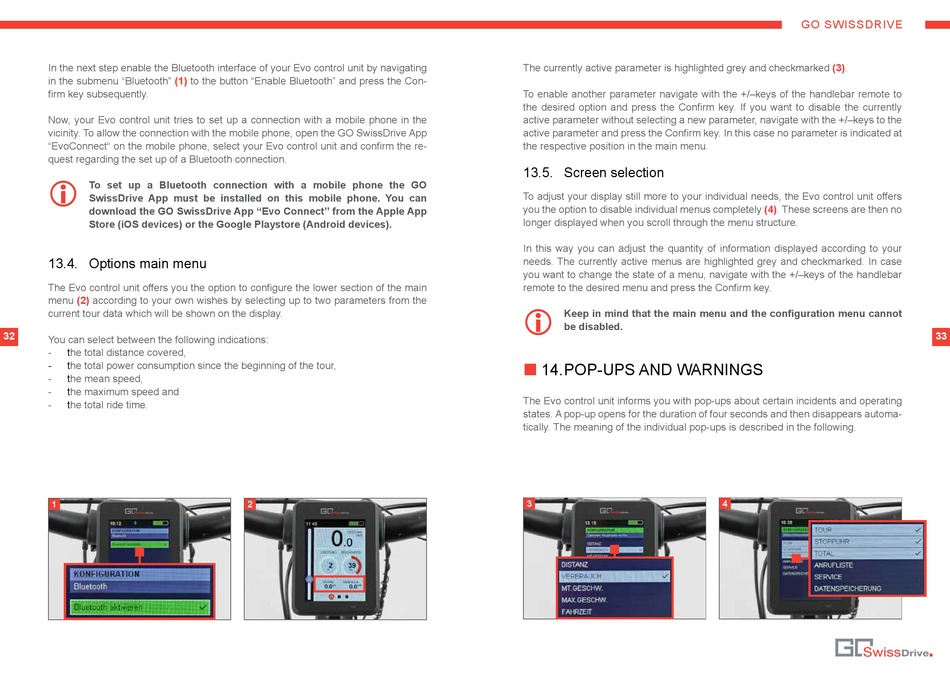

Screen Selection - GO SwissDrive EVO Original Instruction Manual

In the next step enable the Bluetooth interface of your Evo control unit by navigating
in the submenu "Bluetooth" (1)
firm key subsequently.
Now, your Evo control unit tries to set up a connection with a mobile phone in the
vicinity. To allow the connection with the mobile phone, open the GO SwissDrive App
"EvoConnect" on the mobile phone, select your Evo control unit and confirm the re-
quest regarding the set up of a Bluetooth connection.
To set up a Bluetooth connection with a mobile phone the GO
I
SwissDrive App must be installed on this mobile phone. You can
download the GO SwissDrive App "Evo Connect" from the Apple App
Store (iOS devices) or the Google Playstore (Android devices).
13.4. Options main menu
The Evo control unit offers you the option to configure the lower section of the main
menu (2) according to your own wishes by selecting up to two parameters from the
current tour data which will be shown on the display.
32
You can select between the following indications:
- the total distance covered,
- the total power consumption since the beginning of the tour,
- the mean speed,
- the maximum speed and
- the total ride time.
1
to the button "Enable Bluetooth" and press the Con-
2
The currently active parameter is highlighted grey and checkmarked (3).
To enable another parameter navigate with the +/–keys of the handlebar remote to
the desired option and press the Confirm key. If you want to disable the currently
active parameter without selecting a new parameter, navigate with the +/–keys to the
active parameter and press the Confirm key. In this case no parameter is indicated at
the respective position in the main menu.

13.5. Screen selection

To adjust your display still more to your individual needs, the Evo control unit offers
you the option to disable individual menus completely (4). These screens are then no
longer displayed when you scroll through the menu structure.
In this way you can adjust the quantity of information displayed according to your
needs. The currently active menus are highlighted grey and checkmarked. In case
you want to change the state of a menu, navigate with the +/–keys of the handlebar
remote to the desired menu and press the Confirm key.
Keep in mind that the main menu and the configuration menu cannot
I
be disabled.
14. POP-UPS AND WARNINGS
„
The Evo control unit informs you with pop-ups about certain incidents and operating
states. A pop-up opens for the duration of four seconds and then disappears automa-
tically. The meaning of the individual pop-ups is described in the following.
3
GO SWISSDRIVE
4
33
