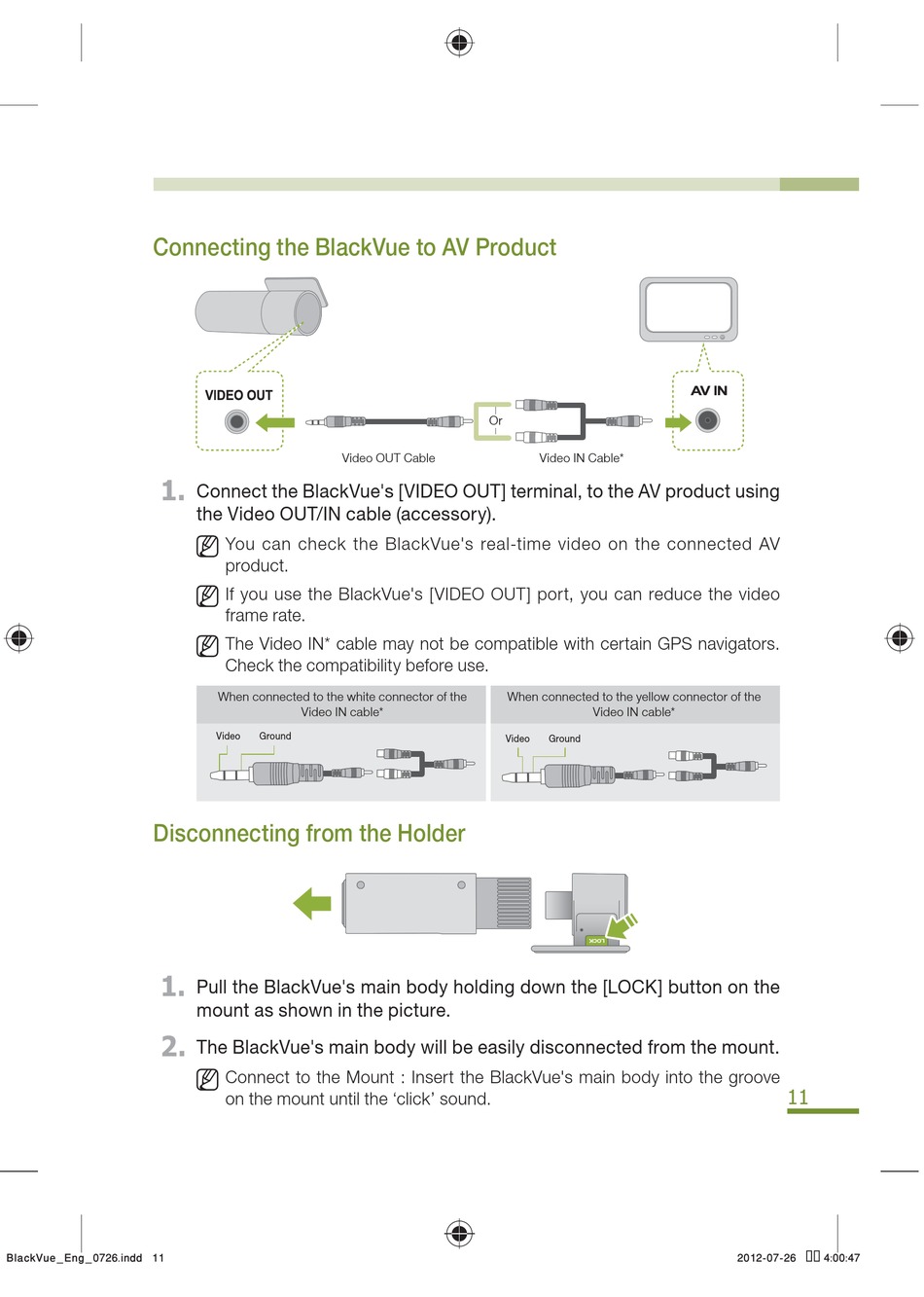

Connecting the BlackVue to AV Product


Disconnecting from the Holder



4ZOQYHcSN7\UNW\RR
Video OUT Cable
Connect the BlackVue's [VIDEO OUT] terminal, to the AV product using
the Video OUT/IN cable (accessory).
You can check the BlackVue's real-time video on the connected AV
product.
If you use the BlackVue's [VIDEO OUT] port, you can reduce the video
frame rate.
The Video IN* cable may not be compatible with certain GPS navigators.
Check the compatibility before use.
When connected to the white connector of the
Video IN cable*
Video Ground
Pull the BlackVue's main body holding down the [LOCK] button on the
mount as shown in the picture.
The BlackVue's main body will be easily disconnected from the mount.
Connect to the Mount : Insert the BlackVue's main body into the groove
on the mount until the 'click' sound.
Or
Video IN Cable*
When connected to the yellow connector of the
Video IN cable*
Video Ground
