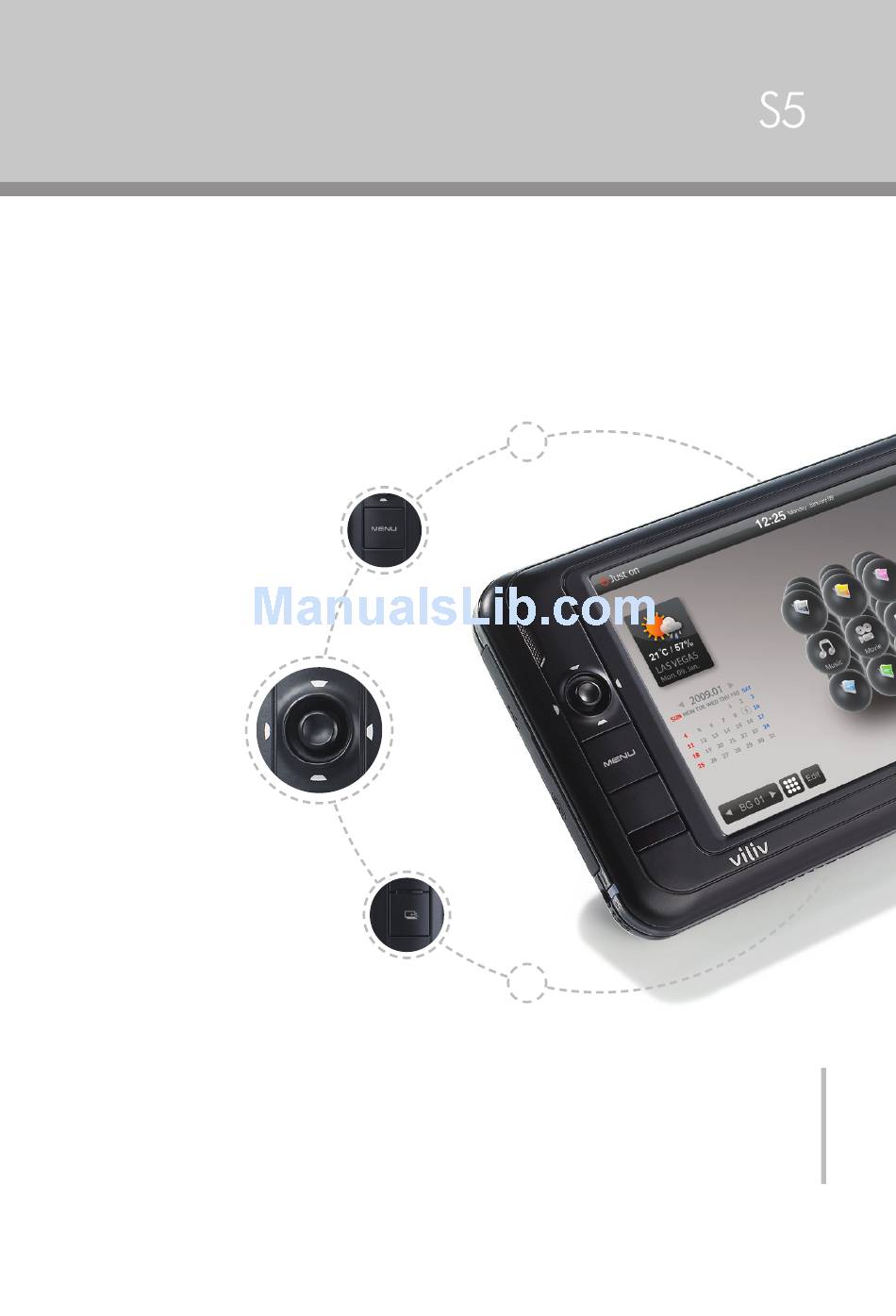

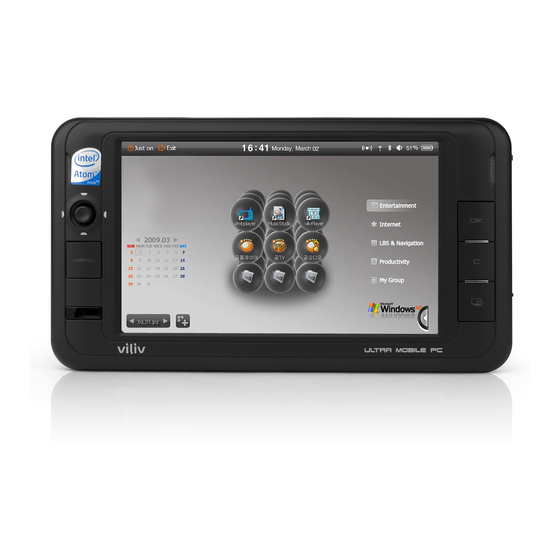

- Page 1 Detail Guide Intel Atom Silverthorne 1.33Ghz Superfine 4.8” Touch LCD with Virtual Haptic Keyboard 200 hours Standby Time 6 hours continuous movie Playback Bluray HD Video Playback HDD 30G/60G, Windows XP This guide is subject to change for product improvement without prior notice.
- Page 2 Thank you for purchasing viliv. Please read the Precautions before using the product.
-
Page 3: Registered Trademark
Yukyung Technologies Corp. ©2009 Yukyung Technologies Corp. All rights reserved. Registered Trademark viliv is Yukyung Technologies’ registered trademark. Windows 2000, Windows XP and Windows CE are Microsoft Corporation’s registered trademarks. ※ There are differences in functions for each model. -
Page 4: Table Of Contents
Detailed Function....10 Way to Connect S5 ....28 Procedure for Playing Video ..11 FAQ . -
Page 5: Cubeui
CubeUI Double-click the [ CubeUI ] icon on the screen for operation. Screen of Cube ON/OFF for Wireless LAN Set Vibration ON/OFF for Bluetooth Current Time Volume External Power and Battery Enter into Standby Mode Terminate CubeUI Execution Icon Weather Information Cube Menu Calendar Move to WINDOWS XP... -
Page 6: Setting Cube
CubeUI Setting Cube 1. Screen for Setting Cube When pressing [ ] icon on Cube screen, the screen for setting cube is selected. 2. Setting Cube Press the menu to be set from cube menu. Drag the corresponding icon, and insert into the vacant place in Set other cube menus using the above setting method. -
Page 7: Virtual Keyboard
Virtual Keyboard Using Virtual Keyboard 1. Execution of Virtual Keyboard Press the [ ] icon on the screen to run the virtual keyboard. You can also press the [ ] button. 2. Hiding/Showing Virtual Keyboard Press the [ ] icon on the virtual keyboard to minimize the virtual keyboard into the [ ] icon. -
Page 8: Virtual Keyboard Function
Virtual Keyboard Virtual Keyboard Function Caps Supports capital letters. (Caps Lock) Shift Inputs capital letter. Executes start menu. Backspace key. Mode Changes to number or special letter mode. Notice When pressing button while virtual keyboard is executed, it is executed the same as pressing Ctrl + Alt button together. (In case of setting for configuration set-up for virtual keyboard) ULTRA PC PMP www.myviliv.com... -
Page 9: User Registration Button
User Registration Button Shortcut button for user registration software of S5 terminal is registered in the virtual keyboard when it is shipped from the factory. To change to the desired software, set up as follows. Set up for New Shortcut Button 1. -
Page 10: Playing Video
Playing Video Video Screen Current Time Volume Hide Window Terminate Select Play List Play Screen Move to File List Page Time Bar Play List Function Icon Volume Control Set Environment Processing Time/Time Show/Hide Play List for Entire File ■ Function Icon Play/Pause Previous File Stop... -
Page 11: Detailed Function
Playing Video Detailed Function 1. Search Browser : Change Folder/File Selection Mode : Move to Upper Folder : Select All : Cancel All : Register on the Play List : Sort : Terminate Notice By touching check box in front of file name, individual selection can be made. On video search browser, only the formats which may be played are displayed. However, if the file format and codec for playing file do not match or the file has an error, it may be played, or the playing status may not be smooth. -
Page 12: Procedure For Playing Video
Playing Video Procedure for Playing Video Selection of Video Icon Execution of Video Player Getting File Double-touch Video icon. Execute video player. Execute the search browser. Touch icon. Double-touch the folder that has the video file. Selection of File Registration of Play List Enjoying Video Touch check box,... -
Page 13: Playing Video
Playing Video Playing Video 1. Opening File (FILE BROWSER) When the search browser is executed by touching icon, tick the check box in front of the file and then touch icon to register the file on the play list. Notice When double-touching the file you want on the file browser screen, all the files in the folder are registered on the play list, and a double-touched file is played first automatically. 2. Showing/Hiding Play List Touching icon shows or hides the play list. ● Double-touching a file on the play list plays a movie. -
Page 14: Setting Video Configuration
Playing Video When touching icon on the video main screen, setting screen for video configuration appears. Change the value by using ◄► icon. Setting Video Configuration ■ PLAYER 1. PLAY MODE Set the play mode wanted by the user. It can be set by PLAY ALL, REPEAT ALL, REPEAT ONE, or RANDOM 2. SKIP While playing, move the direction button to the left or right in units of 1 second. 3. - Page 15 Playing Video ■ CAPTION 1. LANGUAGE In multiple language caption file, language selection and caption indication can be turned off. 2. SYNC It is used if the video and caption do not match. It can be adjusted in units of 0.5 second. 3. FONTSIZE Set the font size. It can be set by 1X, 2X, 3X, 4X, 5X, or 6X 4.
-
Page 16: Playing Music
Playing Music Music Main Screen Select Play List Current Time Volume Hide Window Terminate Currently Playing File Change of Screen Mode Time Bar Move to File List Page Play List File Information Play List Function Icon Function Icon Show/Hide Advanced Functions Volume Control Set Configuration 1. -
Page 17: Detailed Function
Playing Music Detailed Function 1. Search Browser : Change Folder/File Selection Mode : Move to Upper Folder : Select All : Cancel All : Register on the Play List : Sort : Terminate Notice By touching check box in front of file name, individual selection can be made. On music search browser, only the formats which may be played are displayed. However, if the file format and codec for playing file do not match or the file has an error, it may be played, or the playing status may not be smooth. -
Page 18: Advanced Functions
Playing Music Advanced Functions 1. Repeating Interval : Set the starting location. : Set the ending location. ►Start repeating the interval. : Start repeating the interval. (By touching it again, it stops repeating the interval.) 2. Bookmark : Retrieve from the stored bookmark. : Save the bookmark. ※ Retrieving from bookmark function is executed only in case of playing a file stored in the bookmark. 3. -
Page 19: Procedure For Playing Music
Playing Music Procedure for Playing Music Selection of Music Icon Execution of Music Player Getting File Double-touch Music icon. Execute music player. Execute the search browser. Touch icon. Double-touch the folder that has the music file. Selection of File Registration of Play List Enjoying Music Touch check box,... -
Page 20: Playing Music
Playing Music Playing Music 1. Opening File (FILE BROWSER) When search browser is executed by touching icon, tick the check box in front of the file and then touch icon to register the file on the play list. When double-touching the file you want on the file browser screen, all the files in the folder are registered on the play list, and a double-touched file is played first automatically. 2. Changing Play File (Play List) Double-touching a file on the play list plays the music. After selecting a file, the music is played even by touching icon. 3. Time Bar Dragging a time bar or touching a specific location moves the playing location. While playing, if the jog key of the terminal is moved to left or right, it moves in the units of 5 seconds. -
Page 21: Setting Music Configuration
Playing Music When touching icon on the music main screen, setting screen for music configuration appears. Setting Music Configuration 1. PLAY MODE Set up the play mode It provides Play All / Repeat Playing All / Repeat One Song / Random Play functions. 2. Spectrum Mode Set up the spectrum mode wanted by the user. It provides NORMAL / DOWN /... -
Page 22: Changing To Screen Mode
Playing Music Changing to Screen Mode 1. Advanced Spectrum Mode Touching icon moves the screen to advanced spectrum mode. Touching icon on advanced mode screen returns the screen to general mode. [ General Mode ] [ Advanced Mode ] 2. Advanced Play List Mode Touching icon moves the screen to advanced play list mode. -
Page 23: Vilivmanager
1. OFF: Always starts by turning it off. Start Option 2. Last Status: Starts by the last status used. 3. ON: Always starts by turning it on. If setting the touch coordinates of S5 is needed, execute touch Calibration calibration by pressing Set. ULTRA PC PMP... -
Page 24: Setting Up Bios
Setting Up BIOS Set-up is a configuration utility that sets up the system configuration for the user. Bios is delivered by optimizing this configuration. Therefore, do not change this configuration unless it is an unavoidable case. Screen for Setting Up BIOS Set-up Menu Help Set-up Items ■ Set-up Menu Main Displays basic specifications for the system, and you can change the date. Advanced Sets up the configuration related to disk and chipset. Boot Sets up the content related to booting such as booting priority. Security Can set up or change the password. Exit Menu related to terminating set-up. -
Page 25: Entering Bios Set-Up
The content of set-up can be changed due to reasons such as improvement of product. Entering BIOS Set-up Turn on the power of product. When the booting screen (viliv logo) appears, press [MENU] button or [Del] key for external keyboard. After a few seconds, the initial set-up screen appears. ULTRA PC PMP... -
Page 26: Booting Device
Setting Up BIOS Setting up Booting Priority for Booting Device Enter into Boot menu on the set-up. Press OK or Enter key on [Boot Device Priority] item. Press OK or Enter key on [1st Boot Device] item to select the booting device with the highest priority. Press OK or Enter key on [2nd Boot Device] item to select the booting device with the 2nd highest priority. -
Page 27: Setting Up Booting Password
Setting Up BIOS When setting up the password, the password must be entered when you turn on the computer or execute the set-up. Therefore, the password must be set up very carefully. Make sure to remember the password when you set up. Setting up Booting Password When setting or changing booting password, a keyboard is needed. -
Page 28: Recovery Solution (Ami Rescue) Guide
Way to Use Recovery Solution (AMI Rescue) 1. Execution of Recovery Solution (AMI Rescue) If viliv logo appears when booting the system (BIOS POST), press the select button of product’s jog key 1-2 times or F10 key if external keyboard is connected. -
Page 29: Connection Of S5
※ This software can be downloaded from myviliv homepage (www.myviliv.com). ※ Before installing the driver to host PC, do not connect to S5 terminal. 3. Execution of Connection Wizard 1) After installation, select [Yes] to execute Host Wizard. - Page 30 Connection of S5 4. Execution of Connection Wizard By pressing [Next] of Host Wizard, configuration is processed automatically. After automatic configuration is completed, press [Next] to connect the network driver. 5. Connection of Network Driver Select network driver name and folder to be connected. Select network drive. Select folder to be connected. When checked, it is connected automatically if connected again.
-
Page 31: Faq
2) Remove [ Inter(R) USB Client Ethernet Device ] driver on network adaptor item. 3) Reinstall Usbc32client. ※Download the driver from homepage (www.myviliv.com). 4) Reinstall Intel(R) USB Client Utility. ※Download the driver from homepage (www.myviliv.com). 5) Start the set-up for S5 connection from the beginning again. ULTRA PC PMP www.myviliv.com... -
Page 32: Connection Of Gps
Connection of GPS Way to Connect GPS 1. Manual Set-up for GPS How to set up GSP for applications that need GPS set-up such as navigation software. Baud rate : 9,600 Bps For set-up method, select manual. Serial Port : COM1 ULTRA PC PMP www.myviliv.com... -
Page 33: Software License Agreement
One copy of software can be used for each S5. If the user owns several software licenses, then he or she can use the copies for the number of licenses. “Use” means to load to the temporary memory or perma- nent storage device in the computer. -
Page 34: Limited Warranty
The responsibility for selecting the software needed for user and the result caused by using this software belongs to the user. viliv denies all other warranties implied or stated by representing itself and supplier. This includes implied warranties for product and compatibility for specified purpose of this software and all books included. This limited warranty assigns the specified rights to you, and different rights can be given for each jurisdiction. - Page 35 200-11 Anyang-dong, Manan-gu, Anyang-si, Gyeonggi-do, South Korea E-mail : help@myviliv.com...
