Summary of Contents for Viliv X70 EX

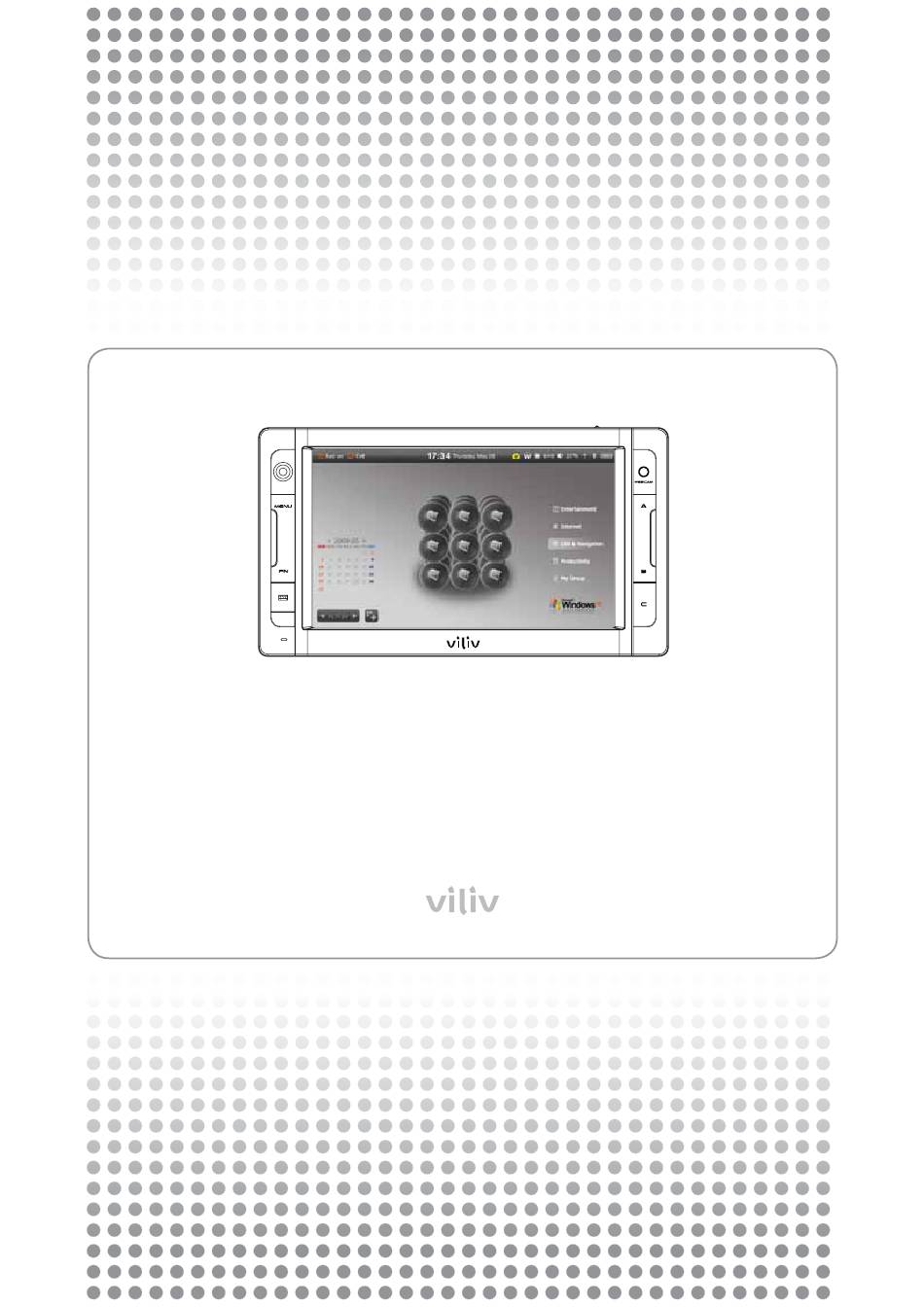

- Page 1 Thanks for purchasing viliv. Please read the precautions throughly before using the product.
-
Page 2: Registered Trademark
Grade B Device Registered Trademark viliv is the registered trademark of Yukyung Technologies Corp. Windows 2000, Windows XP and Windows CE are the registered trademarks of Microsoft Corporation. - Page 3 Contents...
-
Page 4: Safety Precautions For Use
Safety Precautions for Use The precautions below are provided to prevent bodily injury or property damage by using this product correctly. Please observe the precautions. Precautions on Power Plug the power cord into an outlet with grounded jack. If lightning occurs nearby or if you are absent for a long time, unplug the plug from the outlet. - Page 5 FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of ‘X70 EX’ complies with the FCC guidelines and those attachments could impair call quality, damage your ‘X70 EX’, or result in violation of FCC regulations.
- Page 6 Safety Precautions for Use The device functions vary depending on model. Precautions for GPS When initially operating this device, it is recommended you warm it up for over 15 minutes under a clear open sky and open area. If the vehicle equipped with this device is not used for 7 days or longer, the data storage recharger inside the GPS may be discharged and require warming up time of over 15 minutes.
-
Page 7: Names Of Parts
Names of Parts The appearance of the components below may differ from the actual components and some components are subject to change. Stylus Pen User’s Manual English... - Page 8 Names of Parts With a 45 degree angle lean X70 EX and Guide X70 EX car mount hole is attached to case Place X70 EX depending on guide line in X70 EX case. Finally holding the case with left hand and rotate right 45 degrees the location of X70 EX with right hand in guide line.
- Page 9 Stylus Pen Stores a stylus pen. Earphones Port Connects earphones. Operation Indicator WLAN Indicates the status of power connection. Jog Dial Moves to main menu. Activates viliv virtual keyboard. Equipped with a web camera. The user can operate the device on the touch screen. English...
- Page 10 Names of Parts USB Data Link It is used to connect a terminal computer. USB Port RESET If you press this button with a pointed object, the device restarts. It is used to charge a battery or connect a power adapter for the use of the device.
- Page 11 Names of Parts RESET DC 9.5V It is used to connect a device rack. Connection part of battery terminal. Separating/Attaching Battery Push the battery downward to separate the battery, as shown Battery English...
- Page 12 The charger is connected to the power adapter terminal on the left side of the station. Notice Power On Mode English...
- Page 13 English...
-
Page 14: Separating · Attaching Battery
Separating · Attaching Battery Separating Battery direction as shown battery. Notice Separate the charger after turning the power of the station off. If not, you may receive an electric shock by a short circuit in the battery power part. Attaching Battery Notice If the battery is misaligned with the groove and you attempt to mount the battery, the device may be damaged. - Page 15 Separating · Attaching Battery Since this device adopts a one-touch method, you may gently press on the Insertion Direction Front Side Notice English...
-
Page 16: Basic Operation
Basic Operation To turn the power on, move the Power button on the top of the station to the left. displayed. If Windows OS is running, turn the power off with the Turn the Power menu on the Start menu. If the system is stopped during the operation, move the Power button on the right side to the left side and hold the button for over 4 seconds to turn the... - Page 17 detailed manual for the description of functions. / / / / / / screen. Enter button It is used to move to the main menu. Virtual keyboard is activated. Pivot JOG key English...
- Page 18 Basic Operation If you press the Hide icon on the virtual keyboard, the keyboard is converted into the icon. Virtual Keyboard. 1. OFF: Always start with OFF status. 3. ON: Always start with ON status. 2. When using soft keyboard: Operate only if soft keyboard is used.
- Page 19 For each Windows installation process, the installation time may vary depending on the process. Please wait until the installation is complete. Along with the start of Microsoft Windows XP Home, the preparation screen for starting The Windows start screen for setting up computer appears.
- Page 20 The screen related to automatic update appears. After the selection, click The screen to assign the computer name you can click to assign the computer name, or you can open the video keyboard on Microsoft Utility Manager by pressing the menu button of the product and the user registration button of shape on the lower-left corner...
- Page 21 As an image-based OS recovery solution, it recovers to the initial status of shipment from factory when When clicking Restore OS button, a message that , it starts the recovery of OS. If the process of OS recovery is completed, a message If you press button, the system is booted again automatically.
- Page 22 Product Name X70 EX Intel ® Atom Storage Bluetooth Audio Stereo speakers Battery Voltage: 7.4V Capacity: 4,100mAh Dimension Windows XP Home Edition Operation Temperature English...
- Page 23 English...
- Page 24 English...
