User's Manual
This guide is subject to change for product improvement without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viliv S5

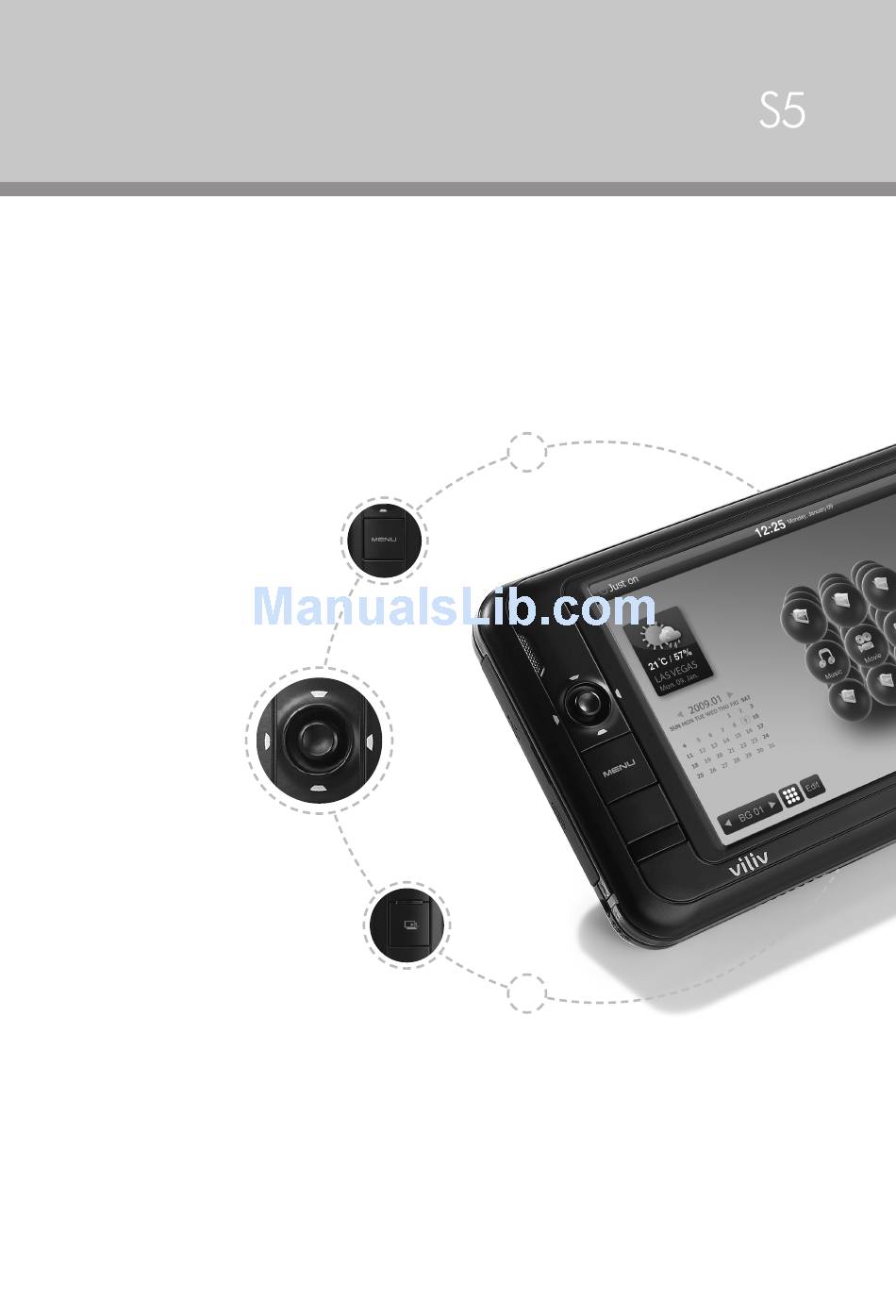

  • Page 1 User’s Manual This guide is subject to change for product improvement without prior notice.
  • Page 2 Thanks for purchasing viliv. Please read the precautions throughly before using the product.
  • Page 3 Grade B Device (Broadcast Communication Device for Residential Area) Registered Trademark viliv is the registered trademark of Yukyung Technologies Corp. Windows 2000, Windows XP and Windows CE are the registered trademarks of Microsoft Corporation. Liability Disclaimer...
  • Page 4: Table Of Contents

    Contents Safety Precautions for Use ..........4 Names of Parts ..............7 Basic Components ................7 Front View ..................8 Top View ..................9 Left/Right View ................10 Rear View ..................11 Installation and Cable Connection ........12 USB Data Link Connection ............12 USB Connection ................12 Separating·Attaching Battery ..........
  • Page 5: Safety Precautions For Use

    Safety Precautions for Use The precautions below are provided to prevent bodily injury or property damage by using this product correctly. Please observe the precautions. Precautions on Power Do not touch the power adapter with wet hands. ■ Plug the power cord into an outlet with grounded jack. ■...
  • Page 6 FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of ‘S5’ complies with the FCC guidelines and those international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage your ‘S5’, or result in violation of FCC regulations.
  • Page 7 Safety Precautions for Use The device functions vary depending on model. Read the relevant precautions for the provided function before using the device. Precautions for GPS When initially operating this device, it is recommended you warm it up for over 15 ■...
  • Page 8: Names Of Parts

    Names of Parts The appearance of the components below may differ from the actual components and some components are subject to change. Basic Components Main Body Standard Removable Battery A Hand Strap and a Stylus Pen in One AC/DC Power Adapter Earphone User's Manual ULTRA MOBILE PC...
  • Page 9: Front View

    Names of Parts Front View Built-in Speakers Stereo speakers are built in. Jog Dial Dial to Move Up/Down/Left/Right ( / / / ) To move Up/Down/Left/Right on screen. (If it is pressed, continuous movement occurs on the screen.) Tab Button ( ) When pressed, the status bar appears.
  • Page 10: Top View

    Names of Parts Top View Heat Emission Hole Emits heat generated by the device. * If the heat emission hole is blocked, the device can overheat, which can be dangerous. Take care not to allow this to be blocked. * Take care not to allow water into this hole. Earphone Jack Connect the earphone or speakers through this.
  • Page 11: Left/Right View

    Names of Parts Left/Right View Reset Button Pressing this with a pointed object turn off the device. Multi-I/O Jack Used for Component/ S-VIDEO output. USB Host Jack Used to connect an external device to the device through USB connection. USB Link Jack Used to connect the device to a computer. (It will work as an external storage device.) This port is for advanced users only.
  • Page 12: Rear View

    Names of Parts Rear View The figure below shows the rear side of the main body without the battery. (Refer to Page 13 for Separating/Attaching battery.) Battery Recharging Contact Battery jack’s contact area. Separating/Attaching Battery Push the battery downward to separate the battery, as shown in the figure above.
  • Page 13: Installation And Cable Connection

    Installation and Cable Connection The connections of external devices may vary in accordance with products. USB Data Link Connection A USB cable is connected to the USB Data Link port on the right side of the station. USB Connection This is used for the connection of external devices, such as digital camera, external HDD, etc. ULTRA MOBILE PC English...
  • Page 14: Separating·attaching Battery

    Separating · Attaching Battery Separating Battery Turn the battery separation/placement button on the right side of the device toward open as in the illustration below. Then, separate the battery. Notice Separate the charger after turning the power of the station off. If not, you may receive an electric shock by a short circuit in the battery power part.
  • Page 15: Inserting·extracting Usim Card

    Separating · Attaching Battery Inserting · Extracting USIM Card How to Insert Let the front of a USIM card face the USIM card slot and then push it in the arrow direction until a click sound is heard. (If, however, you push the USIM card using too much force, the card may be damaged.) How to Extract Since this device adopts a one-touch method, you may gently press on the...
  • Page 16: Basic Operation

    Basic Operation Power On/Off Turning the Power On With the power off, push the power button on the right side of the device up to turn it on. The main screen displays on the LCD screen. Turning the Power Off From the On position, push the power button on the right side of the device up all the way to turn it off.
  • Page 17: Volume Control

    Basic Operation Volume Control Volume Control Adjust volume by pressing the VOL button on the upper area of the device. Mute Mute Press the middle of the VOL button on the upper area of the device. The Mute function is on. Resetting Use the Reset button if the touch screen and/or the buttons on the device do not work.
  • Page 18: Jog And Function Buttons

    Basic Operation Jog and Function Buttons The Jog key has different functions in accordance with the program functions. Up↑/Down↓/Left←/Right→ Move ( / / / ) This is the button to move in Up↑/Down↓/Left←/Right→ direction on screen. Selection (Center Key of the Direction Keys) Enter button MENU It is used to move to the main menu.
  • Page 19: Turning On/Off The Lcd Screen

    Basic Operation Turning On/Off the LCD Screen Turning Off the LCD Screen When it is on, press and hold the OK button, then the screen goes off. Turning On the LCD Screen When it is off, press and hold the OK button, then the screen comes on.
  • Page 20: Set Up For Villv Manager

    Basic Operation Set Up for villv Manager viliv Manager is executed by double touching vilivManager on the screen. Wireless LAN Power Turn on/off self-powered wireless LAN function. Bluetooth Power Turn on/off self-powered Bluetooth function. 3G Modem Power (3G Model only) Turn on/off self-powered 3G Modem function.
  • Page 21: Using For The First Time

    Using for the First Time Using for the First Time For each Windows installation process, the installation time may vary depending on the process. Please wait until the installation is complete. Along with the start of Microsoft Windows XP Home, the preparation screen for starting Windows appears as in the following figure.
  • Page 22 Using for the First Time The screen related to automatic update appears. After the selection, click next. The screen to assign the computer name appears. To do this, an external keyboard is needed. If you don’t have an external keyboard, you can click next to assign the computer name, or you can open the video keyboard on Microsoft Utility Manager by pressing the menu button of the product and...
  • Page 23: Recovery Solution (Ami Rescue) Guide

    Way to Use Recovery Solution (AMI Rescue) Execution of Recovery Solution (AMI Rescue) If viliv logo appears when booting the system (BIOS POST), press the select button of product’s jog key 1-2 times or F10 key if external keyboard is connected.
  • Page 24: Specifications

    Specifications The device specifications below may be changed without prior notice for performance improvement. General Specifications Product Name CPU & Chipset Intel ® Atom 1.33GHz (Z520) + SCH US15W 4.8" WSVGA (1024 x 600) Storage HDD 60GB / SSD 32GB / SSD 64GB WWAN (Optional) WiMAX;...
  • Page 25 Memo ULTRA MOBILE PC English...
  • Page 26 Rev. 1.0...
