Page 1: Instruction Manual

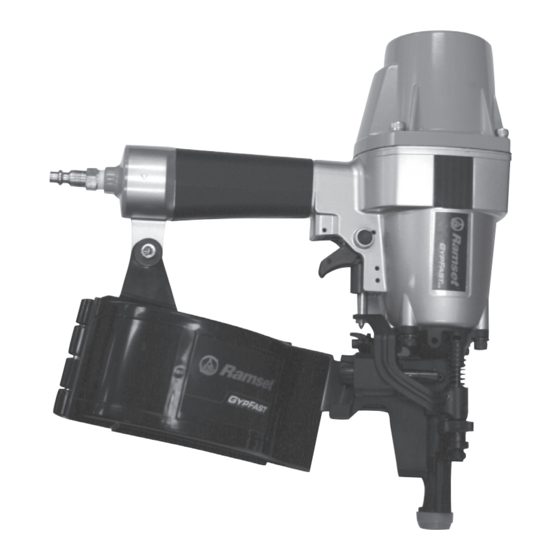

DANGER READ AND OBEY ALL SAFETY AND OPERATING INSTRUCTIONS BEFORE OPERATING TOOL. RAMSET GYPFAST AIR and GYPFAST AIR HD OPERATOR’S SAFETY & OPERATING INSTRUCTION MANUAL PNEUMATIC FASTENER DRIVING TOOL FOR ATTACHING SHEATHING TO LIGHT GAUGE STEEL FRAMING... -
Page 2: Table Of Contents
Introduction Congratulations on purchasing a Ramset pneumatic tool . A Ramset tool is a professional quality tool that combines power and speed in a lightweight design for versatile operation in a variety of industrial and construction applications . Please take the time to review this entire manual and all other documentation that came with the tool . -
Page 3: Safety Precautions
WEAR EYE AND HEARING PROTECTION. Always wear hearing and eye protection devices • DO NOT operate a tool if the safety system when you are operating the GypFast Air, Air HD sticks, binds or is disconnected, or defective tool or working in the vicinity of this tool . Also, in any way. your eye protection must meet the requirement of • DO NOT modify this tool, or use any modified... -
Page 4: Specifications
SPECIFICATIONS / AIR SYSTEMS SPECIFICATIONS Tool Type: Coil Nailer Dimensions (H x L x W): 12” (303mm) x 13” (329mm) x 5 .5” (137mm) Weight w/out Nails (GYPFASTAIR): 5 .8 lbs (2 .6 kg) Weight w/out Nails (GYPFASTAIRHD): 6 .2 lbs (2 .8 kg) Activation Mode: Contact / Sequential Energy Source:... -
Page 5: Tool Loading
TOOL LOADING / TOOL OPERATION TOOL LOADING TOOL OPERATION LOADING AND UNLOADING NAILS OPERATION OF TOOL This tool is equipped with a safety yoke, which 1 . Lay the tool on its right side, exposing the must be pushed to the work surface for the tool gate latch . -
Page 6: Maintenance
4 . Clean the outside of the tool using a soft cloth result in serious injury to the user and/or damage and a mild degreasant like paraffin . to the tool . Please contact your local Ramset sales CAUTION: Never use highly volatile solvents person, or authorized Distributor for assistance such as gasoline to clean the tool . -
Page 7: Warranty
WARRANTY RAMSET AIR TOOL SYSTEMS WARRANTY AND LIMITATIONS Ramset warrants that new GypFast Air and This warranty is void as to any tool which has Air HD systems power fastening tools, parts and been subjected to misuse, abuse, accidental accessories will be free from defects in material or intentional damage, use with fasteners not and workmanship for the period shown below . - Page 8 FOR TOOL REPAIR SERVICE CONTACT YOUR LOCAL AUTHORIZED RAMSET DISTRIBUTOR OR TO FIND YOUR NEAREST RAMSET TOOL REPAIR CENTER VISIT OUR WEB SITE AT WWW.RAMSET.COM OR CALL 800-241-5640 Concrete Fastening Systems Glendale Heights, IL 60139 800-RAMSET6 (1-800-726-7386) www.ramset.com Buy with Confidence... Buy From Your Authorized Distributor AN ILLINOIS TOOL WORKS COMPANY ©...
