- Page 1 Twist Lok™ Tools Instruction Manual...
-
Page 2: Important: Read This
INSTRUCTION BOOK COMPLETELY BEFORE ATTEMPTING TO USE THIS TOOL The Ramset Powder Actuated Fastening System PA (Powder Actuated) or Ramset PA is a system for Important fastening construction materials to concrete, steel No one should attempt to operate a and brick. Described generally as powder-actuated it Ramset PA tool before reading this eliminates drilling, plugging and bolting etc. -
Page 3: Safety Precautions
Safety Precautions 1. NEVER attempt to use your Ramset PA 12.NEVER point the barrel of a loaded or tool UNLESS you have satisfactorily unloaded tool towards any person. ALWAYS completed authorised training and read point the tool downwards and as far as this instruction manual. - Page 4 DO NOT attempt to make any adjustments to the tool. Call your Ramset representative or supplier. 26.IF A MISFIRE OCCURS the tool should be kept firmly against the worksurface for a short time.
- Page 5 21 to 23. prevented by proper use. The importance of 3. Oil lightly, leaving a thin film of Ramset proper usage has been recognized in several PA Oil on all parts.
-
Page 6: Safety Features

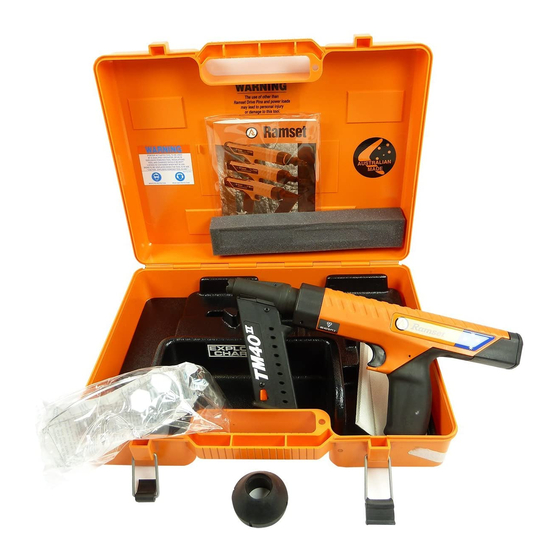

Safety Features Accidental Firing The tool is designed to prevent accidental firing. By compressing the tool against the work surface the firing mechanism is cocked. Only then can the firing pin be released via the trigger mechanism to detonate the power load. Jab Firing Protection To prevent Jab Firing of the tool, the trigger sear arm which releases the firing pin is so designed... - Page 7 PA9289 TS750P Tool Kit TM40 Magazine Order No.: TS750P As illustrated below the Ramset TS750P tool kit Order No.: TM40 consists of a model TS750P tool complete with The TM40 collated fastener magazine is an maintenance kit in sturdy carrying case. The kit accessory suitable for use with all Ramset contents may vary to meet local requirements.
-
Page 8: Tool Features
Tool Features The Ramset Twist Lok Strip Feed Powder Actuated Tool Range has been designed to incorporate the ultimate in reliability and simplicity, yet be one of the most powerful .27 Calibre (6.8 x 11mm Blank) PA tool ranges available. -
Page 9: Technical Data
They provide the greatest ease, convenience, all year round performance and safety when used together. It is important that you insist on genuine Ramset products for utmost satisfaction and to ensure validity of your warranty. Tool Maintenance... -
Page 10: Safety Warning
Power Loads Power Level Adjustment The Ramset Power Loads for the Twist Lok Tools consist of 10 power loads mounted into an • Precise control of driving power is provided by indexible plastic strip. The power loads and strips the use of the power adjustment. - Page 11 6 to 8 times plus the thickness of the steel (t) plus 6mm the shank diameter (22-30mm for standard to ensure full point penetration. For steels over Ramset LDU Pins). 8mm thick the drive pin length is calculated as • Threaded studs the fixture thickness (x) plus 12mm.
- Page 12 Selecting the Correct Fastener cont. Disc When a fastener is fired through a disc, the disc in effect gives the fastener a larger head and increases its bearing area. Discs are used when fastening soft materials such as wood, light gauge metals and non-metals.
- Page 13 Fasteners and Assemblies for TS60P & TS750P 3.8MM DIAMETER SHANK FASTENERS DRIVE PINS Application Shank Nominal Fixture Order No. Length Thickness Solid steel 14mm up to 2mm LDU14E Steel plate 16mm up to 2mm LDU16E Steel plate 18mm up to 8mm LDU18E Concrete 22mm...
- Page 14 Fasteners and Assemblies cont. 3.8MM DIAMETER SHANK FASTENERS cont. ASSEMBLIES - WITH WASHERED/ANGLE CLIPS Application Shank Washer Angle Hole Order No. Length Diameter Clip Size Concrete 25mm 16mm LWU25 Concrete 32mm 16mm LWU32 Concrete 75mm 16mm LWU75 Concrete 25mm 25 x 25mm LAU25 Concrete 32mm...
- Page 15 Bent or damaged piston. Check piston. If end is mushroomed, replace the tool. Rough action. Excessive build up of Disassemble tool, clean, lightly oil with Ramset carbon residue. PA Oil and re-assemble. Reduction or loss Piston not returning to Ensure piston is fully retracted by opening of power.
-
Page 16: Operating Instructions
Precaution Nos. 14, 15, 16, 17, 18, 19 and 20, see pages 3 and 4 of this manual. If in doubt, test material for soundness and hardness. (Safety Precaution No. 20, page 3 of this manual.) or contact your Ramset representative. Fig. 15... - Page 17 Operating Instructions cont. 3. Inserting power load strip 5. Firing With the tool in the closed position insert To fire the tool, press it firmly against the work a power load strip into the cavity in the surface, ensuring the tool is at right angles base of the rubber handle (Pic.
- Page 18 Never use force to remove power load strip. If normal advancement fails and you are unable to remove the strip, contact your nearest Ramset branch or distributor. Dispose of all unused power loads in a safe manner. If a loaded tool jams in the firing position, it should Pic.
- Page 19 Operating Instructions cont. 3. Loading fasteners 6. Close magazine Hold the tool in your right hand with the TM40 With the pin strip in place slowly/gently close cradled in your left. Using your left thumb release the cover fully to locked position (Pic. 19). cover latch by pushing toward rear of tool (Pic.
- Page 20 Operating Instructions cont. 8. Firing Fire and repeat as for TS60P/TS750P instructions on page 17 of this manual. SAFETY WARNING In the case of a misfire, the tool should be kept firmly against the worksurface for a short time. Refer Safety Precautions No.27, page 4 of this manual.
-
Page 21: Safety Warnings
*Note: see exploded view, page 26 and 27 of this manual to assist with identification of parts. SAFETY WARNINGS The upper tool and firing mechanism should only be dismantled and inspected by Pic. 23 your Ramset representative or Authorised Repair Technician.. - Page 22 Operators Service Procedure - Reassembly Reassemble all components in the reverse order 3. The retainers can be inserted from inside the to the disassembly procedure. Lightly oil all barrel with finger pressure. i.e. Position the components prior to reassembly, and wipe off any retainer with the undercut in the rear position.
- Page 23 Operators Service Procedure - Reassembly cont. 6. The tool should be dry cycle tested to ensure it is functioning correctly. Ensure no power load strip is loaded into the tool. Press the tool against the work surface and pull the trigger, listen for the sound of the firing pin dropping.
- Page 24 Operators Service Procedure - Disassembly page 21. 2. Now pull the piston from the rear barrel and replace it with the one supplied with your magazine kit (Ramset Part No. TM40). Ensure the piston head fits into the rear chamber (Pic. 32). Pic. 33 Pic.
- Page 25 Twist Tool a new special piston is required to ensure the magazine is not damaged during normal operation. Never attempt to disassemble the TM40 magazine, it should only be dismantled and inspected by your authorised Ramset repair technician.
- Page 30 Bangkok 10500 Fax: + 65 747 5184 THAILAND Tel: + 66 2 266 5986-90 Fax: + 66 2 266 5980 South Africa Ramset Africa (Pty) Limited United Kingdom 660 Pretoria Main Road, Wynberg, Sandton, Gauteng Ramset Fasteners Limited SOUTH AFRICA...
