K" Series Exciter Type Generator Assembly - Power Tech Generators PTSMH-15 Operator's Manual

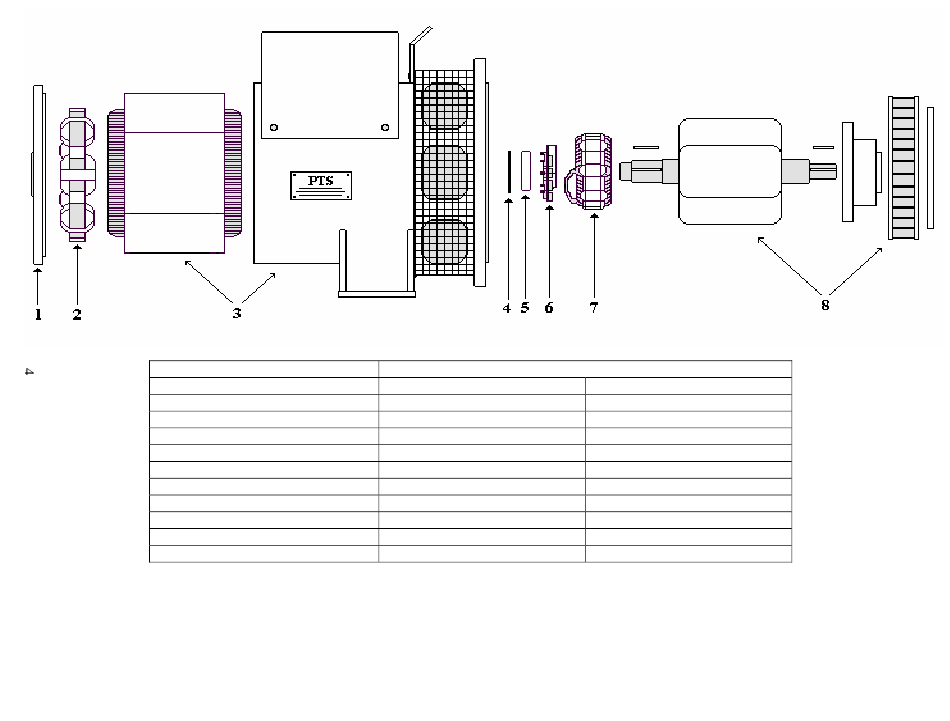

DESCRIPTION
1. BEARING PLATE
2. EXCITER STATOR
3. MAIN STATOR ASSEMBLY **
4. O-RING
5. ROTOR BEARING
6. DIODE PLATE
7. EXCITER ROTOR
8. MAIN ROTOR ASSEMBLY **
GENERATOR ASSEMBLY
VOLTAGE REGULATOR
** NOTE: Item #3 MAIN STATOR ASSEMBLY is a one-piece unit. The Stator cannot be separated from the
Generator's outer housing. Item #8 MAIN ROTOR ASSEMBLY is a one-piece unit. Hub, blower fan
and coupler are included.

"K" SERIES EXCITER TYPE GENERATOR ASSEMBLY

PART NUMBERS
16KW
02BRPLKONCAR
02STA21EXCR
02STAMN16
O-RING KON
02BRG62206-2RS1
02PLD21CR
02RTR16EXCR
02RTR16KON
02GEN16EXCR
02REG24
21KW
02BRPLKONCAR
02STA21EXCR
02STAMN21
O-RING KON
02BRG62206-2RS1
02PLD21CR
02RTR21EXCR
02RTR21KON
02GEN21EXCR
02REG24
