Appendix A — General Specifications
Mechanical
Height: 5.2" (131.6 mm)
Width: 2.0" (52 mm)
Depth: 3.6" (91.1 mm)
Weight: 3.9 oz. (110 g)
Environmental
Operating temperature: –20° to 55°C
(–4° to 131°F)
Storage temperature: –30° to 65° C
(–22° to 150°F)
Humidity: 5 to 95% (non-condensing)
Shock: Withstands multiple drops of 6' (1.8 meters)
CE Standards
Immunity: EN 55024
ESD: EN 61000-4-2
Radiated RF: EN 61000-4-3
Keyed Carrier: ENV50204
EFT: EN 61000-4-4
Conducted RF: EN 61000-4-6
Emissions: EN 55022, Class B Radiated,
Class B Conducted
CB Test Certificate: IEC 60950-1:2005, 2nd Edition
Symbologies
2D Symbologies: Data Matrix, QR Code, Micro QR
Code, Aztec Code
Stacked Symbologies: PDF417, MicroPDF417, Composite
Linear Symbologies: UPC, Code 39, Code 128, Interleaved
2 of 5, Codabar, GS1 DataBar, Code 93
Postal Symbologies: USPS OneCode (4CB), POSTNET,
PLANET, Japanese Post, Australian Post, Royal Mail,
KIX Code
Light Collection Options
Sensor: CMOS 1.2 Megapixel grayscale
Sensor Array: 1280 by 960
Field Selection: Near Field or Far Field
Field of View: Near Field: 30° horizontal by 20° vertical;
Far Field: 50° horizontal by 33.5° vertical
Focal Point: Approximately 100 mm
Optical Resolution: Near Field: 960 x 640; Far Field:
960 x 640
Communication Protocols
Standard Interface: RS-232, USB 2.0 (Generic HID,
HID Keyboard, Virtual COM Port)
Read Parameters
Pitch: ±60° (front to back)
Skew: ±60° (from plane parallel to symbol, side-to-side)
Rotational Tolerance: ±180°
Print contrast Resolution: 25% (1D symbologies); 35%
(2D symbologies); absolute dark/light reflectance differential,
measured at 650 nm
Ambient Light Immunity: Sunlight: Up to 9,000 ft.-candles
/ 96,890 lux
Target Beam: 2 blue bars
A-2
Indicators
Status Indicators: Beep, vibrate, LED flash
Image Output Options
Format: BMP or JPEG
Memory Capacity
128MB Flash ROM, 32MB RAM
Data Editing
JavaScript (Additional License Required)
Electrical
Power Requirements: Reader @ 5VDC (mA): Typical:
Less than 450 mA; Idle: Less than 80 mA; Sleep: Less
than 31mA

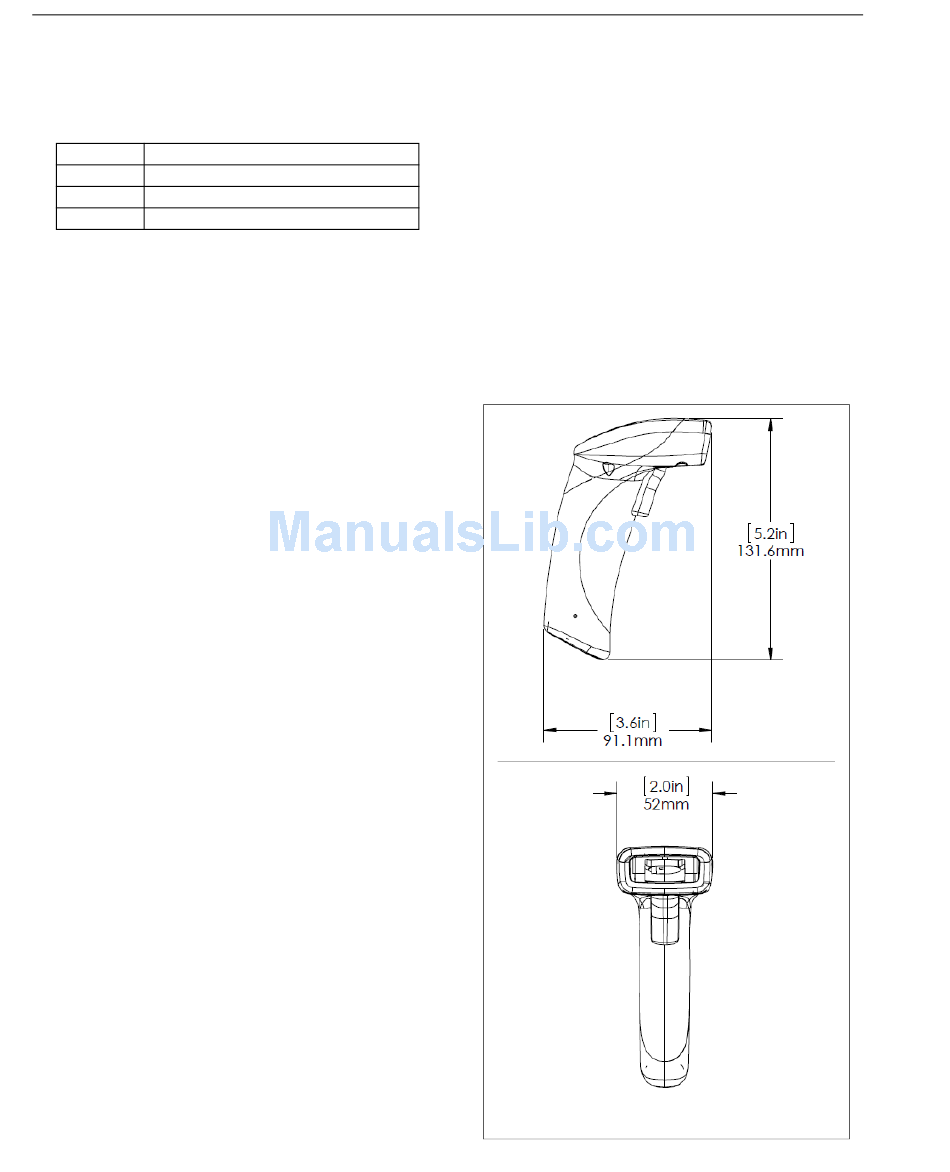

Dimensions
Note: Nominal dimensions shown.
Typical tolerances apply.
