RS-232 Interface

RS-232 Interface

Note: Unlike USB, the RS-232 interface does not draw its power from the host computer,
and requires a power supply.
RS-232 Configuration
Item
HS-21 Handheld Reader
1
HS-41X Handheld Reader
2 RS-232 Cable, 8' Coiled
RS-232 Power Supply, U.S.
3 RS-232 Power Supply, Euro
RS-232 Power Supply, UK

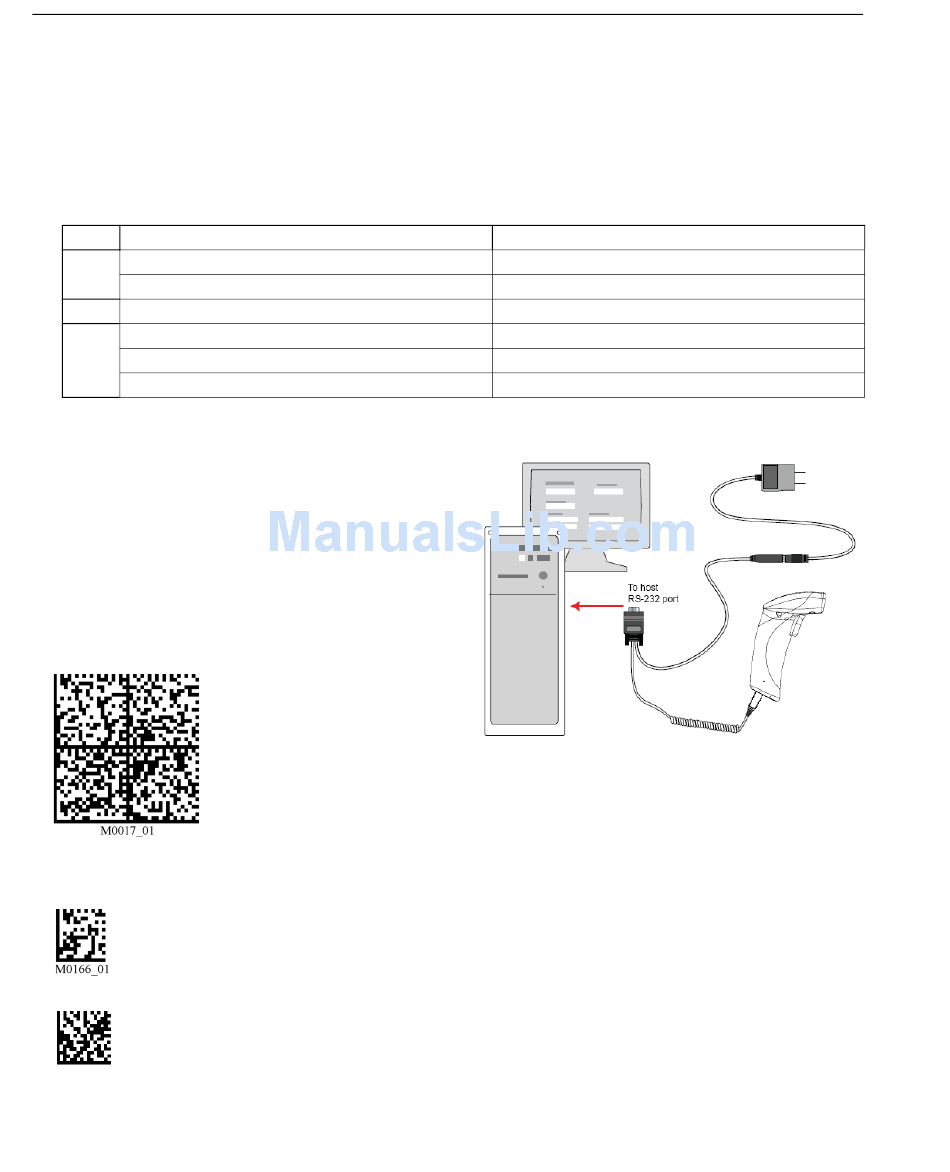

Installation Steps for RS-232
To power on the reader, plug the RS-232
cable into the reader's handle, plug the
power supply into the AC outlet, plug the
power supply cord into the barrel jack on
the cable, and then connect the cable to
the appropriate serial port on the host.
After several seconds, the unit will beep
twice and the LED will turn off. The reader
will now be ready to use.
Read the Save Settings symbol.
Save
Settings
Test Symbol
(ABCDEFGHIJKLMNOP)
1-4
Description
Reset to RS-232
Factory Defaults
Part Number
FIS-HS21-000XG
FIS-HS41X-000XG
61-000224-03
20-000335-02
20-000336-02
20-000337-02
RS-232 Configuration
HS-21/HS-41X Handheld Reader User's Manual
3
1
2
