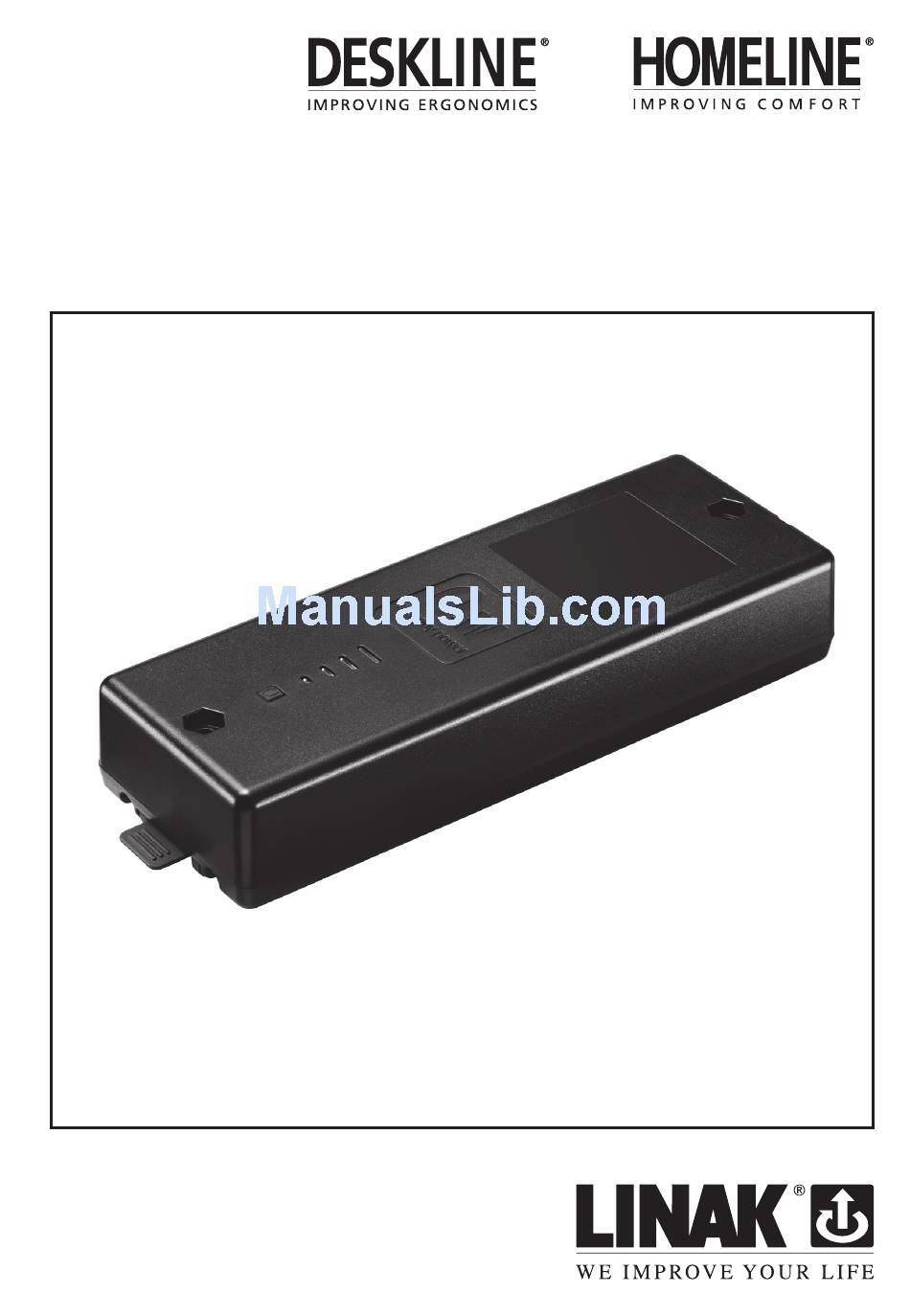

- Page 1 U S E R M A N U A L BA001 BATTERY BOX To learn more about LINAK please visit: W W W . L I N A K . C O M Page 1 of 20...
- Page 2 Page 2 of 20...
-
Page 3: Table Of Contents
Mounting instructions ............................ 11 Charging BA001 .............................. 12 Packaging and transportation ........................14 Transportation ..............................15 Accessories and repair ............................ 15 Disposal of LINAK’s products ......................... 16 Labels ................................17 Drawing appendix ............................18 Addresses ................................ 20 Page 3 of 20... -
Page 4: Preface
LINAK subsidiaries and distributors all over the world have authorised service centres, which are always ready to help you. LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with the specifications, maintenance being done correctly and any repairs being carried out at a service centre, which is authorised to repair LINAK products. -
Page 5: Important Information
Important information Important information on LINAK products can be found under the ® following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. - Page 6 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 7: General Safety Notes
General safety notes that must be taken into consideration especially referring to BA001 Only the CBD6S and the SMPS006 can be used for charging the BA001 battery pack. In connection with charging/discharging notice that the charger/ battery can become warm. Keep away inflammable objects. Keep the charger and the battery away from children. -
Page 8: Repairs
® ® authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. Warning! If any of the DESKLINE... - Page 9 DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK HOMELINE® products as characterized by the following models and types: Control Boxes CB7, CB9H, CBH Advanced, CBH Basic Linear Actuators LA27, LA27CS, LA28, LA29, LA31 HOMELINE...
-
Page 10: Misc. On The Deskline ® And Homeline
(see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the warranty will be ineffective/invalid. -
Page 11: Mounting Instructions
Mounting instructions: Guidelines for mounting the BA001. The battery box is to be fastened with 2 screws with a head diameter between ø 8 and ø 10 mm. With regard to the surface pressure, ø 10 mm is preferable. See drawing for placing of mounting holes and the space the box takes up. -
Page 12: Charging Ba001
Charging BA001 The BA001 can be charged either via the DESKLINE control box CBD6S or via the Switch Mode Power Supply SMPS006. The LED light bars on the top of the box shows the current capacity status. There are four light bars indicating the battery capacity: (Capacity between 0% and 5% No lights) Capacity between 5% and 25%:... - Page 13 CBD6S Appropriate mains cable BA001 battery box DC cable with 2-pole minift plug CBD6S control box Charging via the SMPS006: A SMPS006 is typically used for charging in a HOMELINE® application or in an application where one prefers to dismount and e.g. replace the battery with another battery when charging. Simply connect the BA001 to the SMPS006.
-
Page 14: Packaging And Transportation
Packaging and transportation The BA001 is a Lithium Ion battery and must be packed and transported according to applicable regulations. This must also be considered when repacking and in case of return shipment. Note: Damaged batteries cannot be transported. Packaging The BA001 boxes are to be packed according to UN3480 PI: 965 Section II. -
Page 15: Transportation
Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 16: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 17: Labels
Labels Label for BA001 Page 17 of 20... -
Page 18: Drawing Appendix
DRAWING APPENDIX BA001 182.8 13.6 BA001 Battery mounting bracket 255485 mm³ Iteration: 0 BA001-DRAWIN 153.8 31.4 195.5 184.5 Page 18 of 20 Material: Approved by: Type: Modified by: Color: Created by:... - Page 19 LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 20: Addresses
+65 6844 0070 correct and actual status of said information on its products. E-mail: servodynamics@servo.com.sg COLOMBIA While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the www.servo.com.sg MEM Ltda same reasons as mentioned above, guarantee the availability of any...
