Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts or
accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!

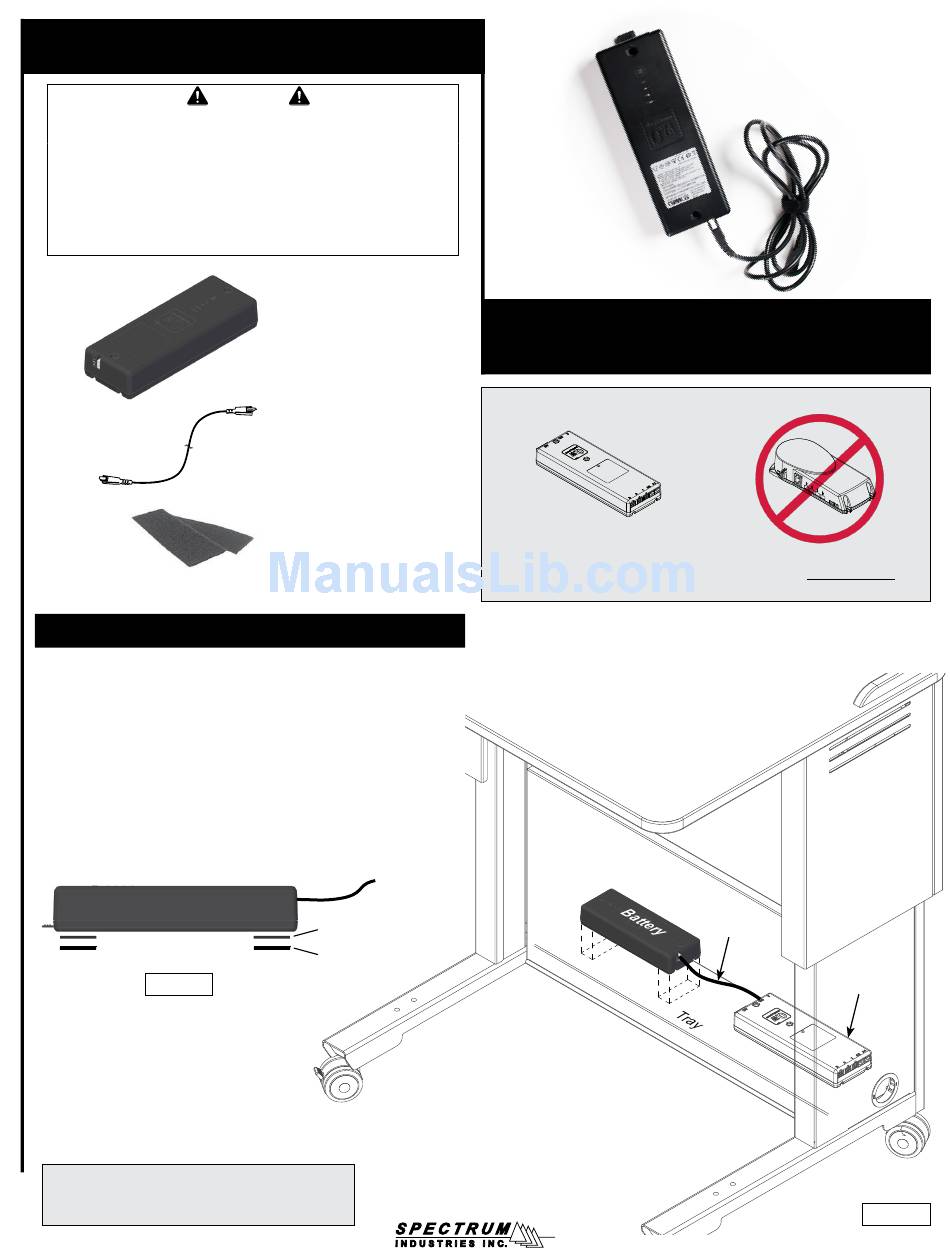

Installation
1. The battery and tray should be free from dirt, dust, grease and
moisture to maximize hook and loop adhesion. Remove the
adhesive backers and attach the hook and loop strips to the
bottom of the battery as shown. Figure 1.1.
2. Plug the battery cable into the battery. Figure 1.2.
3. Unplug the control box AC power plug and leave the power cord in
the bottom of the tray. This AC cord will be used later for charging.
4. Attach the battery to the bottom of the tray as shown.
5. Plug the battery cable into the control box.
Battery
Figure 1.1
Note: On Freedom One eLift Lecterns, the shroud
panel can be removed with 2 screws and / or the
worksurface extended to access internal wiring.
(1) 0190041
BA001 Battery
(lithium-ion)
(1) 0190042
Battery cable
(1) 0110254 - 2" x 3" Hook strip
(1) 0110255 - 2" x 3" Loop strip
Battery cable
Loop strip
Hook strip
Rechargeable Battery Pack System
99045
Battery / Control Box Compatibility:
The CBD6S Linak control
box is compatible with
this battery pack.
(Freedom One eLift shown)
S h
r o u
d p
a n e
Older CBD4 Linak control
boxes are not compatible
with this battery pack.
l
Battery
Cable
Control
Box
Figure 1.2
0190045 Page 1 of 4
