LIFT50 mounting
2
2
1

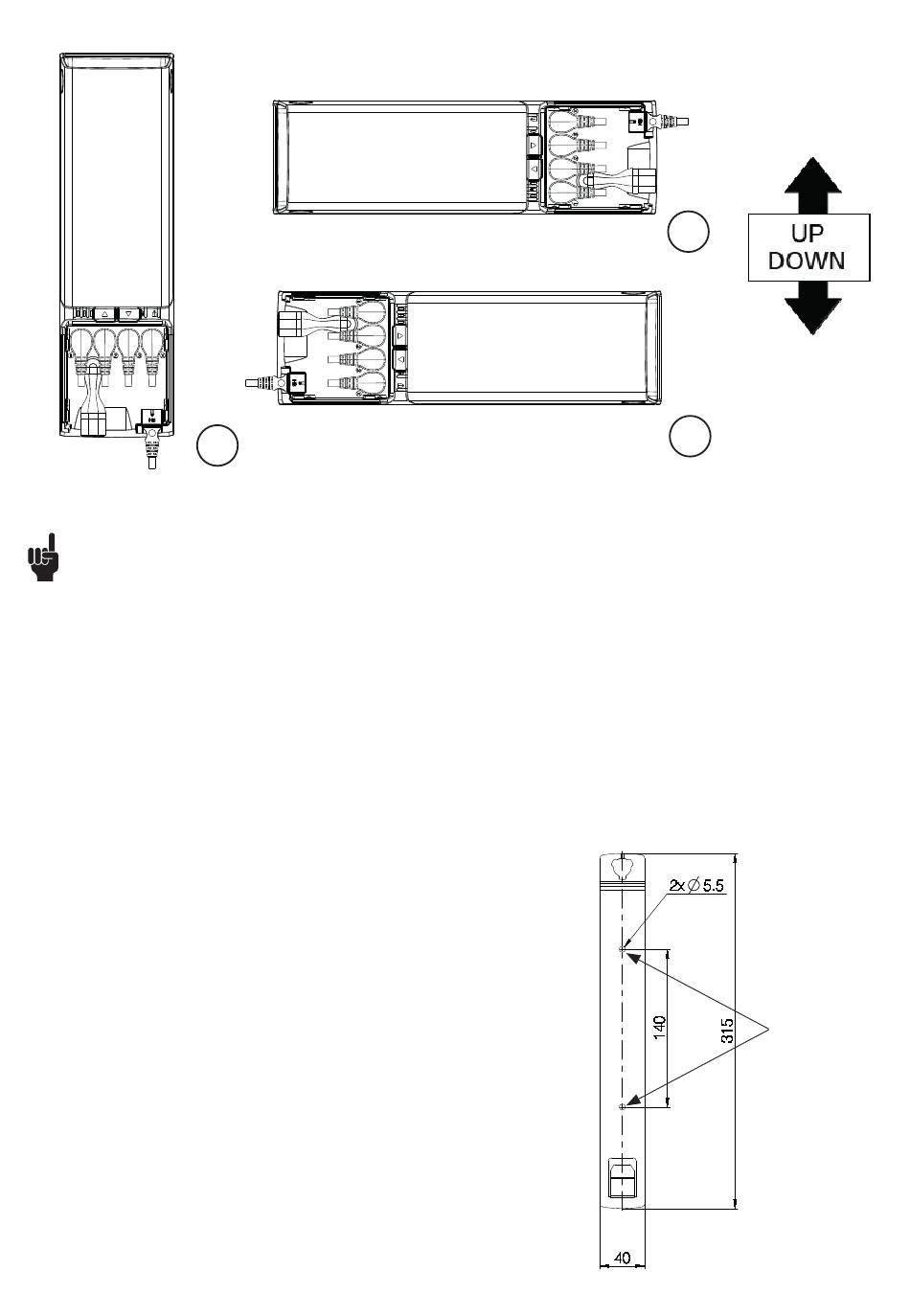

Drawing no . 1039w4000
Recommendations - positioning
LIFT50 only comply with IPX6 when the control box is mounted correctly
(see illustration 1 and 2) .
LIFT50 can be mounted as shown on the pictures above:
• Battery upwards, cable outlets downwards (see illustration 1)
• Control box lying on either side, seen from the front (see illustrations 2)
Cables and blind plugs must be inserted correctly in the control box to maintain the IP degree in washing or cleaning situations .
Mounting information:
LIFT50 is mounted by means of 2 screws (not supplied by LINAK) .
Screw type: ISO7380-1 / M5 and L = 20 mm or 25 mm
Washer type: ISO7089 / M5, d1 = 5 .3 mm / d2 = 10 mm / s = 1mm
The LIFT50 control box must be mounted with two screws (se drawing) .
The mounting screws for the control box and the charger must be tightened with a
maximum torque of 1 Nm .
Mounting holes
Page 255 of 264
Advertisement
Table of Contents
Related Manuals for Linak LIFT50
Summary of Contents for Linak LIFT50
- Page 1 Cables and blind plugs must be inserted correctly in the control box to maintain the IP degree in washing or cleaning situations . Mounting information: LIFT50 is mounted by means of 2 screws (not supplied by LINAK) . Screw type: ISO7380-1 / M5 and L = 20 mm or 25 mm Washer type: ISO7089 / M5, d1 = 5 .3 mm / d2 = 10 mm / s = 1mm...
-
Page 2: Mounting Holes
Recommendations - mounting If COL50 is mounted incorrectly, water will gather in the plug holes resulting in possible non-compliance with IPX6 . COL50 can be mounted as shown on the pictures below: 1) Batteries up, cable outlets downwards 2) COL50 lying on the side, no difference if mains cable is up or down COL50 –... -
Page 3: Motor Cable
• When using a control box with emergency stop, the stop button must be activated in cleaning situations in order to comply with IPX6 . • Only use original LINAK mains cables to ensure a proper connection to the internal charger . -
Page 4: Deep Discharge Protection

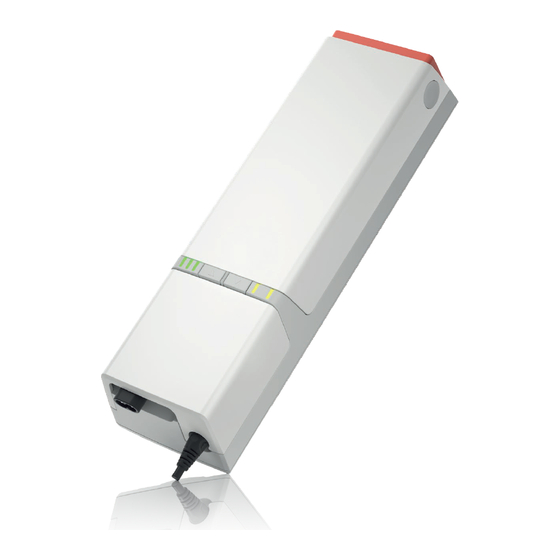

CARELINE ® ® The BAL50 Li-Ion battery pack is a part of the LIFT50 product series specially developed for patient lifts . LIFT50 is a complete system consisting of the control box COL50, a battery BAL50 and an external charger CHL50 in a flexible solution . - Page 5 LINAK ® will remedy defective Li-Ion batteries built into LINAK products in accordance with the terms stipulated in the LINAK Li-Ion battery disclaimer available on the LINAK website . LINAK explicitly disclaims all other remedies and liability . Page 259 of 264...
- Page 6 ® ® The CHL50 charger is an important part of the LIFT50 family . It functions as a wall charger when mounted on the wall, but also as a more mobile charger simply placed horizontally on its back on any surface .
-
Page 7: Charger Mounting
When mounting CHL50 on wall, please use the two dedicated mounting holes placed in the charger body . Front View CHL50 must be mounted by means of 2 screws (not supplied by LINAK): Screw type: Diameter 4 mm/style: pan head or truss head . - Page 8 Recommendations: • The charger CHL50 is specifically designed to charge the BAL50 type battery . • Special care should be taken when mounting the CHL50 . • If the CHL50 is mounted correctly, the CHL50 complies to IPX4 . • If the CHL50 is mounted incorrectly, then water may enter the screw holes resulting in IPX4 non-compliance and cause malfunction and hazardous situations .
-
Page 9: Repair And Disposal
® LINAK service centre . In order to avoid the risk of malfunction, all actuator repairs must only be carried out by an authorised LINAK Service shop or repairers, as special tools and parts must be used . If a system is opened by unauthorised personel there is a risk that it may malfunction at a later date . - Page 10 . LINAK reserves the right to change its products without prior notice . LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product . The user is responsible for determining the suitability of LINAK products for a specific application .
