Battery box BA001
User manual
LINAK.COM/DESKLINE
LINAK.COM/HOMELINE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Linak BA001

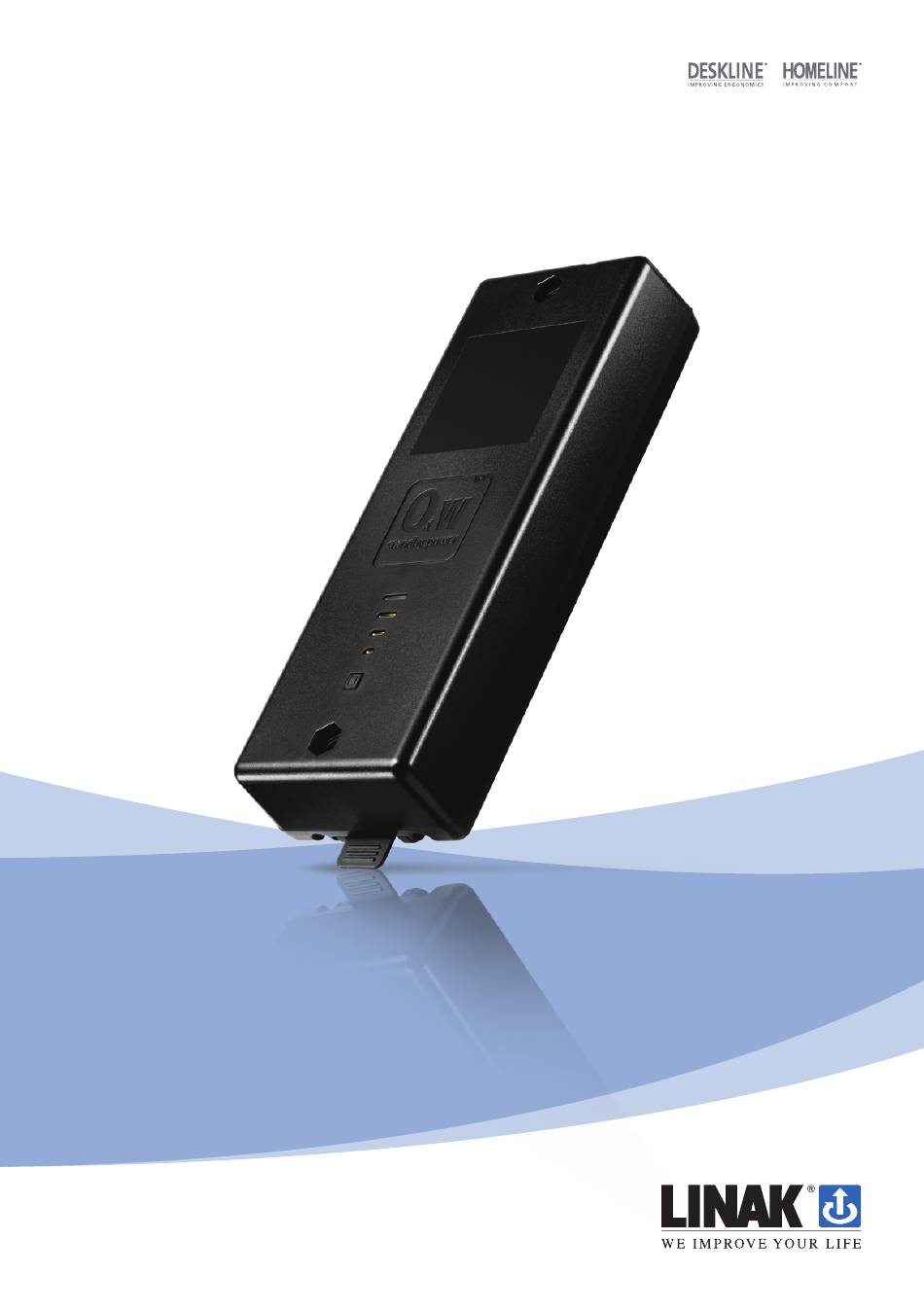

  • Page 1 Battery box BA001 User manual LINAK.COM/DESKLINE LINAK.COM/HOMELINE...
  • Page 2: Table Of Contents

    .................. 11 Mounting instructions ........................12 Charging BA001..........................13 Packaging and transportation ...................... 15 Transportation ..........................16 Disposal of LINAK products ......................17 Accessories and repair ........................18 Labels ............................18 Drawing appendix .......................... 19 Addresses ............................24 Page 2 of 24...
  • Page 3: Preface

    LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with the specifications, maintenancew being done correctly and any repairs being carried out at a service centre, which is authorised to repair LINAK products.
  • Page 4: Important Information

    Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.
  • Page 5 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6 (e.g. electric cars). The use of well-proven cell technology reduces the risk of thermal runaway, but it does not eliminate it. LINAK has completed activities to reduce this risk and the complete battery package is approved in accordance with An external, internationally recognised expert has also reviewed the design to ensure that it is manufactured according to the latest recommendations.
  • Page 7 If any of the Li-Ion batteries built into LINAK products are found to be defective under warranty, LINAK will provide the OEM with a new product. LINAK explicitly disclaims all other remedies. LINAK shall not in any event be liable under any...
  • Page 8: General Safety Notes

    General safety notes that must be taken into consideration especially referring to BA001 Do not pack the BA001 in heat insulating material. Place the BA001 so it can emit heat through its surface to the surroundings. Only the CBD6S and the SMPS006 can be used for charging the BA001 battery pack.
  • Page 9: Repairs

    Repairs In order to avoid the risk of malfunction, all DESKLINE and HOMELINE repairs must only be carried out by authorised LINAK ® ® workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops.
  • Page 10 DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK HOMELINE® products as characterized by the following models and types: Control Boxes CB7, CB9H, CBH Advanced, CBH Basic Linear Actuators LA27, LA27CS, LA28, LA29, LA31 HOMELINE...
  • Page 11: Misc. On The Deskline ® And Homeline

    HOMELINE ® ® This BA001 battery box is developed for furniture and for indoor use. Do not use it in industrial kitchens or in other environments that have to be cleaned with aggressive detergents. Warranty There is a 12 months’ warranty on the BA001 battery against manufacturing faults from the production date of the individual products (see label).
  • Page 12: Mounting Instructions

    Alternatively, mount the enclosed bracket following the same guidelines for fastening using the four mounting holes. The BA001 must not be packed in heat insulating material, but must be placed so that it can emit waste heat to the surroundings. There are no ventilation holes to consider, the BA001 emits heat through its surface.
  • Page 13: Charging Ba001

    Charging BA001 The BA001 can be charged either via the DESKLINE Control Box CBD6S or via the Switch Mode Power Supply SMPS006 using a DC cable with 2-poled minifit plug. LINAK offers various cables with straight plug which can be used (e.g. 0705894-200).
  • Page 14 Control Box CBD6S Charging via SMPS006: In a HOMELINE application or in an application in which the battery box is dismounted/replaced during charging, the BA001 is typically charged via an SMPS006. 1. Connect BA001 and SMPS006 using DC cable.
  • Page 15: Packaging And Transportation

    Packaging, transportation and storage The BA001 is a lithium ion battery and must be packed and transported according to applicable regulations. This must also be considered when repacking and in case of return shipment. Note: Damaged batteries cannot be transported.
  • Page 16: Transportation

    The self-consumption of individual battery packs varies and does not influence normal usage in any way. To be sure not to damage the BA001, express shipment (BA001- MAX30%CHARGED) batteries must be fully charged upon receipt.
  • Page 17: Disposal Of Linak Products

    Disposal of LINAK products As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion.
  • Page 18: Accessories And Repair

    Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date.
  • Page 19: Drawing Appendix

    DRAWING APPENDIX BA001 Hexagonal (M6 nut) BA001 Battery mounting bracket Page 19 of 24...
  • Page 20 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
  • Page 21 Page 21 of 24...
  • Page 22 Page 22 of 24...
  • Page 23 Page 23 of 24...
  • Page 24: Addresses

    While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
