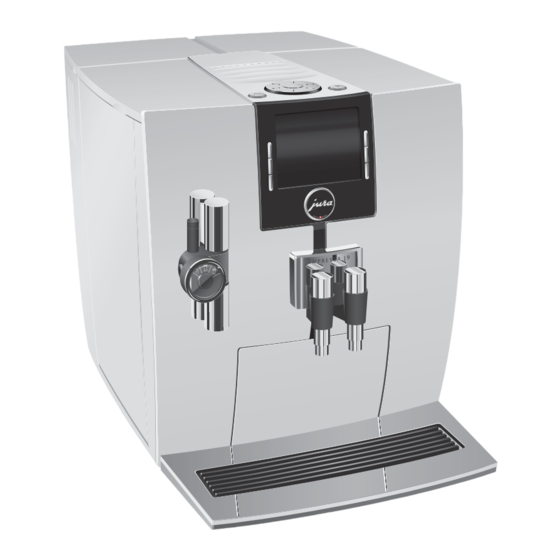

Jura IMPRESSA J9.3 One Touch TFT Instructions For Use Manual

Jura IMPRESSA J9.3 One Touch TFT Instructions For Use Manual

Hide thumbs Also See for IMPRESSA J9.3 One Touch TFT:

Advertisement

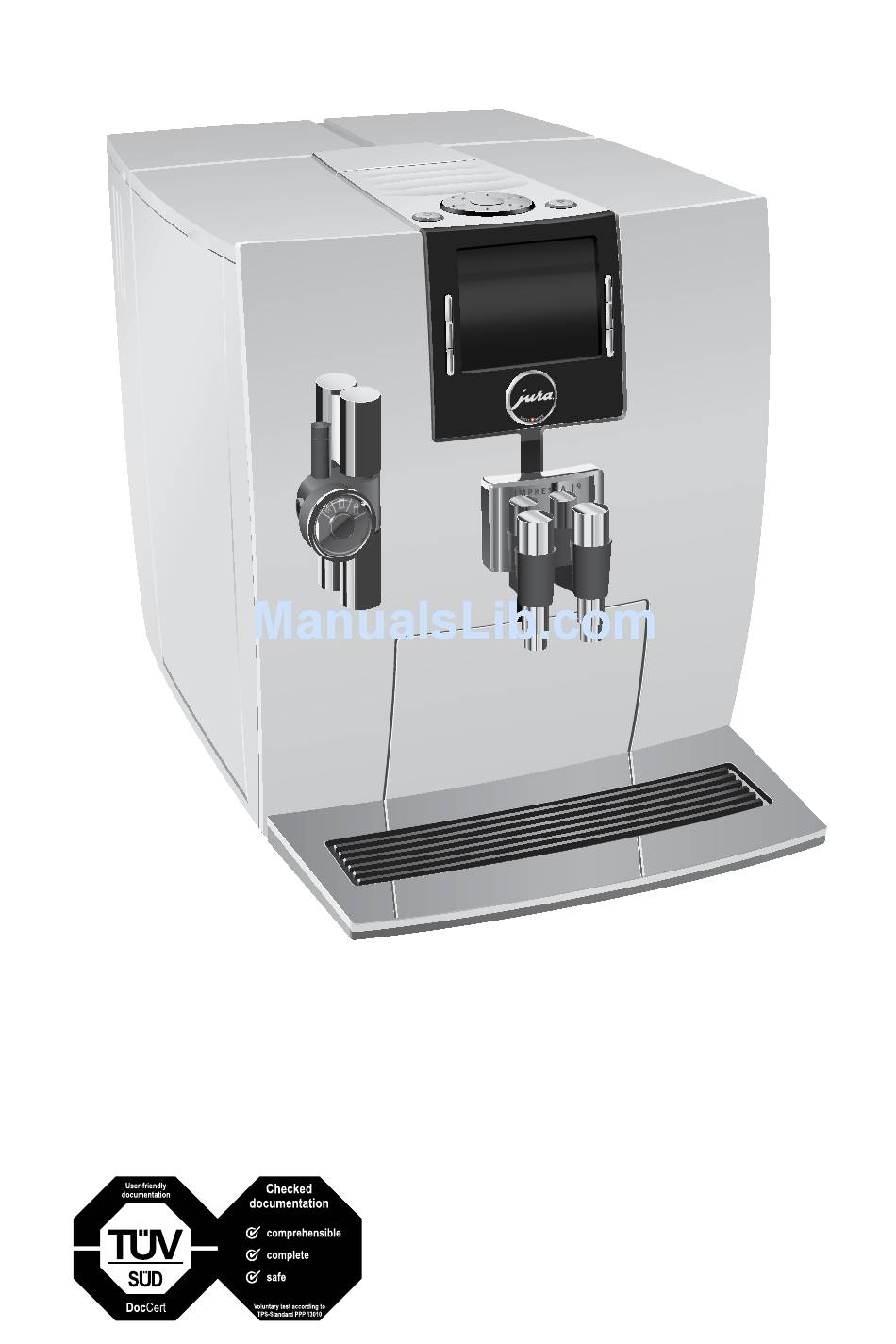

IMPRESSA J9.3 One Touch TFT Instructions for Use
The Instructions for Use has been awarded the seal of
approval by the independent German Technical Inspection
Agency, TÜV SÜD, due to its easy-to-understand style, its
thoroughness and coverage of safety aspects.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPRESSA J9.3 One Touch TFT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jura IMPRESSA J9.3 One Touch TFT

  • Page 1 IMPRESSA J9.3 One Touch TFT Instructions for Use The Instructions for Use has been awarded the seal of approval by the independent German Technical Inspection Agency, TÜV SÜD, due to its easy-to-understand style, its thoroughness and coverage of safety aspects.
  • Page 2: Table Of Contents

    Table of contents Your IMPRESSA J9.3 One Touch TFT Control elements Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the water tank ...........................10...
  • Page 3 8 Transport and environmentally friendly disposal Transport / Emptying the system ......................43 Disposal .................................43 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings J CAUTION Always take note of any information marked with the words CAUTION or J WARNING WARNING and a warning sign.
  • Page 4: Control Elements

    Control elements Control elements Bean container cover Filler funnel for ground coffee Water tank cover Storage compartment cover Bean container with aroma preservation Grinder adjustment switch cover Hot-water nozzle Water tank Measuring spoon for ground coffee Height-adjustable cappuccino frother Height- and width-adjustable coffee spout Coffee grounds container Power switch and mains cable Drip tray...
  • Page 5 Control elements Top of the machine Front Q On/Off button Display g Rotary Switch Buttons (button function depends on O P button (programming) what is shown in the display)
  • Page 6: Important Information

    JURA service. If the mains cable of this machine is damaged, it must be repaired either directly by JURA or by an authorised JURA service centre. Make sure that the IMPRESSA and the mains cable are not located close to hot surfaces.
  • Page 7 The machine contains live parts. If opened, there is a danger of potentially fatal injury. Repairs may only be carried out by authorised JURA service centres, using original spare parts and accessories. To completely and safely disconnect the...
  • Page 8 (see Chapter 9 ‘Technical data’). Please only use original JURA maintenance products. Use of products that are not explic- itly recommended by JURA could damage the IMPRESSA. Do not use any coffee beans treated with addi- tives or caramelised coffee beans.
  • Page 9 Important information Keep children under the age of 8 away from the machine, or supervise them constantly. Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely. Chil- dren must be able to recognise and under- stand the potential dangers arising from incor- rect use.
  • Page 10: Preparing And Using For The First Time

    JURA on the Internet Visit us on the Internet. You can download short operating instruc- tions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your IMPRESSA and on every aspect of coffee.
  • Page 11: First-Time Use

    3 T Switch on the IMPRESSA using the power switch on the right-hand side of the machine. Q T Press the On/Off button to switch the IMPRESSA on. The JURA logo appears. The display then shows the lan- guages you can choose from. E To display more languages, press the ‘Next’...
  • Page 12: Inserting And Activating The Filter

    1 Preparing and using for the first time T Place a receptacle under the coffee spout. k T Press the Rotary Switch. ‘Machine is rinsing.’, the machine rinses. The operation stops automatically. ‘Please select product:’ appears on the display. The IMPRESSA is now ready for use. E The display shows the products you can prepare.
  • Page 13: Determining And Adjusting The Water Hardness

    1 Preparing and using for the first time T Open the filter holder and insert the filter cartridge into the water tank, exerting slight pressure. T Close the filter holder. It will click into place audibly. E After two months, the filter will cease to work. You can check the elapsed time by referring to the date plate on the filter holder in the water tank.
  • Page 14 1 Preparing and using for the first time Determining the water You can find out what the water hardness is by using the Aquadur® hardness test strip supplied as standard. T Hold the test strip briefly (for 1 second) under flowing water. Shake off the water.
  • Page 15: Adjusting The Grinder

    1 Preparing and using for the first time Adjusting the grinder You can adjust the grinder on a continuous scale to suit the degree of roast of your coffee. CAUTION If you adjust the consistency of grind when the grinder is not oper- ating, the grinder adjustment switch could be damaged.
  • Page 16: Preparation

    2 Preparation 2 Preparation E You can stop preparation of a speciality coffee, speciality cof- fee with milk or hot water at any time. Just press any button. E During the grinding operation you can select the coffee strength of individual products by turning the Rotary Switch g: ;...
  • Page 17: Espresso And Coffee

    2 Preparation Espresso and coffee ‘Espresso’ ‘Coffee’ are prepared following this model. Example: Proceed as follows to prepare one coffee. T Place a cup under the coffee spout. T Press the ‘Coffee’ button. Preparation will now begin. The preset amount of water for coffee flows into the cup.
  • Page 18: Latte Macchiato, Cappuccino

    2 Preparation Latte macchiato, Your IMPRESSA can prepare a latte macchiato or cappuccino at the cappuccino touch of a button. There is no need to move the glass or cup. Example: Proceed as follows to prepare one latte macchiato. T Remove the protective cover from the cappuccino frother. T Attach the milk pipe to the cappuccino frother.
  • Page 19: Warm Milk And Milk Foam

    2 Preparation Warm milk and milk foam Example: Proceed as follows to prepare milk foam. T Remove the protective cover from the cappuccino frother. T Attach the milk pipe to the cappuccino frother. Use the long pipe for a milk carton and the short pipe for a milk container. T Insert the other end of the milk pipe into a milk carton or connect it to a milk container.
  • Page 20: Permanently Setting The Amount Of Water For The Cup Size

    2 Preparation E The desired speciality coffee must be prepared within approx- imately one minute after filling with the ground coffee. Oth- erwise the IMPRESSA stops the operation and is once more ready for use. All speciality coffees with ground coffee are prepared following this model.
  • Page 21: Hot Water

    2 Preparation T Press any button as soon as there is sufficient coffee in the cup. Preparation stops. ‘Saved’ appears briefly on the display. The set amount of water for one coffee is permanently stored. ‘Please select product:’ appears on the display. E You can alter this setting at any time by repeating the above procedure.
  • Page 22: Daily Operation

    Precondition: Your IMPRESSA is switched on at the power switch. T Place a receptacle under the coffee spout. Q T Press the On/Off button to switch the IMPRESSA on. ‘Welcome to JURA’ appears on the display. The machine heats up.
  • Page 23: Switching Off

    3 Daily operation Switching off When you switch your IMPRESSA off, the spouts used to prepare a speciality coffee or milk are rinsed. T Place one receptacle under the coffee spout and another under the cappuccino frother. Q T Press the On/Off button. ‘Machine is rinsing.’, ‘Milk system is being...
  • Page 24: Permanent Settings In Programming Mode

    4 Permanent settings in programming mode 4 Permanent settings in programming mode Press the P button to enter programming mode. You can navigate through the programme items and permanently save the required settings simply by turning the Rotary Switch and using the variable buttons.
  • Page 25 4 Permanent settings in programming mode Product settings In the programme item ‘Product settings (2/6)’ you can make indi- vidual settings for all speciality coffees and hot water. The following settings can be made: Product Temperature Coffee strength Amount Ristretto, ‘Normal’, ‘High’...
  • Page 26: Maintenance Settings

    4 Permanent settings in programming mode T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. T Press the ‘Volume’ button. T Press the ‘ < ’ ‘ > ’ button to change setting for the fill vol- ume to ‘40 ml’.
  • Page 27: Energy-Saving Mode

    4 Permanent settings in programming mode Example: Proceed as follows to make the machine prompt you to rinse the milk system immediately after preparing a speciality cof- fee with milk. Precondition: ‘Please select product:’ is displayed. T Press the P button. ‘Maintenance status (1/6)’...
  • Page 28: Automatic Switch-Off

    4 Permanent settings in programming mode g T Turn the Rotary Switch until the programme item ‘Machine settings 1 (4/6)’ is displayed. T Press the ‘Save energy’ button. ‘Save energy’ T Press the ‘Active’ button. T Press the ‘Save’ button. ‘Saved’...
  • Page 29: Unit For Amount Of Water

    4 Permanent settings in programming mode Unit for amount of water You can change the unit for the amount of water from ‘ml’ to ‘oz’. Example: Proceed as follows to change the unit for the amount of water from ‘ml’ to ‘oz’.
  • Page 30: Language

    4 Permanent settings in programming mode g T Turn the Rotary Switch until the programme item ‘Machine settings 1 (4/6)’ is displayed. T Press the ‘Factory setting’ button. ‘Factory setting’ T Press the ‘Products’ button. T Press the ‘Espresso’ button. ‘Espresso’...
  • Page 31: Colour Scheme

    4 Permanent settings in programming mode Colour scheme In this programme item you can set the background colour for the display of your IMPRESSA. Precondition: ‘Please select product:’ is displayed. T Press the P button. ‘Maintenance status (1/6)’ g T Turn the Rotary Switch until the programme item ‘Machine settings 2 (5/6)’...
  • Page 32: Maintenance

    5 Maintenance 5 Maintenance Your IMPRESSA has the following integrated maintenance pro- grammes: Rinsing the machine (‘Rinse the coffee system’) Rinsing the cappuccino frother (‘Rinse the milk system’) Cleaning the cappuccino frother (‘Clean the milk system’) Changing the filter (‘Change the filter’) Cleaning the machine (‘Clean’) Descaling the machine (‘Descale’)
  • Page 33: Rinsing The Cappuccino Frother

    If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water. Use only original JURA maintenance products. E JURA Cappuccino Cleaner is available from stockists. Precondition: ‘Please select product:’ is displayed.
  • Page 34: Dismantling And Rinsing The Cappuccino Frother

    5 Maintenance T Empty the other receptacle and place it under the cappuc- cino frother again. T Press the ‘Next’ button. ‘Milk system is being cleaned.’, the cappuccino frother and the pipe are rinsed with fresh water. ‘Please select product:’ appears on the display.
  • Page 35 5 Maintenance T Press the ‘Next’ button. ‘Change filter’ T Remove and empty the water tank. T Open the filter holder and remove the old CLARIS Blue filter cartridge and filter extension. T Fit the filter extension on top of a new filter cartridge. T Insert the filter cartridge into the water tank, exerting slight pressure.
  • Page 36: Cleaning The Machine

    The operation is interrupted, ‘Add cleaning tablet’. T Open the cover of the filler funnel for ground coffee. T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel. ‘Please press the Rotary Switch.’...
  • Page 37: Descaling The Machine

    Clean up any splashes immediately. E The descaling programme lasts approximately 45 minutes. E JURA descaling tablets are available from stockists. E If you use a CLARIS Blue filter cartridge and this is activated, you will not be prompted to descale.
  • Page 38 ‘Pour descaling agent into water tank.’ T Remove and empty the water tank. T Completely dissolve the contents of one blister (three JURA descaling tablets) in a receptacle holding 500 ml of water. This may take several minutes.
  • Page 39: Cleaning The Bean Container

    5 Maintenance T Place a receptacle under the cappuccino frother and another under the coffee spout. k T Press the Rotary Switch. ‘Machine is being descaled.’, water flows out of the cappuc- cino frother and the coffee spout. ‘Machine is heating.’, ‘Machine is rinsing.’, water flows out of...
  • Page 40: Display Messages

    6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water tank’ The water tank is empty. You T Fill the water tank (see Chapter 1 cannot prepare any products. ‘Preparing and using for the first time – Filling the water tank’). ‘Empty coffee The coffee grounds container is T Empty the coffee grounds container...
  • Page 41: Troubleshooting

    7 Troubleshooting 7 Troubleshooting Problem Cause/Result Action When preparing a latte – T Turn the setting wheel of the cappuc- macchiato, the typical cino to the far right and the Milk Foam three layers do not position ü. form. T Change the length of the interval to at least 30 seconds in programming mode (see Chapter 4 ‘Permanent settings in programming mode –...
  • Page 42 Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).
  • Page 43: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the In order to protect the IMPRESSA from frost during transport, the system system must be emptied. Precondition: ‘Please select product:’ is displayed. T Carefully pull the cappuccino frother down and off. T Place a receptacle under the connector of the cappuccino frother.
  • Page 44: Technical Data

    9 Technical data 9 Technical data Voltage 220–240 V ~, 50 Hz Power 1450 W Safety test Energy consumption Approx. 5 Wh ‘Save energy’ ‘Active’ Energy consumption Approx. 12 Wh ‘Save energy’ ‘Inactive’ Pump pressure Static, max. 15 bar Holding capacity of water tank 2.1 l Holding capacity of bean container 250 g...
  • Page 45: Index

    10 Index 10 Index Addresses 48 Degree of water hardness 13 Automatic switch-off 28 Descaling Machine 37 Water tank 39 Bean container Determining and adjusting the water Bean container with aroma preservation hardness 13 cover 4 Display 5 Cleaning 39 Display messages 40 Filling 10 Drip tray 4...
  • Page 46 Instant coffee Permanently setting the water for the cup size 20 Ground coffee 19 Permanent settings in programming mode Internet 10 Power switch 4 JURA Preparation 16, 18 Contact details 48 Cappuccino 18 Internet 10 Coffee 17 Espresso 17 Ground coffee 19...
  • Page 47 10 Index Safety 6 Safety information 6 Settings Permanent settings in programming mode 24 Setting up Setting up the machine 10 Short operating instructions 10 Switching off 23 Switching on 22 Switch-off Automatic switch-off 28 Symbol description 3 Technical data 44 Telephone 48 Troubleshooting 41 Unit for amount of water 29...
  • Page 48: Jura Contact Details / Legal Information

    Art. 69430/J9.3/en/201401 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com.
