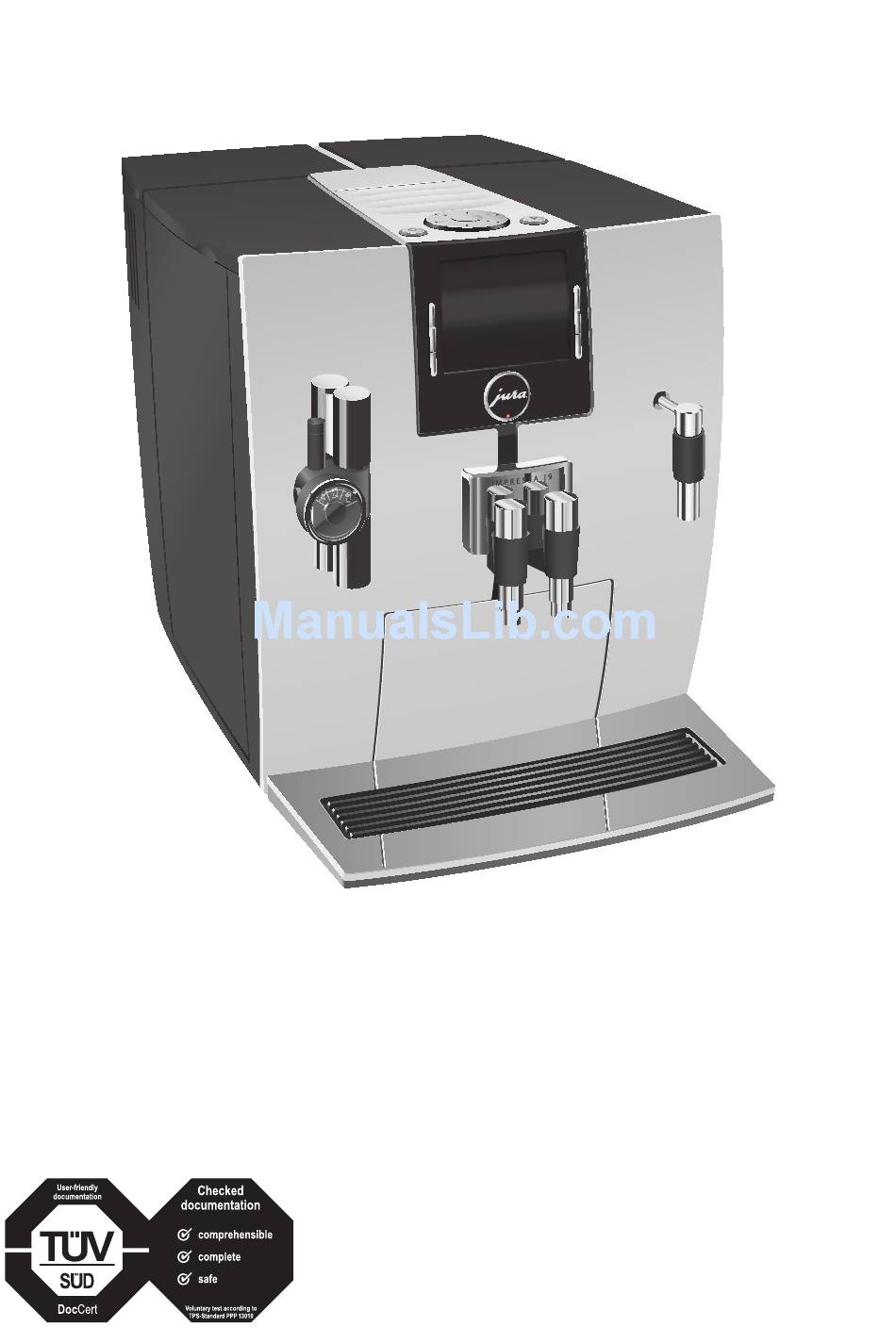

- Page 1 IMPRESSA J9.4 One Touch TFT Instructions for Use The Instructions for Use has been awarded the seal of approval by the independent German Technical Inspection Agency, TÜV SÜD, due to its easy-to-understand style, its thoroughness and coverage of safety aspects.
-
Page 2: Table Of Contents
Table of contents Your IMPRESSA J9.4 One Touch TFT Control elements Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10... - Page 3 8 Transport and environmentally friendly disposal Transport / Emptying the system ......................46 Disposal .................................46 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings Always take note of any information marked with the words CAUTION or J WARNING WARNING and a warning sign.
-
Page 4: Control Elements
Control elements Control elements Bean container cover Filler funnel for ground coffee Water tank cover Storage compartment cover Bean container with aroma preservation Grinder adjustment switch cover Measuring spoon for ground coffee Water tank Hot-water nozzle Height-adjustable cappuccino frother Height- and width-adjustable coffee spout Coffee grounds container Power switch and mains cable (side of Drip tray... - Page 5 Control elements Top of the machine Front On/Off button Display g Rotary Switch Buttons (button function depends on P button (programming) what is shown in the display)
-
Page 6: Important Information
JURA service. If the mains cable of this machine is damaged, it must be repaired either directly by JURA or by an authorised JURA service centre. Make sure that the IMPRESSA and the mains cable are not located close to hot surfaces. - Page 7 The machine contains live parts. If opened, there is a danger of potentially fatal injury. Repairs may only be carried out by authorised JURA service centres, using original spare parts and accessories. To completely and safely disconnect the...
- Page 8 Chapter 9 ‘Technical data’). Please only use original JURA maintenance products. Use of products that are not explic- itly recommended by JURA could damage the IMPRESSA. Do not use any coffee beans treated with addi- tives or caramelised coffee beans.
- Page 9 Important information Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely. Chil- dren must be able to recognise and under- stand the potential dangers arising from incor- rect use.
-
Page 10: Preparing And Using For The First Time
Visit us on the Internet. You can download short operating instruc- JURA on the Internet tions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your IMPRESSA and on every aspect of coffee. - Page 11 1 Preparing and using for the first time Precondition: The bean container has been filled. T Insert the mains plug into a power socket. 3 T Switch on the IMPRESSA using the power switch on the right-hand side of the machine. ...
- Page 12 Rinsing of the filter stops automatically. ‘System is filling.’, the system fills up with water. Water flows out of the hot-water nozzle and cappuccino frother. The operation stops automatically. ‘Welcome to JURA’ ‘Machine is rinsing.’, the machine rinses. The operation stops automatically. ‘Please select product:’...
-
Page 13: Determining The Water Hardness
1 Preparing and using for the first time T Press the ‘ < ’ ‘ > ’ button to set the water hardness. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Fill water tank’ T Remove the water tank and rinse it with cold water. T ... -
Page 14: Connecting Milk
1 Preparing and using for the first time Your IMPRESSA creates fine, creamy, feather-light milk foam with a Connecting milk perfect consistency. The most important requirement for frothing milk is a milk temperature of 4–8 °C. We would therefore recom- mend using a milk cooler or a vacuum milk container. T ... -
Page 15: Preparation
2 Preparation 2 Preparation E You can stop preparation of a speciality coffee, speciality cof- fee with milk or hot water at any time. To do this press the Rotary Switch k. E During the grinding operation you can select the coffee strength of individual products by turning the Rotary Switch g: ;... -
Page 16: Espresso And Coffee
2 Preparation ‘Espresso’ ‘Coffee’ are prepared following this model. Espresso and coffee Example: Proceed as follows to prepare one coffee. T Place a cup under the coffee spout. T Press the ‘Coffee’ button. Preparation starts. The preset amount of water for coffee flows into the cup. -
Page 17: Latte Macchiato, Cappuccino
2 Preparation Your IMPRESSA can prepare a latte macchiato or cappuccino at the Latte macchiato, cappuccino touch of a button. There is no need to move the glass or cup. Example: Proceed as follows to prepare one latte macchiato. Precondition: ‘Please select product:’ is displayed. -
Page 18: Ground Coffee
2 Preparation T Press the ‘1 portion milk’ button. The machine heats up. ‘1 portion milk’ appears and the milk foam is prepared. Prep- aration stops automatically when the preset amount of milk foam is reached. ‘Please select product:’ appears on the dis- play. -
Page 19: Permanently Setting The Amount Of Water For The Cup Size
2 Preparation T Press the ‘Espresso’ button. Preparation starts. The preset amount of water for espresso flows into the cup. Preparation stops automatically. ‘Please select product:’ appears on the display. Permanently setting the It is easy to permanently adjust the amount of water for all products to the cup size. -
Page 20: Adjusting The Grinder
2 Preparation You can adjust the grinder on a continuous scale to suit the degree Adjusting the grinder of roast of your coffee. If you adjust the consistency of grind when the grinder is not oper- CAUTION ating, the grinder adjustment switch could be damaged. T ... -
Page 21: Daily Operation
Precondition: Your IMPRESSA is switched on at the power switch. T Place a receptacle under the coffee spout. Q T Press the On/Off button to switch the IMPRESSA on. ‘Welcome to JURA’ appears on the display. The machine heats up. -
Page 22: Switching Off
3 Daily operation When you switch your IMPRESSA off, the spouts used to prepare a Switching off speciality coffee or milk are rinsed. T Place one receptacle under the coffee spout and another under the cappuccino frother. Q T Press the On/Off button. ‘Machine is rinsing.’, ‘Milk system is being... -
Page 23: Permanent Settings In Programming Mode
4 Permanent settings in programming mode 4 Permanent settings in programming mode Press the P button to enter programming mode. You can navigate through the programme items and permanently save the required settings simply by turning the Rotary Switch and using the multi- function buttons. -
Page 24: Product Settings
4 Permanent settings in programming mode In the programme item ‘Product settings (2/6)’ ‘Expert mode’ Product settings can make individual settings for all speciality coffees, milk and hot water. The following settings can be made: Product Temperature Coffee strength Amount Ristretto, ‘Normal’, ‘High’... -
Page 25: Maintenance Settings
4 Permanent settings in programming mode T Press the ‘ < ’ ‘ > ’ button to change setting for the amount of milk to ‘20 sec.’. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. T Press the ‘Volume’ button. T Press the ‘ < ’... -
Page 26: Setting The Water Hardness
4 Permanent settings in programming mode Example: Proceed as follows to make the machine prompt you to rinse the milk system immediately after preparing a speciality coffee with milk. Precondition: ‘Please select product:’ is displayed. O T Press the P button. ‘Maintenance status (1/6)’... -
Page 27: Energy-Saving Mode
4 Permanent settings in programming mode T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Maintenance settings (3/6)’. O T Press the P button to exit programming mode. ‘Please select product:’ In the programme item ‘Machine settings (4/6)’ / ‘Save energy’... -
Page 28: Automatic Switch-Off
4 Permanent settings in programming mode By instructing your IMPRESSA to automatically switch itself off, you Automatic switch-off can cut down your energy consumption. If this function is activated, your IMPRESSA switches off automatically after the preset time fol- lowing the last action on the machine. You can set the automatic switch-off to 15 ... -
Page 29: Restore Factory Settings
4 Permanent settings in programming mode In the programme item ‘Machine settings (4/6)’ / ‘Machine’ you can Restore factory settings reset various settings to their factory settings: ‘Machine’ All user settings (apart from the ‘filter’ and ‘water hardness’) are reset to factory settings. Your IMPRESSA then switches off. -
Page 30: Language
4 Permanent settings in programming mode In this programme item you can set the language used by your Language IMPRESSA. E If you choose the wrong language by mistake, you can easily reset the machine to ‘English’: Press the P button to enter pro- gramming mode. -
Page 31: Querying Information
4 Permanent settings in programming mode E The selected background colour only applies on the selection page of the display showing the speciality coffees. Querying information In the programme item ‘Information (6/6)’ you can view the follow- ing information. ‘Product counter’: Number of prepared coffee speciality cof- fees, speciality coffees with milk and hot water ‘Maintenance... -
Page 32: Maintenance
5 Maintenance 5 Maintenance Your IMPRESSA has the following integrated maintenance pro- grammes: Rinsing the machine (‘Rinse the coffee system’) Cleaning the cappuccino frother (‘Clean the milk system’) Changing the filter (‘Change the filter’) (only if filter is acti- vated) Cleaning the machine (‘Clean’) Descaling the machine (‘Descale’) (only if filter is not acti- vated) -
Page 33: Rinsing The Cappuccino Frother
If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water. T Use only original JURA maintenance products. E JURA Cappuccino Cleaner is available from specialised dealers. Precondition: ‘Please select product:’ is displayed. -
Page 34: Dismantling And Rinsing The Cappuccino Frother
5 Maintenance T Empty the other receptacle and place it under the cappuc- cino frother again. T Press the ‘Next’ button. ‘Milk system is being cleaned.’, the cappuccino frother and the pipe are rinsed with fresh water. ‘Please select product:’ appears on the display. - Page 35 5 Maintenance T Press the ‘Filter’ button. ‘Filter’ T Press the ‘Active’ button. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Insert filter’ T Remove the filter cartridge extension from the Welcome Pack. T Fit the filter extension on top of a CLARIS Blue filter cartridge. T ...
-
Page 36: Changing The Filter
5 Maintenance E After 50 litres of water have flowed through, the filter will Changing the filter cease to work. Your IMPRESSA will automatically prompt you to change the filter. E After two months, the filter will cease to work. Set the date on the date plate on the filter holder in the water tank. -
Page 37: Cleaning The Machine
E The cleaning programme lasts approximately 20 minutes. E Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from specialised dealers. is displayed. The c symbol is also Precondition: ... -
Page 38: Descaling The Machine
5 Maintenance T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel. ‘Please press the Rotary Switch.’. k T Press the Rotary Switch. ‘Machine is being cleaned.’, water flows repeatedly out of the coffee spout and the cappuccino frother. - Page 39 ‘Pour descaling agent into water tank’ T Remove and empty the water tank. T Completely dissolve 3 JURA descaling tablets in a receptacle holding 500 ml of water. This may take several minutes. T Pour the solution into the empty water tank and insert it into the machine.
-
Page 40: Cleaning The Bean Container
5 Maintenance T Place a receptacle under the cappuccino frother, the coffee spout and the hot-water nozzle. k T Press the Rotary Switch. ‘Machine is being descaled.’, water flows out of the hot- water nozzle and the cappuccino frother. ‘Machine is heating.’, ‘Machine is... -
Page 41: Descaling The Water Tank
5 Maintenance Limescale deposits may form in the water tank. To ensure correct Descaling the water tank function of the machine, descale the water tank from time to time. T Remove the water tank. T If you use a CLARIS Blue filter cartridge, remove this. T ... -
Page 42: Display Messages
6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water tank’ The water tank is empty. You T Fill the water tank (see Chapter 1 cannot prepare any products. ‘Preparing and using for the first time – Filling the water tank’). ‘Empty coffee The coffee grounds container T Empty the coffee grounds container... - Page 43 6 Display messages Message Cause/Result Action ‘Not enough There is insufficient ground T The next time you prepare a ground coffee’ coffee in the machine; the beverage, add more ground coffee IMPRESSA stops the operation. (see Chapter 2 ‘Preparation – Ground coffee’).
-
Page 44: Troubleshooting
7 Troubleshooting 7 Troubleshooting Problem Cause/Result Action When preparing a latte – T Turn the setting wheel of the cappuc- macchiato, the typical cino frother to the far right and the three layers do not Milk Foam position ü. form. T Change the length of the interval to at least 30 seconds in programming mode (see Chapter 4 ‘Permanent settings in programming mode –... - Page 45 T Switch the IMPRESSA off at the power messages are switch. Contact customer support in your displayed. country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).
-
Page 46: Transport And Environmentally Friendly Disposal
8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal In order to protect the IMPRESSA from frost during transport, the Transport / Emptying the system system must be emptied. Precondition: ‘Please select product:’ is displayed. T Carefully pull the cappuccino frother down and off. T ... -
Page 47: Technical Data
11.1 kg 28.5 × 34.2 × 43.3 cm Dimensions (W × H × D) Information for testers (repeat test in accordance with DIN VDE 0701-0702): The central grounding point (CGP) is located on the rear of the machine below the JURA logo (turn JURA logo anti-clockwise). -
Page 48: Index
10 Index 10 Index Cover Bean container 4 Addresses 52 Storage compartment 4 Aroma preservation cover Water tank 4 Bean container with aroma preservation Cup grille 4 cover 4 Customer support 52 Automatic switch-off 28 Descaling Background colour 30 Bean container Machine 38 Bean container with aroma preservation Water tank 41... - Page 49 Power switch 4 Instant coffee Preparation 15, 17 Ground coffee 18 Cappuccino 17 Internet 10 Coffee 16 Espresso 16 JURA Ground coffee 18 Contact details 52 Hot water 20 Internet 10 Latte macchiato 17 Milk 17 Two speciality coffees 16...
- Page 50 10 Index Safety 6 Safety information 6 Settings Maintenance settings 25 Permanent settings in programming mode 23 Setting up Setting up the machine 10 Short operating instructions 10 Switching off Machine 22 Switching on Machine 21 Switch-off Automatic switch-off 28 Symbol description 3 Technical data 47 Tel 52...
-
Page 52: Jura Contact Details / Legal Information
Art. 70992/J9.4/en/201209 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. The machine complies with the following directives: Directives 2006/95/EC –...
