Summary of Contents for Jura J90

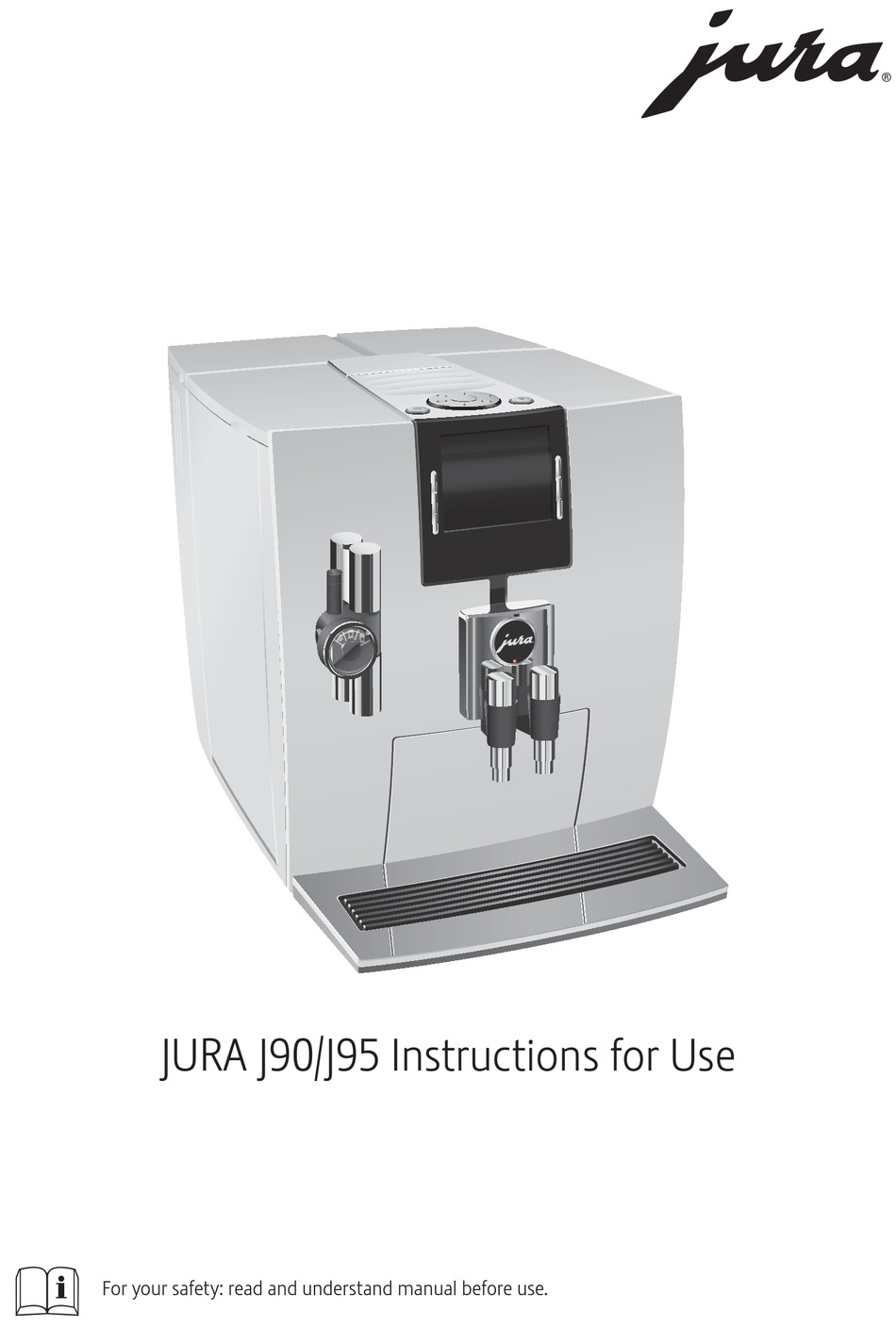

- Page 1 JURA J90/J95 Instructions for Use For your safety: read and understand manual before use.
-
Page 2: Table Of Contents
Table of contents Your JURA J90/J95 IMPORTANT SAFEGUARDS Control elements 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the water tank ...........................10 Filling the bean container ...........................10 First-time use ..............................11 Inserting and activating the filter ......................12... - Page 3 Transport / Emptying the system ......................44 Disposal .................................44 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings This is the safety alert symbol. lt is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
-
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS IMPORTANT SAFEGUARDS Follow the basic safety When using electrical appliances, basic safety precautions shall precautions always be followed, to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Read all instructions. Do not touch hot surfaces. Use handles or knobs. To protect against fire, electric shock and injury to persons, do not immerse power cord, plugs, or body of machine in water or other liquid. - Page 5 Use for any other purpose will be deemed improper. JURA Elektroapparate AG cannot accept any responsibility for the consequences of improper use. People, including children, who...
- Page 6 IMPORTANT SAFEGUARDS J CAUTION This appliance is for household use. Any servicing other than cleaning and user maintenance shall be performed by an authorized service representative: Do not immerse base in water or try to disassemble. Do not put the appliance or any individual parts in the dishwasher.
- Page 7 IMPORTANT SAFEGUARDS NEVER DO Never fill instant coffee, chocolate mix etc. into the bean (or you will void your container or ground coffee funnel (filler funnel for ground warranty protection): coffee). It will damage the functioning of the brewing chamber. Never fill sugar coated coffee beans into the bean container.
-
Page 8: Control Elements
Control elements Control elements J HOT J HOT Bean container cover Filler funnel for ground coffee Water tank cover Storage compartment cover Bean container with aroma preservation Grinder adjustment switch cover Hot-water nozzle * Water tank Measuring spoon for ground coffee Height-adjustable cappuccino frother Height- and width-adjustable coffee spout Coffee grounds container... - Page 9 Control elements Top of the machine Front On/Off button Display g Rotary Switch Buttons (button function depends on P button (programming) what is shown in the display)
-
Page 10: Preparing And Using For The First Time
JURA and on every aspect of coffee. Setting up the machine When setting up your JURA, please note the following: Place the JURA on a horizontal surface that is not sensitive to water. Choose a spot for your JURA which protects the machine against overheating. -
Page 11: First-Time Use
Precondition: The water tank and bean container have been filled. T Insert the power plug into a power socket. 3 T Switch on the JURA using the power switch on the right-hand side of the machine. Q T Press the On/Off button to switch the JURA on. -
Page 12: Inserting And Activating The Filter
E The display shows the products you can prepare. Inserting and activating Your JURA no longer has to be descaled if you are using the CLEARYL the filter Blue filter cartridge. If the water hardness is 10 °dH or more, we recommend using the filter cartridge. -
Page 13: Determining And Adjusting The Water Hardness
E The water may be slightly discolored. This is not harmful to health and does not affect the taste. Rinsing of the filter stops automatically after approximately 17 oz (500 ml). The JURA heats up and is once more ready for use. The filter is now activated. Determining and... - Page 14 1 Preparing and using for the first time T You will then be able to read the degree of water hardness from the discoloration of the Aquadur® test strip and the description on the packaging. You can now adjust the water hardness. Level Display German Degrees of general...
-
Page 15: Connecting Milk
1 Preparing and using for the first time Connecting milk Your JURA creates fine, creamy, feather-light milk foam with a perfect consistency. The most important requirement for frothing milk is a milk temperature of 39–46 °F (4–8 °C). We would therefore recommend using a milk cooler or a vacuum milk container. -
Page 16: Preparation
2 Preparation 2 Preparation J WARNING Hot coffee, hot steam and hot water can cause scalding. Scalding is a serious burn. T Use extreme care when handling hot liquid or steam. T Allow liquid to cool down before drinking. T In the event of scalding, rinse affected area with cold water and seek medical attention. -
Page 17: Espresso And Coffee
2 Preparation ‘Espresso’ ‘Coffee’ ‘Hot water’ Additional specialty coffees in the product selector view: ‘Ristretto’ ‘2 ristretti’ ‘2 espressi’ ‘2 coffees’ Espresso and coffee ‘Espresso’ ‘Coffee’ are prepared following this model. Example: Proceed as follows to prepare one coffee. T Place a cup under the coffee spout. T ... -
Page 18: Latte Macchiato And Cappuccino
2 Preparation Latte macchiato and Your JURA can prepare a latte macchiato or cappuccino at the touch Cappuccino of a button. There is no need to move the glass or cup. Example: Proceed as follows to prepare one latte macchiato. Precondition: Milk is connected to the cappuccino frother. -
Page 19: Ground Coffee
E The desired specialty coffee must be prepared within approx- imately one minute after filling with the ground coffee. Otherwise the JURA stops the operation and is once more ready for use. All specialty coffees with ground coffee are always prepared follow- ing the same model. -
Page 20: Permanently Setting The Amount Of Water For The Cup Size
2 Preparation Permanently setting the It is easy to permanently adjust the amount of water for all products amount of water for the to the cup size. Adjust the amount once as shown in the following cup size example. Every time you prepare a drink in the future, this amount will be dispensed. -
Page 21: Hot Water
2 Preparation The consistency of grind is correct if the coffee flows regularly from the coffee spout. In addition a fine, thick crema forms. Example: Proceed as follows to change the consistency of grind during the preparation of an espresso. T ... -
Page 22: Daily Operation
Maintenance settings’). Precondition: Your JURA is switched on at the power switch. T Place a receptacle under the coffee spout. Q T Press the On/Off button to switch the JURA on. ‘Welcome to JURA’ appears on the display. The machine heats up. -
Page 23: Regular Maintenance
Traces of milk and coffee may stick to the top and bottom of the cup platform. If this happens, clean the cup platform. Switching off the When you switch your JURA off, the spouts used to prepare a machine specialty coffee or milk are rinsed. -
Page 24: Permanent Settings In Programming Mode
T Select an energy-saving mode. (4/6)’ ‘Switch off after’, T Set the time after which the JURA should switch ‘Units’, off automatically. ‘Factory setting’ T Select the unit for the amount of water. T Reset the permanently set values of all products to the factory settings. -
Page 25: Product Settings
4 Permanent settings in programming mode Programme item Sub-item Explanation ‘Information (6/6)’ ‘Product counter’, T Keep track of all specialty coffees prepared and ‘Maintenance counter’, view the number of maintenance programs ‘Version’ performed. Product settings J WARNING Hot coffee, hot steam and hot water can cause scalding. Scalding is a serious burn. -
Page 26: Maintenance Settings
4 Permanent settings in programming mode O T Press the P button. ‘Maintenance status (1/6)’ g T Turn the Rotary Switch until the program item ‘Product settings (2/6)’ is displayed. T Press the ‘Expert mode’ button. ‘Expert mode’ E Next select the button of the product for which you would like to make settings. -
Page 27: Energy-Saving Mode
4 Permanent settings in programming mode ‘Water hardness’ If you do not have a filter cartridge, you will need to set the water hardness (see Chapter 1 ‘Preparing and using for the first time – Setting the water hardness’). ‘Switch-on rinse’ ‘Manual’... -
Page 28: Automatic Switch-Off
O T Press the P button to exit programming mode. ‘Please select product:’ Automatic switch-off By instructing your JURA to automatically switch itself off, you can cut down your energy consumption. If this function is activated, your JURA switches off automatically after the preset time following the last action on the machine. -
Page 29: Unit For Amount Of Water
‘Machine’ All user settings (apart from the ‘filter’ and ‘water hardness’) are reset to factory settings. Your JURA then switches off. ‘Products’ The settings (amount of water, aroma, temperature etc.) for any product can be reset individually to the factory settings. -
Page 30: Language
‘Please select product:’ Language In this program item you can set the language used by your JURA. E If you choose the wrong language by mistake, you can easily reset the machine to ‘English’: Press the P button to enter programming mode. -
Page 31: Background Color
4 Permanent settings in programming mode Background color In this program item you can set the background color for the display of your JURA. Precondition: ‘Please select product:’ is displayed. O T Press the P button. ‘Maintenance status (1/6)’ g T Turn the Rotary Switch until the program item ‘Machine... -
Page 32: Maintenance
(1/6)’). By referring to the bar you can see which maintenance program is due. When the bar is completely filled with red, your JURA will prompt you to perform the appropriate maintenance program. E In the interests of hygiene, you should clean the milk system... -
Page 33: Rinsing The Machine
‘Please select product:’ appears on the display. Rinsing the cappuccino After each milk preparation, the JURA prompts you to perform a milk frother system rinse. Precondition: ‘Rinse the milk system’ is displayed. T Place a receptacle under the cappuccino frother. -
Page 34: Dismantling And Rinsing The Cappuccino Frother
5 Maintenance E JURA milk system cleaner is available from specialized dealers. Precondition: ‘Please select product:’ is displayed. O T Press the P button. ‘Maintenance status (1/6)’ T Press the ‘Clean the milk system’ button. ‘Cleaning agent for milk system’... -
Page 35: Changing The Filter
Changing the filter E After 2000 oz (60 liters) of water have flowed through, the filter will cease to work. Your JURA will automatically prompt you to change the filter. E After three months, the filter will cease to work. Set the date on the date plate on the filter holder in the water tank. -
Page 36: Cleaning The Machine
E The water may be slightly discolored. This is not harmful to health and does not affect the taste. Rinsing of the filter stops automatically after approximately 17 oz (500 ml). The JURA heats up and is once more ready for use. Cleaning the machine After 200 preparations or 80 switch-on rinses, the JURA will prompt... - Page 37 The operation is interrupted, ‘Empty coffee grounds container’. T Empty the drip tray and coffee grounds container and put them back into the machine. Cleaning is now complete. Your JURA is once more ready for use.
-
Page 38: Descaling The Machine
5 Maintenance Descaling the machine The JURA builds up deposits of limescale over time and automati- cally prompts you to descale it when necessary. The degree of calci- fication depends on the hardness of your water. J WARNING Non-recommended descaling agents (e.g. vinegar) may contain substances that could damage the machine or leave residues. - Page 39 ‘Pour descaling agent into water tank’. T Remove and empty the water tank. T Completely dissolve 3 JURA descaling tablets in a receptacle holding 17 oz (500 ml) of water. This may take several minutes. T Pour the solution into the empty water tank and insert it into the machine.
-
Page 40: Cleaning The Bean Container
5 Maintenance T Empty the drip tray and coffee grounds container and put them back into the machine. Descaling is now complete. Your JURA is once more ready for use. E If the descaling operation stops unexpectedly, rinse the water tank thoroughly. -
Page 41: Display Messages
You cannot prepare any products. ‘Please press the The JURA is prompting you to T Press the Rotary Switch to start the Rotary Switch.’ perform a rinse or continue a rinse or to continue the maintenance maintenance program that was program. -
Page 42: Troubleshooting
7 Troubleshooting 7 Troubleshooting Problem Cause/Result Action When preparing a latte – T Turn the setting wheel of the cappuccino macchiato, the typical frother to the far right and the Milk Foam three layers do not position ü. form. T Change the length of the interval to at least 30 seconds in programming mode (see Chapter 4 ‘Permanent settings in programming mode –... - Page 43 Other ‘ERROR’ – T Switch the JURA off at the power switch. messages are displayed. Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details /...
-
Page 44: Transport And Environmentally Friendly Disposal
8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the In order to protect the JURA from frost during transport, the system system must be emptied. Precondition: ‘Please select product:’ is displayed. T Carefully pull the cappuccino frother down and off. -
Page 45: Technical Data
9 Technical data 9 Technical data Voltage 120 V ~, 60 Hz Power 1450 W Conformity mark Energy consumption Approx. 5 Wh ‘Save energy’ ‘Active’ Energy consumption approx. 12 Wh ‘Save energy’ ‘Inactive’ Pump pressure static, max. 15 bar Holding capacity of water tank 71 oz (2.1 l) Holding capacity of bean container 8.8 oz (250 g) Holding capacity of coffee grounds... -
Page 46: Index
10 Index 10 Index Cup platform 8 Customer support 52 Addresses 52 Aroma preservation cover Bean container with aroma preservation Degree of water hardness 13 cover 8 Descaling Automatic switch-off 28 Machine 38 Water tank 40 Determining and adjusting the water Background color 31 hardness 13 Bean container... - Page 47 Safety 4 Preparation 16 Instant coffee Cappuccino 18 Ground coffee 19 Coffee 17 Internet 10 Espresso 17 Ground coffee 19 JURA Hot water 21 Contact details 52 Latte macchiato 18 Internet 10 Milk 18 Two specialty coffees 17 Problems Language 30...
- Page 48 10 Index Safety Important safeguards 4 Settings Maintenance settings 26 Permanent settings in programming mode 24 Setting up Setting up the machine 10 Short operating instructions 10 Switching off 23 Switching on 22 Switch-off Automatic switch-off 28 Symbol description 3 Technical data 45 Tel 52 Transport 44...
