SAFETY AND OPERATING MANUAL
Cordless Lawn Mower
WG775E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WG775E and is the answer not in the manual?

Questions and answers

Summary of Contents for Worx WG775E

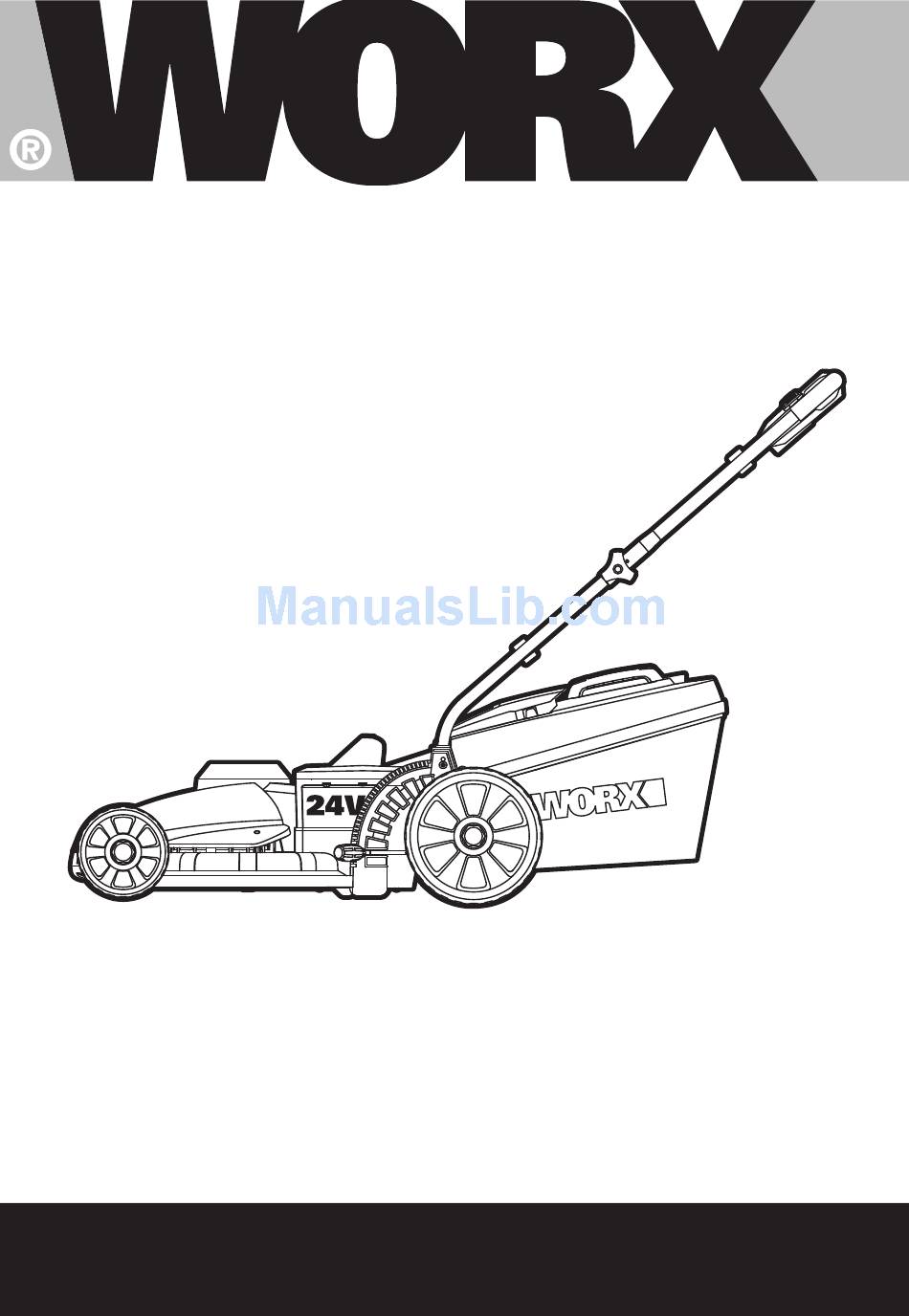

  • Page 1 SAFETY AND OPERATING MANUAL Cordless Lawn Mower WG775E...
  • Page 2: General Power Tool Safety Warnings

    – After striking a foreign object, assembly are not worn or damaged. – Whenever the machine starts vibrating Replace worn or damaged blades and bolts abnormally. in sets to preserve balance. Cordless Lawn Mower WG775E...
  • Page 3: Maintenance And Storage

    18. Charge only battery pack of the same ADDITIONAL SAFETY model provided by WORX and of models recommended by WORX. INSTRUCTIONS FOR YOUR BATTERY ChARGER SAFETY WARNINGS FOR 1.
  • Page 4 Recharge only with the charger specified by WoRX. do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 5 Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Cordless Lawn Mower WG775E...
  • Page 6 Cordless Lawn Mower WG775E...
  • Page 7: Upper Handle

    SAfeTy flAP 10. BATTeRy PACK* 11. MoToR CoveR 12. ChARGeR* (See fig. A) 13. BlAde BolT (See fig. M1) 14. BlAde (See fig. M1) * Not all the accessories illustrated or described are included in standard delivery. Cordless Lawn Mower WG775E...
  • Page 8: Technical Data

    Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Cordless Lawn Mower WG775E...
  • Page 9: Intended Use

    4. Do not operate a damaged charger. Replace damaged cords or charger immediately at an authorized WORX service center. 5. Always charge the mower in a dry area protected from the weather. Do not expose the mower or charger to rain. Do not charge in wet locations. Do not charge mower when temperature is above 104°F...
  • Page 10: Battery Care

    NoTe: Ensure the bolts are fully inserted through the handles before fitting the handle knobs. 6) Attach the cable clips (2) provided, to the upper and lower handle. Insert the cable into the clips ensuring there is enough cable slack. (See Fig. B3) Cordless Lawn Mower WG775E...
  • Page 11 Step 3 Push down the back of the handle. (See Fig. C2) Step 4 Finally, clip the plastic clips over the metal frame. (See Fig. C3) WARNING: don’t fit the handle in reversed direction. fit the handle as shown in fig. C1. Cordless Lawn Mower WG775E...
  • Page 12 Remove grass collection bag (4). WARNING! Always check the safety flap can close the discharge outlet tightly before using. Never lift the safety flap (9) when the lawn mower is being used without fitted grass collection bag. Cordless Lawn Mower WG775E...
  • Page 13: Fitting Battery

    1) Insert safety key into the housing of the switch box. 2) Slide the key to the right and hold in position. 3) Pull the lever bar towards the handle and the mower will start. 4) Release the safety key. SToPPING Release the switch lever. Cordless Lawn Mower WG775E...
  • Page 14 And you can follow as below: empty status: flap floats (a) fully status: flap falls down (b) Cordless Lawn Mower WG775E...
  • Page 15: Maintenance

    Check for obvious defects such as a loose, dislodged or a damaged blade, loose fittings, and worn or damaged components. Check that the covers and guards are all undamaged and are correctly attached to mower. Cordless Lawn Mower WG775E...
  • Page 16: Blade Sharpening

    Check balance of blade by placing center hole in blade L-1 over a nail or screwdriver shank L -2, clamped horizontally in a vise L-3. If either end of the blade rotates downward, file that end. Blade is properly balanced when neither end drops. Cordless Lawn Mower WG775E...
  • Page 17 Store the machine in a dry place. Do not place other objects on top of the machine. To aid storage, release the handle knobs, and rotate or fold the upper handle. Cordless Lawn Mower WG775E...
  • Page 20 Copyright © 2014, Positec. All Rights Reserved. 2CLM04FPK11001A0...
