Phybridge PL-08 Install Manual

Advertisement

Quick Links

Install Guide
®
PoLRE
Switch – Model PL-08
Beyond PoE: Delivering Power over Long Reach Ethernet
The PoLRE (Power over Long Range Ethernet) family of data switches delivers Ethernet and Power over
Ethernet on a single pair of telephony grade wire (CAT3) with 4 times the reach of traditional data switches. With
the PoLRE switch customers can transform their existing voice infrastructure into an IP network with power ideal
for IP telephony deployment.
PoLRE Switch Package Includes:
1.
1 x PoLRE Switch model PL-08
2.
1 x AC/DC Power Adapter
3.
1 x power cable
4.
Quick Install Guide
5.
2 x PhyLink Adapters

Installation Considerations

Location Requirements
Power - The AC/DC Power Adapter must be placed within 6 feet of an available power source. Do not
use an extension cord to connect the equipment to a power outlet.
Installation procedures will be trouble‐ ‐ ‐ ‐ free if you ensure that the following items are available
before you begin:
The PoLRE switch model PL-08, and all cables and accessories you received in the PoLRE
package.
All PhyLink Adapters required for connecting the IP endpoint devices.
Standard CAT5 copper LAN cables for the uplink trunks (user‐supplied).
Standard CAT3 unshielded single twisted pair cables, 24 AWG, for the downlink ports (user-
supplied).

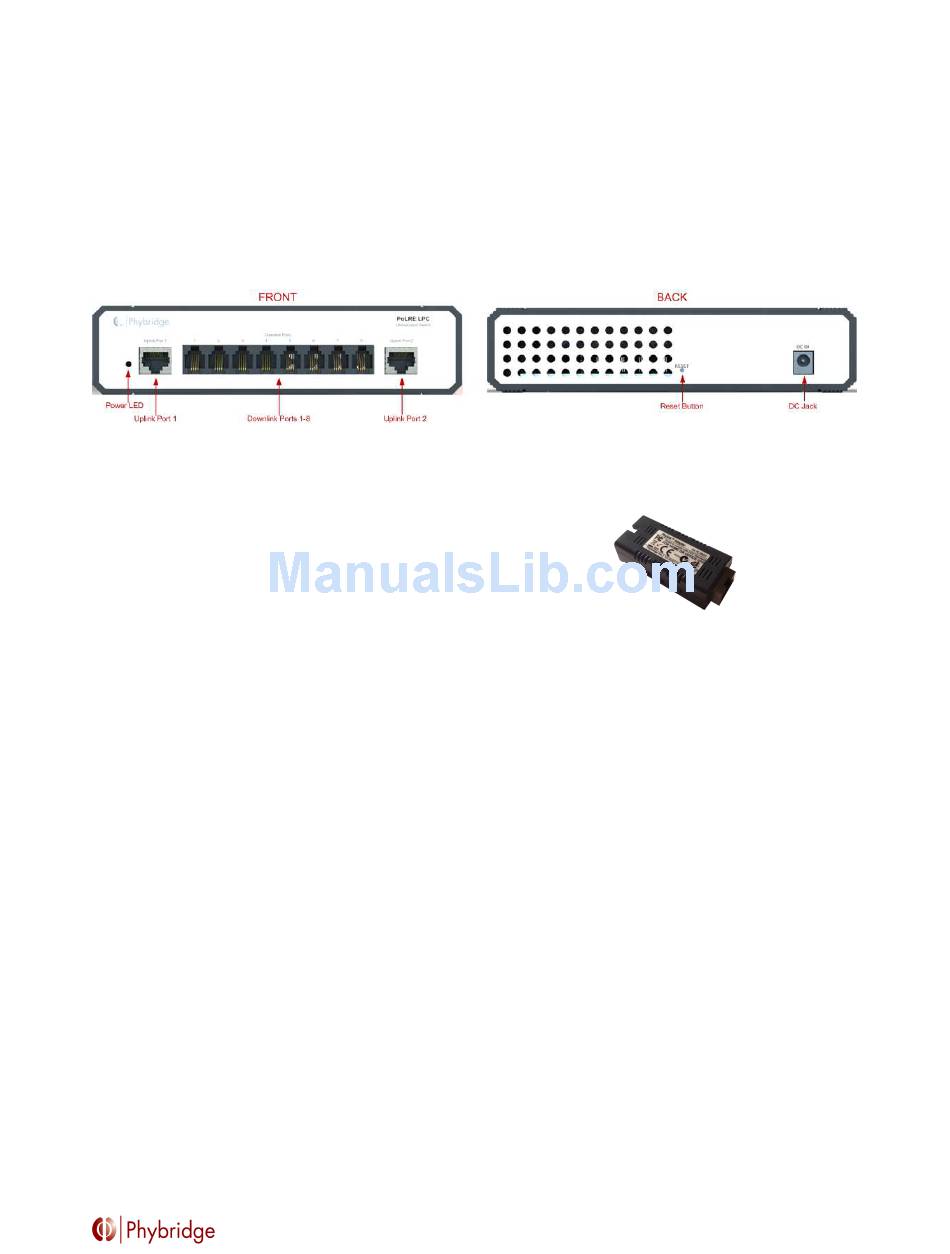

The PoLRE Switch model PL-08
RJ11 Port to
PoLRE Switch
PhyLink Adapter
RJ45 Port to
IP Device
Document: 8008-02-01.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the PL-08 and is the answer not in the manual?

Questions and answers

Summary of Contents for Phybridge PL-08

  • Page 1: Installation Considerations

    Installation procedures will be trouble‐ ‐ ‐ ‐ free if you ensure that the following items are available before you begin: • The PoLRE switch model PL-08, and all cables and accessories you received in the PoLRE package. • All PhyLink Adapters required for connecting the IP endpoint devices.
  • Page 2: Technical Support

    The Phybridge Technical Support Group is available to assist you with product installation, configuration, monitoring and troubleshooting procedures. Should you experience trouble with this equipment or for repair or warranty information, please contact Phybridge Inc. at +1 905.901.3633 or support@phybridge.com.
  • Page 3: Technical Specifications

    Endpoint devices must be compliant with IEEE 802.3af Operating temperature -10° C to 50° C Humidity 10% to 95% (non-condensing) at 35° C Compliance and Environmental information All the compliance and environmental information is available on our website www.phybridge.com Document: 8008-02-01.0...
  • Page 4 Contact Phybridge Inc. 2115 South Service Road West Oakville, Ontario L6L 5W2 Canada Toll-free: (888) 901-3633 www.phybridge.com Document: 8008-02-01.0...
