Quick Install Guide
CLEER Managed Switches
Beyond PoE: Delivering Power over Long Reach Ethernet
The CLEER (Coax Leveraged Ethernet Extended Reach) family of data switches delivers Ethernet and
Power over Ethernet over Coax cable with multiple times the reach of traditional data switches. With the
CLEER24 switch customers can transform their existing Coax infrastructure for IP camera deployment. For
complete details refer to the Hardware Installation Guide at www.phybridge.com

CLEER Package Includes:

1.
1 x CLEER24 Unit
2.
1 x rackmount bracket kit
3.
1 x console cable
4.
1 x power cable
5.
Quick Install Guide
EC-Link Package Includes:
1.
2 x EC-Links

Installation Considerations

The ground symbol within a circle identifies the terminal to be connected to an external
protective conductor. Connect this terminal to earth ground before you make any other
connections to the equipment.

Location and Regional Specifications

The CLEER24 can be installed in any indoor location in all countries except in Finland, Norway and
Sweden, where, in these 3 Nordic countries, it must be installed in a restricted access location.
CLEER24 kan installeras på valfri plats inomhus i samtliga länder utom Finland, Norge och
Sverige; i dessa nordiska länder måste den installeras på en plats med begränsad åtkomst.
CLEER24 kan installeres overalt indendørs undtagen i Finland, Norge og Sverige, hvor i disse tre
nordiske lande den skal installeres på et sted med begrænset adgang.
CLEER24 kan installeres innendørs i alle land unntatt Finland, Norge og Sverge. I disse tre
nordiske landene må den installeres på et sted med begrenset tilgang.
________________________________________________________________________

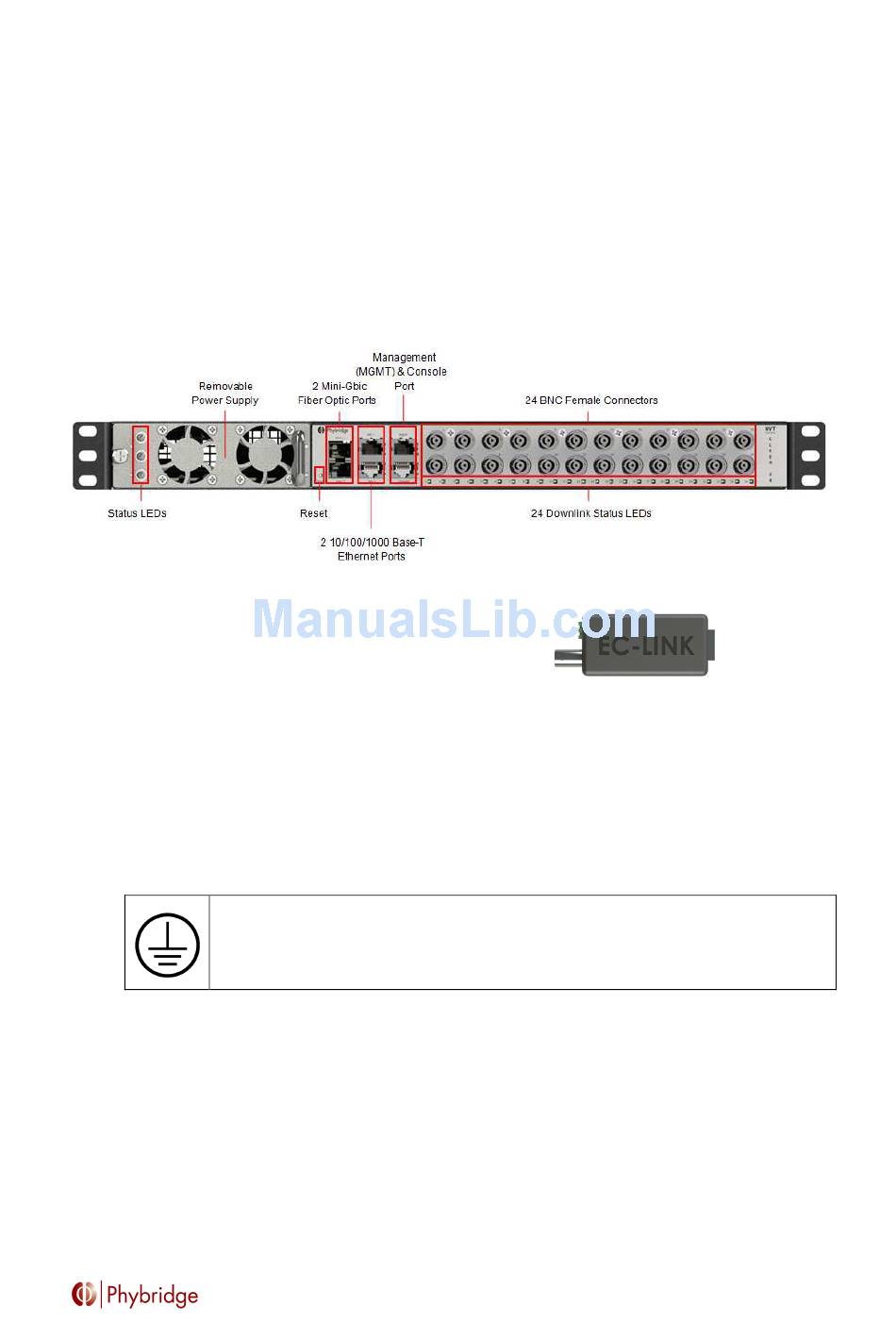

CLEER24 Switch
Network Infrastructure
BNC Port
CLEER Switch – Quick Install Guide
EC-Link
Ethernet Side
RJ45 Port
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLEER24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Phybridge CLEER24

  • Page 1 Location and Regional Specifications The CLEER24 can be installed in any indoor location in all countries except in Finland, Norway and Sweden, where, in these 3 Nordic countries, it must be installed in a restricted access location.
  • Page 2 Location Requirements Power - The CLEER24 switch must be placed within 6 feet of an available power source. Do not use an extension cord to connect the equipment to a power outlet. Ventilation - To ensure proper ventilation of the CLEER24, leave at least 2 inches of unobstructed space on all sides of the unit.
  • Page 3 Connect the uplink cable from a Gigabit port to the IP PBX or network switch. Note: This connection also permits inband management over Ethernet. For power share, daisy chain CLEER24 switches using DC cables (see below). Power up the CLEER24.
  • Page 4 Changing Management port default IP address The Mgmt IP default address of 192.168.1.1 may conflict with other CLEER24. To avoid this from happening, you must change the IP address of the Mgmt Port to an IP which will never be used on the network. For example, if your network belongs to “192.168.X.X” subnet, change the Mgmt Port IP to “10.10.1.1”.
  • Page 5 Note the following: All of the above instructions provide basic installation information, necessary for the proper and safe functioning of this equipment. Persons installing or maintaining this product must read all of the safety instructions and the parts of system grounding which are applicable to the system being maintained. Only trained, qualified service personnel shall install or maintain this product.
  • Page 6 The Phybridge Technical Support Group is available to assist you with product installation, configuration, monitoring and troubleshooting procedures. Should you experience trouble with this equipment or for repair or warranty information, please contact Phybridge Inc. at +1 905.901.3633 or support@phybridge.com.
  • Page 7 Interface: Maximum 2 uplinks, each 1Gb/s (full duplex), either: Ethernet uplink 2 mini-GBIC ports: 1000 Base-TX/SX/LX/EX/ZX/LHX (determined by SFP, transceiver (Trunk IP) module installed), Ethernet IEEE 802.3z, fiber optic cable, or 2 RJ45 ports: 10/100/1000 Base-T autosensing, independent speed selection, Ethernet IEEE 802.3, CAT5e copper cable Interface: 24 x BNC Jacks...
  • Page 8 Appendix A: Power vs. Reach P/N: 8009-02-01 Rev. C Printed in Canada _____________________________________________________________________________________________________________________ CLEER Switch – Quick Install Guide...
