Quick Install Guide
CLEER Switch - Model EC10
Beyond PoE: Delivering Power over Long Reach Ethernet
The CLEER (Coax Leveraged Ethernet Extended Reach) family of data switches delivers Ethernet and Power
over Ethernet over Coax cable with multiple times the reach of traditional data switches. With the EC10 switch
customers can transform their existing Coax infrastructure for IP camera deployment. For complete details refer
to the Hardware Installation Guide at www.phybridge.com
EC10 Switch Package Includes:
1.
1 x EC10 unit
2.
1 x AC/DC Power Adapter
3.
Quick Install Guide
EC-Link Package Includes:
4.
2 x EC-Links

Installation Considerations

Location Requirements
Power - The AC/DC Power Adapter must be placed within 6 feet of an available power source.
Ventilation - To ensure proper ventilation of the EC10, leave at least 2 inches of unobstructed space on
all sides of the unit.
Downlink – The EC-Link adapters should be installed a minimum of 6 feet away from the EC10 switch.
Installation procedures will be trouble‐free if you ensure that the following items are available
before you begin:
The CLEER switch model EC10, and all cables and accessories you received in the EC10 package.
All EC-Link Adapters required for connecting the IP endpoint devices.
Standard CAT5e copper LAN cables for the uplink trunks (user‐supplied).
Coax cable for the downlink ports (user-supplied).

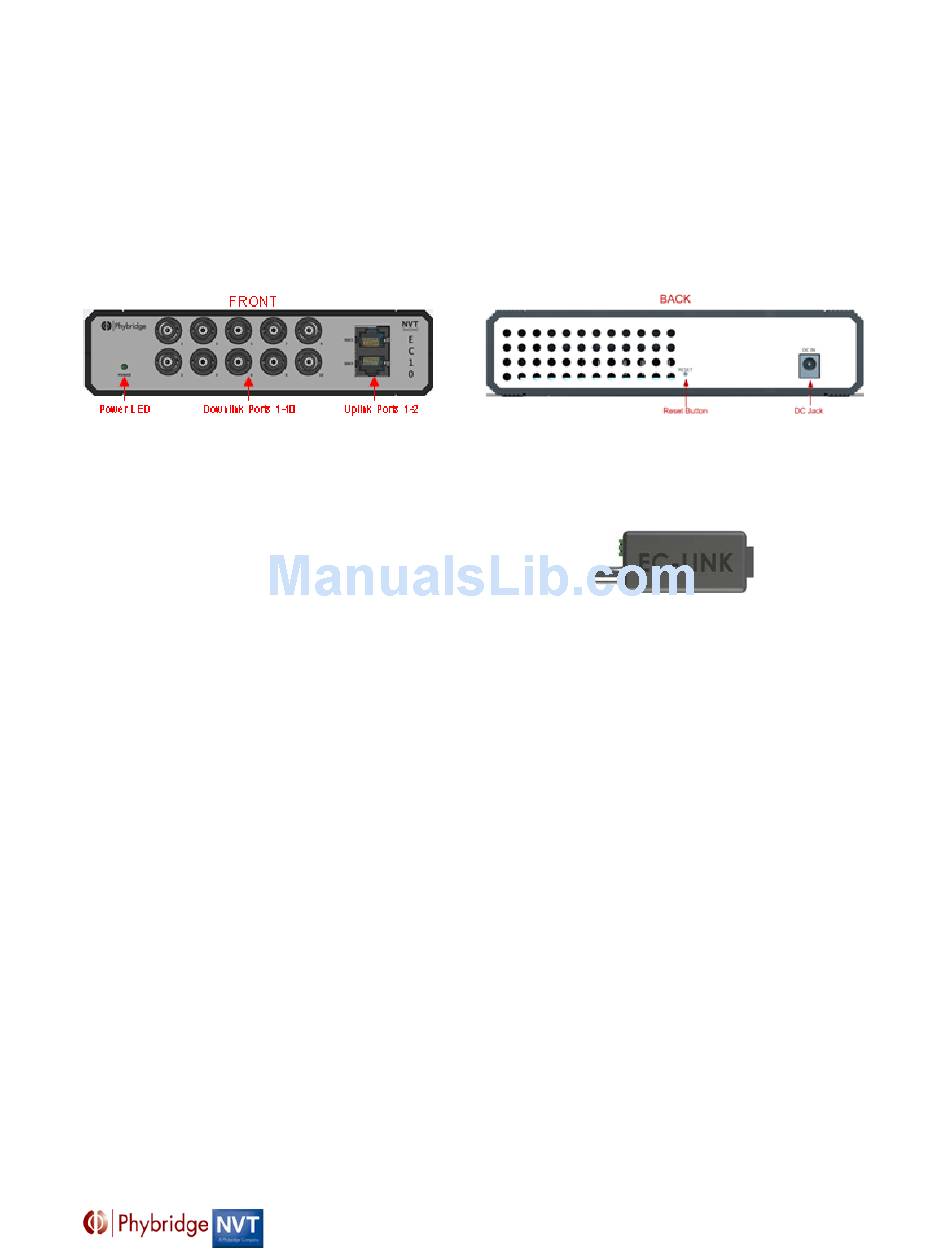

EC10 Switch
Network Infrastructure
EC 10 – Quick Install Guide
EC-Link
BNC Port
Ethernet Side
RJ45 Port
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EC10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phybridge EC10

  • Page 1: Installation Considerations

    The CLEER (Coax Leveraged Ethernet Extended Reach) family of data switches delivers Ethernet and Power over Ethernet over Coax cable with multiple times the reach of traditional data switches. With the EC10 switch customers can transform their existing Coax infrastructure for IP camera deployment. For complete details refer to the Hardware Installation Guide at www.phybridge.com...
  • Page 2 Connect an EC-Link to the Network jack on the IP endpoint and connect the BNC Jack on the EC- Link to one end of the Coax cable. Connect the other end of the Coax cable to BNC connectors on the EC10 switch. Connect the uplink cable from a Gigabit port to the IP PBX or network switch.
  • Page 3: Technical Support

    Technical Support The Phybridge Technical Support Group is available to assist you with product installation, configuration, monitoring and troubleshooting procedures. Should you experience trouble with this equipment or for repair or warranty information, go to www.phybridge.com for support and contact information or email support@phybridge.com.
  • Page 4: Technical Specifications

    Technical specifications EC10 Dimensions 4.5cm x 17.8cm x 12cm (HxWxD) 1.77” x 7.01” x 4.72” (HxWxD) Weight 0.346 kg (0.763 lbs.) Interface: Ethernet 2 RJ45 ports: 10/100/1000 Base-T autosensing, independent speed uplink (Trunk IP) selection, Ethernet IEEE 802.3, CAT5e/6 copper cable...
