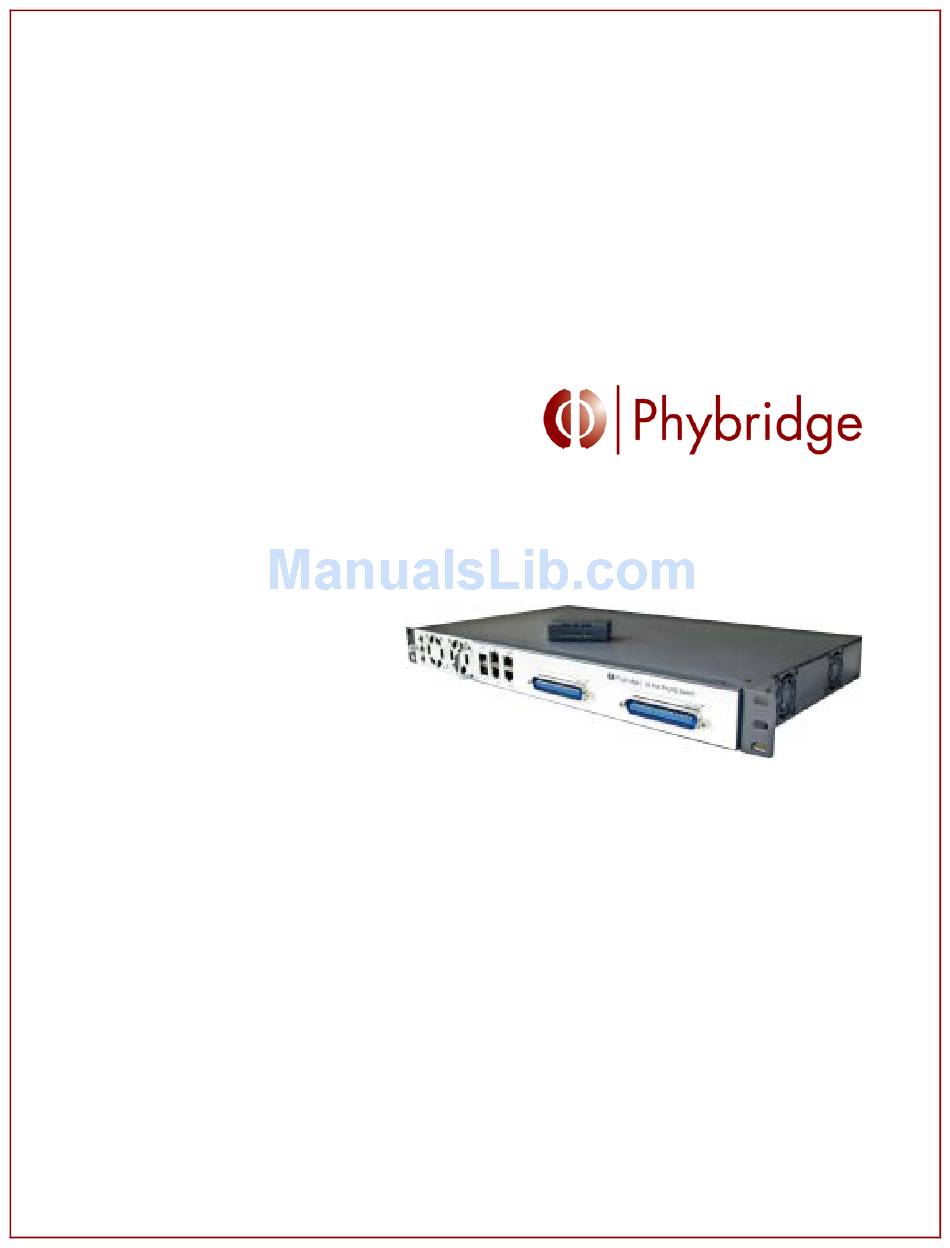

- Page 1 ® PoLRE Switch Hardware Installation Guide Release 1.2...
- Page 2 Phybridge makes no warranties regarding the content of this document. Phybridge is not responsible for any loss or damages arising from the use or misuse of this document. The information contained in this document as well as all product specifications are subject to change without notice.
-
Page 3: Warranty Information
Please have your Channel Support Agreement/Contract Number and password ready when calling. Returning a PoLRE Switch If you must return a PoLRE switch, Phylink adapter or accessory component to Phybridge Inc., ensure that all items are adequately protected with insulating material and packaged in the original carton before shipping. -
Page 4: Document Conventions
A caution contains an instruction that the reader must follow in order to prevent damage to equipment, network failure or loss of data. Example: CAUTION: Do not expose the PoLRE switch or any of its components to a magnetic field or electrostatic charge. Damage to system components could result. Warnings A warning contains an instruction that the reader must follow in order to prevent electrical shock, death or serious injury to personnel. -
Page 5: Table Of Contents
Quick Links ................................. 1 Introduction ................................2 PoLRE Switch Hardware Description ......................... 3 PoLRE Switch Front View (Models 24-Port and 48-Port) ..................3 PoLRE Switch Rear View (Models 24-Port and 48-Port) ..................4 PoLRE Switch Product Numbers ..........................4 PoLRE Switch Dimensions ............................4 Operating/Storage Environment ........................... - Page 6 Safety Precautions ..............................18 ESD Procedure ..............................18 Safety Warnings and Precautions ..........................19 Care of the PoLRE Switch ............................. 20 Care of Replaceable Components ........................20 Overview of Installation ............................21 Installing the Switch in a Rack ..........................21 Rackmount Safety Instructions ..........................
-
Page 7: Product Description
Q u i c k L i n k s 1. Product Description Quick Links • PoLRE Switch Front View (Models 24-Port and 48-Port), page 3 • PoLRE Switch Rear View (Models 24-Port and 48-Port), page 4 • Power Supply Unit, page 5 •... -
Page 8: Introduction
The PoLRE switch is a Power over Long Reach Ethernet switch. Unlike traditional Ethernet switches, the PoLRE switch has a reach of up to 1200 feet (365 meters) and is capable of delivering power and signaling over a single pair CAT3 cable. A Phylink adapter is installed at each IP endpoint, carrying the power and signaling to the connected IEEE 802.3af compliant end devices. -
Page 9: Polre Switch Hardware Description
P o L R E S w i t c h H a r d w a r e D e s c r i p t i o n PoLRE Switch Hardware Description PoLRE Switch Front View (Models 24-Port and 48-Port) Model 48-Port... -
Page 10: Polre Switch Rear View (Models 24-Port And 48-Port)
48-Ports). The product serial number as well as the switch-specific model number are on a label affixed to the left side of the rear panel. You may be asked to provide these numbers if you contact Phybridge Technical Support for assistance. -
Page 11: Operating/Storage Environment
3 LEDs at the front: RUN (green), ALARM (amber) and FAULT (red). Refer to Status Indicators, page Front View CAUTION: Do not lift the PoLRE switch using the handle at the front of the power supply unit. This handle is intended for removing and replacing the PSU only. Refer to Replacing the Power... -
Page 12: Rear View
• Cable required: copper, CAT-5e or better CAUTION: Do not connect both ports to the network unless STP/RSTP is enabled. For more information, see the PoLRE Switch User Guide as well as the 3300/MCD Resiliency Guidelines. Port label Port type... -
Page 13: Gbe Port Pinout
1 . P R O D U C T D E S C R I P T I O N P o L R E S w i t c h H a r d w a r e D e s c r i p t i o n GbE Port Pinout Function 1, 2... -
Page 14: Ports 1 To 24
+ – 32 Out-of-band Management Port • 1 IEEE 802.3 Ethernet LAN port labeled MGMT • Dedicated port for out-of-band management of the PoLRE switch, including all system OAM&P functions • Speed: 10/100 Base-T autosensing Auto-MDIX • Cable required: standard RJ45 LAN cable, CAT-5 or better... -
Page 15: Out-Of-Band Management Port Pinout
Bob Smith Termination Console Port • 1 RJ45 UART port labeled Console • Dedicated port for management of the PoLRE switch via a console terminal or PC • Speed: 115200 Baud • 8 data bits, no parity, 1 stop bit •... -
Page 16: Reset Button
Recessed button labeled Reset, for manually restarting the PoLRE switch • Located on the front panel of the PoLRE switch immediately to the right of the power supply unit • Use a paper clip or something similar to press the Reset button in CAUTION: Do NOT use a pencil tip to press the Reset button. -
Page 17: Status Indicators
P h y l i n k A d a p t e r H a r d w a r e D e s c r i p t i o n Status Indicators 3 LEDs on the front panel of the power supply unit indicate the operating status of the PSU and the PoLRE switch: •... -
Page 18: Phylink Dimensions
• RJ45 port • Provides connectivity and power to the IP end device. • DC voltage -54V max; -37V when 365m (1200’) away from the PoLRE switch • Speed: Fixed 10 Mb/s Full Duplex Auto-MDIX • Cable: CAT-5 or better... -
Page 19: Unpacking
PoLRE Switch Product Package When you first take the PoLRE switch out of its carton, lay out the switch and all of its accessories in your work area and verify that you have received all of the items you ordered. Each component is labeled with its part number. -
Page 20: Before You Install
See Installing the Switch in a Rack, page 21. Physical Location Requirements Power The PoLRE switch must be placed within 6 feet of an available AC power source. Do not use an extension cord to connect the equipment to a power outlet. Ventilation To ensure proper ventilation of the PoLRE switch, leave at least 2 inches of unobstructed space on all sides of the switch. -
Page 21: What You Will Need
DC cables for multiple switch configuration in Powershare mode (optional) • Screws and screwdriver for securing the PoLRE switch to the standard 19” equipment rack • A PC with a COM port for configuration and management of the PoLRE switch •... - Page 22 2 . U N P A C K I N G B e f o r e Y o u I n s t a l l...
-
Page 23: Installation
Connecting to the 2-wire Network Infrastructure, page 24 • Connecting to the Console, page 26 • Connecting to the IP PBX, page 26 • Connecting to Power, page 31 • Daisy-chaining PoLRE Switches for Powershare, page 32 • Replacing the Power Supply Unit, page 34... -
Page 24: Requirements
Damage to system components could result. • Wear an ESD (Electrostatic Sensitive Devices) wrist strap. • Attach the wrist strap cable to the ground lug at the rear of the PoLRE switch, identified with the Gnd symbol as shown below:... -
Page 25: Safety Warnings And Precautions
3 . I N S T A L L A T I O N S a f e t y W a r n i n g s a n d P r e c a u t i o n s CAUTION: The ground lug is a main earth terminal that must be permanently connected to earth. -
Page 26: Care Of The Polre Switch
CAUTION: Power off the PoLRE switch before cleaning. The PoLRE switch will not be damaged by the application of common household solvents, non-abrasive cleaners or waxes to any of its external surfaces. However, these cleaning products must not be used on the components of the PoLRE switch or applied to the interior of the switch. -
Page 27: Overview Of Installation
1. Remove the PoLRE switch and all accompanying accessories from the packaging materials. See PoLRE Switch Product Package, page 13. 2. Install the rackmount brackets on the PoLRE switch and mount the switch in a standard 19” rack. See Installing the Switch in a Rack, page 21. - Page 28 To install the switch in a rack: 1. Attach the left rackmount bracket to the left side of the PoLRE switch near the front, using 4 of the screws provided. The rack ear should be flush with the front panel of the PoLRE switch.
-
Page 29: Rackmount Safety Instructions
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern. For reliability reasons the PoLRE switch should be powered from a dedicated mains outlet. -
Page 30: Connecting A Pc Behind The Ip Phone
Note: Use a standard RJ21 telco cable to connect the 2-wire network infrastructure to one of the downlink ports on the front panel of the PoLRE switch. The total cable length of the network infrastructure (from PoLRE switch to Phylink adapter) can be up to 1200’ (365m). - Page 31 3 . I N S T A L L A T I O N C o n n e c t i n g t o t h e 2 - w i r e N e t w o r k I n f r a s t r u c t u r e To connect to the 2-wire network infrastructure: 1.
-
Page 32: Connecting To The Console
8 data bits, no parity and 1 stop bit. Connecting to the IP PBX You can connect the PoLRE switch to the uplink network switch, IP PBX or router in two ways: • GbE Port Connection (see next section) for copper LAN cable connection to either or both RJ45 ports labelled GbE 1 and GbE 2 on the front panel of the PoLRE switch. -
Page 33: Gbe Port Connection
To connect the PoLRE switch to the uplink network switch or IP PBX using a copper LAN cable: • Connect your CAT5e copper LAN cable to port GbE 1 or GbE 2 on the front panel of the PoLRE switch. CAUTION: Do not connect both ports to the network unless STP/RSTP is enabled. For more information, see the PoLRE Switch User Guide as well as the 3300/MCD Resiliency Guidelines. -
Page 34: Installing The Sfp Transceiver Modules
3 . I N S T A L L A T I O N C o n n e c t i n g t o t h e I P P B X Installing the SFP Transceiver Modules To install an SFP module: 1. - Page 35 3 . I N S T A L L A T I O N C o n n e c t i n g t o t h e I P P B X 5. Flip the locking mechanism up and over the black cap, pushing it back until it clicks into place. CAUTION: DO NOT remove the black cap until you are ready to insert the fiber optic cable.
-
Page 36: Installing The Fiber Optic Cable
2. Connect your fiber optic cable to port Gbic 1 or Gbic 2 on the front panel of the PoLRE switch. Note: Both ports can be used. If only one connection will be installed, use the port labelled... -
Page 37: Connecting To Power
Gbic 1. Otherwise, the GbE port will not work. Connecting to Power The PoLRE switch is powered through an AC Connection (see the next section). Another hardware configuration is available for Powershare purposes. This requires multiple PoLRE switches installed in a standard 19” equipment rack. -
Page 38: Multiple Switch Configurations
Daisy-chaining PoLRE Switches for Powershare Up to 4 PoLRE switches can be daisy-chained together for Powershare. They are connected in a ring using the DC In/Out connectors at the rear of the switch. If a power fault occurs on any switch in the ring, the others are able to share the load, and the affected switch continues to function normally. - Page 39 Daisy-Chaining PoLRE Switches for Powershare To daisy-chain multiple PoLRE switches for Powershare: 1. Mount all PoLRE switches in the same equipment rack, with no more than 1U space between any two switches. Refer to Installing the Switch in a Rack, page 21.
-
Page 40: Replacing The Power Supply Unit
DC output (right) connector on the top switch. This is required to create a fully redundant ring. Note: If you need to move a cable to a different DC connector on the PoLRE switch, press the hairpin clip at the top of the DC cable and pull the cable out. - Page 41 PoLRE switch. 3. Push firmly on the power supply unit to insert its connector securely at the rear of the PoLRE switch. 4. Tighten the thumbscrew on the left side of the power supply unit. It should be finger tight only. Do...
-
Page 42: Technical Specifications
4 . T E C H N I C A L S P E C I F I C A T I O N S 4. Technical Specifications PoLRE Switch Model 24-Port and 48-Port Model Technical Specifications Description Specification Models... - Page 43 4 . T E C H N I C A L S P E C I F I C A T I O N S R e p l a c i n g t h e P o w e r S u p p l y U n i t PoLRE Switch Model 24-Port and 48-Port Model Technical Specifications Description...
-
Page 44: Compliance And Environmental Information
5 . C O M P L I A N C E A N D E N V I R O N M E N T A L I N F O R M A T I O N 5. Compliance and Environmental information All the compliance and environmental information is available on our website www.phybridge.com... -
Page 45: Acronyms
Internet Protocol IP Telephony Light Emitting Diode Network Management System OAM&P Operations, Administration, Maintenance and Provisioning Power over Ethernet PoLRE Power over Long Reach Ethernet Power Sourcing Equipment Power Supply Unit Random Access Memory Small Form-factor Pluggable SNMP Simple Network Management Protocol... - Page 46 6 . A C R O N Y M S...
-
Page 47: Index
Phylink adapter, 23 IP PBX connection, 25 fiber optic, for Gbic port, 29 multiple switch configurations, 31 serial, for Console, 25 of PoLRE switch in rack, 20 components overview of steps, 20 care of, 19 Phylink adapter, 23... - Page 48 5 size, 14 technical specifications, 35 ventillation, 14 ports Reset button, 10 Console, 9 returning a PoLRE switch, i Console, connection, 25 RUN LED, 11 downlink, 7 safety warnings, 18 Management, out-of-band, 8 rackmount installation, 22 RJ11, on PoLRE switch, 12...
- Page 49 2115 South Service Road West Tel.: +1 888.901.3633 Oakville, ON L6L 5W2 Fax: +1 866.252.9148 Canada Web: www.phybridge.com...
