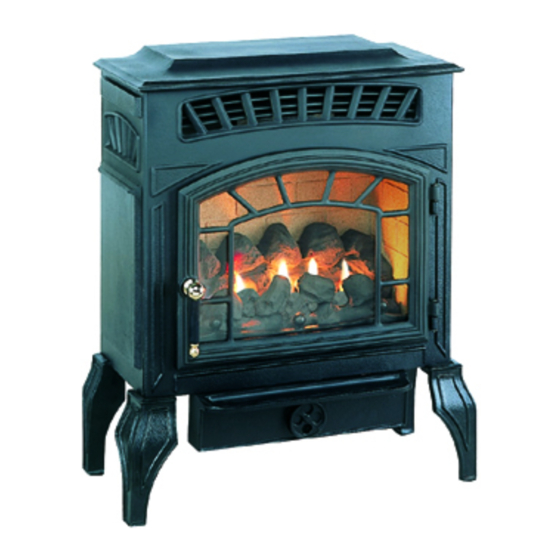

BURLEY G4121
mk2
FLUELESS GAS HEATER
INSTALLATION, SERVICING
& USER INSTRUCTIONS
FOR USE IN THE COUNTRIES STATED ON THE DATA PLATE AND CARTON
WITH NATURAL GAS G20
OR LPG PROPANE GAS G31
(REFER TO RATING LABEL)
For the following countries: GB, IE
EVEN IF YOU HAVE FITTED THESE FIRES BEFORE,
PLEASE FOLLOW THESE INSTRUCTIONS STEP BY STEP.
Legislation and regulations do change over time!
LEAVE THESE INSTRUCTIONS WITH THE USER
TO OBTAIN YOUR FIRST YEAR GUARANTEE, THE INSTALLER AND CUSTOMER
MUST FILL IN THE SEPARATE GUARANTEE AND RETURN IT TO
BURLEY WITIHIN 7 DAYS OF FITTING.
A FREE SECOND YEAR GUARANTEE IS OFFERED SUBJECT TO THE FIRE BEING SERVICED
BY A CORGI ENGINEER DURING THE FIRST YEAR OF OWNERSHIP.
PROOF OF SERVICING MUST BE RETAINED
FAILURE TO HAVE THIS APPLIANCE FITTED BY A CORGI REGISTERED
FITTER INVALIDATES THE WARRANTY
Burley Appliances Ltd,
Lands End Way, Oakham, Rutland, LE15 6RB
Telephone: +44 (0)1572 756956 Fax: +44 (0)1572 724390
e-mail:
info@burley.co.uk
web:
www.burley.co.uk
G4121InstUser
G20/31
Issue JAN08 – v.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Burley G4121 mk2
Summary of Contents for Burley G4121 mk2
-
Page 1: User Instructions
TO OBTAIN YOUR FIRST YEAR GUARANTEE, THE INSTALLER AND CUSTOMER MUST FILL IN THE SEPARATE GUARANTEE AND RETURN IT TO BURLEY WITIHIN 7 DAYS OF FITTING. A FREE SECOND YEAR GUARANTEE IS OFFERED SUBJECT TO THE FIRE BEING SERVICED BY A CORGI ENGINEER DURING THE FIRST YEAR OF OWNERSHIP. -
Page 2: Appliance Data
INTRODUCTION Thank you for choosing this burley product. All of our products carry a CE mark which is awarded by an independent test house (notified body) and shows the fires have been type tested to meet the essential requirements of the European Gas Appliance Directive and the appropriate British Standards. -
Page 3: General Requirements
BS5871 pt4 except where Burley instruction state differently. For the Republic of Ireland, reference should be made to IS813 and ICP3 and any guidance notes from Bord Gais. - Page 4 3.19 Do not use whilst painting & decorating, or in newly decorated rooms as the residues can lead to unpleasant smells from the appliance. Always cover or have the appliance removed when decorating. 3.20 The heater must not be used in rooms where the atmosphere is likely to contain water or chemical vapours which may adversely affect the appliance or its finish.
-
Page 5: Gas Supply
Clearance to Walls Rear Clearance - The rear of the appliance can be installed directly against a non combustible wall. A distance of 50mm should be allowed to walls with wooden cladding, wallpaper, or finishes likely to be affected by heat. Side Clearance - The sides of the appliance can be installed with 25mm of side clearance to non combustible materials. -
Page 6: Commissioning The Appliance
Laying the Logs Opening the hinged door on the appliance, which is secured by a 10mm nut, gains access to the coals. On no account should the appliance be operated whilst the door is open except for brief periods during maintenance. -
Page 7: Lighting The Heater
Burley Appliances is the only company to bench run and thoroughly test every single gas fire it produces. Burley is in the unique position of knowing that every appliance that leaves the factory is in perfect working order. The installer should measure the inlet pressure with the appliance running on high and ensure it is to specification. -
Page 8: Oxygen Depletion Pilot System
Oxygen Depletion Pilot System There is a highly sensitive oxygen depletion sensor designed into the pilot light. If any part is damaged the entire unit must be replaced using only genuine spare parts as similar looking parts from other appliances may well give inferior performance. - Page 9 Burley Appliances are the only company to bench run and thoroughly test every single Flueless gas fire it produces. Burley is in the unique position of knowing that every appliance leaves the factory in perfect working order.
- Page 10 User Instructions WARNINGS 1. Read the instructions before using this appliance. 2. This appliance requires installation and annual servicing by a CORGI registered installer. 3. Use only in a correctly sized and ventilated area. 4. Any purpose provided ventilation should be checked regularly to ensure it is free from obstruction.
- Page 11 material when hot. A propriety non-abrasive ceramic hob cleaner such as ‘hob brite’ can be used to clean the glass. 9. When the heater is not used for a time, ensure the gas control or adjacent isolator is turned off. The heater is not to be used for a time, ensure the gas control or adjacent isolator is turned off.
-
Page 12: Turn Off Procedure
Servicing must be carried out by a qualified service engineer. BURLEY APPLIANCES ARE THE ONLY COMPANY TO BENCH RUN AND THOROUGHLY TEST EVERY SINGLE GAS FIRE IT PRODUCES. BURLEY ARE IN THE UNIQUE POSITION OF KNOWING THAT EVERY APPLIANCE LEAVES THE FACTORY IN PERFECT WORKING ORDER.
