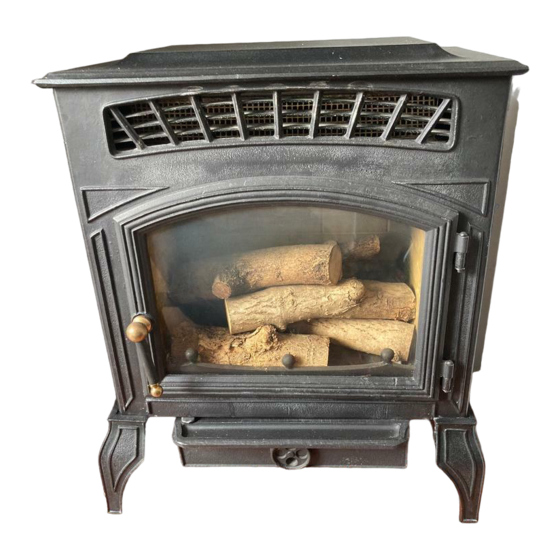

G4121 AMBIENCE
FLUELESS GAS APPLIANCE
INSTALLATION, SERVICING
& USER INSTRUCTIONS
FOR USE IN THE COUNTRIES STATED ON THE DATA PLATE AND CARTON
WITH NATURAL GAS G20
OR PROPANE GAS G31
(REFER TO RATING LABEL)
For the following countries: GB, IE
EVEN IF YOU HAVE FITTED THESE FIRES BEFORE,
PLEASE FOLLOW THESE INSTRUCTIONS STEP BY STEP.
Legislation and regulations do change over time!
This product is not suitable for primary heating purposes.
LEAVE THESE INSTRUCTIONS WITH THE USER
THE INSTALLER AND CUSTOMER MUST FILL IN THE SEPARATE GUARANTEE
AND RETURN IT TO BURLEY WITIHIN 7 DAYS OF FITTING.
A FREE SECOND YEAR GUARANTEE IS OFFERED SUBJECT TO THE FIRE BEING SERVICED
BY A GAS SAFE™ REGISTERED ENGINEER (FORMERLY CORGI) DURING THE FIRST YEAR OF OWNERSHIP.
PROOF OF SERVICING MUST BE RETAINED
FAILURE TO HAVE THIS APPLIANCE FITTED BY A GAS SAFE ™ REGISTERED
INSTALLER (FORMERLY CORGI) INVALIDATES THE WARRANTY
Burley Appliances Ltd,
Lands End Way, Oakham, Rutland, LE15 6RB
Telephone: +44 (0)1572 756956 Fax: +44 (0)1572 724390
e-mail:
info@burley.co.uk
web:
www.burley.co.uk
G4121InstUser
G20/31
March 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Burley G4121
Summary of Contents for Burley G4121
- Page 1 LEAVE THESE INSTRUCTIONS WITH THE USER THE INSTALLER AND CUSTOMER MUST FILL IN THE SEPARATE GUARANTEE AND RETURN IT TO BURLEY WITIHIN 7 DAYS OF FITTING. A FREE SECOND YEAR GUARANTEE IS OFFERED SUBJECT TO THE FIRE BEING SERVICED BY A GAS SAFE™ REGISTERED ENGINEER (FORMERLY CORGI) DURING THE FIRST YEAR OF OWNERSHIP.
- Page 2 INTRODUCTION Thank you for choosing this burley product. All of our products carry a CE mark which is awarded by an independent test house (notified body) and shows the fires have been type tested to meet the essential requirements of the European Gas Appliance Directive and the appropriate British Standards.
-
Page 3: On/Off Switch
LIGHTING PROCEDURE. Identify the control valve fitted to the appliance and follow the appropriate instructions. Total Control Ensure that the ON/OFF switch is in the ON position (-) & that the manual knob is also pointing downwards towards its ON position (see below). ON/OFF Switch Manual Knob... - Page 4 Battery Replacement Handset On the back of the handset remove the battery cover by pressing down the top of the cover & sliding it down. Remove & unclip the old battery & replace with a new PP3 9 volt battery. Receiver Unit (located under burner) Remove the heat shield surrounding the unit.
-
Page 5: Manual Control
MANUAL CONTROL There are 2 control knobs on the appliance. The right hand one controls On/Off and pilot/main burner. The left hand one is the comfort level thermostat which turns the fire down once the indicated temperature is reached. If during use the pilot is alight but the main burner is not lit, check the thermostat position and if necessary select a warmer setting. -
Page 6: Slide Control
SLIDE CONTROL 1.11 1. Slide the control lever firmly to the right of its travel and listen for the spark generator clicking which should light the pilot. 2. Continue to hold for a further 10 seconds. 3. If the pilot fails to stay alight, slide the control lever to the left of its travel (off) & wait for 3 minutes &... -
Page 7: General Requirements
BS5871 pt4 except where Burley instructions state differently. For the Republic of Ireland, reference should be made to IS813 and ICP3 and any guidance notes from Bord Gais. - Page 8 3.20 If any material such as plastic melts onto the surface of the glass, turn the appliance off and allow it to cool. Do not remove the material when hot. A proprietary ceramic hob cleaner such as ‘hob brite’ can be used to clean the glass. Only clean the appliance when cold. 3.20.1 On no account must the air inlets under the stove or outlet grills (see diagram below) be obstructed.
-
Page 9: Siting The Appliance
Clearance to Walls Rear Clearance - The rear of the appliance can be installed directly against a non combustible wall. A distance of 50mm should be allowed to walls with wooden cladding, wallpaper, or finishes likely to be affected by heat. Side Clearance - The sides of the appliance can be installed with 25mm of side clearance to non combustible materials. - Page 10 Laying the Logs Open the hinged door on the appliance. This is secured by a 10mm nut to gain access to the logs. On no account should the appliance be operated whilst the door is open except for brief periods during maintenance.
-
Page 11: Commissioning The Appliance
Burley Appliances is the only company to bench run and thoroughly test every single gas fire it produces. Burley is in the unique position of knowing that every appliance that leaves the factory is in perfect working order. -
Page 12: Servicing Instructions
Replacement parts are available from your local dealer. BURLEY APPLIANCES ARE THE ONLY COMPANY TO BENCH RUN AND THOROUGHLY TEST EVERY SINGLE GAS FIRE IT PRODUCES. BURLEY IS IN THE UNIQUE POSITION OF KNOWING THAT EVERY APPLIANCE LEAVES THE FACTORY IN PERFECT WORKING ORDER. - Page 13 GENERAL REQUIREMENTS 1. The appliance is intended as a secondary heat source. Check that a primary source of heat (such as radiators) is present in the room. If insufficient primary heat is being used there may be a build up of condensation.
- Page 14 Flue Gas Analysers – Installation & Servicing Facts • Please read this sheet even if you have fitted our fires before. • Please leave this sheet with the customer as reference for future servicing of the appliance. • Please explain to the customer how the fire works and the details and facts listed on this sheet, particularly what the catalyst does and doesn’t do.
- Page 15 30 years of use, the catalytic converter is as efficient as it was when brand new. Burley manages to achieve this by designing the fire to ensure that the catalytic converter is in exactly the right position for long life and maximum efficiency. (For other makes of fire please consult the relevant manufacturer).
- Page 16 Gas rating of Burley Flueless Appliances Burley’s Flueless Gas Appliances are all gas input rated in the factory and undergo further line tests for combustion, sooting and visual performance. For Installers who wish to gas input rate appliances we need to establish tolerances for pass and fail.
- Page 17 • The appliance has been used solely in accordance with the instruction book. Any in guarantee work carried out by Burley Appliances will be charged for if the fault is caused by incorrect pressure or gas, incorrect installation, operator error, neglect or abuse.
- Page 18 Disposal Recycling Information: The metallic & glass parts of the appliance & its packaging should be sorted for environmental-friendly recycling. WEEE: Dispose of electrical equipment in an environmentally correct manner. When disposing components containing Refractory Ceramic Fibres (RCF), we recommend that the items are not broken up, but are sealed within heavy duty polythene bags, and clearly labelled as RCF waste.
- Page 20 Burley Magiglo fires are protected by UK patents 2193802, 2240620 and 2256920 Other Patents Pending Burley Appliances Ltd, Lands’ End Way, Oakham, Rutland, LE15 6RB Tel: 01572 725570 Fax: 01572 724390 www.burley.co.uk Email: info@burley.co.uk...
