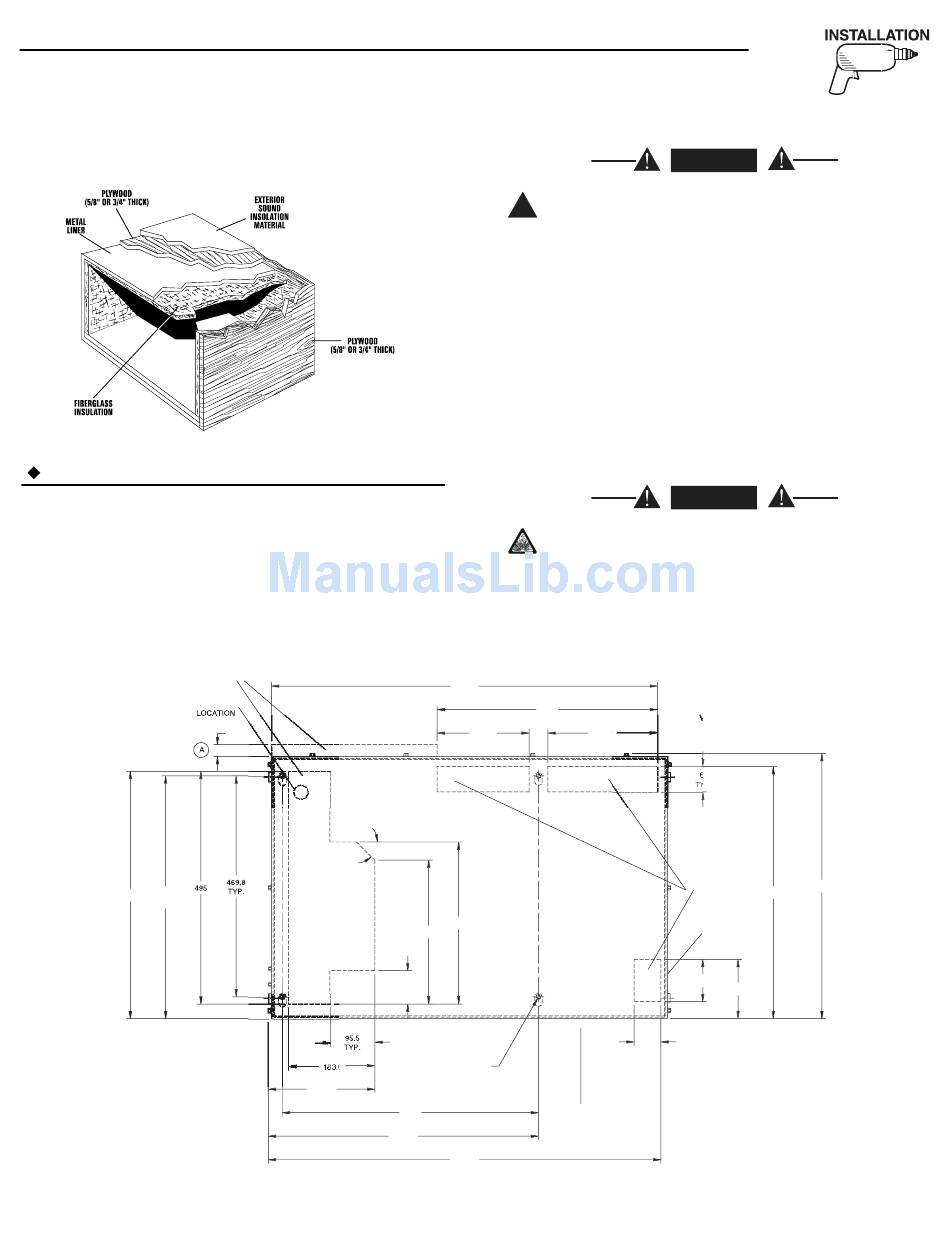

Figure 5.7 – Typical Noise Abatement

5.2.5 COMPARTMENT FLOOR CUTOUTS

You must provide openings in the generator compart-
ment for the following items (Figures 5.8 and 5.9):
• Engine exhaust and cooling air outlets
• Generator cooling air inlet
• Four holes for passage of generator mounting
bolts. See Section 5.1.4.
EXHAUST
516.2
526.2
TYP.
NOTE: ALL AIR INTAKES AND EXHAUST OUTLETS MUST BE KEPT CLEAR OF ANY
OBSTRUCTIONS. ALL OPEN AREA IS REQUIRED FOR COOLING.
QUIETPACT 50 and 70 Recreational Vehicle Generators
Figure 5.8 — Compartment Floor Cutout
HOT AIR
TAILPIPE
25.4
45˚
5
226.5
Section 5 – Installation
Fuel lines and exhaust piping must not pene-
!
trate into the vehicle living area.
5.3

COOLING AND VENTILATING AIR

It is absolutely essential that an adequate flow of air
for cooling, ventilating and engine combustion be
supplied to the generator set. Without sufficient air-
flow, the engine/generator quickly overheats. Such
overheating can cause serious operating difficulties
and also may cause fire and personal injury. The
installer must make sure that sufficient air is avail-
able to the generator for cooling, ventilating and com-
bustion. The installer also must provide for a path
for exhausting the cooling air to the exterior of a com-
partment, if so equipped.
Never use discharged cooling air for heating or
permit such air to enter the vehicle interior.
This air contains deadly carbon monoxide gas
and other poisonous, flammable or explosive
gases.
821.2
469
195.8
344.6
305.9
70.8
3/8"-16 WELDNUTS
(8 PLACES)
545
FRONT
574.7
834.9
DANGER
DANGER
VIEW FROM TOP
233.2
4
YP.
AIR INTAKE
536.2
FUEL INLET
90
126.2
57
Generac ® Power Systems, Inc. 23
564.1
