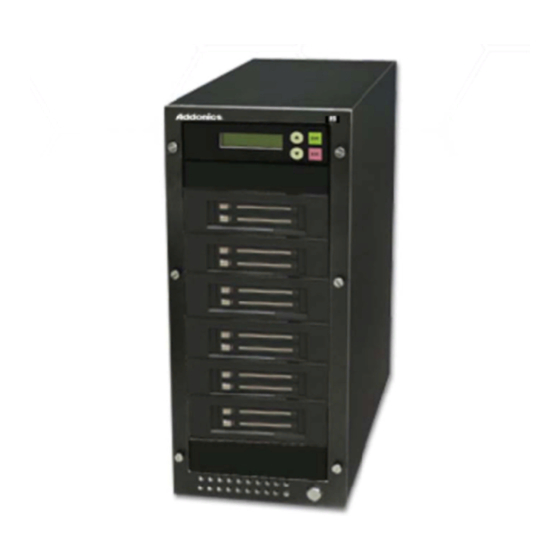

(MSHDU11T)
www.addonics.com
Technical Support
If you need any assistance to get your unit functioning properly, please have
your product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Addonics Technologies MSHDU11T
Summary of Contents for Addonics Technologies MSHDU11T

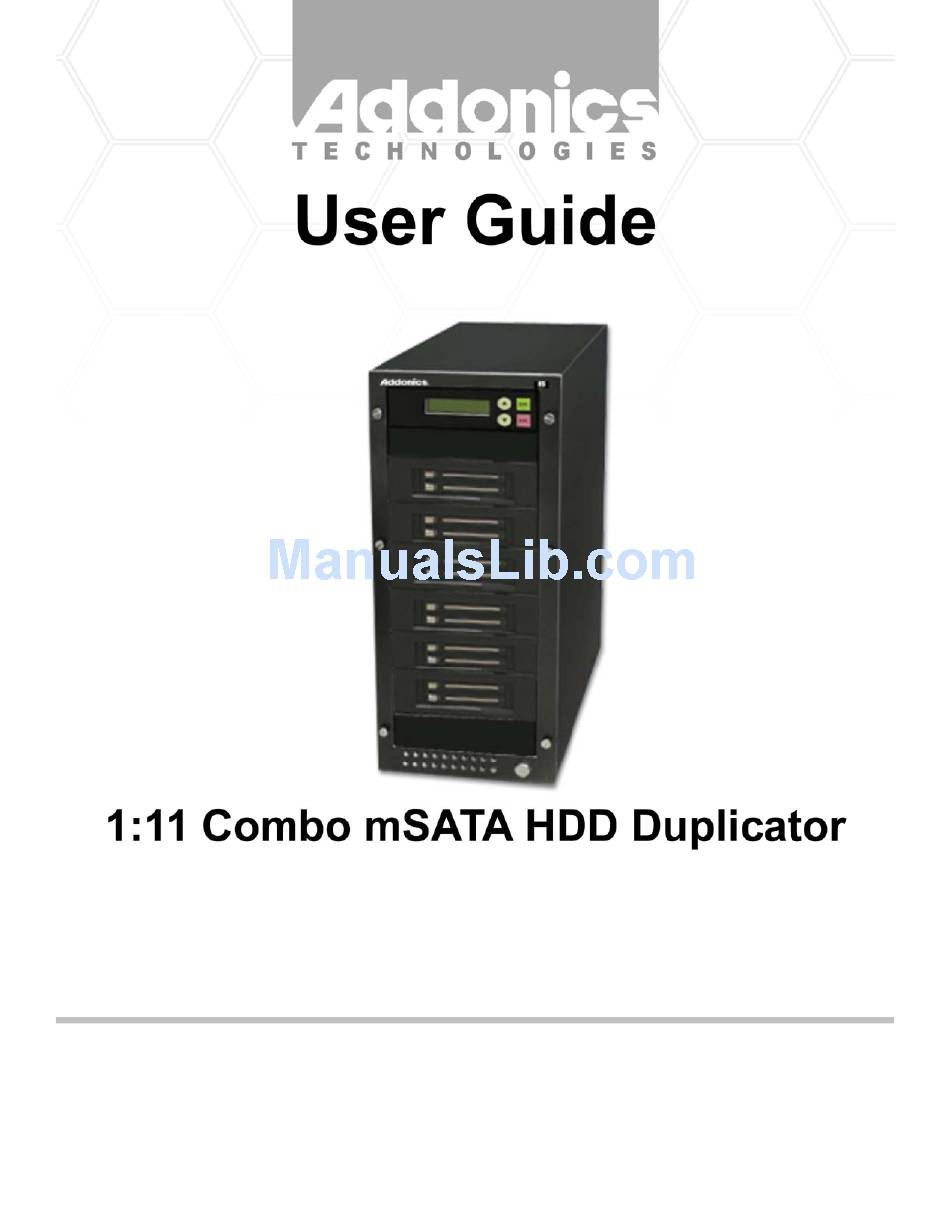

- Page 1 (MSHDU11T) www.addonics.com Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at: Hours: 8:30 am - 6:00 pm PST Phone: 408-453-6212 Email: http://www.addonics.com/support/query/...
- Page 2 LCD Display: shows current function selected, information or progress. Arrow keys: used to select menus or options. ENT key: Used to select options or sub-menus, select options or starts functions. ESC key: Used to exit sub-menus, discard option changes, or cancel functions (when held). mSATA to SATA Adapter (Quantity 12) Power Cord (U.S.
- Page 3 Drive Installation Step 1. Insert the mSATA SSD into the mSATA connector on the PCB. Step 2. Push down the other end of the mSATA SSD until it is latched securely by the hold down clip. NOTE: The completed flash drive has the same dimension of a 9mm 2.5"...
-
Page 4: Quick Start
Quick Start By default, the duplicator will initialize, scan for drives and offer the copy function. Insert the source and target drives, power up the unit, wait for the copy function to appear, then press ENT. Canceling Functions When selecting menu options, canceling is done by pressing ESC. When the unit is busy performing an operation such as copy, verify, or overwrite, the operation can be canceled by holding the ESC button until the unit beeps. - Page 5 8. Secure Erase Scans all ports, then erases all data on all connected drives. NOTE: some drives will remain in a locked state when the process is complete. Drives that are locked may not appear to an operating system and will cause an I/O error if used as a target in the duplicator.
- Page 6 10-8. Fast Copy When this setting is ON, the duplicator will attempt to copy the source drive's contents instead of the entire disk. Also controls Compare function. Default setting is OFF. NOTE: Target drive size is still required to be equal to or greater than source. Only works with source drives formatted using Master Boot Record.
- Page 7 Advanced Setup Options 11-01. Read Error Skip Allows duplicator to ignore I/O errors while reading source drive. Default setting is OFF. 11-02. Update Firmware Used to apply firmware updates. Connect a drive formatted as FAT containing one partition with the firmware file in the root directory. NOTE: This function scans the entire disk before proceeding.
- Page 8 Contact Us www.addonics.com Phone: 408-573-8580 Fax: 408-573-8588 Email: http://www.addonics.com/sales/query/...
