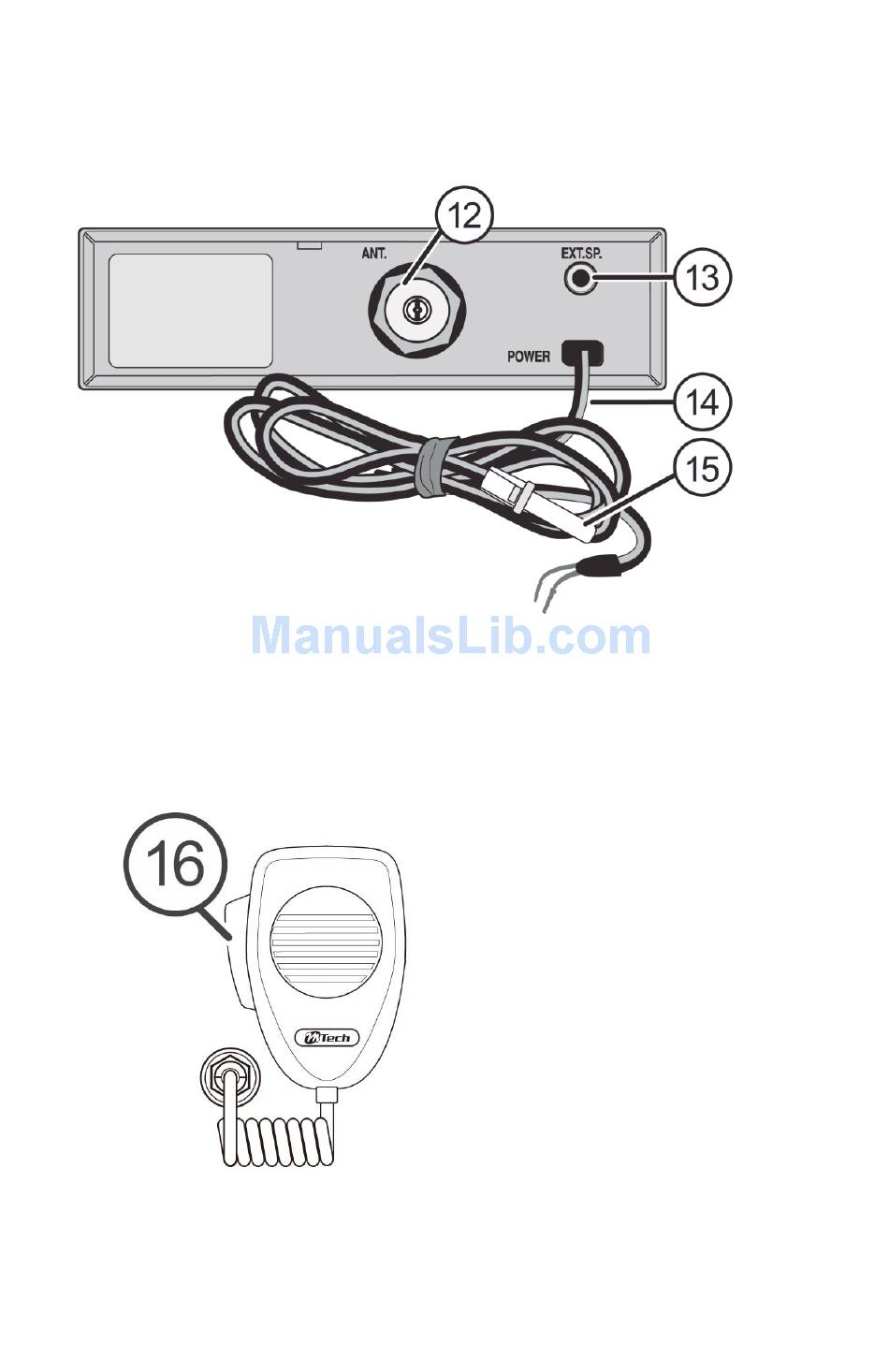

12. Antenna connector
Connects to a male PL-259 external antenna cable (antenna sold separately).
13. External Speaker Jack
See Connecting external speakers, below.
14. 12 Volt DC Power Cord
15. Fuse Holder
Microphone
16. Push-to-talk (PTT) button
INSTALLATION
Connect the microphone
Align the microphone connector with the jack on the front of the radio. Push the
connector in firmly and secure it with the locking screw.
P.5
