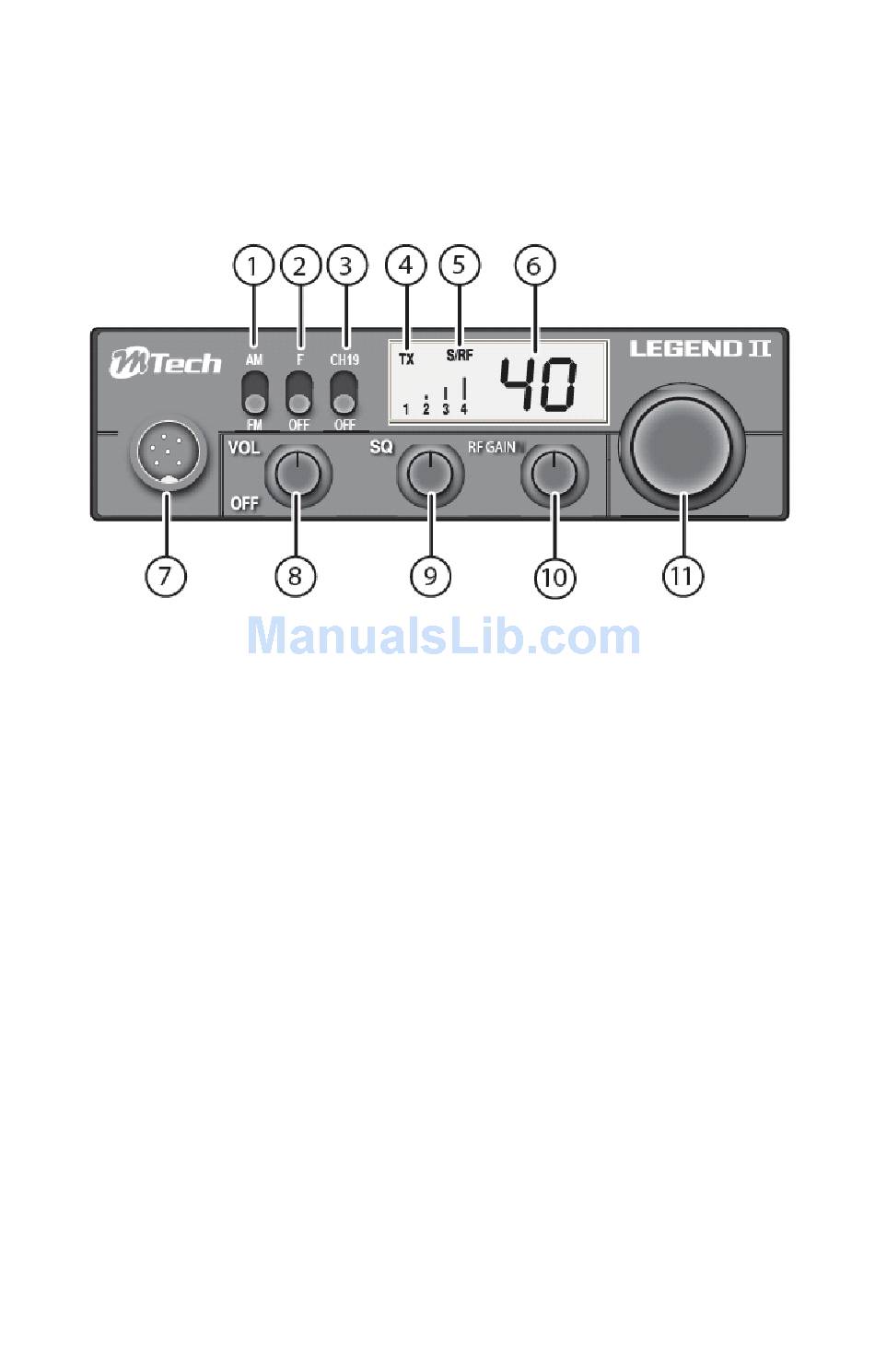

PARTS OF THE RADIO

Front

1. AM/FM Select Switch
Switches modulation mode AM or FM.
2. Config. Select Switch
Switches config. select mode on or off.
3. CH19 Switch
Switches the radio over to channel 19.
4. TX LED
Indicates when the radio is transmitting.
5. S/RF (Signal/RF) Meter
Shows the strength of the received signal or the RF output.
6. Channel Indicator
Displays the channel currently in use
7. Microphone Jack
Connects to the included detachable electret microphone.
8. Volume Control
Powers on the radio and adjusts the volume.
9. Squelch Knob
Adjusts the level at which the radio squelches or suppresses weak signals.
10. RF Gain Knob
Adjusts the level of the signal reception.
11. Channel selector
Select which channel the radio will transmit or receive on.
P.4
