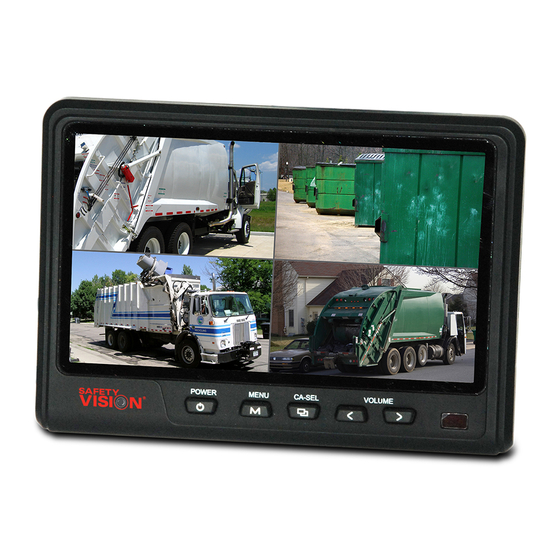

- Page 1 7” DIGITAL TFT LCD ALL ROUND VISION MONITOR SV-LED70WQ4 OWNER’S MANUAL...
- Page 2 SPECIFICATIONS SPECIFICATION LCD Screen Size 7” Wide Diagonal Dimensions 190(W) × 142(H) × 42.85(D)mm Display dimensions 152.4 × 91.44mm Power Input DC 12 to 30 Volt Free Input Power Consumption 12 Watt Max. Video System NTSC / PAL / SECAM Auto Detection Sync.
-
Page 3: Camera Select
POWER Press the [POWER] button to turn the monitor on or off. MENU Press the [MENU] button to access system menus and settings. CAMERA SELECT Press the [CA-SEL] button to cycle through camera display modes. (CA1-CA2-CA3-CA4-SPLIT-PIP-TRIPLE-QUAD) Press the [CA-SEL] button to select different options in system menus. LEFT Press the [<] button to adjust the monitor volume down. -
Page 4: System Setting
SYSTEM SETTING FUNCTION FUNCTION LANGUAGE LANGUAGE ENGLISH/SWEDISH/DANISH/NORWEGIAN/DUTCH/FINNISH SYSTEM PAL/NTSC Select the language system menus appear in(ENGLISH, DEUTSCH [German], ITALIAN DIRECTION 0° [Italian], FRANCAIS [French], ESPANON [Spanish], DUTCH [Dutch], SUOMI [Finnish]). DIMMER AUTO/OFF RESET > SYSTEM Select NTSC or PAL. DIRECTION Select 180°... - Page 5 Select the amount of time (0-9 seconds) after a trigger becomes inactive to continue to display the selected camera. TACHOGRAPH TACHOGRAPH TACHO SW ON/OFF TACHO QUAD The Tachograph function is currently not supported. TACHO TIME For more information, contact Safety Vision Technical Support. FREQUENCY 67HZ...
- Page 6 SYSTEM SETTING SPLIT SPLIT SOURCE1 Select the camera displayed in SOURCE 1 CA1/CA2/CA3/CA4 SOURCE 2 CA1/CA2/CA3/CA4 SOURCE2 Select the camera displayed in AUDIO CA1/CA2/CA3 AUDIO Select the camera audio heard when this mode is selected. SOURCE1 Select the camera displayed in SOURCE 1 CA1/CA2/CA3/CA4 SOURCE 2...
- Page 7 TRIPLE TRIPLE SOURCE1 SOURCE 1 CA1/CA2/CA3/CA4 Select the camera displayed in SOURCE 2 CA1/CA2/CA3/CA4 SOURCE2 Select the camera displayed in SOURCE 3 CA1/CA2/CA3/CA4 AUDIO CA1/CA2/CA3 SOURCE3 Select the camera displayed in AUDIO Select the camera audio heard when this mode is selected. QUAD QUAD SOURCE 1...
-
Page 8: Camera Input
The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes. How to Reach Us: If you have exhausted the information in this document yet require further installation assistance or information, please contact Safety Vision toll-free at 1-800-880-8855 or send an e-mail message requesting installation assistance to: email@safetyvision.com.
