- Page 1 U S E R G U I D E...
- Page 2 Safety Vision reserves the right to amend the information in this document at any time without prior notice. This material is confidential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.
-
Page 3: Table Of Contents
LED7B-TQ / LED10B-TQ USER GUIDE TABLE OF CONTENTS WHAT’S IN THE BOX? Monitor IR Remote Control INSTALLATION Before You Start Fan-Shaped Bracket U-Shaped Bracket WIRING Troubleshooting OPERATION Powering On the Monitor Opening / Closing the Main Menu Enabling/Disabling the Touchscreen... - Page 4 LED7B-TQ / LED10B-TQ USER GUIDE Input Settings Camera Parking Line Language Trigger Auto Scan Power On Standard System Entering / Exiting Standby Mode MAINTENANCE Operation Cleaning Disclaimer APPENDIX A: SPECIFICATIONS CLIENT SUPPORT TECH SUPPORT FCC COMPLIANCE STATEMENT...
-
Page 5: What's In The Box
LED7B-TQ / LED10B-TQ USER GUIDE WHAT’S IN THE BOX? Monitor • Wiring harness • Fan-shaped mounting bracket • U-shaped mounting bracket • Mounting bracket angle adjustment screws • HDMI adapter • Sun shield • Infrared remote control • (IR) (CR2025 battery not included) -
Page 6: Monitor

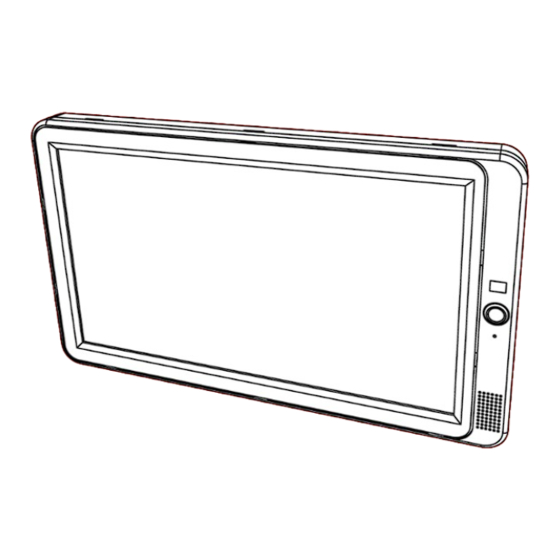

LED7B-TQ / LED10B-TQ USER GUIDE Monitor HD touchscreen Speaker Infrared sensor HDMI adapter Power button AV input Light level sensor... -
Page 7: Ir Remote Control
LED7B-TQ / LED10B-TQ USER GUIDE IR Remote Control MUTE Mutes and unmutes speaker POWER Power on or put monitor in standby mode Moves cursor up DOWN Moves cursor down LEFT Decreases volume / moves cursor left RIGHT Increases volume / moves... -
Page 8: Installation
LED7B-TQ / LED10B-TQ USER GUIDE INSTALLATION Before You Start To reduce the risk of electric shock, disconnect the vehicle battery • before installing the monitor. Do not install the monitor where it may interfere with safe vehicle • operation or prevent air bag deployment. -
Page 9: Fan-Shaped Bracket
LED7B-TQ / LED10B-TQ USER GUIDE Fan-Shaped Bracket Select a safe position within the observer’s line of sight (for example, on the to install the monitor. dashboard) Secure the monitor bracket to the mounting surface with the supplied screws, the pre-applied high-bond adhesive, or both. - Page 10 LED7B-TQ / LED10B-TQ USER GUIDE (Fan-Shaped Bracket cont.) Slide the monitor onto the mounting bracket to the desired height and tighten the locknut to secure the monitor to the mounting bracket. Adjust the monitor horizontally and vertically, then tighten the handle...
-
Page 11: U-Shaped Bracket
LED7B-TQ / LED10B-TQ USER GUIDE U-Shaped Bracket Select a safe position within the observer’s line of sight (for example, on the to install the monitor. dashboard) Secure the monitor U-shaped bracket to the mounting surface with the supplied screws. Slide the monitor into the U-shaped bracket and thread the 4 angle adjustment screws through the bracket and into the mounting holes on either side of the monitor. -
Page 12: Wiring
LED7B-TQ / LED10B-TQ USER GUIDE WIRING Connect the 22-pin DIN connector on the wiring harness to the 22-pin DIN connector on the monitor cable. Connect camera 1 to the Cam1 input on the wiring harness. Repeat the previous step for cameras 2 through 4 as needed. - Page 13 LED7B-TQ / LED10B-TQ USER GUIDE (Wiring cont.) Connect the individual wires on the wiring harness as follows: WIRE DESCRIPTION Ignition power 10-32V DC Ground Reverse (typically connected to vehicle’s backup lights). TRI1 When activated, the monitor receives input from •...
-
Page 14: Troubleshooting
LED7B-TQ / LED10B-TQ USER GUIDE Troubleshooting If a camera does not display when connected to the monitor, users may troubleshoot by forcing an automatic detection. To force automatic detection, Open the Main Menu and tap Settings Tap Standard. The following menu will appear: With Automatic set to Off, tap the . -
Page 15: Operation
LED7B-TQ / LED10B-TQ USER GUIDE OPERATION Powering On the Monitor Upon turning the vehicle ignition, the monitor will automatically power on. The H-shaped split screen layout will display by default. Opening / Closing the Main Menu To open the Main Menu, tap the screen anywhere in the bottom fourth •... -
Page 16: Switching Between Camera Feeds
LED7B-TQ / LED10B-TQ USER GUIDE Viewing Camera Feeds Switching between Camera Feeds To switch between camera feeds and split screen layouts, swipe a finger left or right across the screen. Cameras display in the following order: Camera 1 H-shaped Split... -
Page 17: Viewing A Single Camera Feed
LED7B-TQ / LED10B-TQ USER GUIDE Viewing a Single Camera Feed To view a single camera feed within a split screen layout, tap the • desired camera feed. To exit a single camera feed and return to a split screen layout, tap the •... -
Page 18: Swapping Camera Feeds
LED7B-TQ / LED10B-TQ USER GUIDE Swapping Camera Feeds Using two fingers, tap two different camera feeds simultaneously. The two camera feeds will swap positions. Zooming In/Out of Camera Feeds NOTE: Split screen layouts do not support zoom. To zoom in on a camera feed, •... -
Page 19: Navigating The Main Menu
LED7B-TQ / LED10B-TQ USER GUIDE NAVIGATING THE MAIN MENU Tap an icon (Volume, Dimmer, Display, Input, Settings, or Power) to enter corresponding submenus. Volume Tap the Volume icon to adjust audio levels. The following window will appear: To adjust the volume, drag the volume slider bar to the left •... -
Page 20: Dimmer
LED7B-TQ / LED10B-TQ USER GUIDE Dimmer Tap the Dimmer icon to change camera views. The Dimmer menu will appear when Auto Dimmer is off (default). NOTE: See Screen Brightness to toggle Auto Dimmer on. To change brightness when Auto Dimmer is off, adjust the single slider bar. -
Page 21: Camera Feed Sizes And Positions
LED7B-TQ / LED10B-TQ USER GUIDE Display Camera Feed Sizes and Positions Tap the Display icon to to set camera feed sizes and positions. The following window will appear: To exit, tap away from the Display window. ICON NAME DESCRIPTION LAYOUT... - Page 22 LED7B-TQ / LED10B-TQ USER GUIDE (Camera Feed Sizes and Positions cont.) ICON NAME DESCRIPTION LAYOUT Y-shaped Split 2 Three-way split Pre-defined H-shaped Split Four-way split Pre-defined Quad Split Four-way split Pre-defined Three-way (Picture-in-Picture) PIP Split 1 split, with one PIP feed in the...
- Page 23 LED7B-TQ / LED10B-TQ USER GUIDE (Camera Feed Sizes and Positions cont.) Layout Settings window contains up to four camera feed layers and a combined audio feed. Each element is represented by a tab in the Layout Settings window. Layer tabs adjust how camera feeds appear on the display.
-
Page 24: Audio Output Feed(S)
LED7B-TQ / LED10B-TQ USER GUIDE Audio Output Feed(s) To select camera audio feed(s) to playback, Display Tap the icon. The Display menu will appear. Tap the desired camera layout in the Display menu. NOTE: For more information on layouts, see Camera Feed Sizes and Positions. - Page 25 LED7B-TQ / LED10B-TQ USER GUIDE (Audio Output Feed(s) cont.) Adjust the Audio Output Feed(s) and settings as desired. • Output Channel: Select up to four audio feeds to combine audio output playback. • Audio Mix: Enable simultaneous playback of up to four audio feeds.
-
Page 26: Input
LED7B-TQ / LED10B-TQ USER GUIDE Input Tap the Input icon to change the monitor display source. The following window will appear: To change the monitor display source, tap • (HDMI). To exit, tap away from the Input window. -
Page 27: Settings
LED7B-TQ / LED10B-TQ USER GUIDE Settings Tap the Settings icon. The following menu will appear: The following pages detail the options within each icon listed above. -
Page 28: Camera
LED7B-TQ / LED10B-TQ USER GUIDE Camera Tap the Camera icon to display the following menu: Tap Camera1, Camera2, Camera3, or Camera4 to adjust the following parameters: • Camera Name: Rename the camera by tapping the icon. • H Mirror: Toggle the horizontal mirror / Off. -
Page 29: Parking Line
LED7B-TQ / LED10B-TQ USER GUIDE Parking Line To set parking lines, Navigate to Settings. Parking Line. The following menu will appear: Select the desired parking line setting: • Auto: Displays parking lines when triggered (default) • On: Displays parking lines continuously •... - Page 30 LED7B-TQ / LED10B-TQ USER GUIDE (Parking Line cont.) With parking lines toggled next to the desired camera, tap the corresponding icon. The following screen will appear: To adjust the grid shape, drag the black dots at the corners of the •...
- Page 31 LED7B-TQ / LED10B-TQ USER GUIDE (Parking Line cont.) To change the parking lines type, tap Type1 • (default) or Type2. To enable or disable the center axis parking lines, tap Grid. • To exit, tap...
-
Page 32: Language
LED7B-TQ / LED10B-TQ USER GUIDE Language Tap the Language icon to display the following menu: To change the display language, tap the desired language icon. • To exit, tap the icon. -
Page 33: Trigger
LED7B-TQ / LED10B-TQ USER GUIDE Trigger Trigger settings page allows you to configure the triggers. Triggers prompt a camera (actions such as left/right blinkers or shifting into reverse gear) feed to display on the monitor. To set trigger delays and priorities,... -
Page 34: Auto Scan
LED7B-TQ / LED10B-TQ USER GUIDE Auto Scan Auto Scan is a continuous rotation of up to seven camera layouts. To set Auto Scan parameters, In the Settings Menu, tap the Auto Scan icon to display the following menu: Tap a Display icon to select a different camera layout. -
Page 35: Power On
LED7B-TQ / LED10B-TQ USER GUIDE Power On Power On settings page allows you to configure what viewing mode is displayed upon powering on the monitor. In the Settings Menu, tap the Power On icon to display the following menu: To set the monitor to display a specific camera layout upon powering •... -
Page 36: Standard
The Standard page determines the resolution and video format type for each camera. In the Settings Menu, tap the tap the Standard icon to display the following menu: IMPORTANT: Safety Vision recommends keeping Automatic toggled On (default). To manually set up camera resolution and video format type... -
Page 37: System
LED7B-TQ / LED10B-TQ USER GUIDE System System page allows you to configure the screen brightness, toggle navigation sound effects, reset settings and other functions. In the Settings System Menu, tap the tap the icon to display the following menu: To set screen brightness (Dimmer), •... - Page 38 LED7B-TQ / LED10B-TQ USER GUIDE (System cont.) To set Menu Lock parameters, tap the Menu Lock level desired: • Level 1: ◦ The touchscreen is unresponsive. ◦ The IR remote control is unresponsive. ◦ The physical power button may be used to exit Standby Mode.
-
Page 39: Entering / Exiting Standby Mode
LED7B-TQ / LED10B-TQ USER GUIDE Power Entering / Exiting Standby Mode Standby Mode, users may either: To enter Tap the Power icon in the Main Menu • Press the physical power button • Swipe a finger down from the top of the screen. -
Page 40: Maintenance
Disclaimer Any modifications to the equipment not expressly approved in this manual could void the warranty and necessitate expensive repairs. Safety Vision is not responsible for damage due to improper installation, operation, cleaning, or maintenance. Call Safety Vision Tech Support for assistance. -
Page 41: Appendix A: Specifications
LED7B-TQ / LED10B-TQ USER GUIDE APPENDIX A: SPECIFICATIONS SCREEN SIZE POWER REQUIREMENT 7B-TQ: 7” 10~32V DC 10B-TQ: 10.1" POWER CONSUMPTION ASPECT RATIO ≤ 25W 16:9 ANTI-VIBRATION RESOLUTION 3 g (Center mount bracket), 1024 × 3(RGB) × 600 7 g (U-support bracket) -
Page 42: Client Support
LED7B-TQ / LED10B-TQ USER GUIDE CLIENT SUPPORT The Client Support team serves as the voice of Safety Vision; ensuring an optimal experience through the entire client relationship. They interact with every department in the company to accommodate your needs and deliver on every inquiry or request. Whether you want to place an order, would like more information on a product, or anything in between;... - Page 43 6100 W. SAM HOUSTON PKWY. N. HOUSTON, TX 77041-5113 MAIN: 713.896.6600 TOLL FREE: 800.880.8855 SAFETYVISION.COM Copyright © 2023 Safety Vision, LLC All Rights Reserved.
