Lectrosonics IFBR1a Instruction Manual

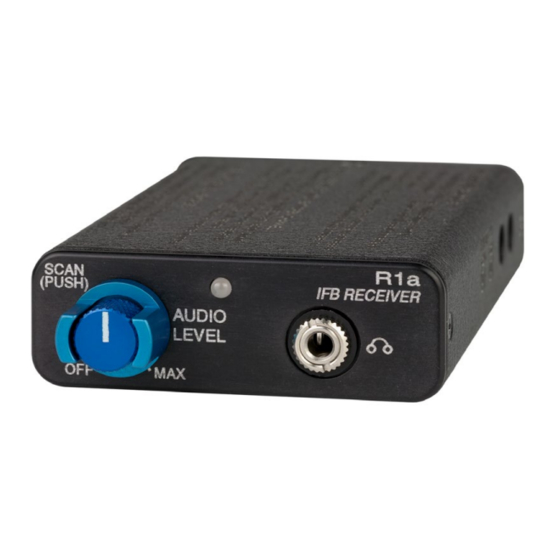

Uhf multi-frequency belt-pack ifb receiver
Hide thumbs Also See for IFBR1a:
Table of Contents

Advertisement

Quick Links

Download this manual
IFBR1a
UHF Multi-Frequency Belt-Pack IFB Receiver
Firmware Ver. 4.0
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
NOTE: Advanced operations only available
in firmware version 2.5 and higher. The only
visible difference is rapid burst of LED blinks
at power-on, indicating an updated unit with
extended features available. (The old version
LED simply lights up.)
Rio Rancho, NM, USA
www.lectrosonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IFBR1a and is the answer not in the manual?

Questions and answers

Related Manuals for Lectrosonics IFBR1a

Summary of Contents for Lectrosonics IFBR1a

  • Page 1 INSTRUCTION MANUAL IFBR1a UHF Multi-Frequency Belt-Pack IFB Receiver Firmware Ver. 4.0 NOTE: Advanced operations only available in firmware version 2.5 and higher. The only visible difference is rapid burst of LED blinks at power-on, indicating an updated unit with extended features available. (The old version LED simply lights up.)

  • Page 2: Safety Notes

    Consult the dealer or an experienced radio/TV tech- are as follows: nician for help 8 hours Changes or modifications to this equipment not ex- 4 hours pressly approved by Lectrosonics, Inc. could void the 2 hours 100 db user’s authority to operate it. 1 hour 105 dB...

  • Page 3: Table Of Contents

    Safety Notes ................2 Thank you for selecting the Lectrosonics frequency FCC Notice ................2 agile IFBR1a receiver. The design is the result of exten- Features and Functions ............4 sive engineering experience with the most up to date Control Knob ................ 4 components for demanding professional applications.

  • Page 4: Features And Functions

    IFBR1a - Firmware Ver. 4.0 Features and Functions The frequency agile IFB R1a FM Receiver is designed Control Knob to operate with the Lectrosonics IFB transmitters and The single front panel control knob performs multiple compatible Digital Hybrid transmitters. Microproces- functions;...

  • Page 5: Headphone Jack

    MHz (megahertz) that correspond to the hex numbers on the rotary switches. Go to the web site home page at: www.lectrosonics.com/US. Mouse over the Support tab at the top of the page, then click on Frequency Tables. You will be taken to the support site page with a complete listing of all available blocks.

  • Page 6: Battery Instructions

    IFBR1a - Firmware Ver. 4.0 Battery Instructions Normal Operation The battery you use in the R1a receiver should be a 9 Scan Mode (Default Function) Volt alkaline or LiPolymer rechargeable type. Lithium batteries can also be used for extended operating time.

  • Page 7: Erase All 5 Channel Memories

    IFB Receiver Erase All 5 Channel Memories 3. The unit goes into program mode and does a scan/ search. Previously programmed frequencies will 1. With power OFF, depress the knob and turn the unit be automatically skipped. When the unit stops on ON.

  • Page 8: Advanced Operation

    IFBR1a - Firmware Ver. 4.0 Advanced Operation Direct Entry Mode Adding New Pre-Set Frequencies This mode takes away the scan capability and replaces 1. Power on while holding down the knob, continuing it with the ability to program frequency channels into...

  • Page 9: Defeating The Switch

    IFB Receiver Defeating the Switch The switch function on the knob can be defeated if so desired to eliminate the scanning function. This is done by simply removing a washer from underneath the knob. 1) Use the allen wrench to loosen the set screws on the knob.

  • Page 10: Troubleshooting

    IFBR1a - Firmware Ver. 4.0 Troubleshooting Symptom Possible Cause LED NOT LIT • Battery not installed or depleted. • Power not turned on. NO SOUND IN HEADPHONE • AUDIO LEVEL turned all the way down. • Headphone plug not inserted fully.

  • Page 11: Parts And Accessories

    IFB Receiver Parts and Accessories PR1A Leather Pouch w/belt clip ON/Off/Volume knob and parts Knob Assembly Part Numbers 35854 allen (hex) wrench 28767 belleville washer 28764 set screws 26011-1 knob guard 28443 split lock washer 26297-1 blue knob Rio Rancho, NM...

  • Page 12: Specifications And Features

    IFBR1a - Firmware Ver. 4.0 Specifications and Features Operating frequencies: Block 470 470.100 - 495.600 Block 19 486.400 - 511.900 Block 20 512.000 - 537.500 Block 21 537.600 - 563.100 Block 22 563.200 - 588.700 Block 23 588.800 - 607.900 and 614.100 - 614.300 Block 24 614.400 - 639.900...

  • Page 13: Service And Repair

    LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping.
  • Page 14 IFBR1a - Firmware Ver. 4.0 LECTROSONICS, INC.
  • Page 15 IFB Receiver Rio Rancho, NM...

  • Page 16: Limited One Year Warranty

    This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
