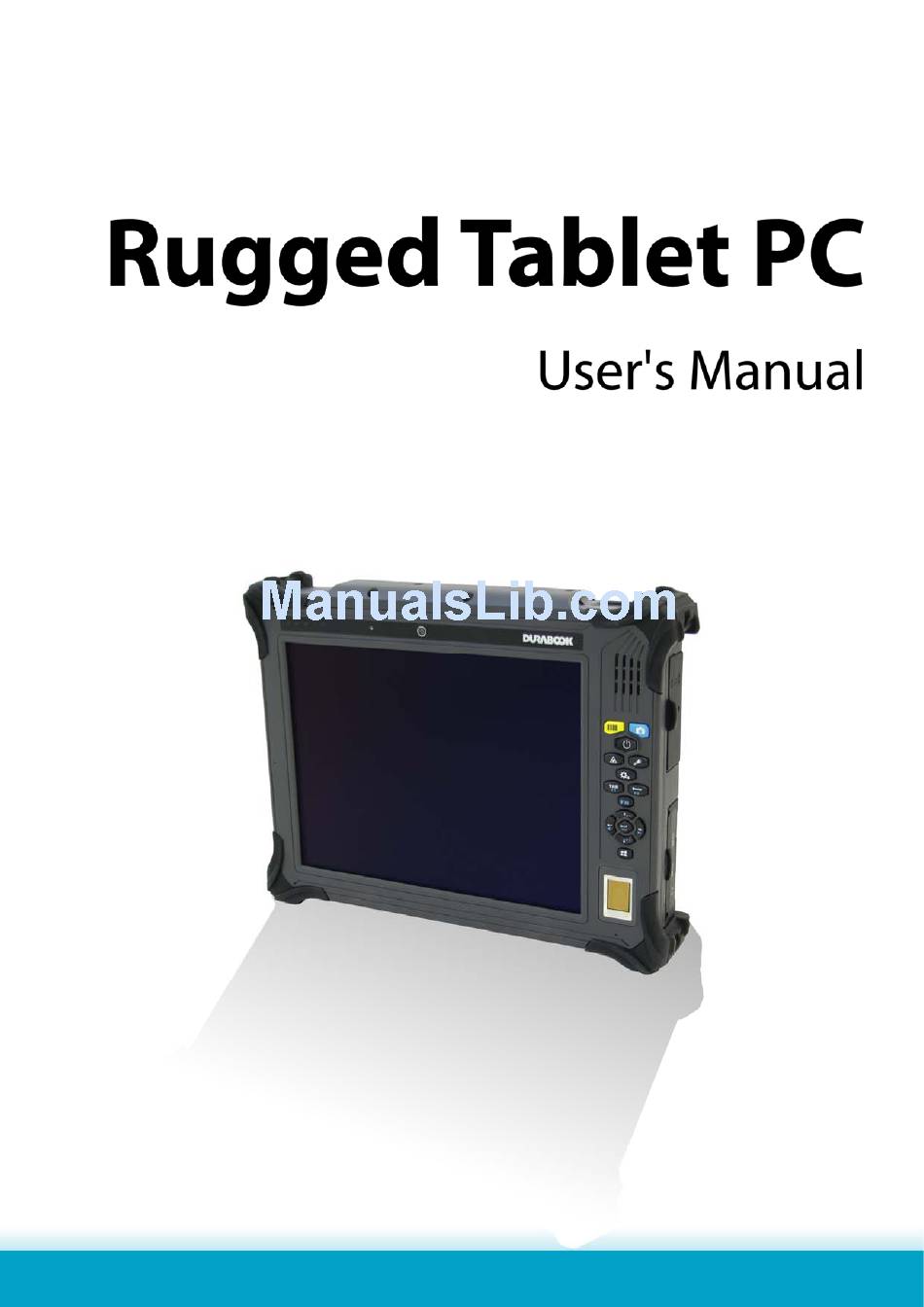

- Page 1 xTablet®TA10iT ...
-
Page 2: Table Of Contents
Table of Contents ....................4 OPYRIGHT ................4 EGULATORY TATEMENT Federal Communications Commission Statement ......................4 Declaration of Conformity ............................... 4 RF exposure warning................................ 5 Canada, Industry Canada (IC) Notices........................... 5 Battery Disposal................................6 CLASS 1 LASER PRODUCT............................6 BEFORE YOU START ..............8 .................. - Page 3 Configuring Light Sensor Settings ..........................29 Configuring Keypad Backlight Timeout Setting......................30 ..................31 SING THE AMERA ................35 SING THE EMORY ARDS Inserting a Memory Card ...............................35 Removing a Memory Card .............................35 ................36 SING THE MART Inserting a Smart Card ..............................36 SIM C ................
-
Page 4: Copyright
Preface Copyright © Copyright 2013. All rights reserved. No part of this user manual may be transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of the manufacturer. Information is subject to change without prior notice. -
Page 5: Rf Exposure Warning
Preface RF exposure warning This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. -
Page 6: Battery Disposal
Preface Ce périphérique a été évalué et démontré conforme aux limites SAR (Specific Absorption Rate – Taux d'absorption spécifique) d'IC lorsqu'il est installé dans des produits hôtes particuliers qui fonctionnent dans des conditions d'exposition à des appareils portables. Battery Disposal THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL HYDRIDE BATTERY. - Page 7 Preface CAUTION FOR ADAPTER THIS TABLET PC IS FOR USE WITH DEDICATED AC ADAPTER. BATTERY SAFETY DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.
-
Page 8: Before You Start
Before You Start Before You Start Congratulations on your purchase of this tablet PC. This rugged tablet PC is portable and provides users with maximum mobile computing experience in a wide range of working environments. Before you begin using your tablet PC, read this chapter to familiarize yourself with the main components installed in the system. ... -
Page 9: Features
Before You Start Features Intel Ivy Bridge CPU Rugged feature: 5 feet drop and dust/waterproof IP 65 Multi-touch Two battery packs support 9~10 hrs battery life and hot swapping Support LTE Optional barcode scanner (support 1D/2D barcode reading) ... -
Page 10: Components
Before You Start Components Front View Item Description Status Indicators Indicate the corresponding function status. (Power, Battery, See “Status Indicators” on page 15. HDD, Wireless) Camera Use to take pictures. Speaker Emit sound. Fingerprint sensor Scan your fingerprint to prevent access to your tablet PC by unauthorized users. - Page 11 Before You Start Item Description Quick menu Press to access the Quick menu. Tab button Press to emulate the Tab key. Backspace button Press to emulate the Backspace key. Function button Use with other key combinations to perform special functions. ...
-
Page 12: Back View
Before You Start Back View Item Description Camera LED flash Provide additional lighting when taking pictures under low light environment. Camera Use to take pictures. -
Page 13: Left View
Before You Start Left View Item Description Kensington lock slot Connect to a Kensington-compatible tablet PC security lock. Mini USB port Connect USB peripheral devices. Serial port (RS-232) Connect a peripheral device, such as a printer or other device with serial port. -
Page 14: Bottom View
Before You Start Item Description Card reader Use to insert memory cards to transfer pictures, music, and data between your tablet PC and flash compatible devices. The card reader supports SD (Secure Digital), SDHC, Mini-SD (with adapter). Smart card reader Use to insert smart cards. -
Page 15: Status Indicators
Before You Start Status Indicators The status indicators in the upper left corner of the tablet PC light up when a particular function of the tablet PC is active. Each indicator is marked with a symbol. ... -
Page 16: Getting Started
Getting Started Getting Started This chapter will guide you on how to use your tablet PC. Powering Up Your Tablet PC Your tablet PC can be powered up using the AC adapter or the Lithium-ion battery. Connecting the AC Adapter The AC adapter powers up your tablet PC and charges the battery. -
Page 17: Installing The Batteries
Getting Started Installing the Batteries To install the batteries, follow the steps below: 1. Align and insert the first battery to the battery compartment. 2. Push completely until the battery locks into place. 3. Slide the battery latch to the lock position to secure the battery. -
Page 18: Charging Time
Getting Started Charging Time Number of Charging duration battery pack (at 25ºC) 3 hours 6 hours NOTE The charging time may be longer if you are using your tablet PC while charging the battery. CAUTION DO NOT charge the battery if the temperature is below 0ºC or higher than 60ºC. -
Page 19: Checking The Battery Pack Power Level
Getting Started Checking the Battery Pack Power Level You can check the battery level by pressing the Battery Check button. The remaining battery power is indicated by the four Green LEDs. Green LED status Battery Capacity Status 0% ≦ 25% 1st LED lights up 25％... - Page 20 Getting Started 3. Repeat Step 1 and 2 to remove another battery. ...
-
Page 21: Starting Your Tablet Pc
Getting Started Starting Your Tablet PC Turning On Your Tablet PC Press the button until the Power LED lights up. Changing the Display Orientation You can rotate the display orientation to suit your preference. Press both < > and < >... -
Page 22: Using The Stylus
Getting Started Using the Stylus This tablet PC comes with an integrated stylus for accurate control input to the LCD touch panel and digitizer. You can use the stylus to point, select, or drag items or objects on the screen. Calibrate the Screen To ensure touch accuracy, calibrate the screen. -
Page 23: Using The Quick Menu
Getting Started Using the Quick Menu There are two ways to enter the Quick menu: Tap . Tap the ar row on the system tray to display hidden icons. Then tap the Quick Menu icon ( ... - Page 24 Getting Started Item Description Setup Tap the respective tab to set hotkey, light sensor, keypad backlight, stealth mode button, and external WWAN antenna settings. For details, refer to “Configuring the SETUP Menu Settings”. Information Tap the icon to view the battery charge cycle, Bios version, EC version, and Quick Menu version.
-
Page 25: Configuring The Setup Menu Settings
Getting Started Item Description Airplane Tap the icon to enable/disable airplane mode. mode NOTE When the Airplane mode is enabled, the wireless network (WLAN and WWAN), Bluetooth, and GPS will be automatically disabled. NOTE If the icon is gray (i.e. ), this indicates the current function is disabled. -
Page 26: Configuring Hotkey
Getting Started Configuring Hotkey Tap the Hotkey tab to configure the scanner button or the P1 and P2 function buttons. If the device is not installed with a barcode scanner, the Scanner button (see page 10) can be set as a programmable button. ... -
Page 27: Configuring Stealth Mode Button Setting
Getting Started Configuring Stealth Mode Button Setting Tap the Stealth Mode Button tab to specify the Stealth mode button (see page 10) function. There are three available functions: Stealth mode: Turn off the LCD backlight, LEDs (LED indicators and keypad backlight), speakers, camera flash, and RF devices except GPS. -
Page 28: Configuring External Wwan Antenna Switching Mode
Getting Started Configuring External WWAN Antenna Switching Mode Tap the External WWAN Antenna tab to enable/disable the device to automatically switch to the external WWAN antenna when it is affixed on a docking station. Dock with external WWAN antenna: The device automatically switches to the external WWAN antenna when docking. -
Page 29: Configuring Light Sensor Settings
Getting Started Configuring Light Sensor Settings Tap the Light Sensor tab to enable/disable the automatic light sensor function, specify and adjust the brightness level. Current ambient brightness reading Current preset brightness level Tap to restore the default settings. Set the range of illumination settings. ... -
Page 30: Configuring Keypad Backlight Timeout Setting
Getting Started Configuring Keypad Backlight Timeout Setting Tap the Keypad Backlight tab to adjust delay before the screen automatically goes off. Tap the desired length of time. Your setting is automatically saved. ... -
Page 31: Using The Camera
Getting Started Using the Camera This tablet PC supports Durabook Camera Scan application that enables users to take photos using the device camera. Launch the application There are two ways to launch the application: Double-click “DuraBook Camera Scan” on desktop. - Page 32 Getting Started Delete Photos Press the Play butto n “ ” to switch to Playback Mode. Use the Forward or Backward button “ ” to select the photo that you want to delete. Press the Delete button “ ” and then choose Yes to delete the current photo.
- Page 33 Getting Started How to Make Adjustments on Features: Press the Setup button “ ” to enter the Setup menu. Camera Selection: There are three camer as that you can select: “ ” – the camera is available and ready to se.
- Page 34 ”after you have chosen the desired time. NOTE When the system is left idle for a certain period of time, the camera module(s) would then stop running. It would be up and running again once user wakes up the “DuraBook” application. ...
-
Page 35: Using The Memory Cards
Getting Started Using the Memory Cards Your tablet PC supports different types of memory cards t o provide faster data transfer. Supported types are as follows: SD card SDHC car Mini-SD card (with adapter) Inserting a Memory Card 1. -
Page 36: Using The Smart Card
Getting Started Using the Smart Card Your tablet PC is equipped with a built-in smart card reader that allows you to make secure purchases, store security information, and provide identification a information using a smart card. Inserting a Smart Card 1. -
Page 37: Using The Sim Card
Getting Started Using the SIM Card You can use a SIM card for wireless internet a ccess. NOTE Check the availability of service and plan rates of data connection with your network service provider. nserting a SIM Card 1. Push down and pull to open the I/O port cover. 2. -
Page 38: Using The Pc Cards
Getting Started Using the PC Cards Your tablet PC supports Type II PC Card, whic h can perform a variety of functions. NOTE Refer to the PC Card manual for specific instructions on the card installation. nserting a PC Card 1. -
Page 39: Connecting To Wireless Connections
Connecting to Wireless Connections onnecting to Wireless Connections You can connect your tablet PC to a wireless local area network, WWAN, Bluetooth, or GPS. Before using a wireless built-in device, you need to turn the respective built-in wireless functions on. Connecting to a Wireless Local Area Network Your tablet PC comes with a WLAN module. -
Page 40: Connecting To A Bluetooth Device
Connecting to Wireless Connections 6. Enter the network security key. 7. Tap OK. 8. After the connection is established, you c an see the wireless icon ( ) in the Notification area. NOTE Wi-Fi access requires service from a wireless service provider. Contact your service provider for more information. - Page 41 Connecting to Wireless Connections 6. Tap on a device, then tap Next to continue. 7. Tap Close to complete the pairing connection. NOTE Most Bluetooth-enabled devices need to be paired w ith your tablet PC. The PIN you enter on the tablet PC must be the same PIN to be entered on the other Bluetooth device.
-
Page 42: Connecting To A Wireless Wide Area Network (Wwan)
Connecting to Wireless Connections Connecting to a Wireless Wide Area Network (WWAN) With WWAN function, it allows your tablet PC to connect to the Internet using mobile or cellular data networks. To enable the function, follow the steps below: 1. Insert a valid SIM card into the SIM card slot. -
Page 43: Using The Bios Setup Utility
Using the BIOS Setup Utility Using the BIOS Setup Utility Your tablet PC has a BIOS setup utility which all ows you to configure important system settings, including settings for various optional functions of the tablet PC. This chapter explains how to use the BIOS se tup utility. -
Page 44: Navigating And Entering Information In Bios
Using the BIOS Setup Utility Navigating and Entering Information in BIOS Use the following keys to move between fields and to enter information: Tablet External Description Keypad Keyboard Selects screen. Moves up/down to select items. Confirms the selection and enters the selected menu Enter screen. -
Page 45: Main Menu
Using the BIOS Setup Utility Main Menu The Main menu displays the system overview in formation about BIOS version, CPU features, and total memory size. You can a lso set the system date and time. Advanced Menu The Advanced menu allows you to select SATA mode, set the keypad backlight timer, BIOS hotkey press, calibrate fan and battery, and configure devices, power management, Intel Rapid Start Technology, and Trusted Computing settings. -
Page 46: Boot Menu
Using the BIOS Setup Utility Boot Menu The Boot menu allows you to configure the boot type and boot sequence. Security Menu The Security menu allows you to set or change the Administrator and User passwords, and configure Secure Boot settings. ... -
Page 47: Save & Exit Menu
Using the BIOS Setup Utility Save & Exit Menu The Save & Exit menu allows you to save or discard the changes, or restor e the default values for all setup options before leaving the BIOS Setup Menu. ... -
Page 48: Specifications
Specifications Specifications Features Specifications i3-3217UE 1.6 GHz with 3MB L3 Cache Processor Type & Speed i7-3517UE 1.7 GHz with 4MB L3 Cache i5-3427U 1.8 GHz with 3MB L3 Cache QM77 Chipset Two 204-pin SODIMM sockets each for Type System DDRIII1600 2GB, 4GB, 8GB... - Page 49 Specifications Features Specifications Optional WWAN (Gobi 3000 or LTE module ) Optional GPS I/O Ports Left Side I/O: RS-232x1(Support 5 Voltage), RJ 45x1,mini USBx1, DC-inx1 Right Side I/O: USB 3.0x2, Audio out (For headphone)x1 Optional RF connectors for external WWAN GPS antennas HD Audio Audio...
