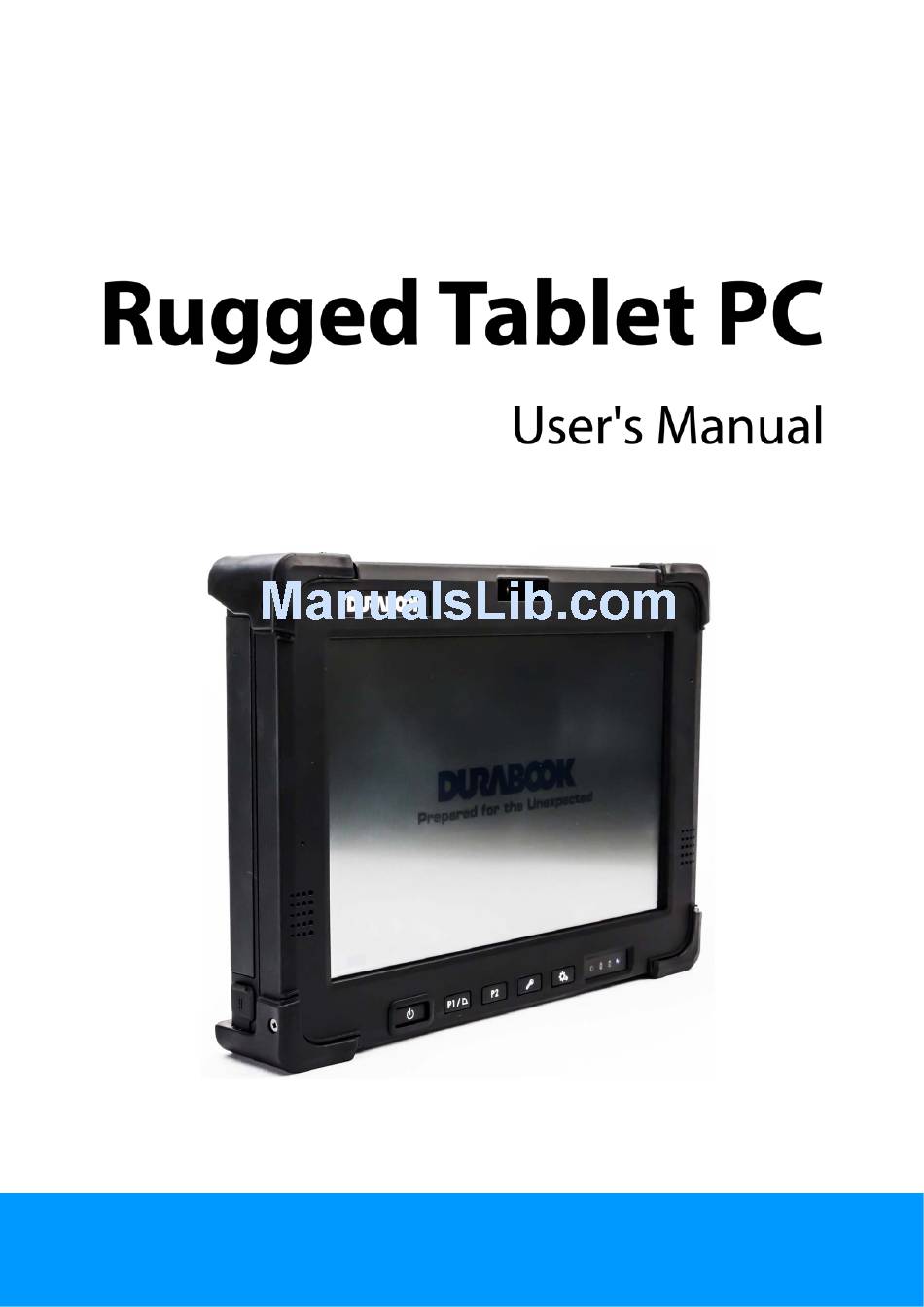

Durabook CA10 User Manual

Rugged tablet pc
Hide thumbs Also See for CA10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA10 and is the answer not in the manual?

Questions and answers

Related Manuals for Durabook CA10

Summary of Contents for Durabook CA10

  • Page 2: Table Of Contents

    Table of Contents ....................4 OPYRIGHT ................4 EGULATORY TATEMENT Federal Communications Commission Statement ......................4 Caution ....................................4 Declaration of Conformity ............................... 4 RF exposure warning................................ 5 Canada, Industry Canada (IC) Notices........................... 5 Battery Disposal................................6 CLASS 1 LASER PRODUCT............................6 FCC Warning ..................................
  • Page 3 USING THE BIOS SETUP UTILITY.......... 21 BIOS S ..................21 ETUP BIOS S ..............21 TARTING THE ETUP TILITY BIOS..........22 AVIGATING AND NTERING NFORMATION IN OPTIONAL DEVICES .............. 23 (MSR)..............23 AGNETIC TRIPE EADER MSR Specification................................23 ....................24 SPECIFICATIONS ..............25...

  • Page 4: Copyright

    Preface Copyright © Copyright 2012. All rights reserved. No part of this user manual may be transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of the manufacturer. Information is subject to change without prior notice.

  • Page 5: Rf Exposure Warning

    Preface RF exposure warning This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

  • Page 6: Battery Disposal

    Preface Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a été...

  • Page 7: Fcc Warning

    Preface CAUTION FOR ADAPTER THIS TABLET PC IS FOR USE WITH DEDICATED AC ADAPTER. BATTERY SAFETY DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

  • Page 8: Before You Start

    Before You Start Before You Start Congratulations on your purchase of this tablet PC. This rugged tablet PC is portable and provides users with maximum mobile computing experience in a wide range of working environments. Before you begin using your tablet PC, read this chapter to familiarize yourself with the main components installed in the system.

  • Page 9: Components

    Before You Start Components Front View No. Item Description Light Sensor Sense the ambient light condition for auto backlight setting function. Webcam Use for video conference. Microphone Receive audio input. Speaker Emit sound. Status Indicators (Power, Indicate the corresponding function status. Battery, Wireless) See “Status Indicators”...
  • Page 10 Before You Start No. Item Description Function button Press to launch an application assigned to (P2) the button. See “錯誤! 找不到參照來源。 on page 錯誤! 尚未定義書籤。” to program the function button. Function (P1) / By default, press this button to rotate the Rotate button display 90°...

  • Page 11: Back View

    Before You Start Back View Item Description Camera LED flash Provide additional lighting when taking pictures under low light environment. Camera Use to take pictures. Battery pack Supply battery power to your tablet PC. Battery latch Slide down the latch to release the battery pack from the compartment.

  • Page 12: Right View

    Before You Start Right View Left View With battery pack Without battery pack Item Description DC-in jack Connect the power adapter. SIM card slot Use to insert a SIM card for WWAN, Gobi 3000, or LTE module connection.

  • Page 13: Top View

    Before You Start Top View Item Description Barcode scanner Use to scan for barcodes. Smart card reader Use to insert smart cards. Bottom View Item Description SD card slot Use to insert an SD card for external storage. USB port Connect USB peripheral devices.

  • Page 14: Status Indicators

    Before You Start Status Indicators The status indicators in the lower right corner of the tablet PC light up when a particular function of the tablet PC is active. Each indicator is marked with a symbol. Icon Item Description Indicate the power status: ...

  • Page 15: Getting Started

    Getting Started Getting Started This chapter will guide you on how to use your tablet PC. Powering Up Your Tablet PC Your tablet PC can be powered up using the AC adapter or the Lithium-ion battery. Using Battery Power 1. Install a charged battery in the battery compartment. 2.

  • Page 16: Charging The Battery

    Getting Started 3. Slide the battery lock to the lock position. 4. Repeat steps 1 to 3 to insert the second battery. Charging the Battery The Lithium-ion battery is not fully-charged upon purchase. To charge the battery, follow the steps below: 1.

  • Page 17: Checking The Battery Level

    Getting Started Checking the Battery Level It is important that you monitor the battery status regularly to ensure you do not run out of power at a critical moment. To check the remaining battery power, double tap the battery icon in the system tray.

  • Page 18: When To Replace The Battery Pack

    Getting Started When to replace the Battery Pack The battery performance gradually decreases over time and usage. We recommend you to replace your battery pack after 18 to 24 months of usage. Removing the Batteries To remove the batteries, follow the steps below: 1.

  • Page 19: Starting Your Tablet Pc

    Getting Started Starting Your Tablet PC Turning On Your Tablet PC Press the button until the Power LED lights up. Changing the Display Orientation You can rotate the display orientation to suit your preference. Press the button to rotate the display 90°, 180°, and 270° clockwise. NOTE ...
  • Page 20 Specifications 3. Tap Calibrate. 4. Follow the on-screen instructions to complete screen calibration. NOTE:  If the optional digitizer is enabled, use a pencil to do the touch panel calibration instead of using the digitizer pen.

  • Page 21: Using The Bios Setup Utility

    Specifications Using the BIOS Setup Utility Your tablet PC has a BIOS setup utility which allows you to configure important system settings, including settings for various optional functions of the tablet PC. This chapter explains how to use the BIOS setup utility. BIOS Setup Menu The BIOS Setup Utility allows you to configure your tablet PC basic settings.

  • Page 22: Navigating And Entering Information In Bios

    Specifications Navigating and Entering Information in BIOS Use the following keys to move between fields and to enter information: External Description Keyboard Selects screen.   Moves up/down to select items. Enter Confirms the selection and enters the selected menu screen. + / - Changes an option for the selected items.

  • Page 23: Optional Devices

    Specifications Optional Devices The functionality of your Tablet PC can be expanded with the use of devices, such as the Magnetic Stripe Reader (MSR), Pin Pad, and others. These devices are optional items and may be purchased separately. Magnetic Stripe Reader (MSR) The integrated Magnetic Stripe Reader (MSR) can be installed on your Tablet PC as shown below.

  • Page 24: Pin Pad

    Specifications Pin Pad The Pin pad is designed with a ready-to-use interface. Install the Pin pad on the back of your Tablet PC as shown below.

  • Page 25: Specifications

    Specifications Specifications Features Specifications Processor Type & Speed Intel Atom N2600 1.6GHz 512KB x2 L2 cache Chipset NM10 DDRIII 800 Type One 204-pin DDRIII SODIMM sockets for 2GB System Memory Maximum Memory Display Standard： 10.1” WXGA (1280x800) TFT LCD with resistive ...
  • Page 26 Specifications Features Specifications Bottom Side I/O: RS-232x1, RJ 45x1, USB  I/O Devices I/O Ports 2.0x2, DC-inx1 Rear Side I/O: Docking connector x1  HD Audio Audio One speaker Analog Mic. Array （With 2 Microphones） AC/DC Adapter Input:100V-240V, 50Hz-60Hz, Output:19V, 3.42A; 65W Compliant with Energy Star 5.2 Power Battery Module...
