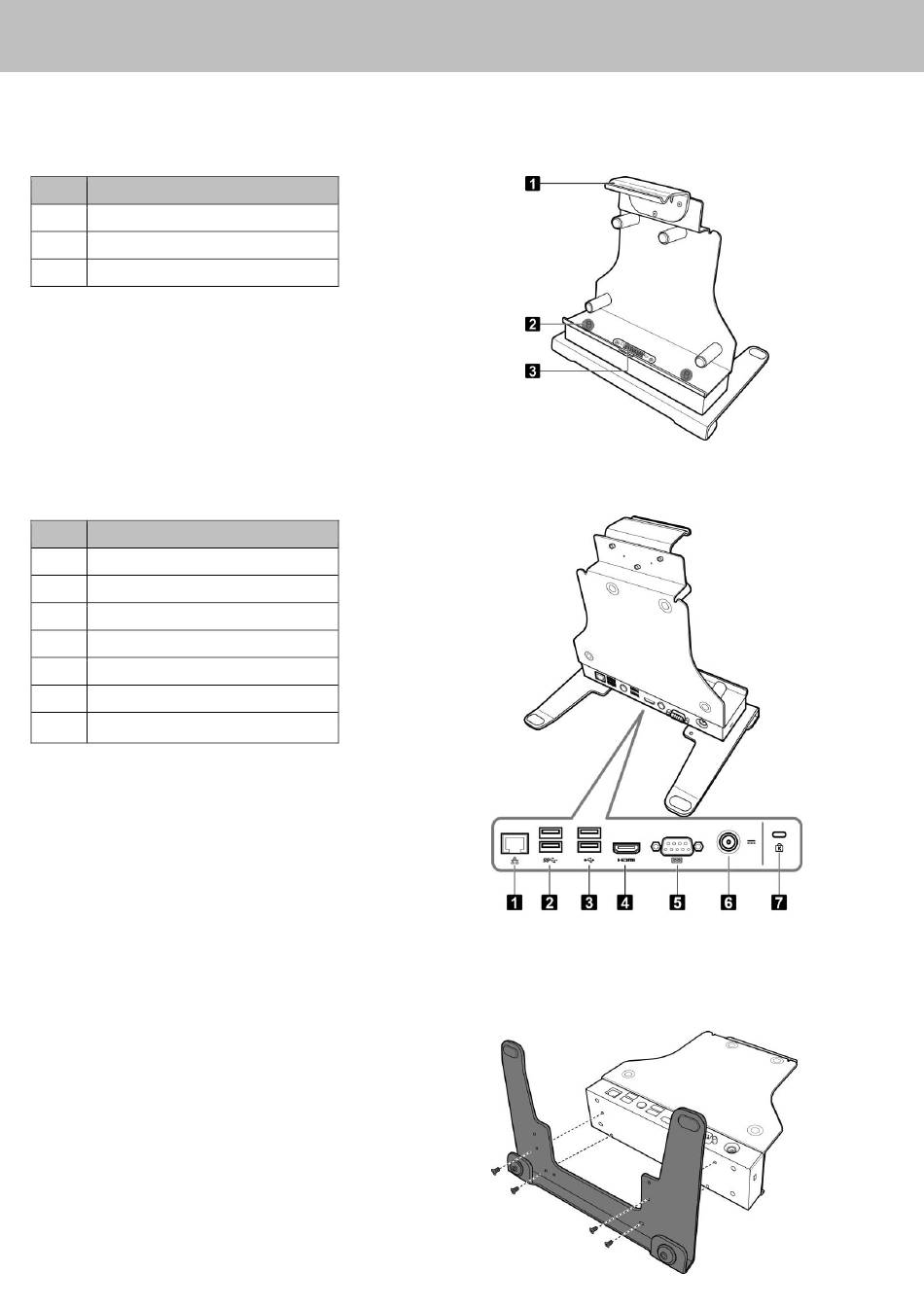

Product Overview
No.
Item
1
Latch
2
Alignment port (x2)
3
Docking connector
No.
Item
1
LAN (RJ-45) port
2
USB3.0 port (x2)
3
USB2.0 port (x2)
4
HDMI port
5
Serial port (RS-232)
6
DC-in jack *
7
Kensington lock slot
*Please contact dealer for appropriate adapter.
Installing the Stand
Align the stand holes with the holes at the bottom of the docking cradle as shown in the illustration. Then
secure it with the four supplied screws.
R11 Office Dock
Front
Rear
