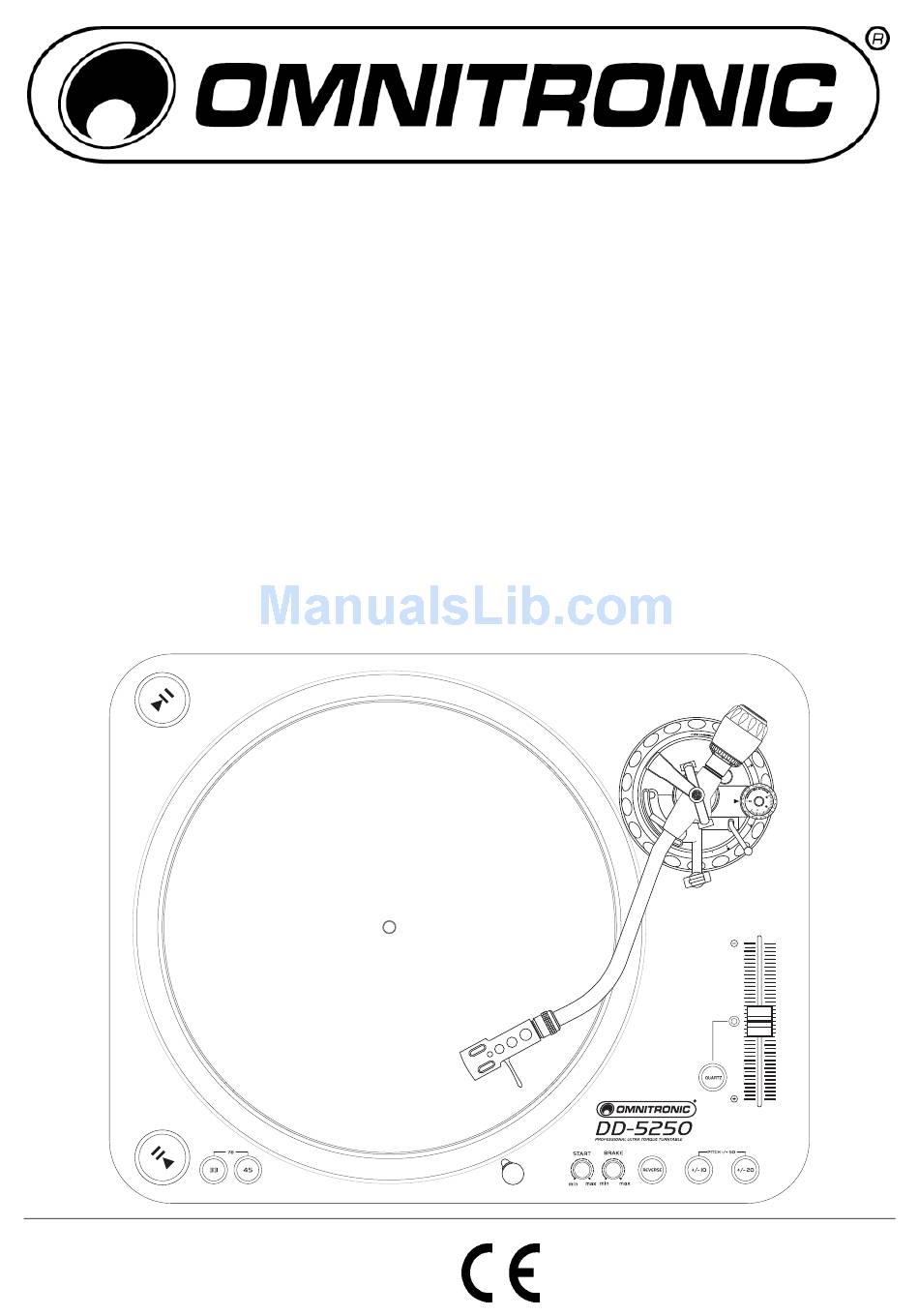

BEDIENUNGSANLEITUNG
USER'S MANUAL
MODE D'EMPLOI
DD-5250
ULTRA TORQUE Turntable
©
Für weiteren Gebrauch aufbewahren!
Copyright
Keep this manual for future needs!
Nachdruck verboten!
Gardez ce mode d'emploi pour des
Reproduction prohibited!
utilisations ultérieures!
Réproduction interdit!
Guarde este manual para posteriores usos.
Prohibida toda reproducción.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omnitronic DD-5250
Summary of Contents for Omnitronic DD-5250
- Page 1 BEDIENUNGSANLEITUNG USER'S MANUAL MODE D'EMPLOI DD-5250 ULTRA TORQUE Turntable © Für weiteren Gebrauch aufbewahren! Copyright Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos.
-
Page 2: Table Of Contents
CARACTÉRISTIQUES TECHNIQUES ......................43 Das neueste Update dieser Bedienungsanleitung finden Sie im Internet unter: You can find the latest update of this user manual in the Internet under: Vous pouvez trouvez la dernière version de ce mode d'emploi dans l'Internet sous: www.omnitronic.com... -
Page 3: Introduction
- include every supplementay update with the original manual INTRODUCTION Thank you for having chosen an OMNITRONIC DD-5250. If you follow the instructions given in this manual, we can assure you that you will enjoy this device for many years. -
Page 4: Safety Instructions
• Two large Start/Stop-buttons • Start/Stop-time individually adjustable • Separate LED target lamp (stackable) • Adjustable anti-skating • Shock-absorbing feet • Power cable and RCA-cable detachable • Recessed connection for easy case-mounting SAFETY INSTRUCTIONS CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! This device has left our premises in absolutely perfect condition. -
Page 5: Operating Determinations
OPERATING DETERMINATIONS This device is a professional turntable for playing standard LPs or Singles. This product is allowed to be operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only. Do not shake the device. Avoid brute force when installing or operating the device. When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. -
Page 6: General Description
GENERAL DESCRIPTION 1. START/STOP-button 8. Direction-button 15. Tonearm-clamp 2. Platter 9. +/- 10/20/50 % button 16. Tonarm-lift 3. Center axle 10. Quartz Lock-button 17. Anti-Skating-wheel 4. Speed-selector 11. Quartz LED 18. Adjusting-ring for adjusting 5. Target light 12. Pitchfader the tonearm-height 6. -
Page 7: Setup
SETUP Place the turntable on a plane, stable ground for carrying out the setup. Carefully place the platter on the center axle Caution: The motor magnet is located on the turntable bottom. Make sure that the magnet will not be contaminated with dirt or iron dust in order to guarantee full performance. - Page 8 Position the system so that it is centered (correct azimuth). Tighten the screws again. Installing the headshell Screw the system on the tonearm and tighten the fixation screw. Never overtighten in order not to dame the tonearm or headshell. Installing the counterweight Screw the counterweight onto the tonearm's back.
- Page 9 Make sure that the scale ring points to the front. Adjusting the counterweight • Remove the stylus cover. • Set the Anti-skating-wheel to the 0 position. • Set the tonearm lift to the down position • Release the tonearm from the armrest and move it to a position between the turntable and the armrest. Make sure that you do not damage the stylus.
- Page 10 Adjusting the tonearm-height The tonarm-height varies from system to system. In order to guarantee perfect pick-up, we recommend to adjust the tonearm-height via the adjusting-ring. Before adjusting the tonarm-height please unlock the adjusting-ring lock. Adjust the tonarm-height via as follows: Height of pick-up Adjusting-ring system in mm...
- Page 11 Target lamp Under insufficient lighting conditions use the target light for spotting the exact starting position. Insert the target lamp into the correct RCA-socket. Caution: Never connect any other plugs, e.g. mixer inputs etc. to this socket! Danger of heavy equipment damage. 25/43 10603004X31NXS_V_1_0.DOC...
-
Page 12: Installation
INSTALLATION Install the turntable at the desired installation spot. Make sure to use a horizontal, stable surface. This turntable was developed for professional DJs and can be assigned differently: Traditional style Battle style 26/43 10603004X31NXS_V_1_0.DOC... -
Page 13: Connections
CONNECTIONS Connect the RCA-cables (white=left channel, red=right channel) with the Phono-sockets of your amplifier or mixer. Connect the ground lead with the ground terminal of your amplifier or mixer. Connect the turntable to the mains. OPERATION After turning the unit on, the platter automatically moves with 33 RPM. •... - Page 14 After turning the unit on, the platter moves forwards. You can reverse the rotation-direction by pressing the Direction-button. Adjusting the start/break time With the DD-5250, you can individually adjust the start/break time between 0.2 and 6 seconds. Turn the start time-control or stop time-control until the desired time is set. 28/43...
-
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE DANGER TO LIFE! Disconnect from mains before starting maintenance operation! We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents! There are no servicable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers.
