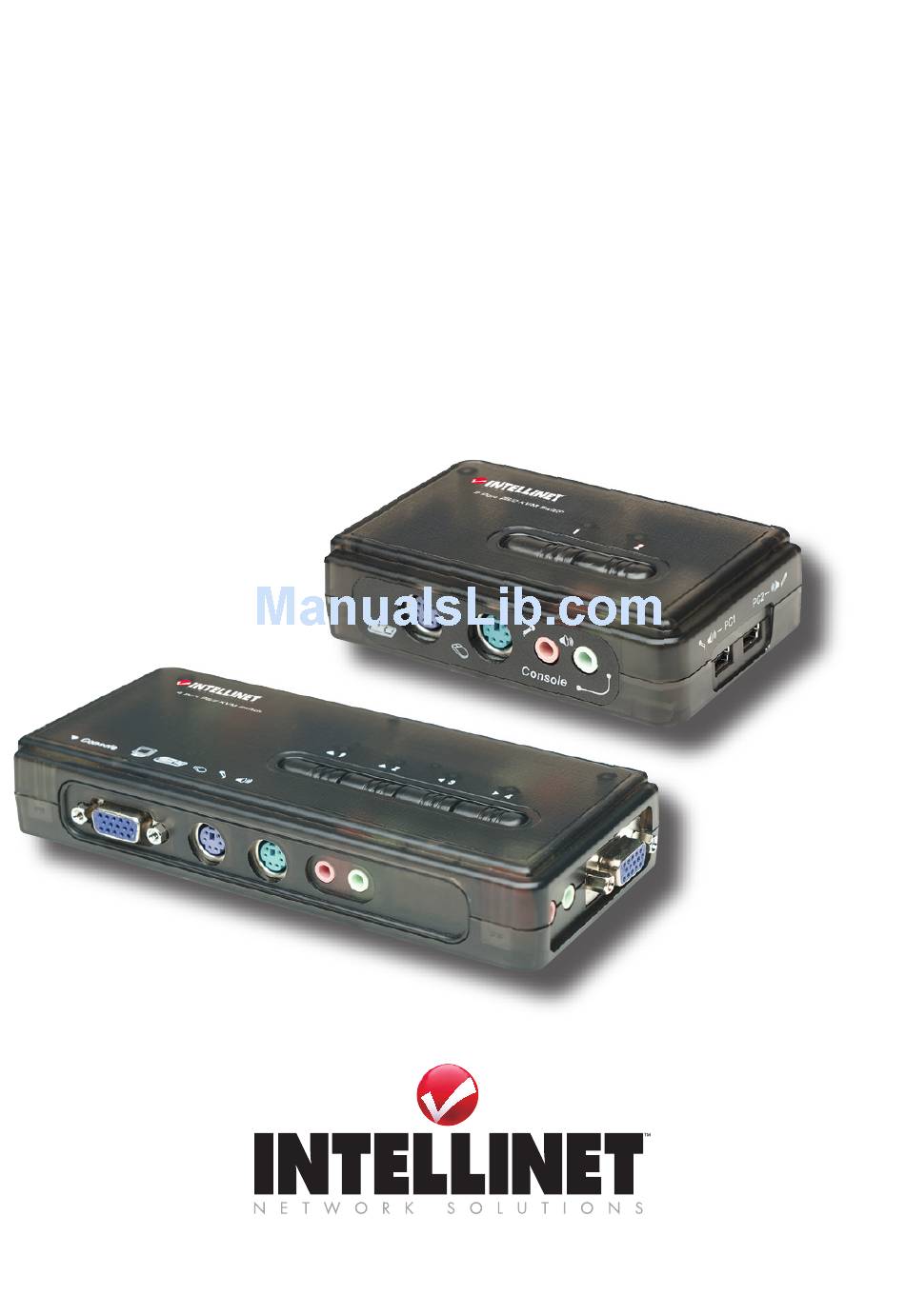

- Page 1 Switch quicK inStall guide Models 150101 & 150118 2-Port, Model 150101 4-Port, Model 150118 INT-150101/150118-UM-0208-01...

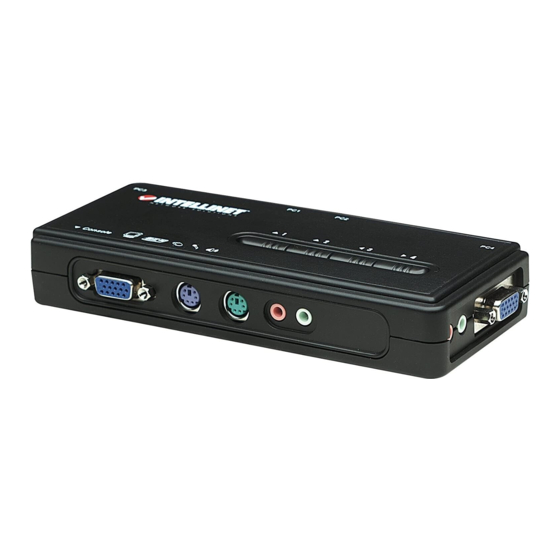

- Page 3 Thank you for purchasing this INTELLINET NETWORK SOLUTIONS ™ KVM Switch, Model 150101 (2-Port) or Model 150118 (4-Port). This compact and convenient switch allows you to access, control, boot and reboot multiple PS/2-enabled multimedia computers with only one PS/2 keyboard, mouse, monitor and optional speaker set and microphone.
-
Page 4: Installation
inStallation 1. Make sure all the computers that are to be connected to the KVM Switch — and their peripherals — are turned off; otherwise, shared items may not be recognized properly. 2. Connect the shared PS/2 keyboard, mouse, monitor and, if used, speaker set and microphone to the switch. -
Page 5: Operation
operation There are two ways to control PC switching: using the face-panel push buttons or a hotkey sequence. (For audio/mic switching, use the hotkey command as listed on the Quick Reference Chart.) Face-Panel Buttons The face-panel buttons (on top of the device) allow you direct control over PC port switching: Simply press a button to switch to the corresponding PC port. -
Page 7: Specifications
SpecificationS Model 150101, 2-Port Model 150118, 4-Port Standards Standards • PS/2 • PS/2 General General • PC connections: 2 • PC connections: 4 • Console connections: 1 • Console connections: 1 • PC port connectors: • PC port connectors: - 2 x PS/2 (keyboard, mouse) - Page 8 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
