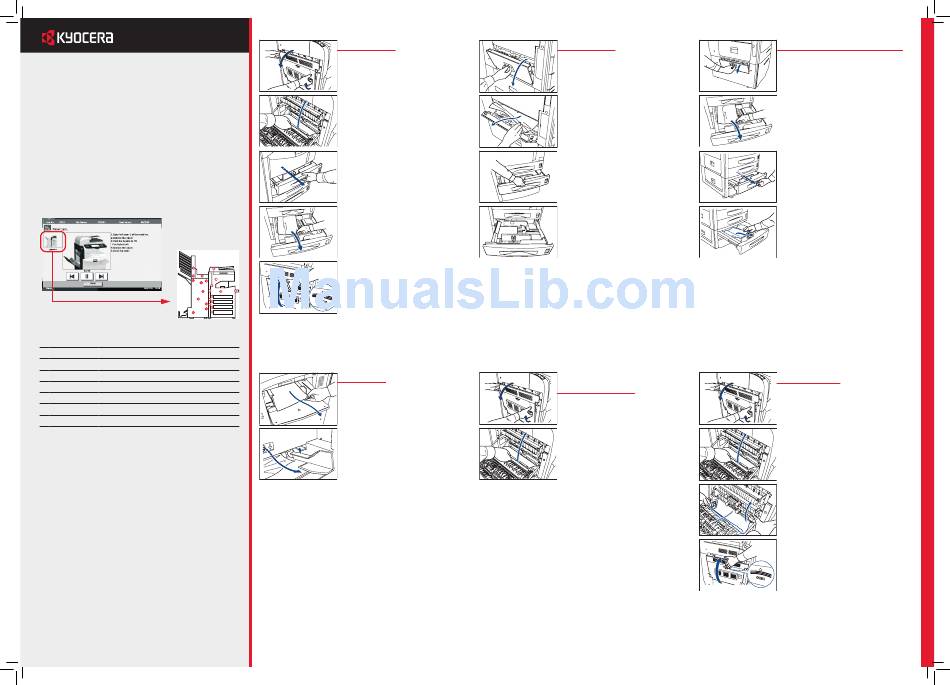

KM-3050/4050/5050

Clearing Paper Jams

If a paper jam occurs, the touch panel will display Paper misfeed
and the machine will stop. Refer to these procedures to remove
the jammed paper.

Jam Location Indicators

If a paper jam occurs, the location of the jam will be displayed by
the alphabet, which corresponds to the specific component in the
machine as the following figure with clearing instructions.
Location
Paper Jam
Indicator
Location
A
Cassette 1
B
Cassette 2
C
Cassette 3 or 4 (Option)
D
MP Tray
E
Inside the left cover 1, 2 or 3
F
Duplex unit
G
Document Processor (Option)

Precautions of the Paper Jam

Do not reuse jammed papers.
If the paper tears during removal, be sure to remove any loose scraps
of paper from the machine inside. Scraps of paper left in the machi-
ne could cause subsequent jamming.
Discard the paper that jammed in the optional document finisher
or 3,000-sheet capacity document finisher. The page which jam has
occurred will be printed again.
CAUTION
Never use sharp tools like knifes, screwdrivers or cutters to
clear paperjams. Be aware of rings or watches as well.
CAUTION
Do no store paperclips or staples on any device.
CAUTION
High voltage is present in the charger section. Take suffi-
cient care when working in this area, as there is a danger of electrical
hock.
CAUTION
The fixing unit of this product is extremely hot. Take
sufficient care when working in this area, as there is a danger
of getting burned.
A Cassette 1
Pull up left cover 1 lever and open left
cover 1.
Remove the jammed paper.
Pull out cassette 1.
Remove the jammed paper. If the paper
tears, remove every loose scrap from
inside the machine.
Push cassette 1 back in place securely.
Press the specified position to close left
cover 1.
D MP Tray
Remove all papers from the MP Tray.
If a paper is jammed inside, lift the lever
to remove the paper.
B Cassette 2
Open left cover 2.
Remove the jammed paper.
Pull out cassette 2.
Remove the jammed paper.
If the paper tears, remove every loose
scrap from inside the machine.
Push cassette 2 back in place securely.
Close left cover 2.
E Inside the Left
Covers 1, 2 and 3
Open the left cover where the paper is
jammed inside.
Remove the jammed paper.
If the paper tears, remove every loose
scrap from inside the machine.
Close the left cover.
C Optional Cassettes 3 and 4
Open left cover 3.
Remove the jammed paper.
If the paper tears, remove every loose
scrap from inside the machine.
Pull out the cassette in use.
Remove the jammed paper.
Push the cassette back in place securely.
Close left cover 3.
F Duplex Unit
Pull up left cover 1 lever and open the
left cover.
Remove the jammed paper.
Lift the duplex unit and remove the
jammed paper.
Press the specified position to close left
cover 1.
