Smartech 083420 User Manual

1:8 scale off-road buggy
Hide thumbs

Advertisement

Quick Links

Download this manual

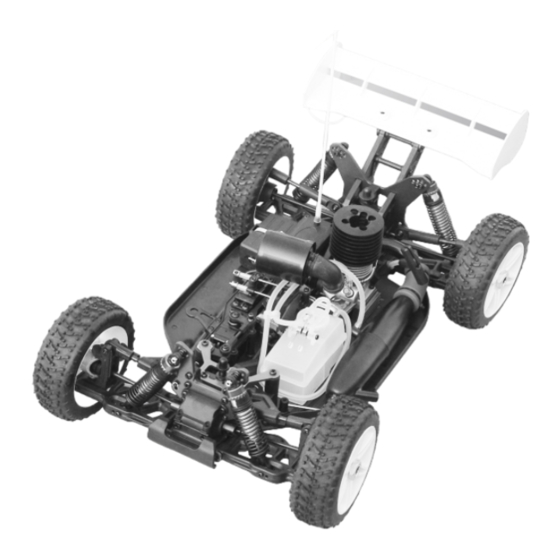

1:8 SCALE OFF-ROAD BUGGY
SMARTECH MODEL
Item No.: 083420
FEATURES
Assembled Chassis, ready to run.
Powerful engine equipped with slide carburetor and pull-starter.
Excellent perfromance muffler and air-filter.
Four wheel drive system with deceleration.
Metal Differential bevel gear F/R.
Standard fuel tank 125cc
Adjustable aluminum shock absorber (4pcs).
Aluminum Chassis.
Disc brake system.
Full stainless steel ball bearing set.
The contents are subjust to changes without
notice due to product improvements and
specification changes.

Advertisement

loading

Related Manuals for Smartech 083420

Summary of Contents for Smartech 083420

  • Page 1 1:8 SCALE OFF-ROAD BUGGY SMARTECH MODEL Item No.: 083420 FEATURES Assembled Chassis, ready to run. Powerful engine equipped with slide carburetor and pull-starter. Excellent perfromance muffler and air-filter. Four wheel drive system with deceleration. Metal Differential bevel gear F/R. Standard fuel tank 125cc Adjustable aluminum shock absorber (4pcs).

  • Page 2: Tools Needed For Assembly

    Notice before assembly Tools needed for assembly The following tools are needed for assembly. You must buy them from the local hobby shops apart from the kits we provided. Please read and comprehend this instruction manual before assembly. 1.5m/m Hobby Knife 2m/m 2-Channel Transmitter system 2.5m/m...

  • Page 3: Troubleshooting

    TROUBLE SHOOTING OPERATTION PRECAUTION Problems Solutions Causes Warning: Never run your model on following conditions! Unobserved operations could cause accidents. 1. No fuel in the tank or the carburetor. 1. Fill the tank with fuel, and press prime button. - on roads or railways 2.
  • Page 4 Item No.: 083420 1:8 SCALE OFF-ROAD BUGGY Differential Box Diagram F/R 183106 183106 183106 183215 183215 183106 183106 960007 183102 183103 183103 183106 183215 183102 183215 183215 183103 183215 960007 183103 183101 - 3 -...
  • Page 5 Differential Oil - 4 -...
  • Page 6 1:8 SCALE OFF-ROAD BUGGY Item No.: 083420 Center Diff. Box Diagram 183104 183104 183215 183215 183104 183104 183104 960007 183102 183102 183215 183104 183103 183215 183103 183215 183215 183103 183103 960007 183105 - 5 -...
  • Page 7 Differential Oil - 6 -...
  • Page 8 Item No.: 083420 1:8 SCALE OFF-ROAD BUGGY Center Diff. Box Assembly Diagram 183108 183108 183114 183109 183108 183108 910015 183114 183114 183108 183113 183114 183112 183111 183110 183111 183111 183112 183108 - 7 -...
  • Page 9 502 Glue - 8 -...
  • Page 10 Item No.: 083420 1:8 SCALE OFF-ROAD BUGGY Steering Diagram 960008 183124 183123 910147 960008 183125 183139 183123 183121 183121 183139 180019 920003 180019 183139 183124 183139 920003 183139 183122 180019 - 9 -...
  • Page 11 - 10 -...
  • Page 12 1:8 SCALE OFF-ROAD BUGGY Item No.: 083420 Body Diagram (Front) 920006 910101 183107 183149 183169 183131 183126 910013 183157 183129 183142 910090 183128 910090 183138 183106 180020 183189 183128 183129 183155 183132 960007 183130 183126 183138 180016 183172 183157 183131...
  • Page 13 Glue - 12 -...
  • Page 14 1:8 SCALE OFF-ROAD BUGGY Item No.: 083420 Body Diagram (Rear) 183172 910152 960007 180020 910101 183147 183157 910091 183169 910090 180018 183136 183213 183213 183141 183151 183172 920003 183155 183142 183189 183143 910013 183126 910147 183143 920006 183143 183106 183137...
  • Page 15 Thread Lock - 14 -...
  • Page 16 - 15 -...
  • Page 17 1:8 SCALE OFF-ROAD BUGGY Item No.: 083420 Chassis Diagram 910049 920003 910013 920003 183146 183146 183145 910089 183154 183154 910147 183148 910200 183199 183127 910067 910147 910197 910065 910067 910067 910065 910065 910197 - 16 -...
  • Page 18 - 17 -...
  • Page 19 - 18 -...
  • Page 20 Item No.: 083420 1:8 SCALE OFF-ROAD BUGGY Fittings Diagram 183165 910200 183165 910058 183165 183165 183144 - 19 -...
  • Page 21 - 20 -...

  • Page 22: Engine Diagram

    Item No.: 083420 1:8 SCALE OFF-ROAD BUGGY Engine Diagram 163070 163070 163070 180004 180005 183190 910097 180014 180006 183190 180006 180005 180011 163070 163070 180024 180004 180011 180025 183166 083121 180012 180013 180011 180022 - 21 -...
  • Page 23 - 22 -...
  • Page 24 - 23 -...
  • Page 25 1:8 SCALE OFF-ROAD BUGGY Item No.: 083420 Servo Diagram 183116 183116 910043 183117 183116 183116 183117 910043 183116 910147 183115 183115 183117 183117 183118 183117 183120 180019 183115 920003 183115 - 24 -...
  • Page 26 10-1 10-2 10-3 10-4 10-5 10-6 - 25 -...

  • Page 27: Receiver Diagram

    Item No.: 083420 1:8 SCALE OFF-ROAD BUGGY Receiver Diagram 183119 183119 183119 183119 910058 910147 - 26 -...
  • Page 28 11-2 11-1 11-3 11-4 11-5 11-6 - 27 -...
  • Page 29 1:8 SCALE OFF-ROAD BUGGY Item No.: 083420 Shock Absorber Diagram 183162 183163 183162 183161 183162 183161 183161 183161 183161 183164 183164 183161 183163 180021 183162 183163 183161 - 28 -...
  • Page 30 12-1 12-2 12-3 Move the shaft up and down several Make sure that the times, then let it sit oil is bubble free for few minutes to before fastening get rid of air bubbles. the cap. Shock Absorber Oil 12-5 12-6 12-4 - 29 -...
  • Page 31 1:8 SCALE OFF-ROAD BUGGY Item No.: 083420 Body Diagram 180003 180002 183159 183160 180002 183158 920003 910085 - 30 -...
  • Page 32 13-1 13-2 13-2 13-3 13-4 - 31 -...
  • Page 33 Part list of 083420 Off-Road Buggy (1) 183215- x 1 set 183101- x 2 pcs 183102- x 1 set 183103- x 1 set 183217- x 1 set Differential Bevel Gear Set Differential Outdrive Differential Shaft Set Differential Shell Set Steel Center Differential Gear w/...
  • Page 34 Part List of 083420 Off-Road Buggy (2) 183120- x 1 set 183121- x 1 set 183122- x 2 set 183123- x 2 set 183124- x 1 set Transponder Mount Steering Arm Set Steering Shaft Steel Steering Screw Set Servo Savor Column...
  • Page 35 Part List of 083420 Off-Road Buggy (3) 183140- x 1 pc 183141- x 1 pc 183142- x 1 set 183143- x 1 set 183144- x 1 set Toe-in Block 3 Degree Toe-in Block 2 Degree Hinge Pin Set Wing Mount...
  • Page 36 Part List of 083420 Off-Road Buggy (4) 183160- x 2 set 183161- 1 set 183162- x 4 set 183163- x 2 set 183164- x 2 set Shock Absorber (Short) Shock Service Kit Shock Absorber Fittings Shock Absorber Cylinder Set Shock Spring...
  • Page 37 Part List of 083420 Off-Road Buggy (5) 180024- x 1 pc 163070- 1 set 163071- x 1 set 180012- x 3 pcs 180013- x 3 pcs Engine 21CX Air Filter Set Air Foam Set Clutch Shoe Clutch Spring 180014- x 1 pc...
  • Page 38 Part List of 083420 Off-Road Buggy (6) 910152- x 6 pcs 910065- x 6 pcs 910067- x 6 pcs 910147- x 6 pcs 910085- x 6 pcs Round Head Screw ISO 3*18 Flat Head Screw M4*10 Flat Head Screw TPF 4*18...
  • Page 39 Part List of 083420 Off-Road Boggy (7) 910043- x 6 pcs 910041- x 6 pcs 920001- x 6 pcs 920003- x 6 pcs 920006- x 6 pcs Button Head Screw TT 3*10 Button Head Screw TT 3*6 Nylon Locknut M2.5...
  • Page 40 Upgrade Part List of 083420 (1) 183302- x 1 pc 183303- x 1 pc 183304- x 1 set 183318- x 1 set 183308- x 1 pc Clutch Shell 14T Center Differential Steel Gear Upper Plate Post Hub Carrier Rear Rear Lower Susp. Mount...
  • Page 41 Upgrade Parts List of 083420 (2) 183326- x 1 pc 183327- x 1 pc 183328- x 1 pc 183333- x 1 set 183334- x 2 pcs Chassis Pinion Gear 13T Steel Diff. Gear 43T Anti-Roll Bar F/R Washer for Wing...
