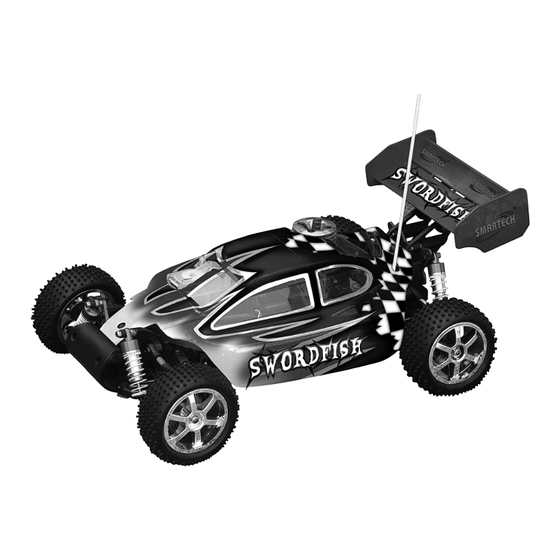

1:10 SCALE 4WD RACING CAR
ITEM NO.:103411
TECHNICAL DATA
Length
Width
Height
Wheelbase
Tread(F/R)
Wheel Diameter
Gear Rate
Weight
Engine
Our company reserves the right to change or modify this manual without notice.
420mm
245mm
180mm
268mm
240/245mm
108*53mm
88*41mm
8.4:1
1900g
15CXP
Instruction Manual
FEATURES:
DISC BRAKE SYSTEM
15CXP ENGINE WITH PULL STARTER
EQUIPPED WITH EXHAUST PIPE AND AIR
FILTER
TRANSMISSION AND 4WD SYSTEM
OIL FILLED SHOCK ABSORBER
FRONT/REAR DIFF. BEVEL GEAR
80CC FUEL TANK WITH PRIMER BUTTON
WWW.SMARTECHRACING.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 103411 and is the answer not in the manual?

Questions and answers

Related Manuals for Smartech 103411

Summary of Contents for Smartech 103411

  • Page 1 Instruction Manual 1:10 SCALE 4WD RACING CAR ITEM NO.:103411 FEATURES: TECHNICAL DATA DISC BRAKE SYSTEM Length 420mm 15CXP ENGINE WITH PULL STARTER Width 245mm EQUIPPED WITH EXHAUST PIPE AND AIR Height 180mm FILTER Wheelbase 268mm Tread(F/R) 240/245mm TRANSMISSION AND 4WD SYSTEM...
  • Page 2 NOTICE The following items are needed for assembly. You must buy them from the local hobby shops apart from the kits we provided. please read this instruction manual carefully before operation. Additional tools needed to buy Tool needed for assembly 1.5 mm 2 mm Hobby knife...

  • Page 3: Troubleshooting

    TROUBLE SHOOTING Problems Reasons Solutions 1. Fill the tank with fuel and press prime button. 1. No fuel in tank or in carburetor. 2. replace a new spark plug or charge the portfire. 2. The spark plug is damaged, or the port fire 3.
  • Page 4 1. Adjust carburetor Please read the instructions carefully before staring engine. Before staring Carburetor is already prepared in standard and not required to adsjust Readjust according to user’s requirement 1-1.5mm Main needle calibrating screw Opening (rich) Opening (rich) Closing (lean) Closing (lean) Decreasing RPM unscrewing...

  • Page 5: Starting Engine

    4. Adjust micro adjusting screw Micro adjusting screw Low/middle RPM is adjusted with trimming needle. For the first drive, try to run as set. Stop driving, and the neutral tends to stop… finally to stoppage, adjust trimming needle to continue. Pay attention to balancing for adjusting both main and trimming needles Closing (lean) Note: When needles are changed, be sure to remember the...

  • Page 6: Adding Fuel

    3. Adding fuel Use the special fuel for the model. After filling, please fasten the cover of the fuel tank. 4. Chock button Send the fuel into the inlet of carburetor by pushing chock button. Push the button twice more until fuel reaches the gate.

  • Page 7: Stopping Engine

    6. Over choked Engine cylinder is flooded with fuel, plug is wet and recoil starter is heavy, remove plug/pull recoil starter for 20-30 times to discharge the fuel. 7. Stopping engine Placing neutral position, remove air cleaner and turn off air intake opening .
  • Page 8 Front and Rear Diff. (Builds two differentials for front and rear) ① ③ 103080 ② ④ Grease Tighten the Diff. screw as shown. 103080 (E2.5) 103080 103042 103079 103100 103082 103080 ×1 ×2 Diff. bevel gear Bearingφ15*φ10*4 103079 axle 103100 (TPF2*8) ×3 ×2...

  • Page 9: Rear Gear Case

    Rear Gear Case TPF3*10 ×6 103104(TPF3*10) 103105(TPF3*10) Centre Decrease Mount ISOH4*3 ×1 103077(M3*3) E-clip φ4 ×2 103036 103101 103077 ×1 ISOH4*3 103083(M4*3) ISOH4*4 ×1 103123 103123（TPF3*32） Washer Φ0.2*Φ5.08*9 ×3 103084（M4*4） TPF3*32 ×2 103117 103087 TM3*16(1/2) ×2 (TM3*16) ② Pin Φ2*9.6 ×1 103083 103104...
  • Page 10 Front Susp. Arm Mount (L&R) 103028 103028 103037 103070 103068 103070 103068 103038 103038 103037 (M3*12) 103039 240076 103023(71.3mm) M3*12 103023(71.3mm) 103067 103041 103067 240076 103069 (TT3*12) 103068 103038 103068 (M3*12) (E2.5) 103039 (M3*12) 103041 14MM E-clip φ2.5 Pin Φ2*9 ×2 ×6 Bearing φ10*φ5*4...

  • Page 11: Rear Shock Absorber Assembly

    F&R Shock Absorber Unit Front Shock Absorber 2PCS Rear Shock Absorber 2PCS 0-1MM 103033 103034 Bubble 103034 103033 103033 103034 （E2.5） （E2.5） To remove air bubbles, 18MM move the positon 103034 upper and down slowly. 103033 103034 103033（P3） （P3） 103034 103033 103034 E-clip φ2.5...

  • Page 12: Fuel Tank Assembly

    Front Steering Bumper Mount 103089(TM3*12) 103030 103022（TM3*16） 103072 (TM3*10) 103072 103089 103022 103022 （TM3*16） 103030 103022（M3） 10MM 103030 103089 103030 103022（M3） 103030(ISO3*12) (E5.0) E-clip φ5 ×1 TT3*10 X1 TT3*10 X1 103030 TM3*16(1/2) TPF3*10 ×2 ×2 Fuel Tank Assembly O Ring P3 X1 ORing P4 TT3*6 ②...
  • Page 13 Upper Floor 103043（M3*3） TT3*10 X8 103043（PB2*10） 103110（TT3*10） 103043（M3*3） ISO2*10 ×2 103043 103043 PB2*10 ×1 103044 ×2 PB2.6*6 10310（TT3*10） ISOH3*3 ×2 103115 103115 （TPB2.6*6） 103115 （3KG） 103110（TT3*10） 301030 103115（3KG） 103115 103115 （PB2.6*6） 104024 ① 104024 ① ② 104024 103110 301030 ② 104024 Upper Floor Assembly 10MM...

  • Page 14: Engine Part

    Engine Part 103064 103047 103045 103064 103119 103046 103051 103046 103049 103065 103066 103063 ISOO3*30 X2 M3 NYLON NUT x2 ISOO3*8 Spring Washer Clip φ3.2*φ8*0.5 TT3*15 X2 ② Clip φ5.1*φ10*1.0 ISOH4*4 ×1 E-clip φ7 Engine Assembly TM3*10 X4 103107 ISO3*8 X4 ISO3*10 X1 103063 M3 NYLON NUT x5...
  • Page 15 Front and Rear Tires Assembly 103056 103056（M4） 103057 103057（M4） M4 NYLON NUT x4 Car Body Assembly ⑥ ① ② ③ ③ ④ ⑤ ⑧ ⑥ ⑦ ⑤ ②...
  • Page 16 103411 PART LIST (1) 103010-Rear Lower Susp. Arm 103011-Rear Constuction Wall 103013-Front Bumper 103111-Front Gear Box Unit TT3*12 TT3*12 TPF3*10 103014-Choke Plate Mount 103015-Rear Brace Mount 103122-Wing Mount 103112-Rear Gear Box Unit （L&R） (L&R) ISO3*16 Car Body Pin M3 NUT...
  • Page 17 103411 PART LIST (2) 103033-Front Shock Absorber 103034-Rear Shock Absorber 103035-Susp. Arm Axle 103036-Brake lever Bumper Tube Bumper Tube φ2.5 TT3*15 TT3*15 X2 E-Clip 103037-Lower Susp. Shaft 103038-Axes Of Front Linker 103039-Wheel Shaft 103125-Front Joint Plate (L&R) TM3*10 φ2.5 φ2.5...
  • Page 18 103411 PART LIST (3) 103055-Anttena x4 pcs 103056-Rear Wheel Unit 103057-Front Wheel Unit 103058-Front Rim TT3*10 M4 NYLON NUT x2 M4 NYLON NUT x2 103059-Rear Rim 103060-Rear Tire 103061-Front Tire 103062-Engine Holder ISO3*8 x4 M3 NYLON NUT x4 103063-Iron Brace...
  • Page 19 103411 PART LIST (4) 103079-Steering Gear (Female) 103080-Diff.Gear (L) 103081-Driving Gear(Accessory) 103082-Diff. Gear (S) 103106-Fuel Tank Unit 103083-Universal Outdrive B 103084-Universal Outdrive C 103107-Silicon Oil Pipe TPF3*10 103087-Brake Caliper 103123-玻纤Cross Bar 103089-Tie Rod 103090-Tie Rod TPF3*32 ISO3*12 TM3*12 103105-Front Gear Box (F&R) 103100-Diff.
  • Page 20 103122 103056 083071 103108 103017 103016 103014 103071 103016 103014 103055 103043 103029 103015 103026 103035 103041 103010 103039 103115 103037 103020 103109 103020 103023 103020 103035 103010 103037 103034 103037 103010 103110 103109 103056 103035 103011 103029 103011 103115 103027 103037 103089...
